PJ1173

HIGH BRIGHTNESS MULTIMEDIA PROJECTOR WITH OPTIONAL LENSES

Sales Enquiry

GALLERY

Versatile flagship projector

The ViewSonic® PJ1173 delivers maximum impact for large-venue presentations. With 5200 LUMENS and 1000:1 contrast ratio (typ.), this PREMIUM PROJECTOR with optional lenses is ideally suited for larger conference rooms, lecture halls, religious institutions and boardrooms. The PJ1173 is fully-featured with a native XGA 1024 x 768 resolution, advanced image processing, manual lens shift, and horizontal and vertical (auto) keystone correction for perfect images. Network connectivity allows you to REMOTELY CONTROL AND MANAGE THE PROJECTOR and the 4 x 4-watt SRS® WOW STEREO SPEAKERS give your presentations powerful sound. An intelligent built-in movement detector will lock the projector if its position is changed and thereby guard against theft and unauthorised use. The PJ1173 is the fully-featured choice for the most demanding presentation situations and smooth video entertainment in large venues.

SPECIFICATIONS

COLORS
Black
LCD
Type: 3 x 0.8” Poly-Si TFT with Micro Lens
Resolution: 1024 x 768 XGA native, (max. 1600 x 1200 UXGA compressed)
Lens: Manual zoom, manual focus, manual lens shift
Zoom Factor: 1.2 (F = 1.7–1.9/f = 24.3mm–29.2mm)
Digital Keystone: Vertical ± 40º, horizontal ± 20º
COMPATIBILITY
PC: Analogue: VGA up to UXGA (compressed) , 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred

DIMENSIONS
Physical (mm): 418 x 139 x 319
W x H x D mm: 555 x 244 x 478
REGULATIONS
UL/C-UL, FCC B, GS, CB, CE, C-Tick, NOM, GOST, Hygienic, Ukraine, ROHS, WEEE
PACKAGE CONTENTS
Projector, power cables, VGA cable, AV cable, remote control, batteries, lens cap, Quick Start Guide (12 languages), ViewSonic Wizard CD (User guide)
(multi-language)
AUDIO
Speaker: 4 x 4-watt with SRS® WOW technology (virtual surround-sound)
INPUT SIGNAL
Frequency: Fh: 31–92kHz; Fv: 56–120Hz
Video: NTSC M(3.58MHz), 4.43MHz, PAL (B, D, G, H, I, M, N), SECAM , SD (480i/576i),
ED (480p/576p), HD (720p/1080i).

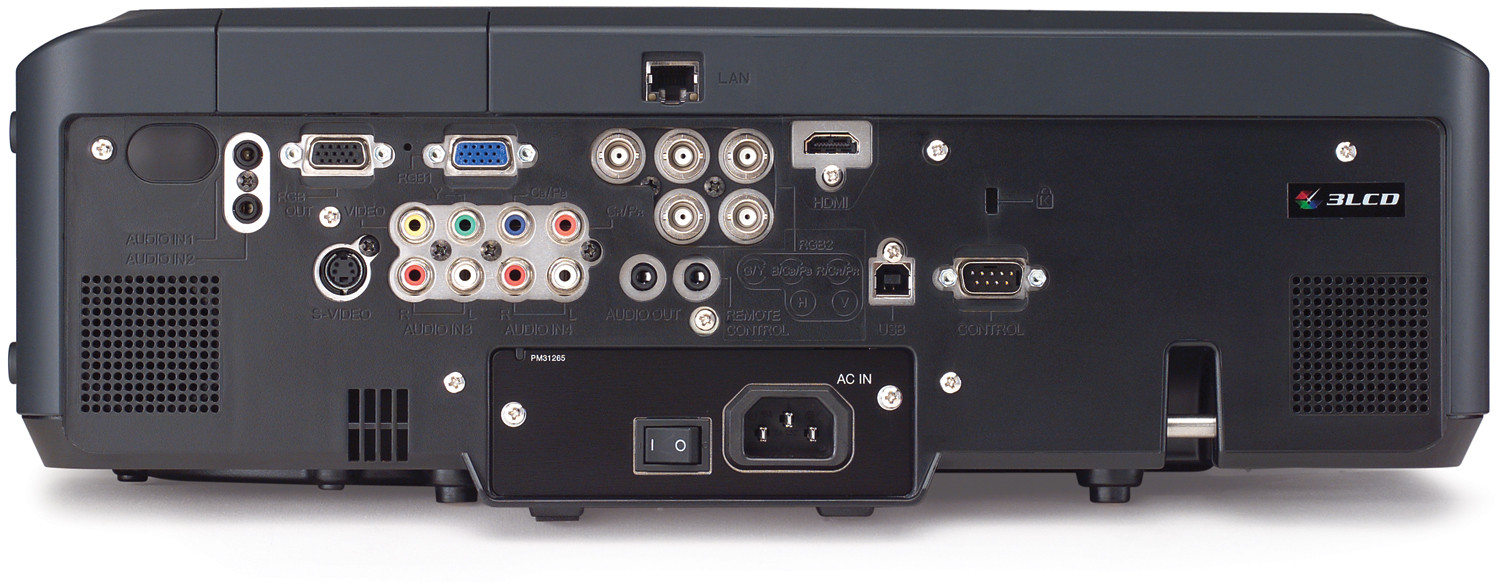

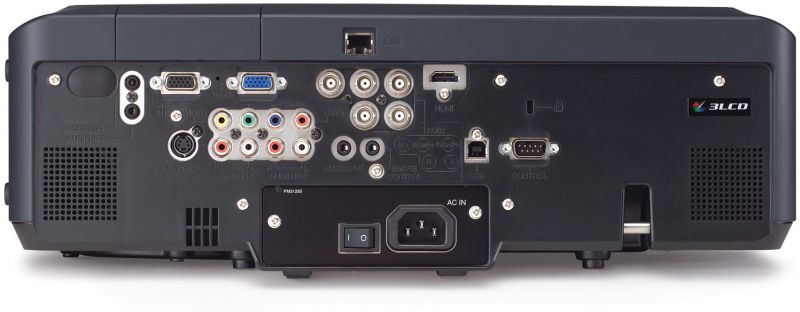

CONNECTOR
Digital: 1 x HDMI 1.3
Audio Out: 1 x 3.5mm stereo mini jack
Integrated into universal digital M1-D connector
Network: 1 x RJ-45
PC RGB Input: 2 x 15-pin mini D-sub
Composite Video Input: 1 x RCA jack
PC RGB Output: 1 x 15-pin mini D-sub
Audio Input: 2 x 3.5mm stereo mini jack (for PC), 2 x RCA set L/R jack (for video)
Control: 1 x 9-pin D-sub RS-232
USB: (Type B for mouse control only)
RGB-BNC: BNC-5 (x1 set)
POWER
Voltage: AC 100-240V, 50/60Hz (auto switch)
Consumption: 460W (<15W in standby)
CONTROLS
OSD: Brightness, Contrast, Gamma, Color Temp, Color, Tint, Sharpness, Active Iris, My Memory, Aspect, Over Scan, V position, H position, H Phase, H size, Auto Adjust Execute, Progressive, Video NR, 3D-YCS, Color Space, Component, Video Format, HDMI, Frame Lock, RGB IN, Resolution, Auto Keystone Execute, Keystone V, Keystone H, Whisper, Mirror, Volume, Treble, Bass, SRS
WOW, Speaker, Audio, HDMI Audio, Language, Menu Position, Blank, Startup, Myscreen, Myscreen Lock, Message, Source Name, Auto Search, Auto Keystone, Auto On, Auto off, Lamp time, Filter Time, My Button, Service (Fan Speed, Auto Adjust, Ghost, Filter Message, Lens Type, Key Lock, Remote Receiv,
Remote FREQ., Information, Factory Reset), Security (Security password change,
Myscreen password change, PIN Lock, Transition Detector, My Text Password, My Text Display, My Text Writing), Network (DHCP, IP address, Subnet mask,
Default gateway, Time difference, Date and time, e-shot, Information, Service)
OPERATING CONDITIONS
Temperature: 5°C–35°C
Humidity: 10%–85% (non condensation)
WEIGHT
Net: 7.1kg
Gross: 11.6kg
DISPLAY
Contrast Ratio : 1000:1
Display size: 30”–350” (0.76m–7.62m) (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.9m–13m
Throw Ratio: 1.5~1.8:1
Lamp type: 275W UHB, 2000/3000 hours
Brightness: 5200 ANSI lumens (typ.)
NOISE LEVEL
Normal: 35dB (typ.)
Eco-mode: 29dB (typ.)
OTHER
Auto off and on, short throw optics, 7 picture modes ynamic, Cinema,
Normal, Whiteboard, Board [Black/Green], Daylight), full function remote control with laser pointer, magnify & freeze function, progressive scan, 3:2 pull down, advanced video noise filters, overscan correction, digital gamma correction, customizable startup logo/remote buttons and projection settings
