PJ1158

HIGH BRIGHTNESS MULTIMEDIA PROJECTOR WITH KEYSTONE CORRECTION

Sales Enquiry

GALLERY

Easy to use, easy to afford

The ViewSonic® PJ1158 delivers maximum impact for large-venue presentations. With 4000 LUMENS and 1300:1 contrast ratio (typ.), this PREMIUM PROJECTOR with optional lenses is ideally suited for conference rooms, lecture halls, religious institutions and boardrooms. The PJ1158 is fully-featured with a native XGA 1024 x 768 resolution, advanced image processing, manual lens shift, and horizontal and vertical (auto) keystone correction for perfect images. Network connectivity allows you to REMOTELY CONTROL AND MANAGE YOUR PRESENTATIONS and the 4 x 4-watt SRS® WOW STEREO SPEAKERS give your presentations powerful sound. The security bar and PIN lock guard against theft and unauthorised use. The PJ1158 is the fully-featured choice for dynamic presentations and smooth video entertainment in large venues.

SPECIFICATIONS

COLORS
Black
LCD
Type: 3 x 20mm(0.8") P-Si TFT active matrix with MLA
Resolution: 1024 x 768 XGA native, (max. 1600 x 1200 UXGA compressed)
Lens: Manual zoom, manual focus, manual lens shift (TBA)
Zoom Factor: 1.2 (F = 1.7–2.1/f = 24.3mm–29.2mm)
Digital Keystone: Vertical ± 40º, horizontal ± 20º
COMPATIBILITY
PC: Analogue: VGA up to UXGA (compressed) , 1024 x 768 @ 60Hz preferred
Mac®: Analogue: up to SXGA (scaled), 1024 x 768 @ 60Hz preferred

DIMENSIONS
Physical (mm): 418 x 139 x 319 (physical)
W x H x D mm: 555 x 244 x 478 (packaging)
REGULATIONS
CE, CB, GS, GHOST, UL60950, C-UL, FCC B, C-Tick, NOM, CCC, PSB,
WEEE, RoHS
PACKAGE CONTENTS
Projector, power cables, VGA cable, AV cable, remote control, batteries, lens cap, Quick Start Guide (multi-language), ViewSonic Wizard CD (User guide) (multi-language)
AUDIO
Speaker: 4 x 4-watt with SRS® WOW technology (virtual surround-sound)
INPUT SIGNAL
Frequency: Fh: 31–92kHz;
Fv: 56–120Hz
Video: RGB analogue, NTSC M, NTSC 4.43, PAL, SECAM,
SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

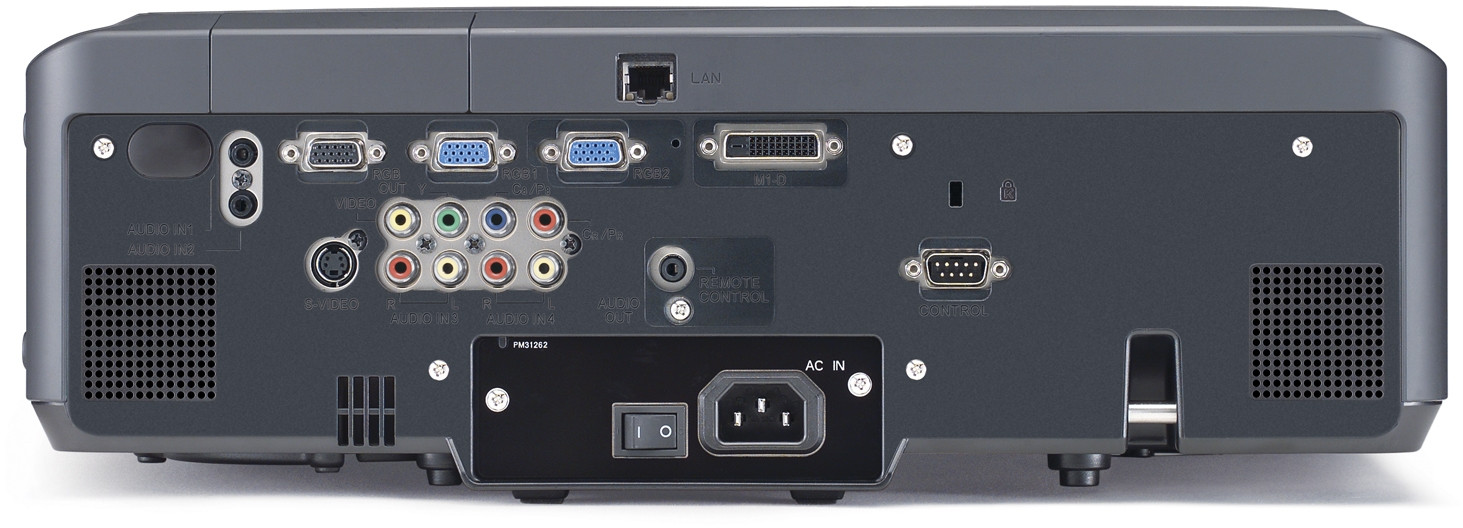

CONNECTOR
Digital: 1 x M1-D (DVI plus USB support)
Audio Out: 1 x 3.5mm stereo mini jack
Network: 1 x RJ-45
PC RGB Input: 2 x 15-pin mini D-sub
Composite Video Input: 1 x RCA jack
Component Video Input: 1 x RCA set (YPbPr)
PC RGB Output: 1 x 15-pin mini D-sub
Audio Input: 2 x 3.5mm stereo mini jack (for PC), 2 x RCA set L/R jack (for video)
Control: 1 x 9-pin D-sub RS-232
USB: Integrated into universal digital M1-D connector (for mouse control)
S-Video: 1 x 4-pin mini-DIN
POWER
Voltage: AC 100-264V, 50/60Hz (auto switch)
Consumption: 460W (typ)
CONTROLS
Basic: Stand-by, menu, input, reset, H/V keystone correction, search,
focus, zoom, volume
OSD: Language, colour balance (R, G, B), sharpness, colour, tint, H/V position, H phase, H size, overscan, colour space, component 3-D-YCS, video NR, power up input, information, S2-aspect, adjust, power off, power on, search, blank, start up, My screen, My screen size, My screen lock, auto off, audio (volume, speaker, mute), menu position, message
OPERATING CONDITIONS
Temperature: 5°C–35°C
Humidity: 10%–85% (non condensation)
WEIGHT
Net: 7.1kg
Gross: 11.6kg
DISPLAY
Contrast Ratio : 1300:1
Display size: 0.8m - 7.6m (30" - 300") (Diagonal)
Aspect Ratio: 4:3 (native), 16:9
Throw Distance: 0.9m–13m
Throw Ratio: 1.5~1.8:1
Lamp type: 285W UHB, 2000/3000 hours¹
Brightness: 4000 ANSI lumens (typ.)
NOISE LEVEL
Normal: 36dB (typ.)
Eco-mode: 30dB (typ.)
OTHER
Lens shift, progressive scan, PIN lock, network control, anti-theft security bar, daylight mode, 16-watt speakers, optional lenses
