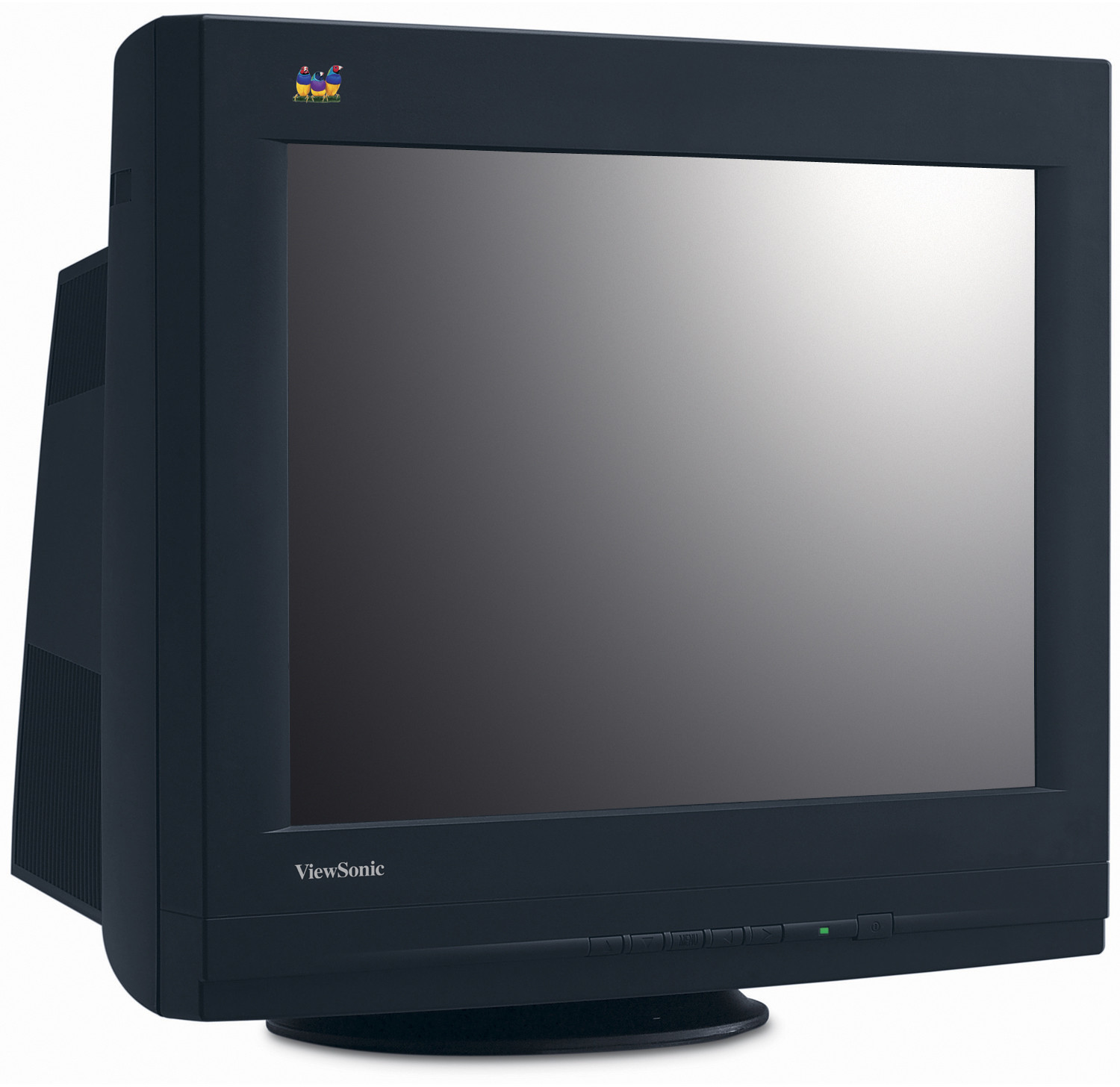

P227fb

21” CRT MONITOR WITH PERFECTFLAT™

Sales Enquiry

GALLERY

OVERVIEW

Top professional users searching for an extremely powerful yetaffordable 21" monitor with superior image quality shouldlook no further than the P227fb from ViewSonic. Thanks to itshigh resolution and impressive refresh rates as well as ultra-fine0.25 mm dot pitch, the model convinces with an absolutelyprecise picture from edge-to-edge in rich, true-to-life colour.For optimal viewing, more than 20 image parameters can beindividually adjusted. The completely flat (PerfectFlat) screen andARAG anti-glare treatment effectively minimise reflections, toreduce eyestrain and increase productivity.

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
PC: PC and compatible (from VGA up to 2048 x 1536)
Mac®: Power Mac™ (from VGA up to 2048 x 1536)
DIMENSIONS
Physical (WxHxD): 501mm (W) x 503mm (H) x 477mm (D)

REGULATIONS
TCO’03, TÜV/GS, TÜV/Ergo, CE, CB, UL, cUL, DHHS, FCC-B, ICES-003,
BSMI, CCC, Argentina-TÜV/S, SASO, GOST-R, PSB, NOM, C-Tick, EPA
Energy Star Y2005 tier1, RoHS
INPUT SIGNAL
Frequency: Fh: 30 - 130kHz, Fv: 50 - 160Hz
Video: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL), composite, sync on green
CONNECTOR
Signal: 15-pin mini D-sub, BNC x 5 (RGBHV)
Power: 3-pin plug (IEC320)
POWER
Voltage: AC 90 - 264V, 50/60Hz (+/- 2Hz) (auto switch)
Consumption: 125 Watt (typ.), < 2 Watt in power save mode
CONTROLS
Basic: Power on/off, menu, up, down, right, left
OSD: Auto calibrate, language, input select (D-sub, BNC), zoom, H/V position,
H/V size, side curve, pincushion, pin balance, trapezoid, parallelogram,
tilt, H/V moiré reduction, H/V-convergence, purity, ViewMatch® colour
(sRGB, 9300k, 6500k, 5000k, smart mode, professional mode), degauss,
preset to factory setting, H/V OSD position, OSD lock
WEIGHT
Net: 26.4kg
VIDEO INPUT
Bandwidth: 360MHz (typ.)
POWER MANAGEMENT
Meets TCO'03 and Energy Star™ standards
ERGONOMICS
Tilt: Down 5°, up 20°

Swivel:180°(90° left/right)
CRT
Type: 21” (20” viewable) CRT, 90° deflection, PerfectFlat™
Dot Pitch: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
Phosphor: RGB medium-short persistence P22
Glass Surface: Tint (TM ~ 54.5%), ARAG® screen treatment
MISCONVERGENCE
0.25mm (max.) at centre

0.35mm (max.) at corner
PROGRAMMABLE MODES
Factory: 12
User: 12
DISPLAY AREA
Factory Setting: 392mm (H) x 294mm (V) (typ.)
Maximum Scan: 410mm (H) x 300mm (V) (depending on signal timing used)
OPERATING CONDITIONS
Humidity: 5% to 95% (non condensation)
Temperature: 0°C to 40°C
