OVERVIEW

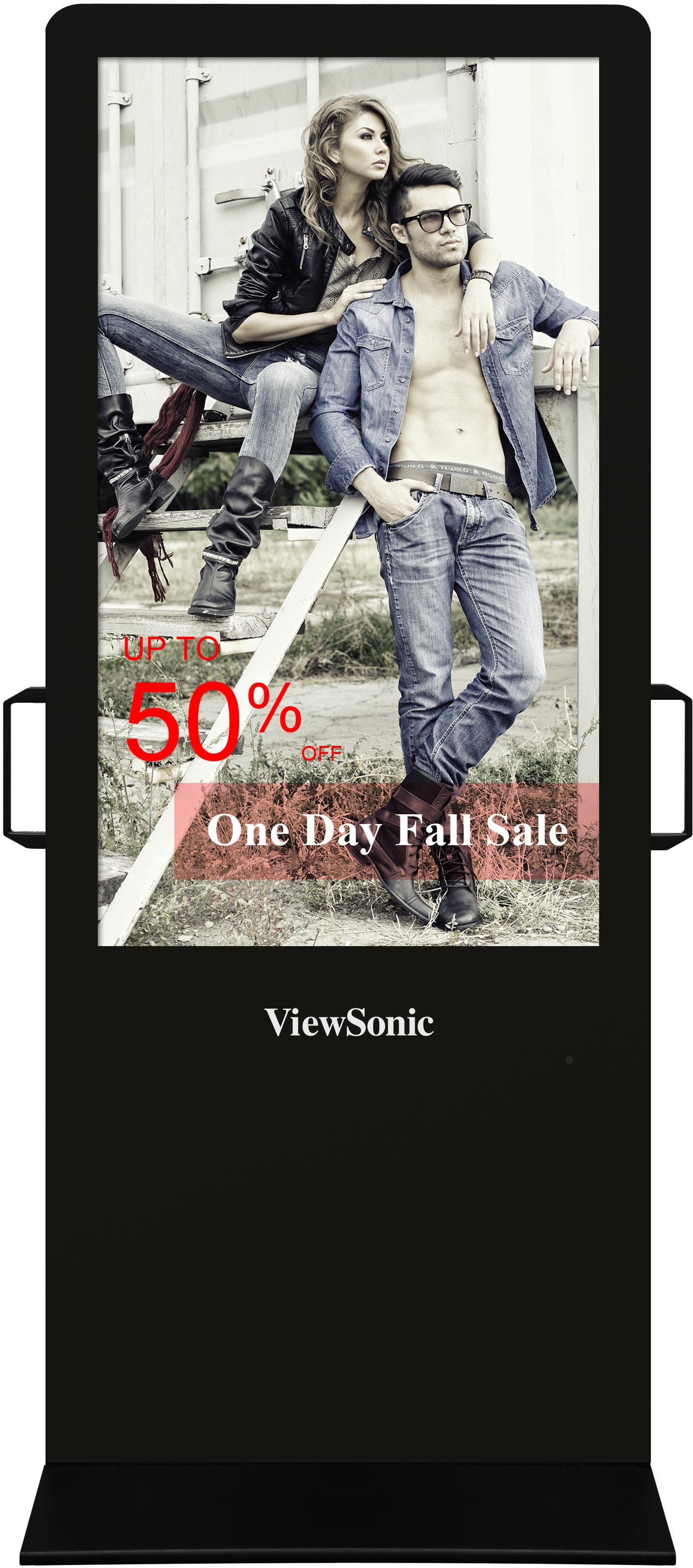

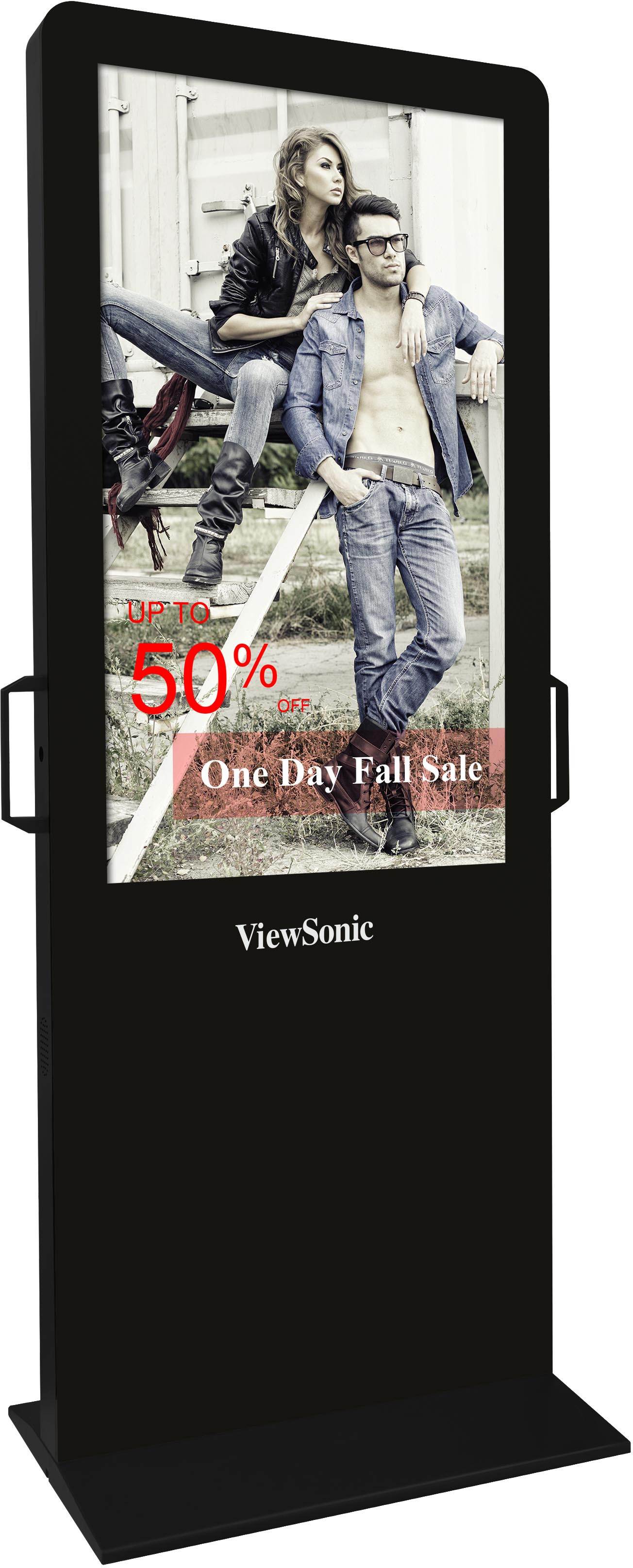

The ViewSonic EP5012-TL is an interactive 50” all-in-one LED ePoster with a sleek, free-standing design. It delivers high-impact messaging in a number of venues including shopping malls, retail stores, office complexes and school buildings. Great for grabbing attention in busy, high-traffic areas, the EP5012-TL comes with a scratch-proof tempered glass faceplate for added durability. Featuring Full HD 1080p resolution, 176°/176° wide-angle viewing, 450-nit brightness, 5,000:1 contrast ratio, and dual 6W stereo speakers, the EP5012-TL delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the integrated media player and 8GB of internal memory, or directly from a USB hard drive. Plus, the bundled ePoster Manager Express Plus software makes the loading and scheduling of customized multimedia content easier than ever. Flexible HDMI, D-sub, USB (x2), and LAN connectivity also allow for additional content loading options from a PC or networkable media player, while its 4-point touch capability provides intuitive touch operation when connecting with the PC. In addition, the EP5012-TL adopts Embedded media player platform, providing customers to implement customized messaging applications. It also provides simple auto on/off scheduling via an on-screen display, as well as a security lock design, making it an interactive, reliable, and easy-to-maintain digital signage solution.

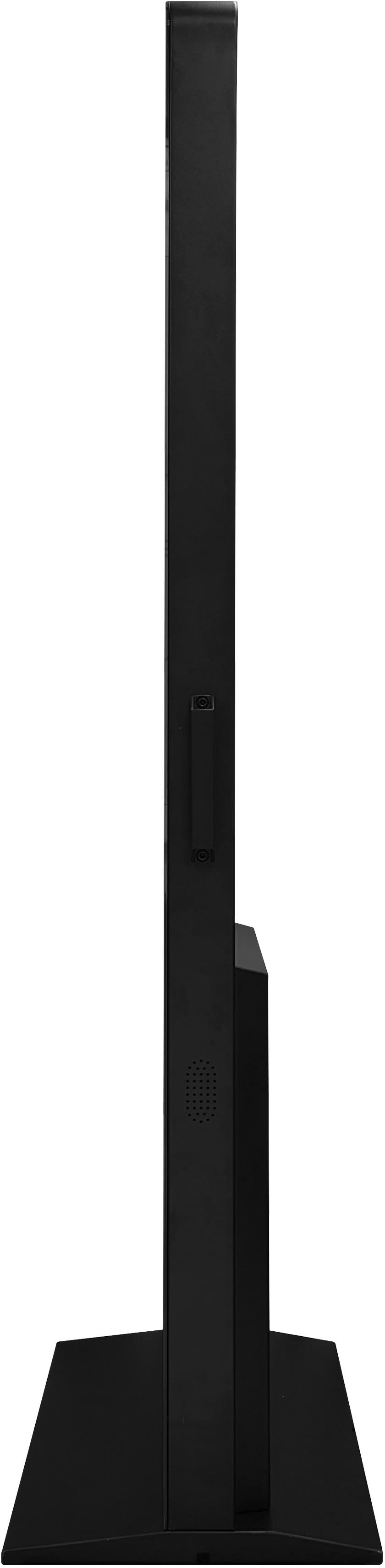

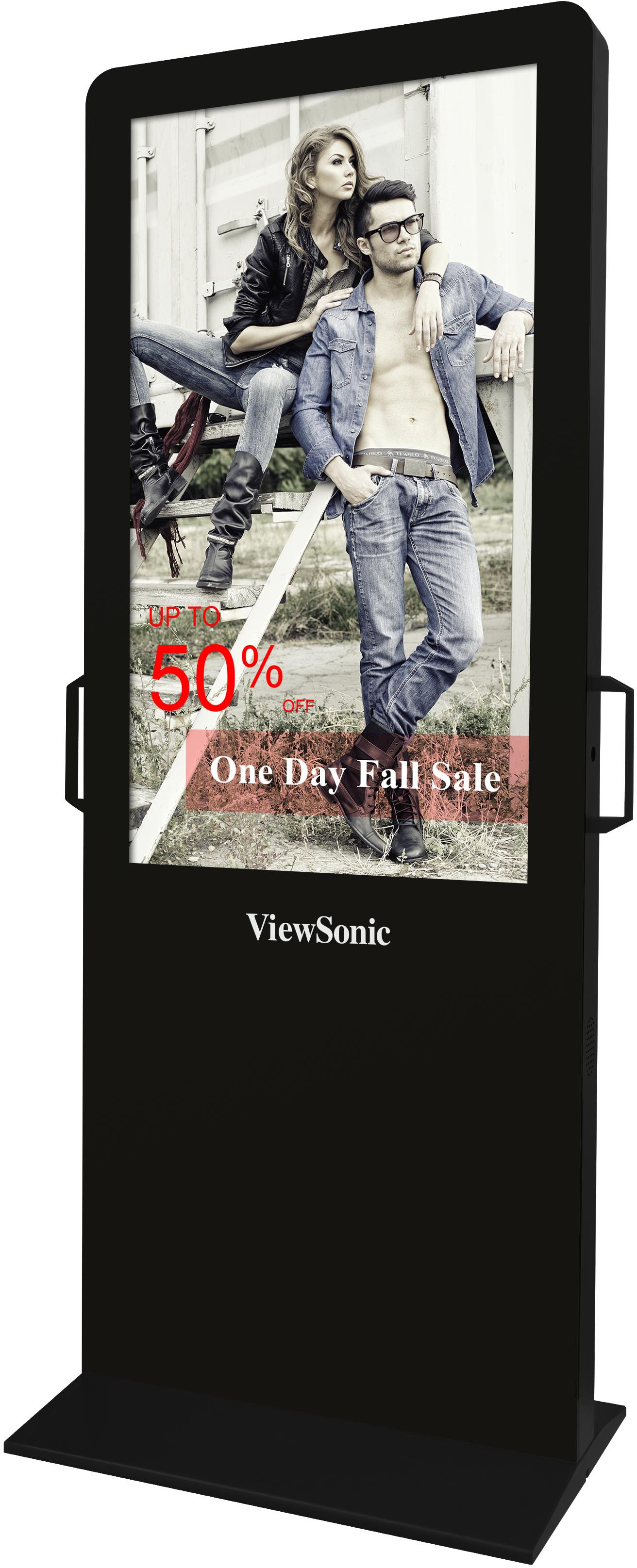

Deliver Dynamic Messaging with Sleek, Free-standing Digital ePoster Kiosks

ViewSonic’s EP5012-TL all-in-one free-standing ePoster featuring a sleek, slim premium design delivers dynamic, eye-catching messaging in high-traffic areas. Besides the attractive design, the EPT5012-TL is also durable, utilizing a tempered glass faceplate that offers scratch-proof protection to keep your ePoster looking new year after year.


Icon-LED

Energy-Saving LED Backlight

The EP5012-TL utilizes an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.

Anti-Glare & Anti-Scratch
Icon-LED

Built-in media player for photo and video playback

The EP5012-TL is equipped with a built-in media player that allows high-quality photos and 1080p video to be broadcast directly on-screen from the ePoster’s internal memory or an attached USB drive. Best of all, this reliable all-in-one e-poster effortlessly displays dynamic content with no crashes, freezes or lost content.

8GB memory for easy USB content-loading

The EP5012-TL is capable of loading, storing and playing hours and hours of high-definition multimedia content thanks to its 8GB of built-in shock-resistant, solid-state memory. It also comes with USB port for greater access to different sources of content.

Effective remote scheduling enterprise-wide

Great for updating content on ViewSonic ePosters enterprise-wide, ePoster Manager Express Plus software lets users transfer multimedia content remotely from any Windows PC or laptop. This software also makes it possible to schedule content and broadcasting cues, allowing you to effectively reach your target audience. Content can also be loaded onto the EP5012-TL via LAN connection or USB hard drive.

Icon-hdmi
Icon-hdmi

Full HD for superior true-colour performance

The ViewSonic EP5012-TL displays content in Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel true-colour performance. At this resolution and brightness, high-definition multimedia messaging can be seen crystal-clear for a more realistic viewing experience.

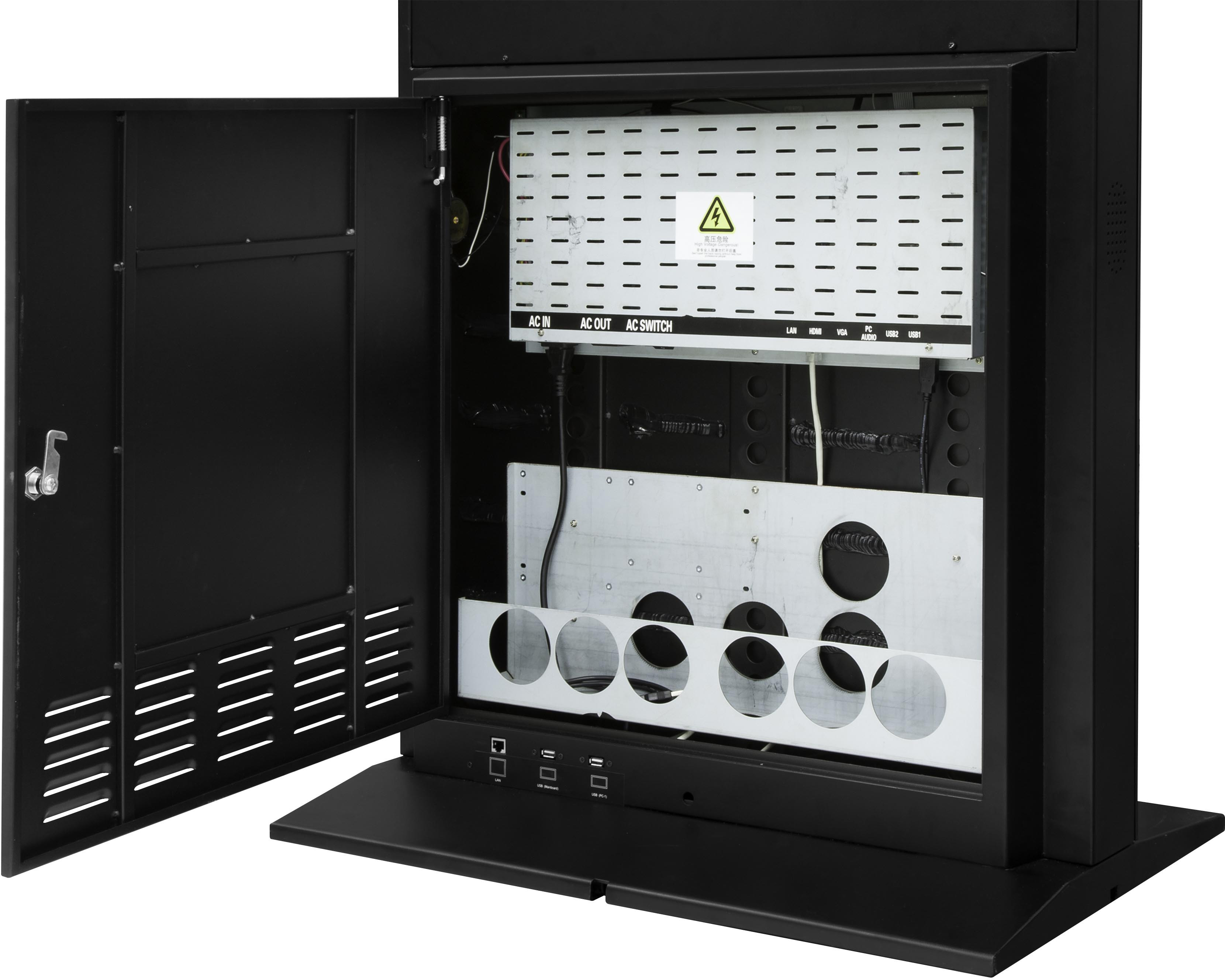

Versatile inputs and one-time configuration settings

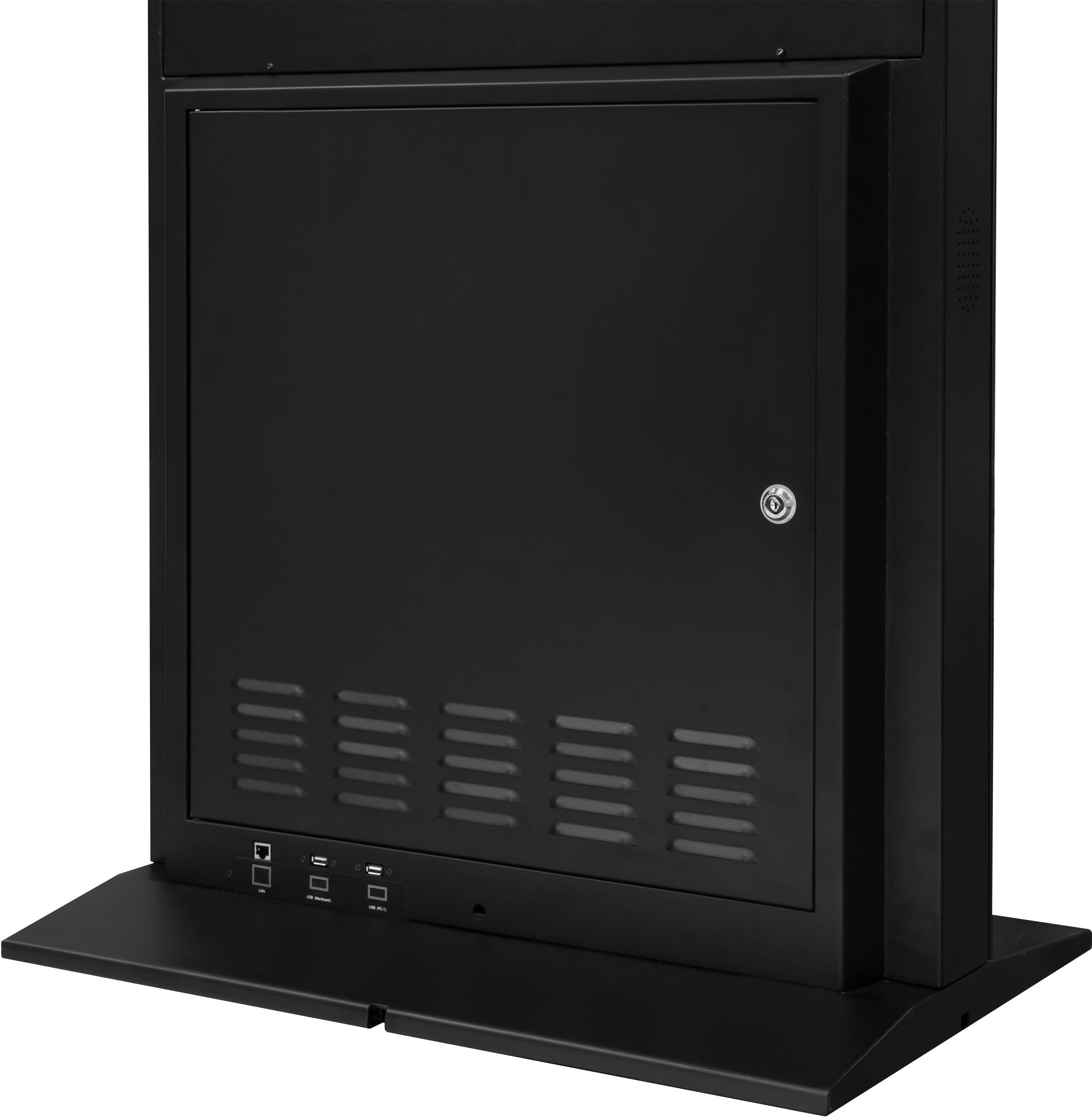

With a versatile selection of inputs, including HDMI, VGA, USB and RJ45, the EP5012-TL enables you to easily connect a variety of devices and content sources, such as mini-PCs and media players, for straightforward content loading. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.

Icon-hdmiIcon-hdmiIcon-hdmi

Efficient, User-Friendly Content Scheduling & Settings

The ViewSonic EP5012-TL commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that the EP5012-TL runs smoothly and on time.


Icon-windows-8

Built-in dual 6-watt speakers

Featuring powerful integrated 6W stereo speakers, the EP5012-TL combines eye-catching multimedia content with high-quality sound effects - creating an incredible audio-visual impression on your target audience.

Icon-LED

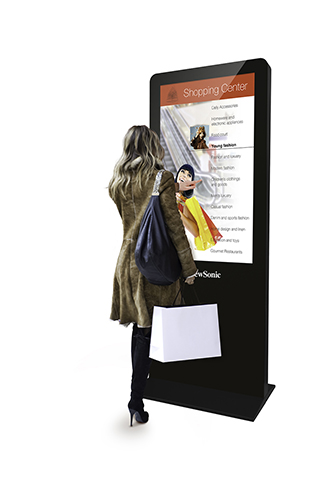

Interactive on-demand messaging

The EP5012-TL delivers on-demand advertising and messaging while increasing two-way communication with customers via interactive 4-point touch. With this multi-touch capability, the EP5012-TL is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.

Multi-Touch Interactive

SPECIFICATIONS


  • LCD PANEL
    Type/ Tech: TFT LCD Module with WLED
    Display Area (mm): 1095.84 (H) x 616.41 (V)
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colours: 16.7M colours
    Brightness: 450 cd/m² (typ.)
    Contrast Ratio: 5000:1 (typ.)
    Response Time: 6.5 ms (typ. G to G)
    Viewing Angles: Up and Down 176°, Left and Right 176° (typ.)
    Backlight: WLED
    Backlight Life: 30,000 Hours (typ.)
    Hardness: 7H
    Panel Size: 50" (127cm)
  • TOUCH
    Touch Point: 4 points
    Type/ Tech: Infrared
  • INPUT
    RGB / VGA: x 1
    Audio: x 1
    HDMI: x 1
