OVERVIEW

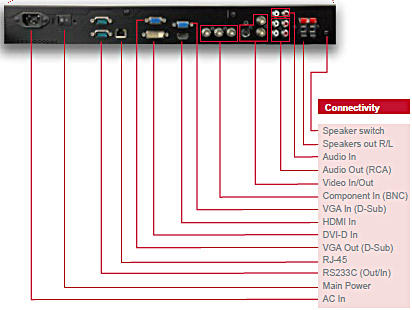

ViewSonic’s new CDP4635 Full HD Commercial display features a FHD 1920 x 1080panel with 4000:1 contrast and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S video and composite, YPbPr and built in 10W x 2 speakers. The CDP4635 will support up to a 5 x 5 display video wall with internal clock and scheduler. RS232 daisy chain and RJ45 are provided for automated remote control.

1 - 1080p 9ms panel for vibrant video and crisp images.2 - 16.3mm slim bezel.3 - Intel® OPS media player compatible4 - Display wall capability up to 5x5.5 - RS-232 daisy-chain capable.6 - VGA and DVI inputs/outputs for flexible connectivity and control7 - Remote and panel control lock out.8 - Remote control JR45 port with real time clock & on-off scheduler9 - Applications:- Quick service restaurant menus- Transportation - Arrival / Departure- DOOH Advertising- Campus signage- Hotels and Sports Bars

Resolutions Supported

640 x 480 at 60 Hz to 75 Hz800 x 600 at 50 Hz, 60Hz to 75 Hz1024 x 768 at 50 Hz, 60Hz to 75 Hz1280 x 768 at 50 Hz1360 x 768 at 50 Hz1280 x 1024 at 60Hz1600 x 1200 at 60 Hz1920 x 1080 at 60Hz (recommended resolution)NTSC, PAL, SECAM, 4.43 NTSC, PAL 60Component: 480i,480p,720p,1080i,1080p

SPECIFICATIONS


  • COLORS
    Black
  • LCD
    Type: 46" colour TFT active matrix, wide LCD
    Contrast Ratio: 4000:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 400 cd/m² (typ)
    Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
    Optimum Resolution: 1920x1080, 530mm dot pitch
    Response Time: 8ms
    Light Source: 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 43" x 26.8" x 13"
    (1091.1mm x 681.7mm x 328.3mm)
    Physical Without Stand: 43" x 25.4" x4.7"
    (1091.1mm x 645.7mm x 120.1mm)
