OVERVIEW

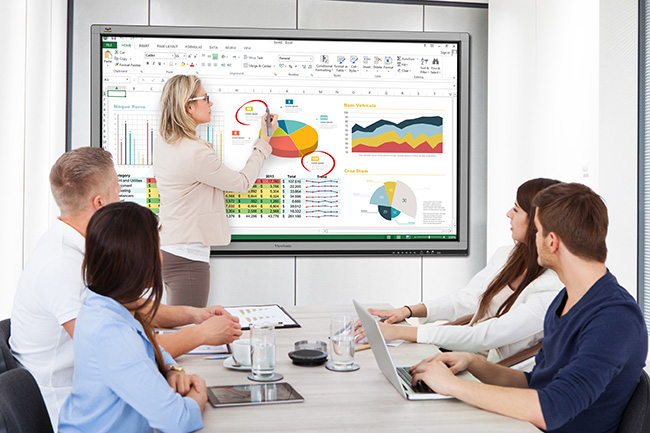

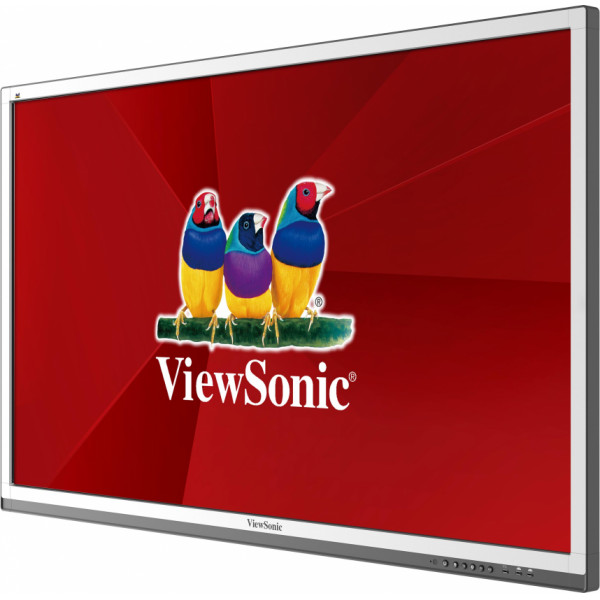

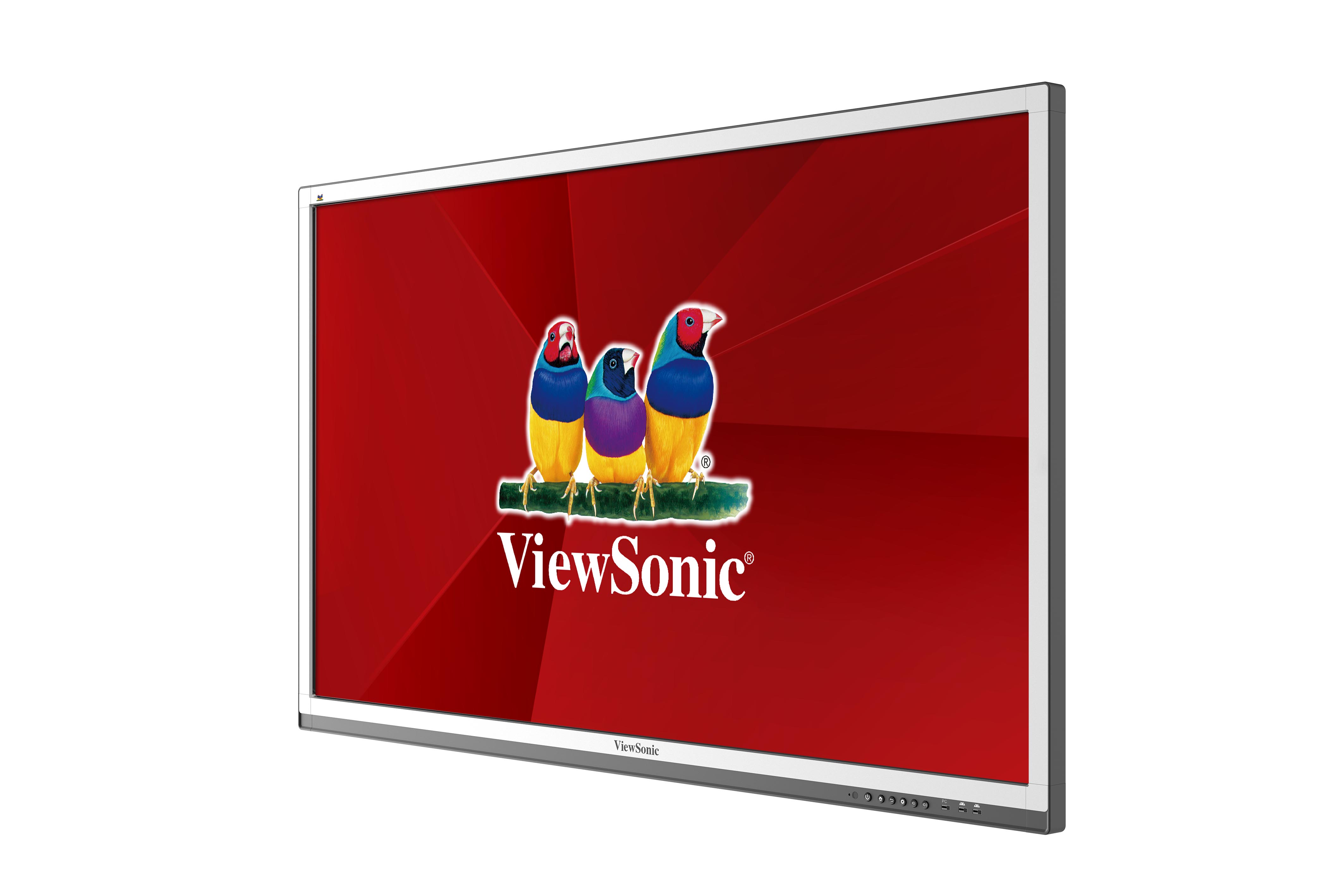

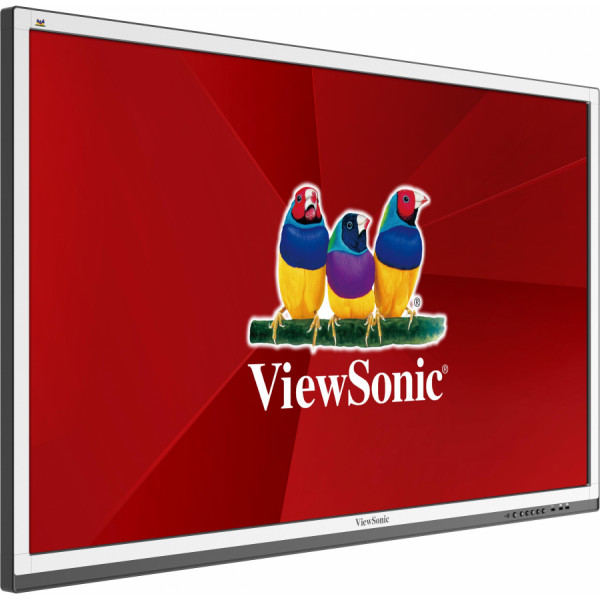

The ViewSonic® CDE6561T 65’’ Full HD interactive flat panel display is a perfect solution for interactive business and educational classroom applications. This 20-point touch-enabled display, paired with PC-less operation and pre-installed annotation software, allows multiple users to simultaneously write or draw on the display’s 7H hardness surface using fingers or styluses. 350-nit brightness and wide viewing angles provide better visual performance in well-lit rooms, while Flicker-Free and Blue Light filter technologies create a more comfortable viewing environment. With a built-in dual core processor and 8GB internal storage, as well as versatile connectivity including HDMI, VGA, RS232, RJ45 and USB ports, this display provides powerful computing for annotation and multimedia playback without the need for a PC. This Energy Star certified display delivers optional slot-in PC (NMP711-P10) capability with Windows® 10 OS and ViewBoard annotation software, for more computing-intensive interactive applications. The CDE6561T features a VESA-compatible design and can be placed on a wall mount, or on an optional trolley cart for flexible installation in classrooms and corporate meeting rooms.
  • 20-point multi-touch interactive screen
  • Built-in ARM dual core CPU with 8GB Storage
  • Pre-installed annotation software
  • Optional slot-in PC
  • Eye-Care technology

20-point Multi-touch Interactive Screen

With a 20-point touch-enabled panel, this display encourages multiple users to simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.

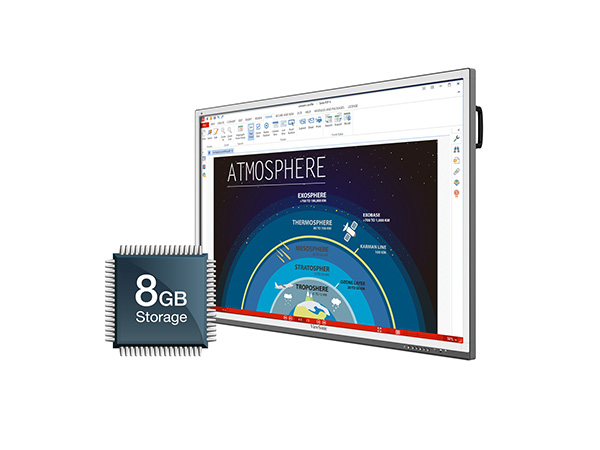

Built-in ARM Dual-core CPU with 8GB Storage

Equipped with a powerful dual-core processor and Mobile OS, this display provides smooth, lightning-fast computing and responsive touch capabilities. 8GB of onboard memory provides ample storage for files and multimedia content.

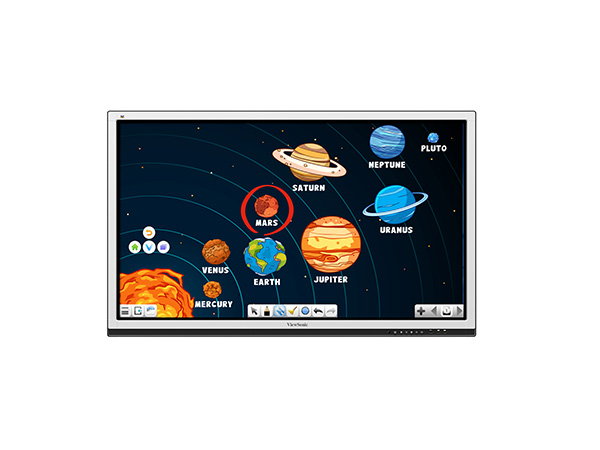

ViewBoard2.1 Annotation Software

ViewSonic’s easy-to-use ViewBoard software is available within this display and lets you write, highlight, edit, and transform documents and images on-screen in real-time.

For more robust annotation options and educational templates for English, Math, and Science, a ViewBoard for Education software disc is included in the box and can be installed via the optional ViewSonic NMP711-P10* slot-in PC, or via an external PC connection.

*Optional accessories (NMP711-P10) sold separately.

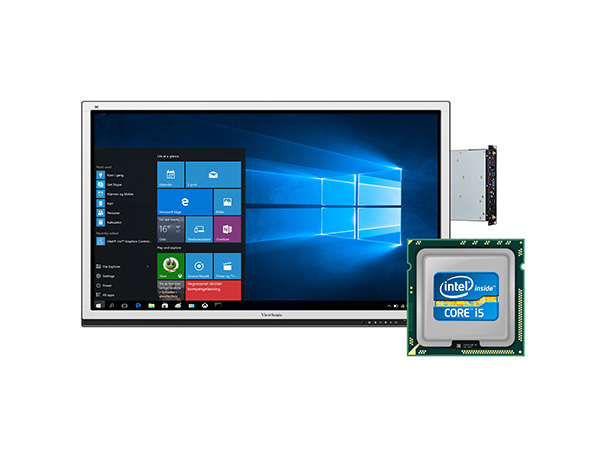

Optional Slot-in PC

The optional ViewSonic NMP711-P10* slot-in PC utilizes the Intel Core i5 processor, as well as the Windows 10 operating system, to provide additional computing power and touch functionality.

*Optional accessories (NMP711-P10) sold separately.

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Anti-scratch, Anti-glare Glass Faceplate

This display features 7H scratch-resistant surface hardness that ensures a durable, consistent, high-quality touch experience.

In addition, an anti-glare film improves screen visibility in bright environments.

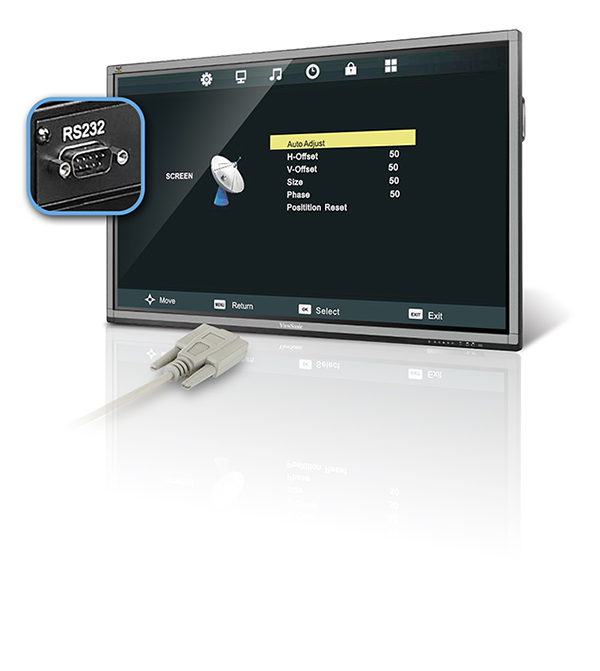

Control Multiple Devices

RS232 IR pass-through offers local control for set-top boxes, and other RS232 connected devices, directly with the display’s remote controller.

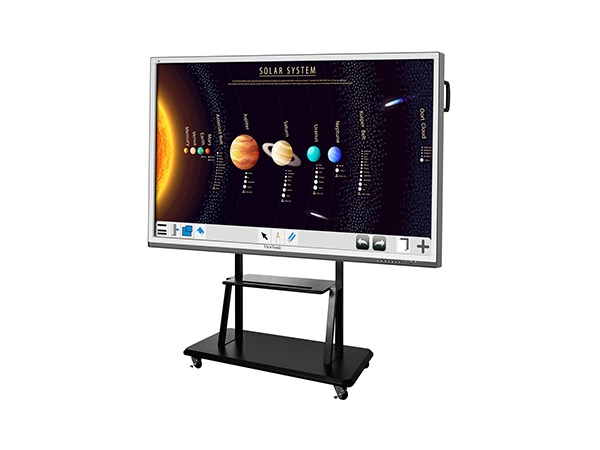

Optional Trolley Mount

Although this display can be wall mounted for a solid and safe user touch experience, we also offer a trolley mount (LB-STND-003)* that provides the flexibility of a mobile display.

*Optional accessories (LB-STND-003) sold separately.

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 65” (64.5” viewable)
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1428.48(H) x 803.52(V) (64.5” diagonal)
    Aspect Ratio: 16:09
    Resolution: 1920x1080
    Colors: 10 bit, 1.07B colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1400:1 Typ.
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178
    Backlight: LED
    Backlight Life: 50,000 Hours Typ
    Hardness: 7H
  • TOUCH
    Type/ Tech: Infrared
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points for gesture, 5 points for writing
    Response time: 15ms MAX.
    System: Windows10 / Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome

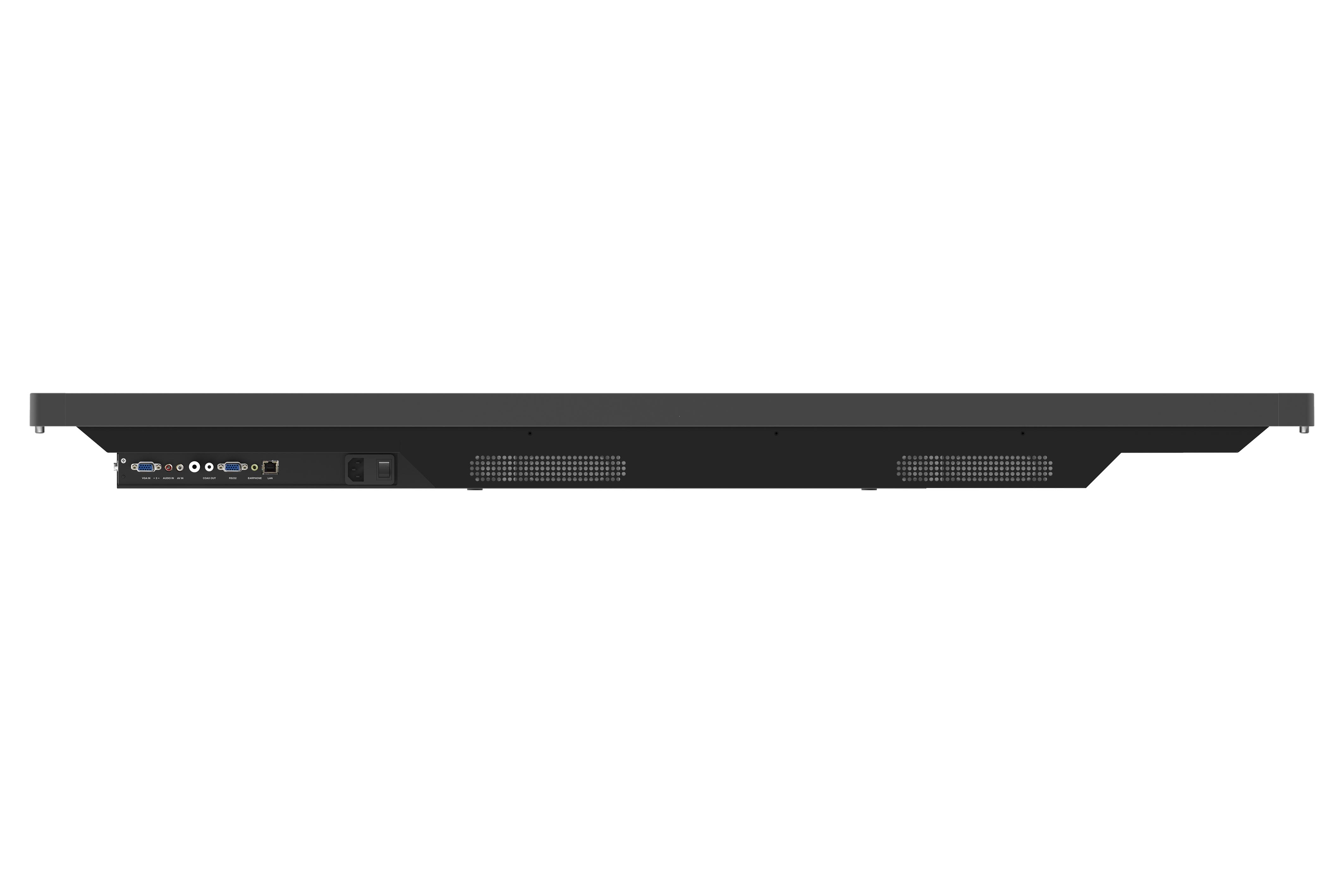

  • INPUT
    HDMI: x3
    RGB / VGA: x3
    Audio: x3 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS / ViewSonic PC module slot: N/A / x1 (for NMP710)
