OVERVIEW

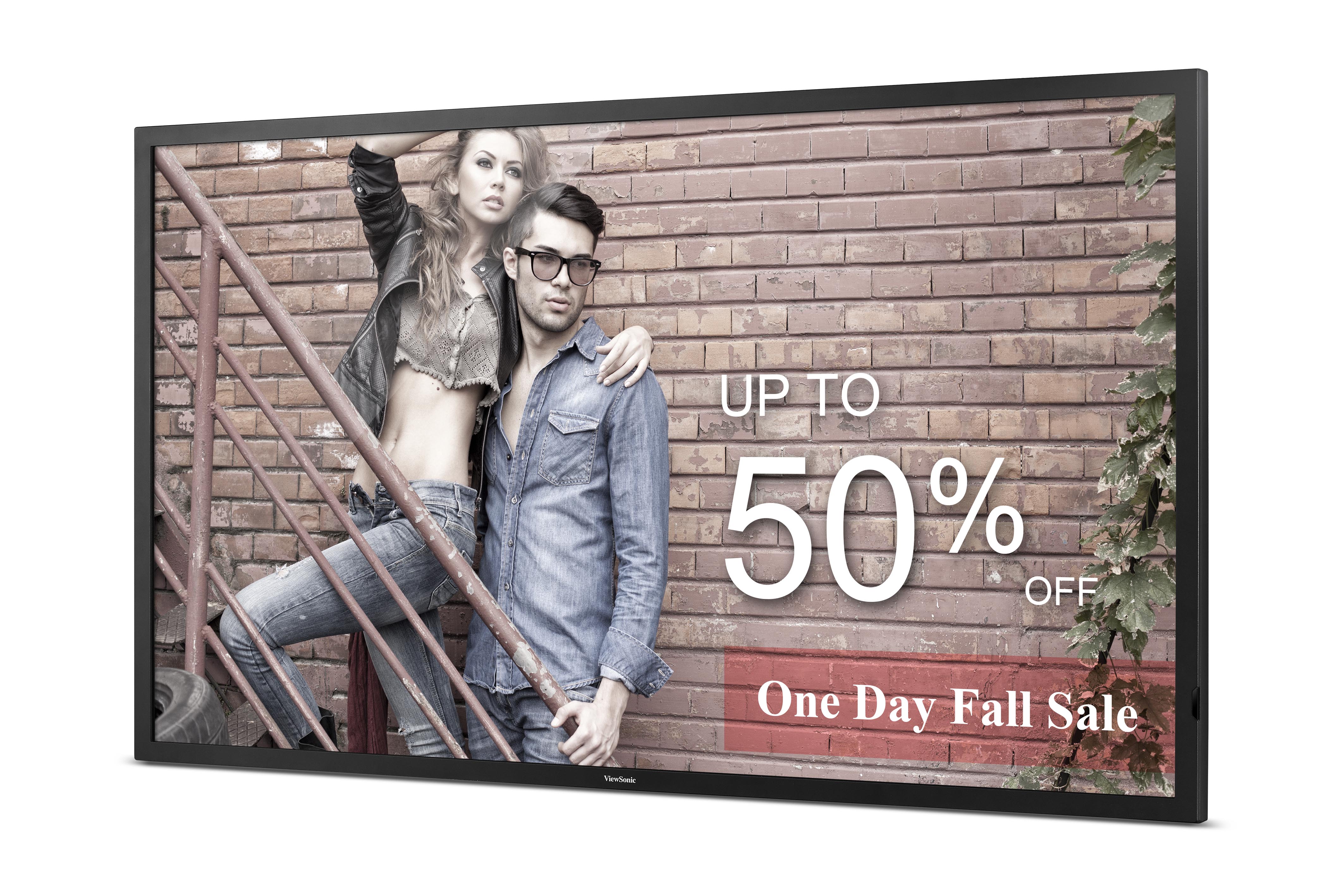

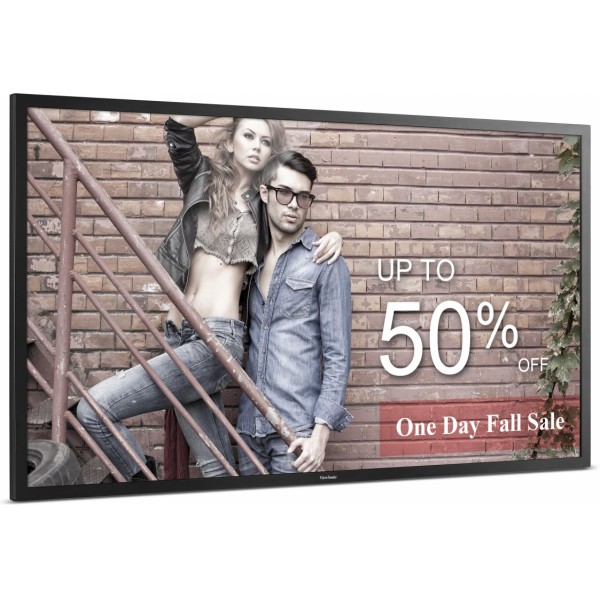

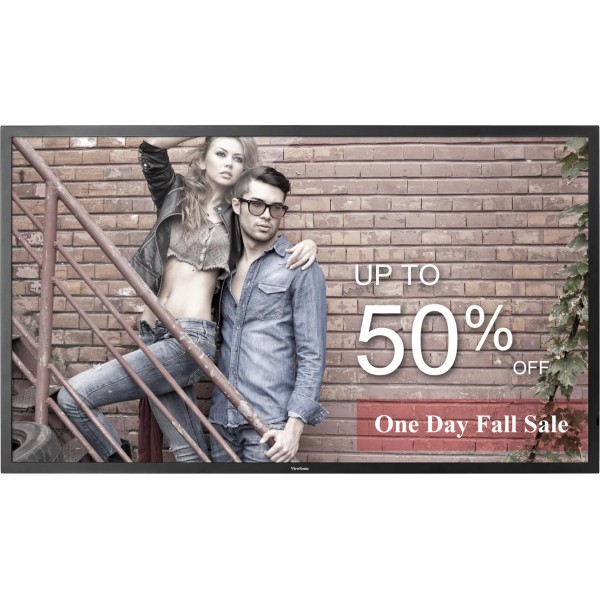

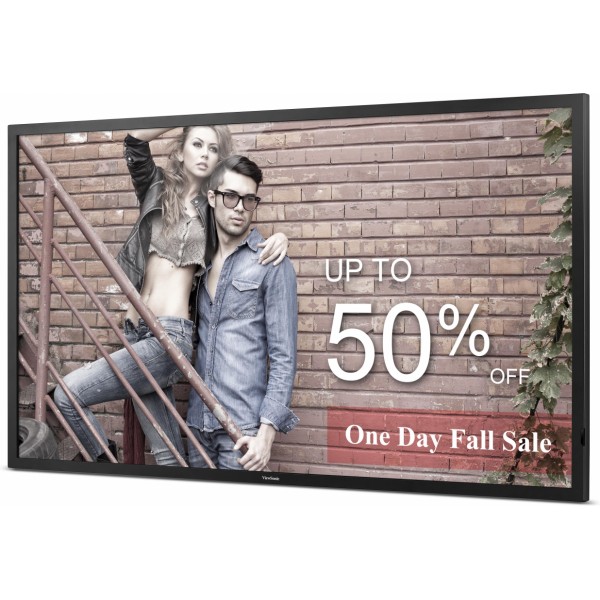

The ViewSonic CDE4600-L is a 46’’ commercial LED display with a 19.5mm narrow-bezel design. Featuring Full HD 1080p resolution, 350-nit high brightness, 4000:1 high contrast ratio, SuperClear® technology for wide viewing angles, and dual 7W stereo speakers, the CDE4600-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. Versatile connectivity options include HDMI, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Integrated RS232 input and output, with IR pass-through and a one-time setting function, make the CDE4600-L an easy to-manage solution for multiple display configurations. An integrated media player supports the scheduling and playback of photo, music, and video content directly from a USB drive. Content can also be loaded and distributed to multiple displays via LAN RJ45 connection, or wirelessly from mobile devices. ViewSonic’s CDE4600-L is the ideal digital signage solution for attracting customers in shopping malls, retail outlets, restaurants, and other indoor commercial areas.

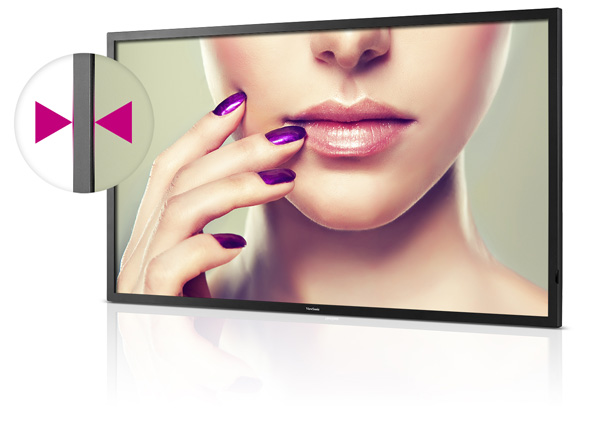

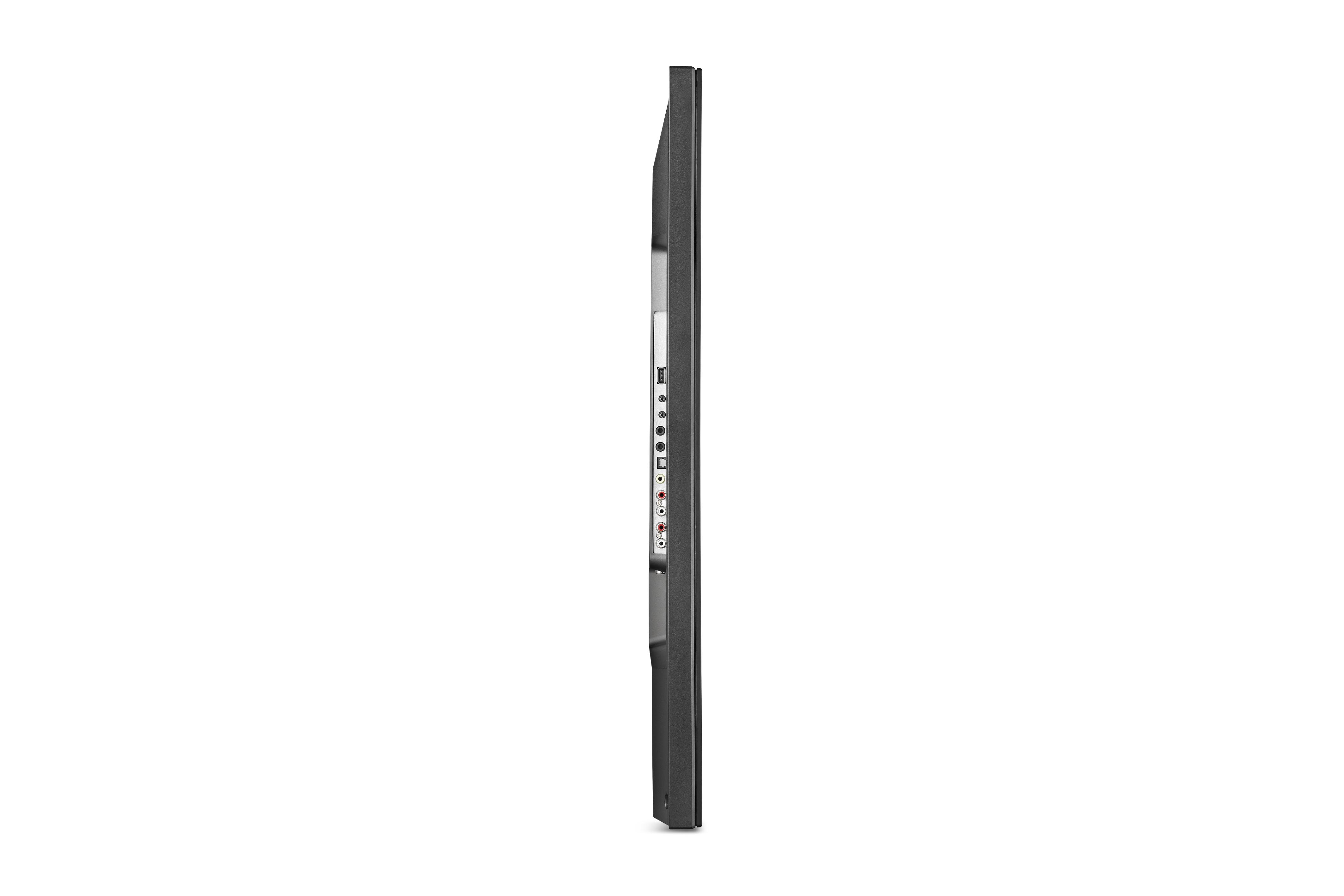

Sleek, Narrow Bezel Design

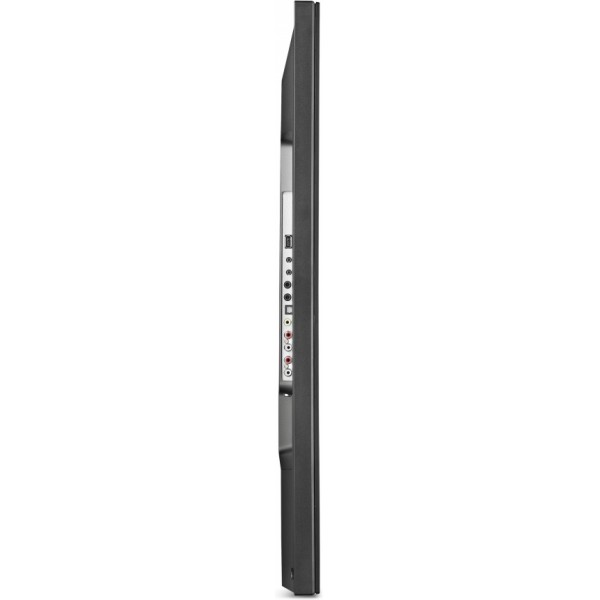

ViewSonic’s CDE4600-L commercial display features a 19.5mm narrow bezel design. This sleek, narrow bezel maximizes impactful visual messaging for passersby, making the CDE4600-L the perfect choice for digital signage installations.
CDE4600-L Narrow-Bezel-Design feature

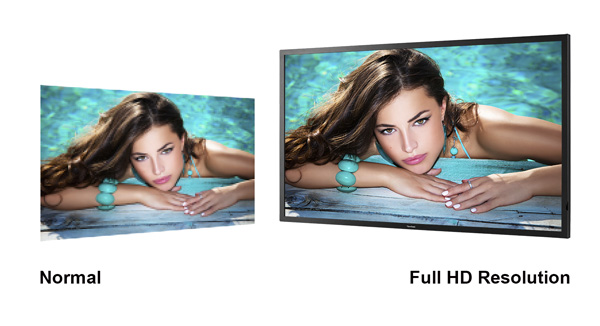

Full HD 1080p for superior pixel performance

ViewSonic’s CDE4600-L display features Full HD 1920 x 1080 resolution to deliver superior pixel-by-pixel performance for a more realistic viewing experience. At this resolution you’ll experience greater image clarity and detail—qualities that will bring high-definition multimedia content to life.
CDE4600-L Full HD feature
Icon-LED

Energy-saving LED backlight

The CDE4600-L utilizes an energy-saving LED backlight that consumes 35% less power than conventional CCFL backlight displays, and has an extended lifespan of up to 30,000 hours. This provides for a lower overall cost of ownership, along with a higher ROI, making this display a great long-term investment.
CDE4600-L LED-Backlight feature

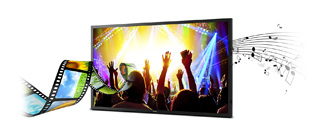

USB multimedia player for scheduled playback of videos, photos and music

With the handy PC-less USB playback feature, photos, music and 1080p video can be immediately displayed on-screen from a USB drive. A user-friendly on-screen scheduling interface also lets you select time, date, repeat shuffle settings, or choose specific content to play from the attached USB source.
CDE4600-L USB-Multimedia-Player-For-Scheduling feature
Lan V-BL

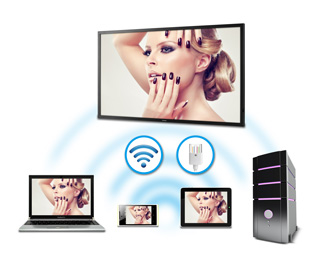

Easy LAN and wireless content uploading from PCs and mobile devices

The CDE4600-L features a RJ45 port to connect directly with PCs or notebooks via Intranet connection. This provides for the efficient loading of content onto multiple displays through a primary display. DLNA-compatible mobile devices can also utilize a wireless hub to push multimedia content directly to selected displays.
CDE4600-L Easy-Content-Uploading-Via-LAN-And-Wireless-From-PCs feature

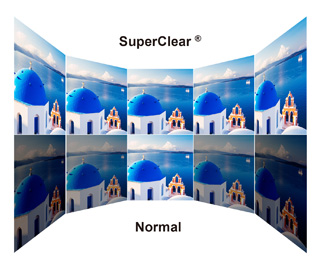

SuperClear® technology with IPS panel for wide viewing angles

SuperClear® image enhance technology with IPS panel delivers 178-degrees of vertical and horizontal viewing angles. Target audiences will experience accurate, vivid colours and consistent brightness levels whether looking at the screen from above, below, the front, or the side—with no distortion or decay.
CDE4600-L Super-Cleas feature

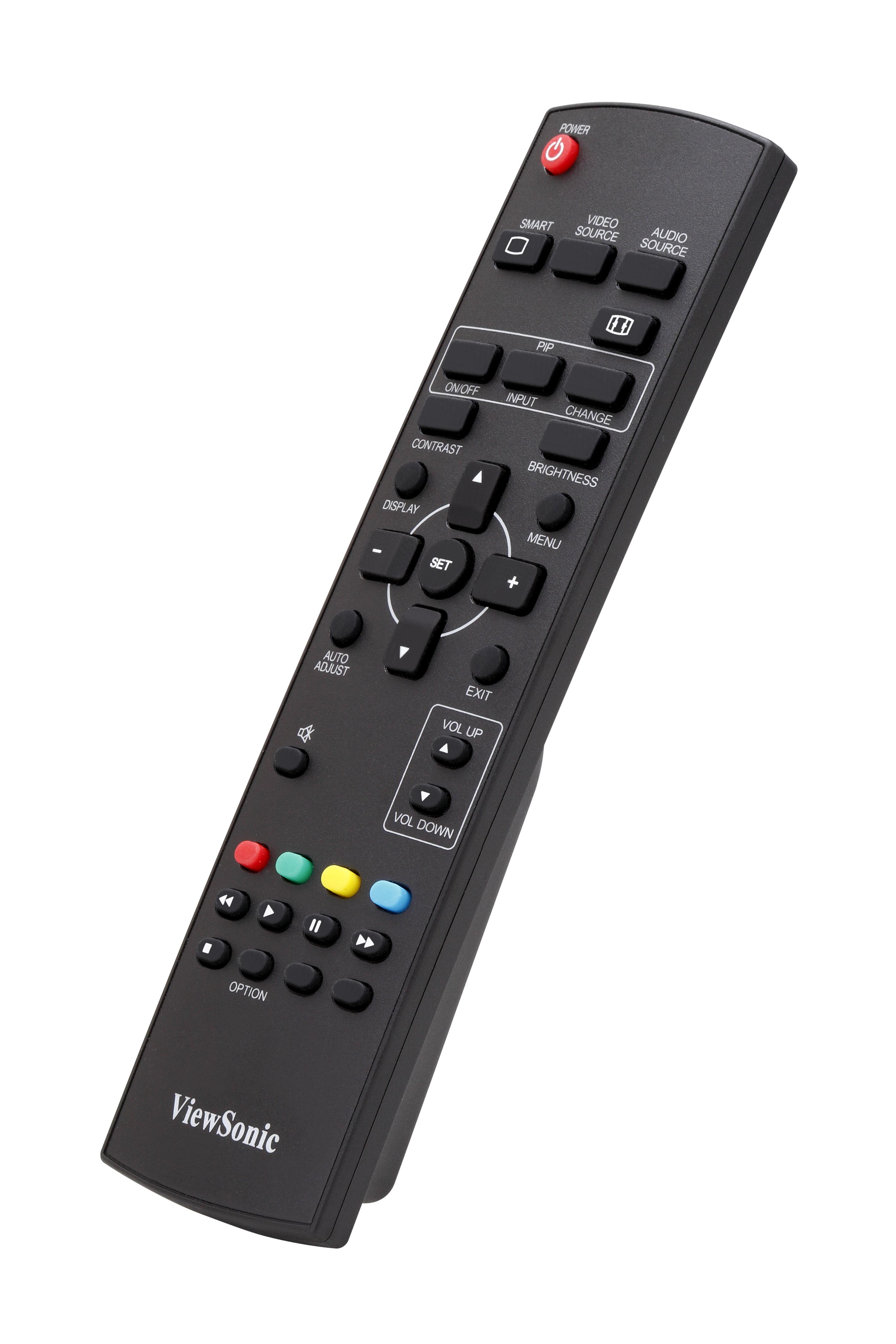

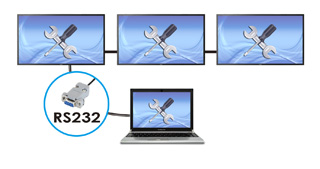

RS232 In/Out with IR Pass-Through for Easy Management

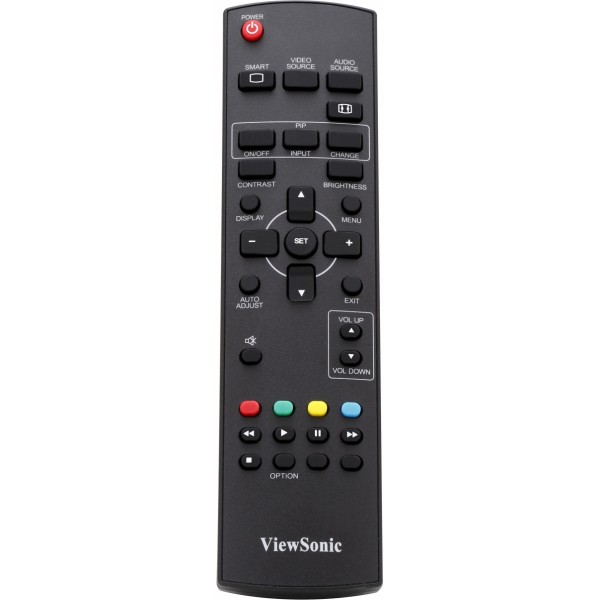

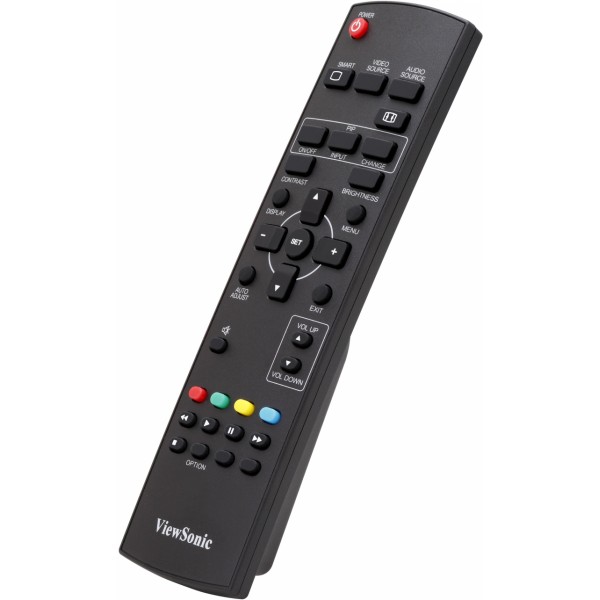

RS232 input and output connectivity, along with IR pass-through functionality, provides for the easy and efficient management of multiple-display configurations from a single remote control. By using the RS232 output, daisy-chained configurations can be managed via a primary CDE4600-L display.


CDE4600-L RS232 feature

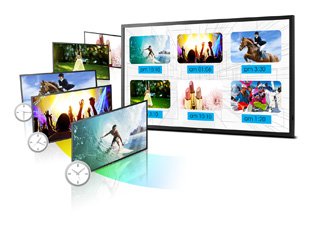

Efficient, User-Friendly Content Scheduling & Settings

The ViewSonic CDE4600-L commercial display provides an efficient, user-friendly scheduling interface via the on-screen display (OSD). Display setup features include time and date scheduling, repeat and shuffle settings, as well as content source settings for various inputs.
CDE4600-L videos-Photos-And-Music feature
Icon-hdmi

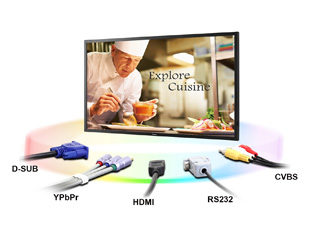

Versatile Inputs and One-Time Configuration Settings

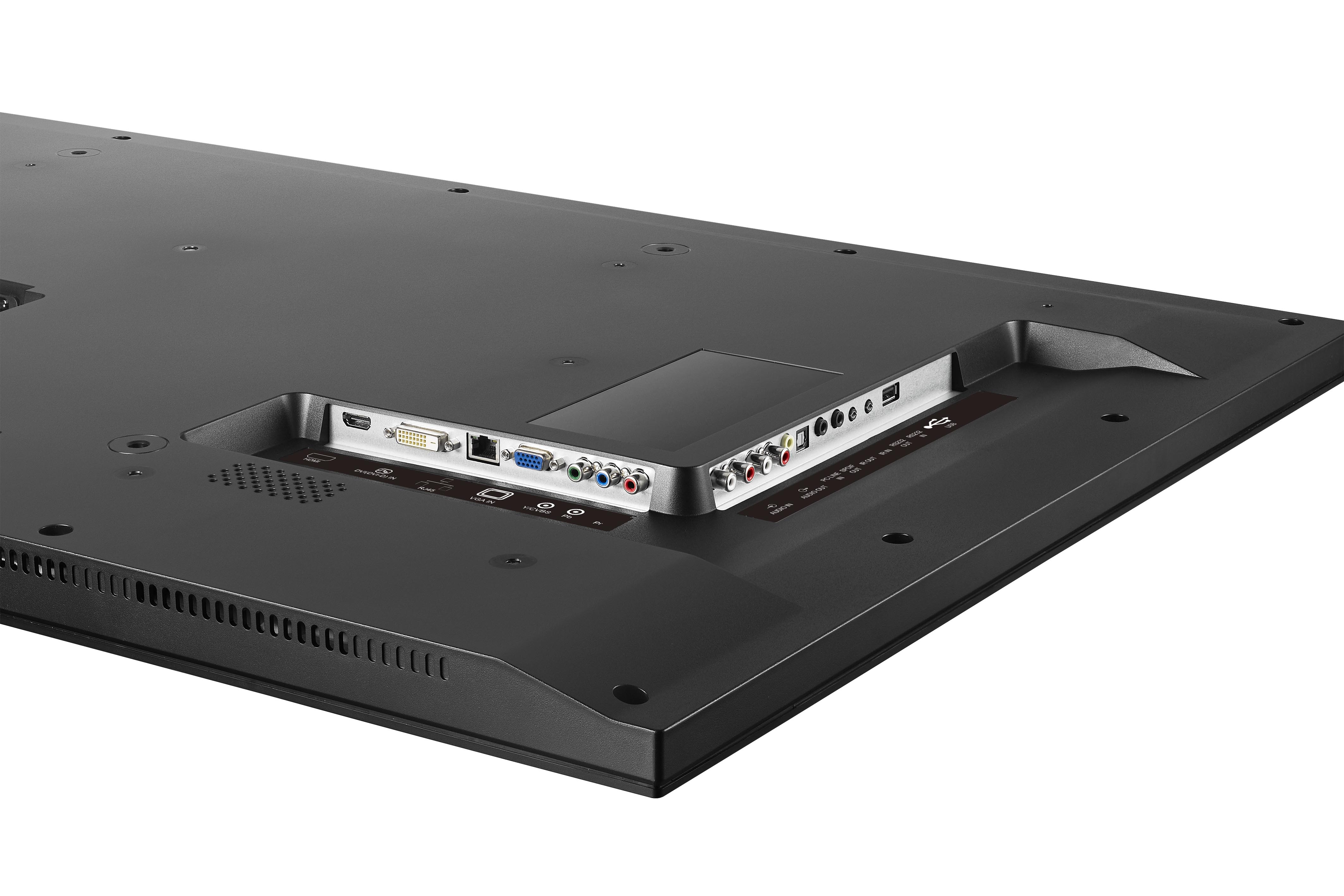

With a versatile selection of inputs, including HDMI, DVI, CVBS, YPbPr (YCbCr) and VGA, the CDE4600-L commercial display enables you to easily connect and use a variety of digital equipment. Best of all, the one-time display installation and setup feature means your preferred source settings are never lost.
CDE4600-L Versatile-Inputs feature
2Wx 2 Speaker

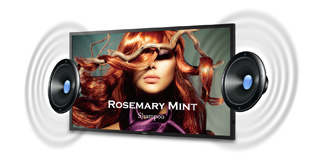

Dual Stereo Speakers for Crystal-Clear Sound

With a pair of integrated 7W speakers, the CDE4600-L combines eye-catching multimedia content with high-quality sound effects—creating a lasting audio-visual impression on your target audience or demographic.

CDE 4600-L Dual7-Watts-Stereo-Speakers feature
Icon-vesa

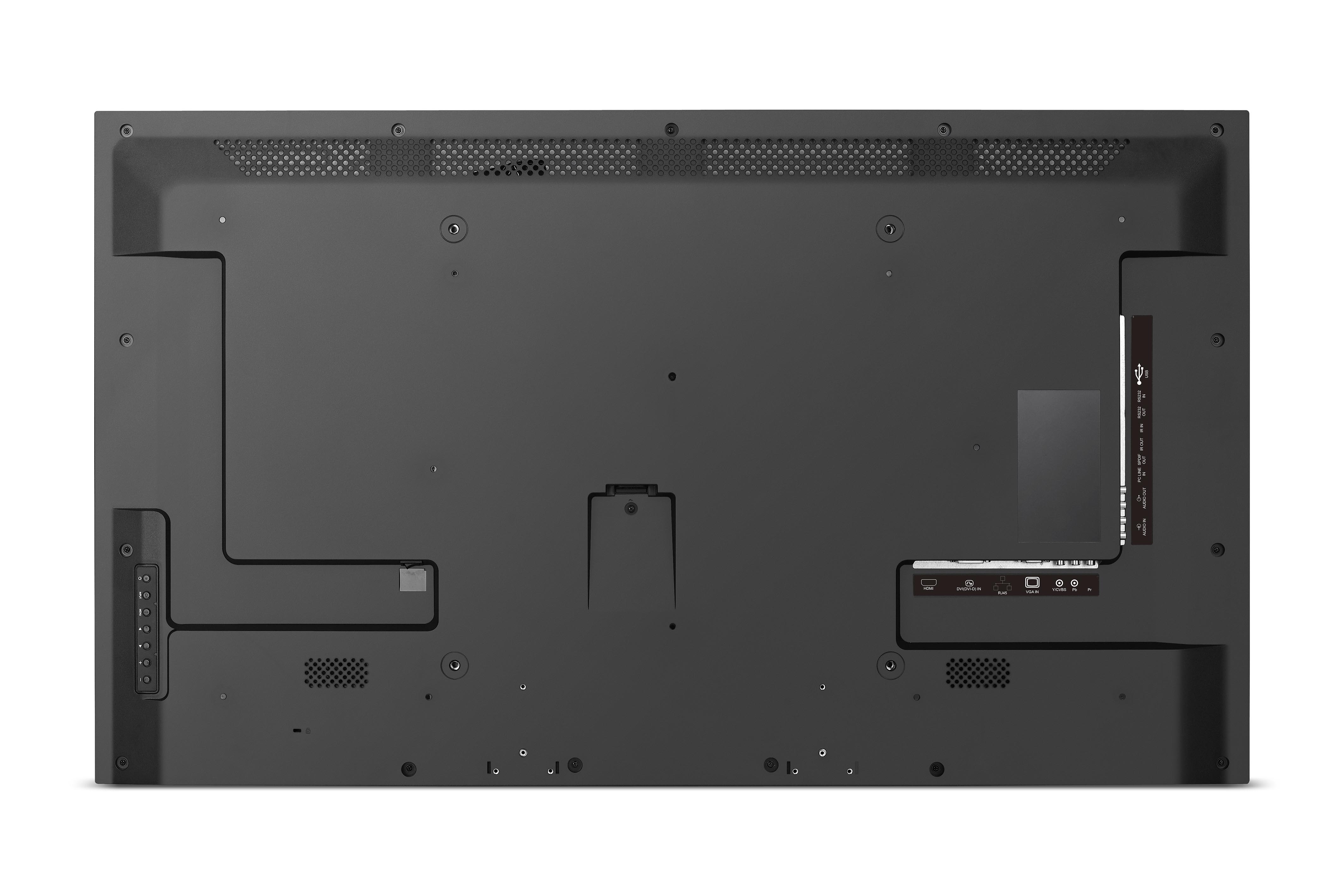

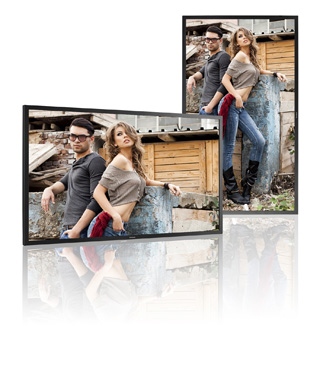

Portrait or Landscape Mountable

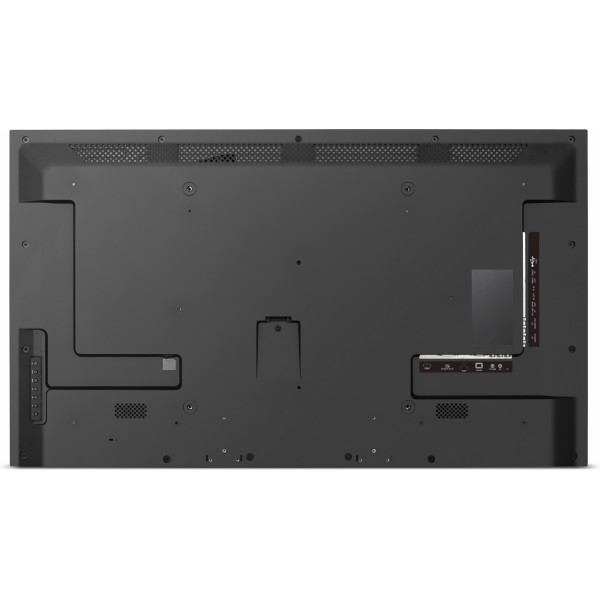

The CDE4600-L can be VESA-mounted (400mm x 400mm) in either portrait or landscape orientation for display flexibility in a variety of settings.
CDE4600-L Flexible-Landscape-Portrait-Wall-mounted-Installation feature

SPECIFICATIONS


  • LCD
    Type: TFT LED Module with LED Backlight
    Contrast Ratio: 4000:1
    Viewing Angles: 178°horizontal, 178° vertical SuperClear®
    Display Area: 1018.08(H) x 572.67 (V) (46” diagonal)
    Optimum Resolution: 1920 x 1080
    Response Time: 8ms
    Panel Surface: hard coating (3H)
    Colour Support: 16.7M
    Size: 46”
    Brightness: 350 cd/m²
    Backlight: LED
    Backlight Life: 30,000 Hours Typ
  • COMPATIBILITY
    RGB PC / HDMI PC: Refer to timing table
    HDMI: 480i, 480p,720p,1080i,1080p
    DVI-D: 480i, 480p,720p,1080i,1080p

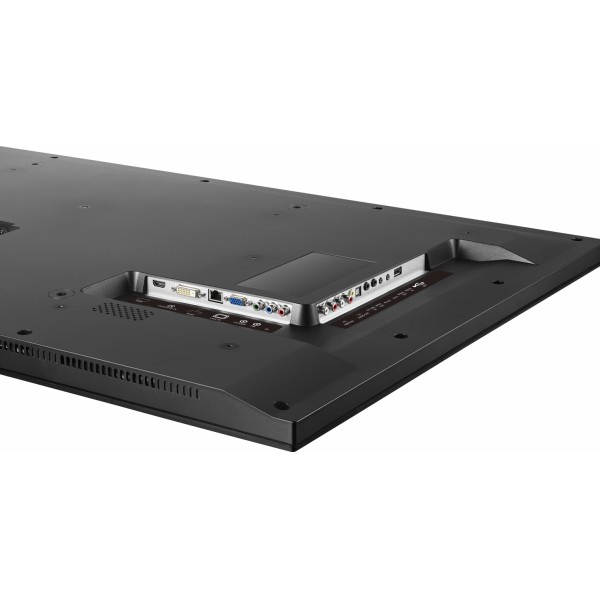

  • CONNECTOR
    CVBS: x 1(Share with component Y)
    Component: x 1
    Audio Out: x 1
    HDMI (input): x 1
    RS-232: x 1
    Audio Input: x 1
    USB: x 1
    PC-VGA: x 1
    DVI: x 1
    PC Audio Input: x 1
    IR Pass Through: x 1
