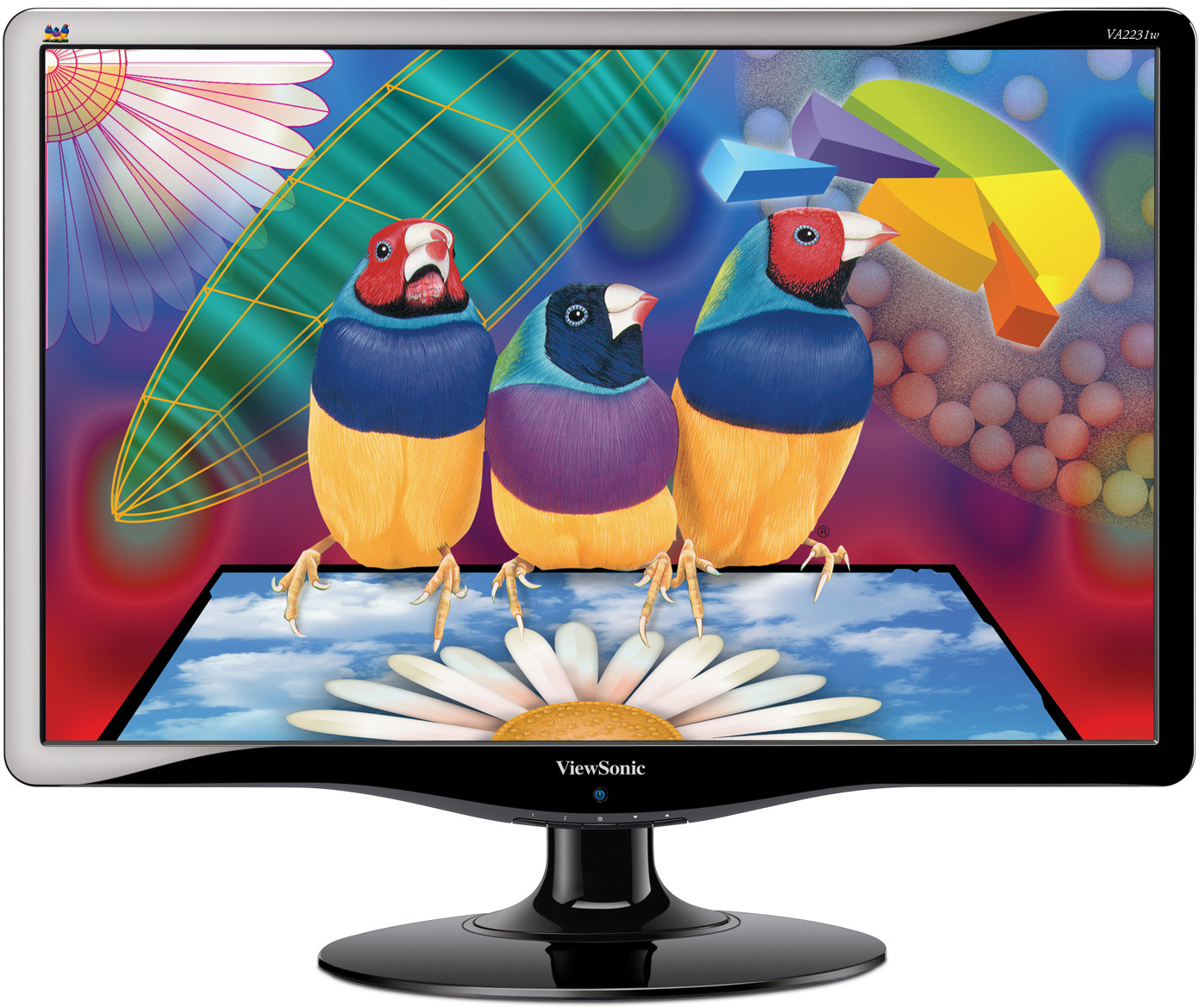

LCD Display
VA2231w
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
COLORS
Black -
LCD
Rapport de contraste: 1,000:1 (Typical) Angles de vue: 170° (H), 160° (V) Résolution optimale: 1920 × 1080 Temps de réponse: 5ms Typical Source lumière: 50,000 hrs typical Surface panneau: Anti-Glare, Hard coating(3H) Pas de pixel: 0.24825 (H) × 0.24825 (V) (mm) Prise en charge des couleurs: 16.7 (Millions of colours) Taille: 55cm/21.5" Wide Color a-Si TFT Active Matrix LCD 16:9 aspect ratio Luminosité: 300 Typical Rapport de contraste dynamique: 100,000:1 -
COMPATIBILITÉ
Ordinateur: VGA up to 1920 × 1080 Non Interlaced Mac®: 1920 × 1080 Non Interlaced -
DIMENSIONS (MM)
Physique (LxHxP): 513 × 389 × 196 (mm) / 20.2 × 15.3 × 7.7 (in) -
NORMES
CB, WEEE, RoHS, REACH SVHC List, EuP, TCO5.0, Windows XP/ Vista Premium,
Window® 7, CE, Ergo, GOST-R+Hygienic, UkrSEPRO, BSMI, PSB, C-TICK, KC, e-standby,
SASO, Epeat Silver, Energy Star 5.0 -
ENTRéE
Synchronisation: Separate Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p) Fréquence: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA) -
CONNECTEURS
Analogique: 1×15 pin mini D-sub Numérique: 1×DVD-D Alimentation: Built-in power Adapter, 3-Pin plug -
ALIMENTATION
Tension: AC 100-240V (Universal); 50/60Hz(Switch) Consommation: 40W Typical Mode Economie: <= 0.2W -
COMMANDES
De base: [1], [2], Power, Down[▼], Up[▲] On View (mode PC): Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K, 6500K,
5000K, User Color [R, G, B]
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language, Resolution
Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory Recall -
MONTAGE MURAL
100mm × 100mm -
ERGONOMIE
Inclinaison: 20~-5 degrees -
POIDS
Net: 3.8 kg / 8.4 lbs -
CONDITIONS D'EXPLOITATION
Humidité: 10 - 90 (%) Température: 0 - 40 (°C) / 32 - 104 (°F)
