Key Features
  • Écran Pc Tactile - TD2465
  • Foncitonnant même avec les mains humides et plusieurs types de gants
  • Clics du stylo et technologie de rejet de la paume
  • Conception sans bords sur 4 côtés et support en option
  • Moniteur Pc Tactile 24" Pouces
  • Écran avec réglage du mode tactile simple
  • OSD tactile intuitif avec ViewSonic Touch Controller

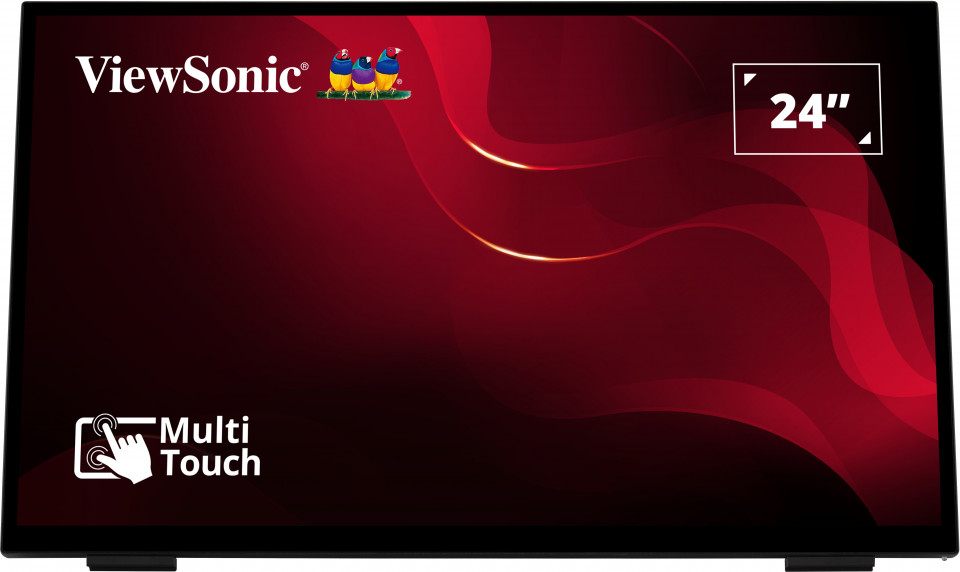

Écran Tactile 24" - TD2465
Product Description
Le Moniteur Pc Tactile TD2465 ViewSonic est la solution idéale pour les espaces commerciaux et industriels. Cette écran pc tactile 24 pouces est conçu pour foncitonner avec les mains humides, les gants et les pointes de stylos conducteurs, y compris les crayons. Le Moniteur Pc Tactile TD2465 est equipé d'une technologie tactile PCAP à 10 points de contact pour une interactivité optimale. Doté du logiciel ViewSonic Touch Controller, il vous permet de contrôler l'appareil de manière intuitive. Écran Pc Tactile - TD2465 Les options de connexion comprennent des entrées HDMI et DisplayPort pour des capacités de partage en toute facilité. Prévu pour etre fixé via son VESA sur toute surface et kiosque, l'écran pc tactile est l'affichage parfait pour divers types de solutions.
  1. Menu Control
  2. Speakers
  3. VESA Compatible(Wall Mount 100 x 100 mm)
  4. USB-A *2 (Downstream)
  5. USB-B (Upstream)
  6. Earphone
  7. Audio in
  8. VGA
  9. HDMI
  10. DP in
  11. AC in
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: VA Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 4,000:1 (typ)
    Dynamic Contrast Ratio: 20M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 7ms
    Response Time (GTG w/OD): 6.969ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 100
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 86% size (Typ) sRGB: 122% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.2mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
  • AUDIO
    Internal Speakers: 2Watts x2
  • POWER
    Eco Mode (Conserve): 20W
    Eco Mode (optimized): 22W
    Consumption (typical): 24W
    Consumption (max): 26W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: 1, 2, Up, Down, Power
    On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 24 ~ 120KHz, DisplayPort (v1.2): 24 ~ 120KHz
    Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz, DisplayPort (v1.2): 50 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
    Analog Sync: Separate/Composite/SOG - RGB Analog
  • ERGONOMICS
    Tilt (Forward/Back): -5º / 20º
  • WEIGHT (IMPERIAL)
    Net (lbs): 11.9
    Net Without Stand (lbs): 9.7
    Gross (lbs): 14.8
  • WEIGHT (METRIC)
    Net (kg): 5.4
    Net Without Stand (kg): 4.4
    Gross (kg): 6.7
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 25.5 x 16.8 x 5.4
    Physical (in.): 21.6 x 15.8 x 7.8
    Physical Without Stand (in.): 21.6 x 12.8 x 1.9
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 647 x 426 x 138
    Physical (mm): 550 x 401 x 198
    Physical Without Stand (mm): 550 x 326 x 49
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS
    PACKAGE CONTENTS: TD2465 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
