Key Features
  • Compact, léger et portable
  • Technologie multitouch à 10 points pour un contrôle de l'écran plus intuitif
  • Solution unique par câble USB-C pour le transfert multimédia, la transmission du signal tactile et la charge électrique
  • Configuration d'affichage flexible – travaillez sous n'importe quel angle
  • Design métallique élégant et durable avec un support pliable

TD1655
Product Description

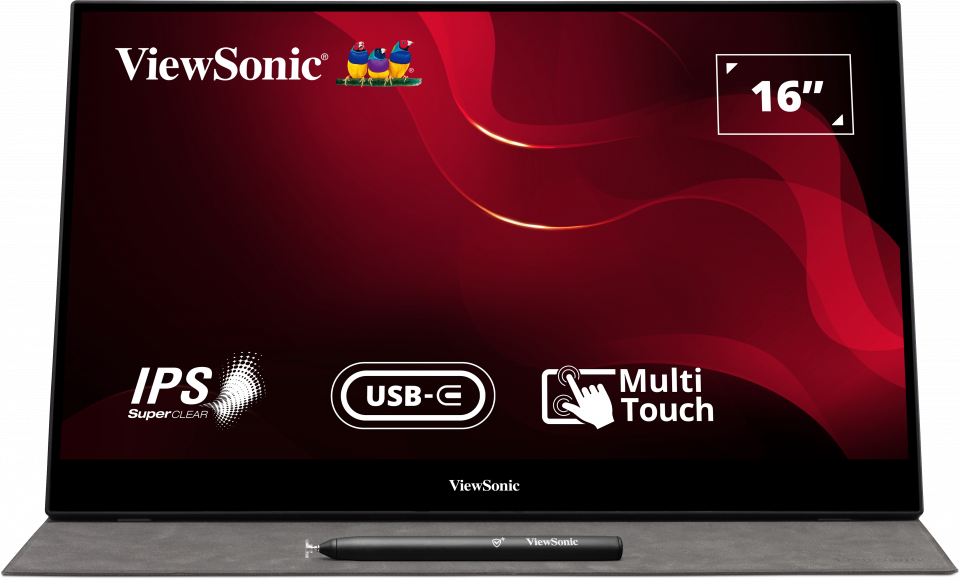

Le moniteur portable tactile ViewSonic TD1655 est un moniteur tactile Full HD portable de 16 pouces, parfait pour une utilisation multi écran en déplacement. Partagez l'écran de vos téléphones, tablettes, ou ordinateurs pour le travail mobile, les présentations individuelles, ou les loisirs. Le moniteur portable tactile a deux connecteurs universels USB de type C offrent une solution à câble unique pour le flux vidéo, la charge et le retour tactile. Le large support réglable et l'écran portable tactile pivotant vous permettent d'accéder à vos angles de travail préférés. Avec le rabat antidérapant, le boîtier en acier inoxydable, le support en aluminium et l'écran de dureté de 6H, la conception de cet écran portable tactile le rend très fiable.
  1. USB Type C x2
  2. Mini HDMI
  3. Sortie Audio
  4. Joystick
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 800:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6.5ms
    Response Time (GTG w/OD): 6.599ms
    Response Time (Typical Tr+Tf): 30ms
    Viewing Angles: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
    Backlight Life (Hours): 15000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 64% size (Typ)
    Pixel Size: 0.179 mm (H) x 0.179 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy w/ anti-finger print, Hard Coating (≧6H)
    Cover Glass Thickness: 0.8mm
  • COMPATIBILITY
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • CONNECTOR
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
    3.5mm Audio Out: 1
    Mini HDMI: 1
    Power in: USB Type C (with video & data)
  • AUDIO
    Internal Speakers: 0.8Watts x2
  • POWER
    Eco Mode (Conserve): 6W
    Eco Mode (optimized): 6.9W
    Consumption (typical): 8W
    Consumption (max): 8.3W
    Voltage: AC 100-240V
    Stand-by: 0.5W
    Power Supply: External Power Adaptor
  • CONTROLS
    Physical Controls: Up, Right, Down, Left, Power
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 82KHz
    Frequency Vertical: 50 ~ 75Hz
  • VIDEO INPUT
    Digital Sync: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
  • ERGONOMICS
    Tilt (Forward/Back): 20º / 60º
  • WEIGHT (IMPERIAL)
    Net (lbs): 2.1
    Net Without Stand (lbs): 2.1
    Gross (lbs): 5.1
  • WEIGHT (METRIC)
    Net (kg): 0.96
    Net Without Stand (kg): 0.96
    Gross (kg): 2.3
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 17.3 x 11.3 x 3.5
    Physical (in.): 13.99 x 8.8 x 0.58
    Physical Without Stand (in.): 13.99 x 8.8 x 0.58
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 440 x 288 x 89
    Physical (mm): 355.46 x 223.44 x 14.7
    Physical Without Stand (mm): 355.46 x 223.44 x 14.7
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE(Adaptor), BIS
    PACKAGE CONTENTS: TD1655 x1, mini HDMI to HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Protect cover x1, Clean cloth x1, Passive touch pen x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
