Écran Pc 19" Pouces VP950b
Moniteur Pc 19" LCD Professional
- Écran Pc 19" Pouces VP950b
- 98% NTSC colour
- ClearMotiv 2ms response
- Moniteur Pc 4 USB PORTS
OVERVIEW

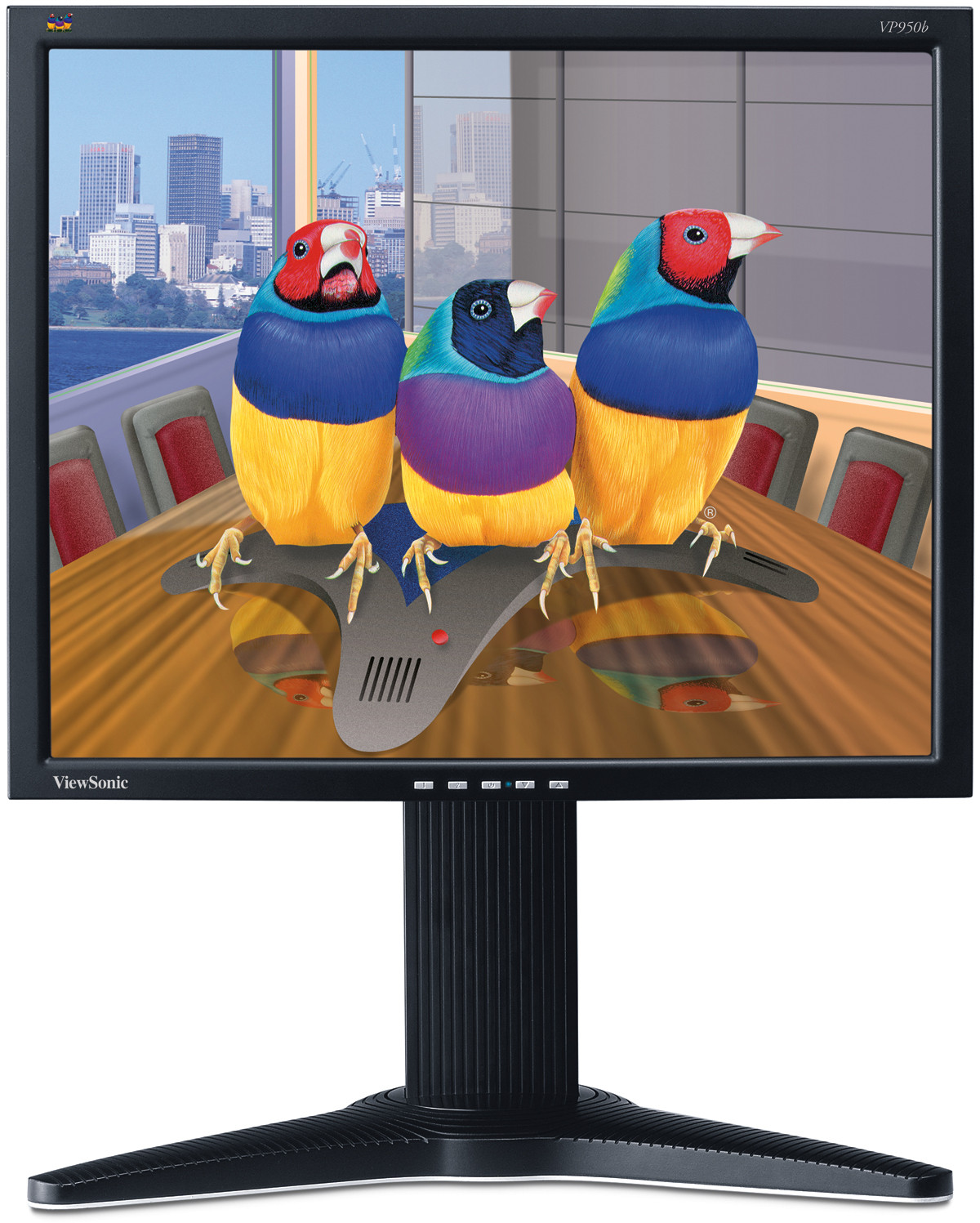

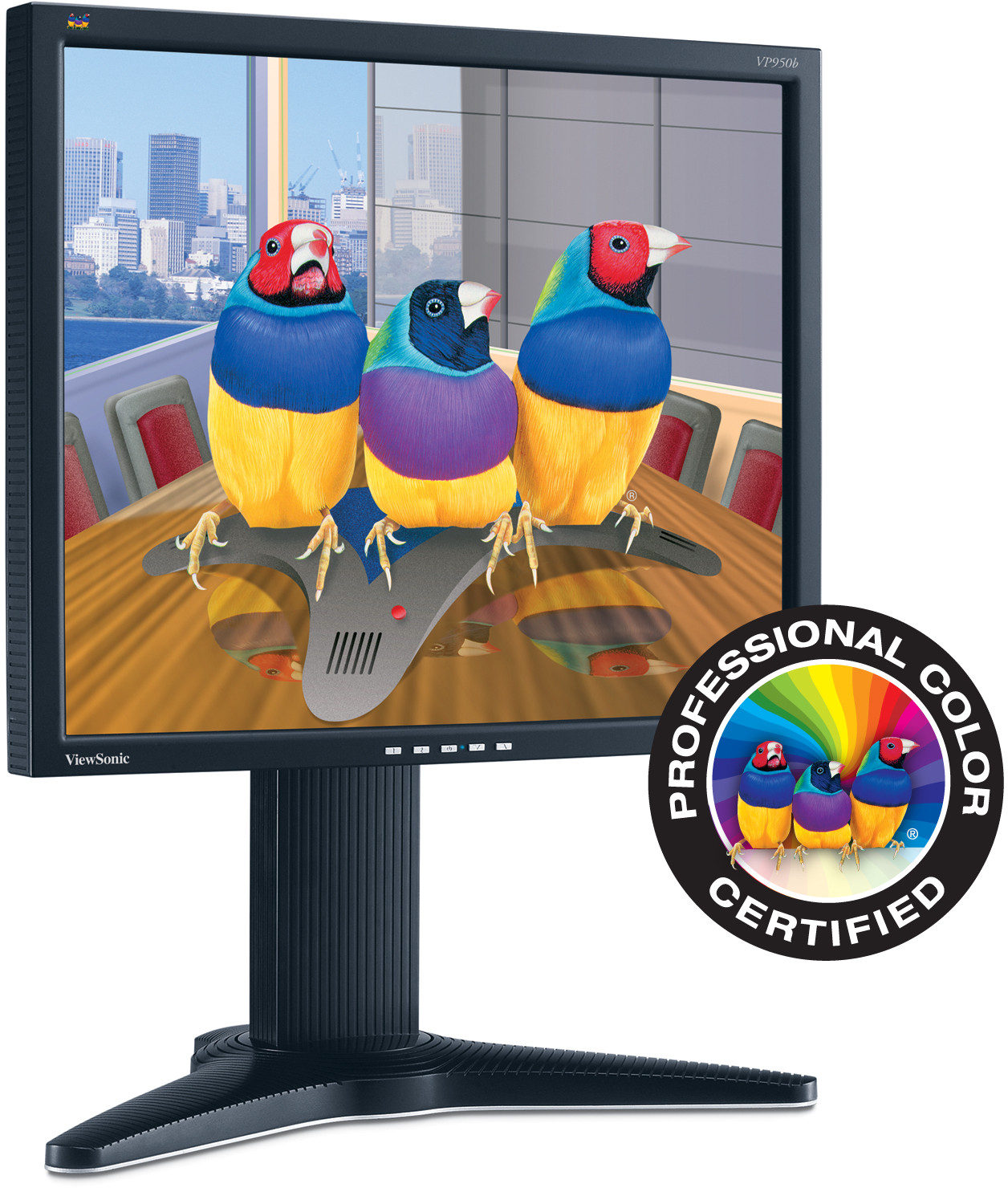

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“The ViewSonic VP Series is included in this CES roundup, highlighting its 110 percent NTSC color gamut.”
“Note 1,5”
SPECIFICATIONS
- COLORSBlack
- LCDType: 48 cm / 19" TN colour TFT active matrix SXGA LCD
Rapport de contraste: 800:1 (typ.), 2000:1 DCR (typ.)
Angles de vue: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Luminosité: 280cd/m2 (typ.)
Zone d'affichage: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Résolution optimale: 1280 x 1024@60Hz
Temps de réponse: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
Source lumière: Long life, 50000 hrs. (typ.)
Surface panneau: Anti-glare (3H)
Pas de pixel: 0.294mm
Prise en charge des couleurs: 16.7M colours supported (6-bit+2-bit HI FRC)
Horloge pixel: 140MHz
Gamme de couleurs: Wide colour gamut, 98% of NTSC - COMPATIBILITÉOrdinateur: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- Dimensions (mm)Physique avec support: 412 x 391-510 x 279
Physique sans support: 412 x 331 x 63
Emballage (LxHxP): 470 x 523 x 195 - NORMESTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL,
cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, Green Mark, EPEAT, WEEE, RoHS - CONTENU DE L'EMBALLAGELCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) - CONNECTEURSAnalogique: 15-pin mini D-sub (detachable cable)
Numérique: 24-pin DVI-D (detachable cable) (HDCP enabled)
Alimentation: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - AlimentationTension: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consommation: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode - COMMANDESDe base: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - CONDITIONS D'EXPLOITATIONTempérature: 0° to 40°
Humidité: 10% to 90% (non-condensation) - PoidsNet avec support: 5.6kg
Net sans support: 4.4kg
Brut: 7.5 kg - Entrée vidéoFréquence: Fh: 24-82kHz, fv: 50-85Hz
Synchronisation: H/V separated (TTL), composite, sync on green
Analogique: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Numérique: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - GESTION ALIMENTATIONMeets TCO’03 and ENERGY STAR standards
- SÉCURITÉKensington security port
- MONTAGE MURALVESA FDMI 100mm x 100mm

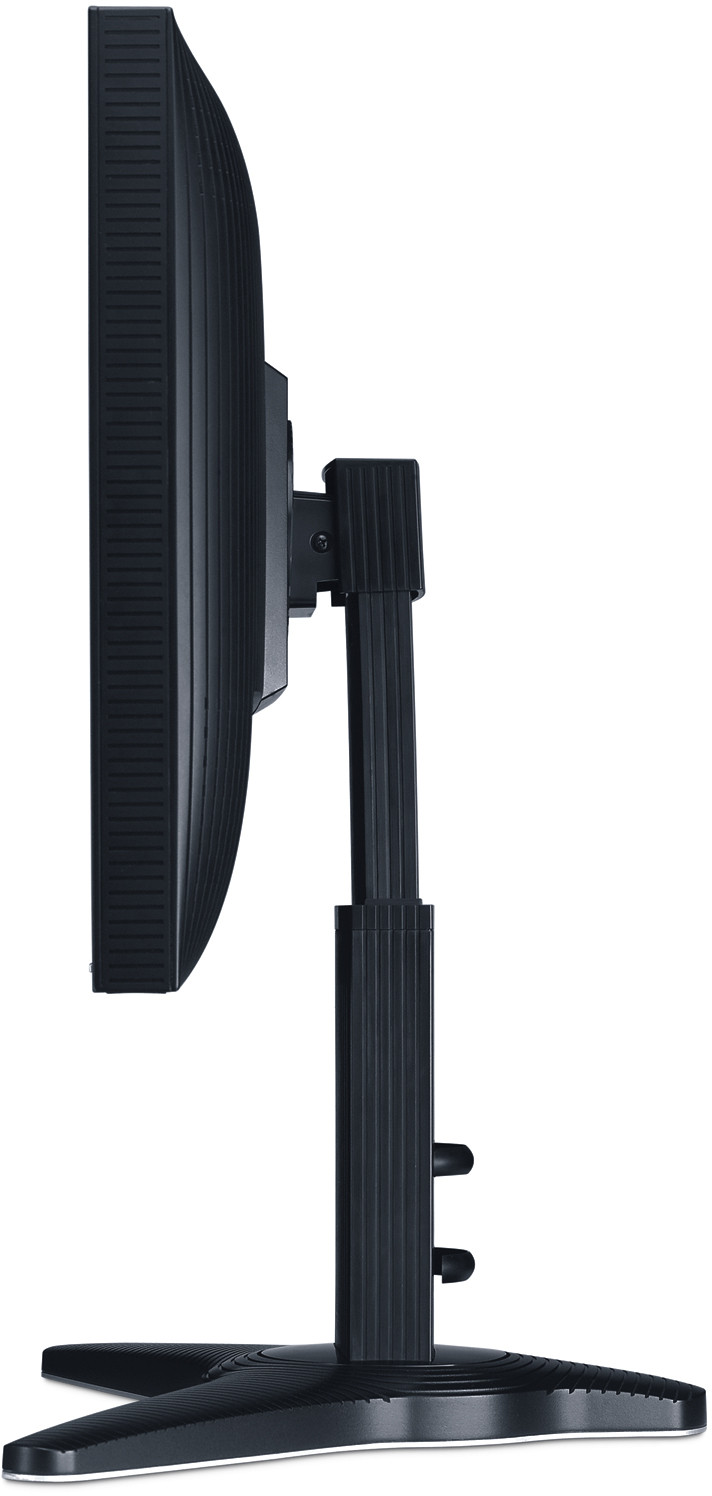

- ERGONOMIEInclinaison: Down 5°, up 20°
Rotation horizontale: 120° (60° left/right)
Réglage de la hauteur: 0~120mm
Rotation verticale: 0°~90°
