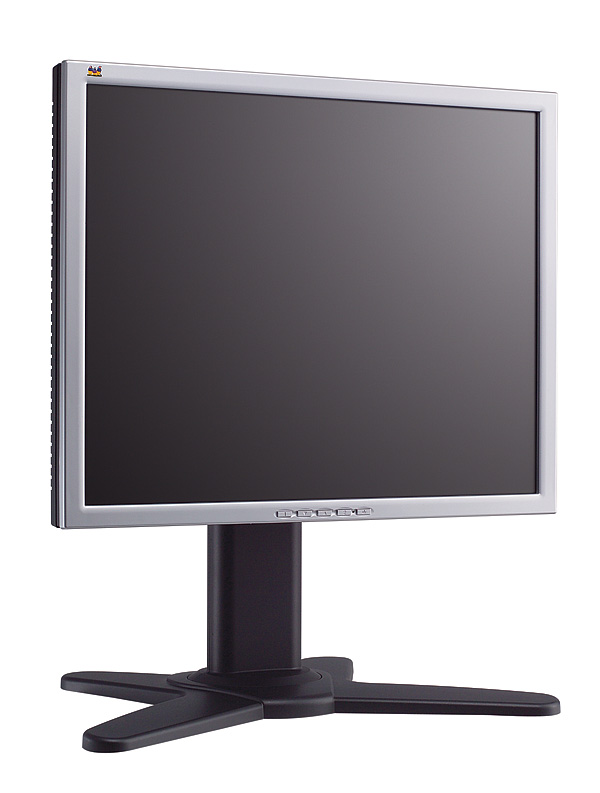

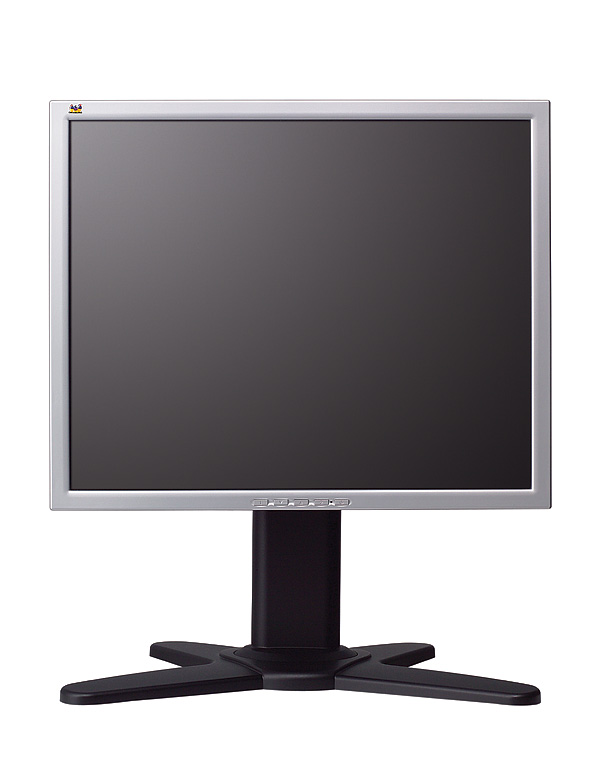

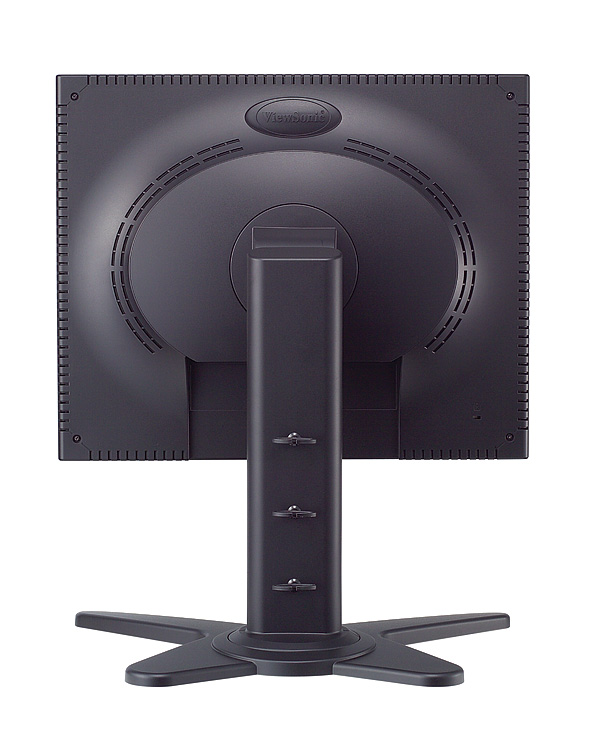

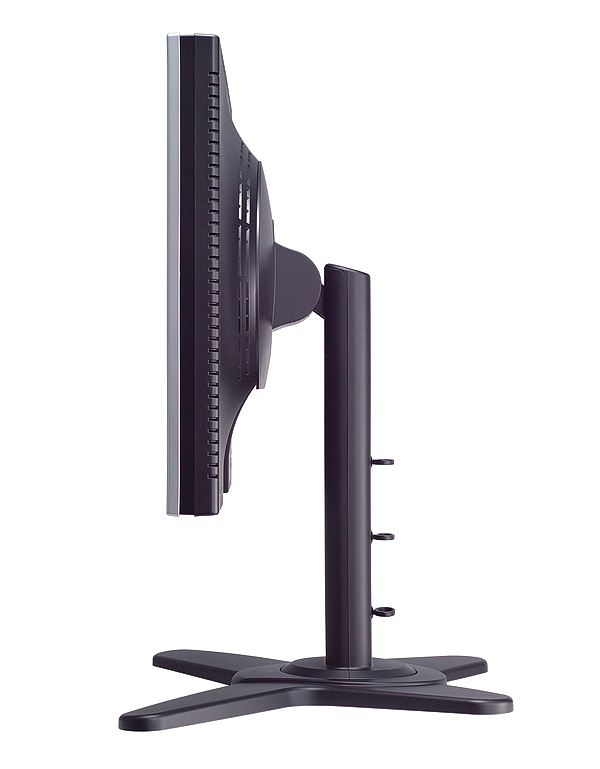

Moniteur 19" Pouces VP930
Écran Pc 19" Ergonomic Lcd
- Moniteur 19" Pouces VP930
- Enjoy crystal-clear
- Extremely high 1300:1 contrast
- Écran Pc Lcd 178° XtremeView™
Brilliant viewing with an ultraslim design.
High performance, ergonomics and eye-catching looks go hand in hand with the VP930 LCD monitor. Enjoy crystal-clear digital images with an extremely high 1300:1 contrast ratio, 178° XtremeView™ wide viewing angles and fluid motion thanks to the fast response time. With its attractive
High performance, ergonomics and eye-catching looks go hand in hand with the VP930 LCD monitor. Enjoy crystal-clear digital images with an extremely high 1300:1 contrast ratio, 178° XtremeView™ wide viewing angles and fluid motion thanks to the fast response time. With its attractive
SPECIFICATIONS
- LCDType: 48cm / 19" MVA colour TFT active matrix SXGA LCD
Rapport de contraste: 1300:1 (typ.)
Angles de vue: 178° horizontal, 178° vertical (at 10:1)
Luminosité: 300cd/m² (typ.)
Zone d'affichage: 376mm (horizontal) x 301mm (vertical),
483mm diagonal
Résolution optimale: 1280 x 1024
Temps de réponse: 8ms (grey-to-grey), 20ms (off-on-off)
Surface panneau: Anti-glare
Pas de pixel: 0.294mm
Bande passante: 135MHz
Prise en charge des couleurs: 16.7M (8bit) - COMPATIBILITÉOrdinateur: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz) - Dimensions (mm)Larg x prof x htr mm: 412 x 356–491 x 289 (w/stand)
412 x 336 x 61 (w/o stand)
- NORMESTCO'03, GS, Ergo, ISO 13406-2 (pixel failure class II), TUV-S/IRAM/UL-AR S Mark, UL, cUL, FCC-B (ICES), CB, CE, ICES-003B, NOM, ENERGY, Energy Start, GOSTR, Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEEE
- CONTENU DE L'EMBALLAGELCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers/PerfectSuite software), portrait/pivot CD-ROM software
- CONNECTEURSAnalogique: 2 x 15-pin mini D-sub (detachable cable)
Numérique: DVI-D (detachable cable)
Alimentation: 3-pin plug (CEE22) - AlimentationTension: AC 100-240V, 50-60Hz (Auto-Switch), internal power supply
Consommation: 38 watt (max.), <= 1 watt in suspend mode - COMMANDESDe base: Soft power, menu [1] , down, up, select [2], main power
OSD: Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2, DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 0° to 40°
Humidité: 10% to 90% (non-condensing) - PoidsNet: 6.8kg (w/ stand);
4.2 kg (w/o stand) - Entrée vidéoFréquence: DVI-D (TMDS, 100 ohms)
Synchronisation: H/V separated (TTL), composite, sync on green
Analogique: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Numérique: DVI-D (TMDS, 100 ohms) - GESTION ALIMENTATIONMeets TCO'03, ENERGY and Energy Star standards
- ERGONOMIEInclinaison: Down 5°, up 20°
Rotation horizontale: 270° (135° left/right)
Réglage de la hauteur: 0~135mm
Rotation verticale: 0°~90°
