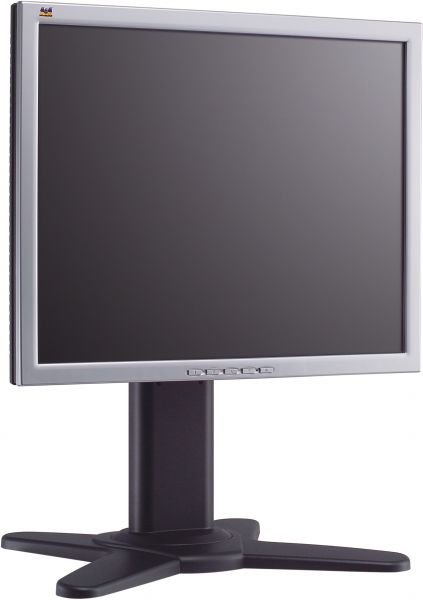

Moniteur Pc 17" Pouces VP730
Écran Pc Ergonomic 17" LCD
- Moniteur Pc 17" Pouces VP730
- ClearMotiv™ 8ms
- Wide XtremeView™
- Écran Pc Ergonomic 17" LCD
The focus of attention.
The VP730 provides great viewing for graphics professionals, corporate executives or power gamers – and thanks to its THINEDGE ULTRA-SLIM BEZEL DESIGN, requires only the minimum of desktop real estate. It is suitable for multiple-display configurations, and delivers strikingly clear, digital high-definition images for powerful multi-tasking and mixed-media data analysis. ClearMotiv™ 8ms broadcast-quality video response and wide XtremeView™ viewing angles together with the option to adjust the HEIGHT, PIVOT, TILT AND SWIVEL settings make it an ergonomic masterpiece. In addition, generous connectivity possibilities are assured with multiple digital/analogue inputs. It's not just another professional LCD. It's a ViewSonic.
SPECIFICATIONS
- LCDType: 43cm / 17" TN colour TFT active matrix SXGA LCD
Rapport de contraste: 700:1 (typ.)
Angles de vue: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Luminosité: 300cd/m² (typ.)
Zone d'affichage: 338mm (horizontal) x 270mm (vertical), 43.2cm diagonal
Résolution optimale: 1280 x 1024
Temps de réponse: 8ms (typ.)
Surface panneau: Anti-glare
Pas de pixel: 0.264mm
Bande passante: 135MHz
Prise en charge des couleurs: 16.2M colours (6-bit+2-bit FRC) - COMPATIBILITÉOrdinateur: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz) - Dimensions (mm)Larg x prof x htr mm: 372 x 342–477 x 279 (with stand)
308 x 372 x 56 (without stand)
- NORMESTCO´03, ISO 13406-2 (pixel failure class II), UL, cUL, FCC-B (ICES), CB, CE, ICES-003B,NOM, ENERGY, Energy Start,
GOST-R, Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEE - CONTENU DE L'EMBALLAGELCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers/Perfect-Suite software), portrait/pivot CD-ROM software - GARANTIEPlease see: www.viewsoniceurope.com/UK/Support/warranty.htm
- EntréeSynchronisation: H/V separated (TTL), composite, sync on green
Numérique: DVI-D (TMDS, 100 ohms)
Analogique: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Fréquence: Fh: 24-82kHz, fv: 50-85Hz - CONNECTEURSAnalogique: 2 x 15-pin mini D-sub (detachable cable)
Numérique: Digital DVI-D (detachable cable)
Alimentation: 3-pin plug (CEE22) - AlimentationTension: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consommation: 35 watt (max.), ≤ 1 watt in suspend mode - COMMANDESDe base: Meets TCO’03, ENERGY and Energy Star standards
OSD: Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2,
DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user
RGB), information (resolution, H/V frequency, pixel clock, model
number, serial number), manual image adjust (H/V position, H size, fine
tune, sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background, OSD pivot), auto white
balance, OSD/power lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 0°C to 40°C
Humidité: 10% to 90% (non-condensing) - PoidsNet: 5.7kg (w/stand); 3.4 kg (without stand)
- ERGONOMIEInclinaison: Down 5°, up 20°
Rotation horizontale: 270° (135° left/right)
Réglage de la hauteur: 0~135mm
Rotation verticale: 0°~90°
