“"Voll spieletaugliches 17-Zoll-TFT mit gelungener Ausstattung." Spieleleistung: 38/40”
OVERVIEW

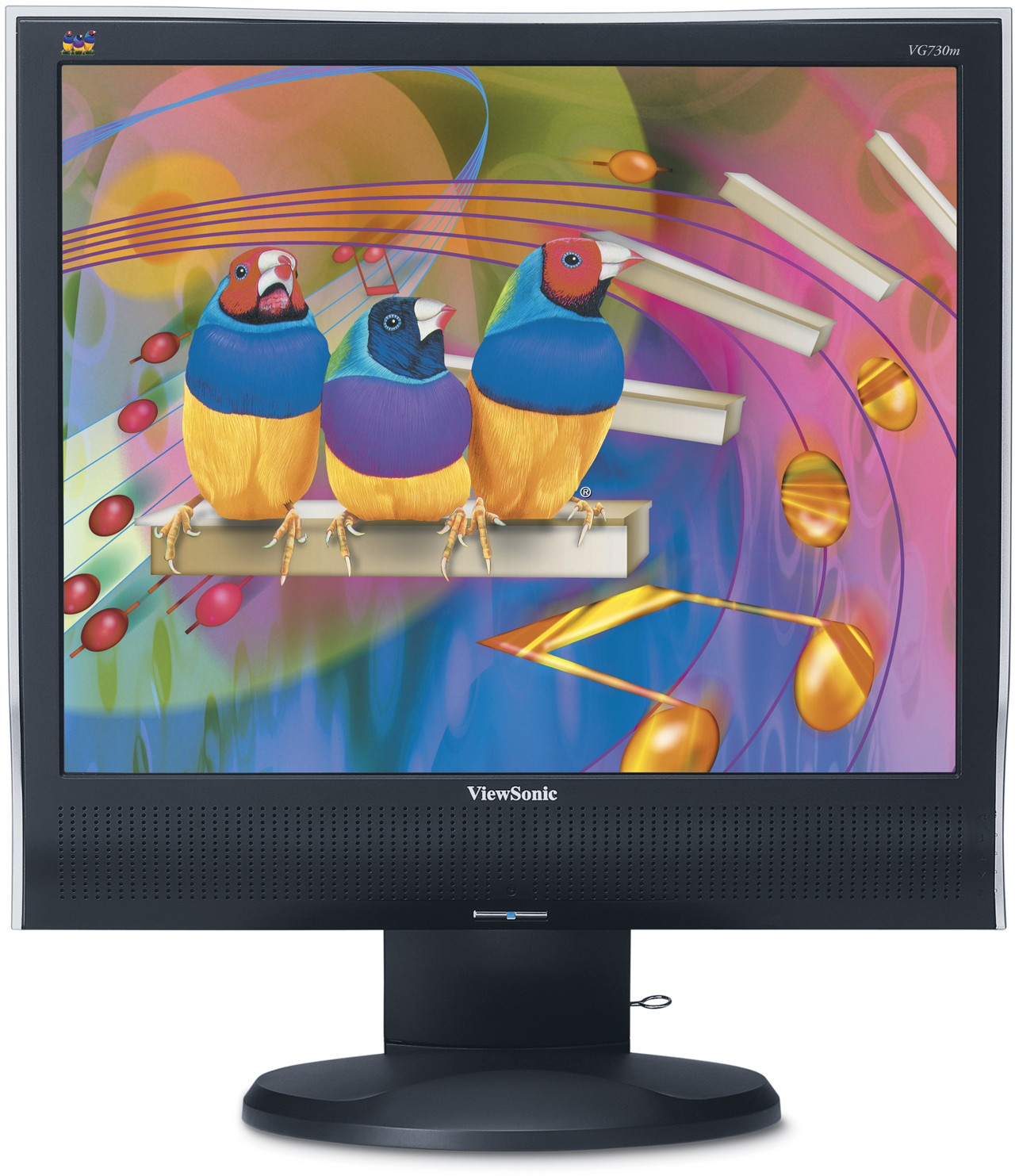

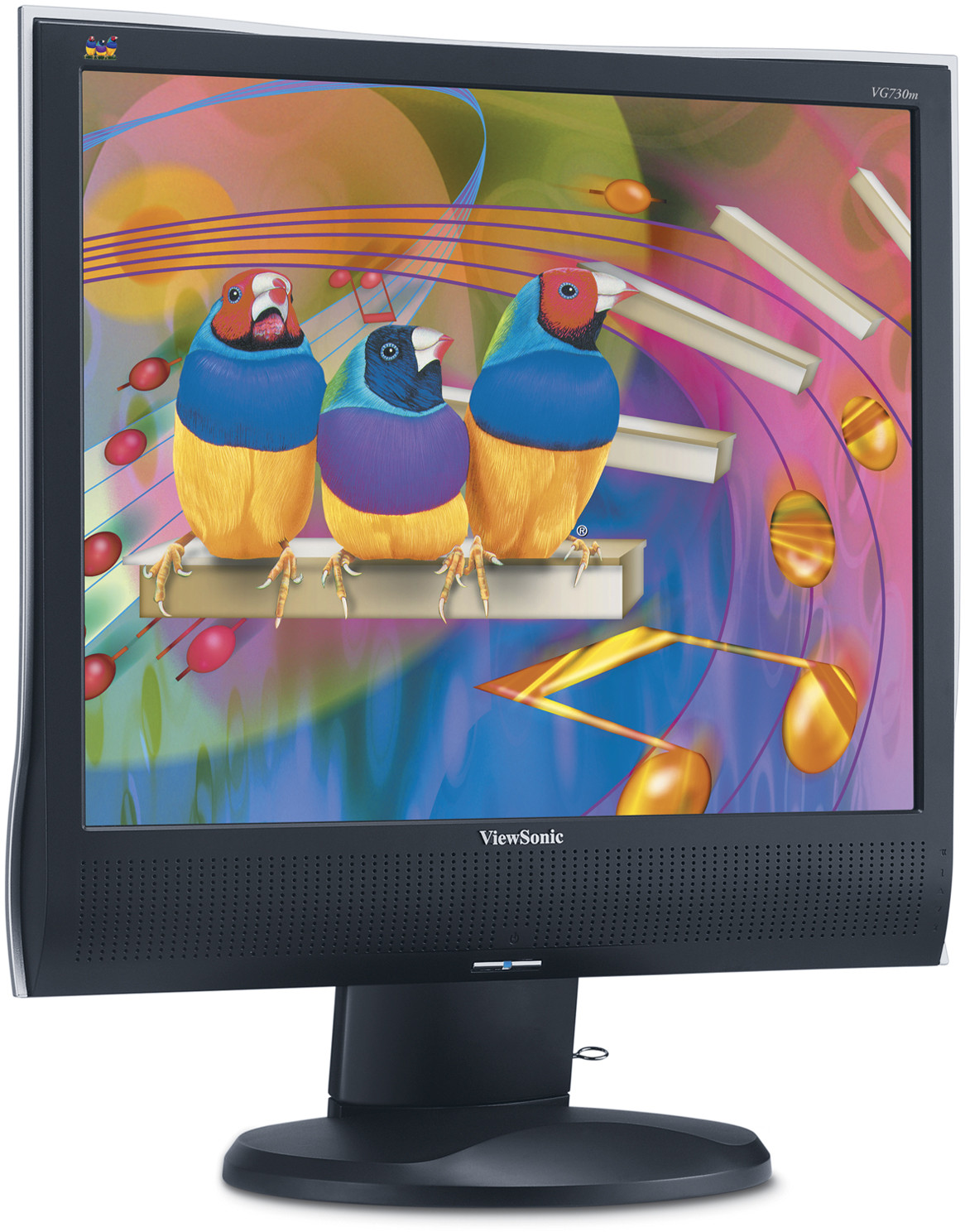

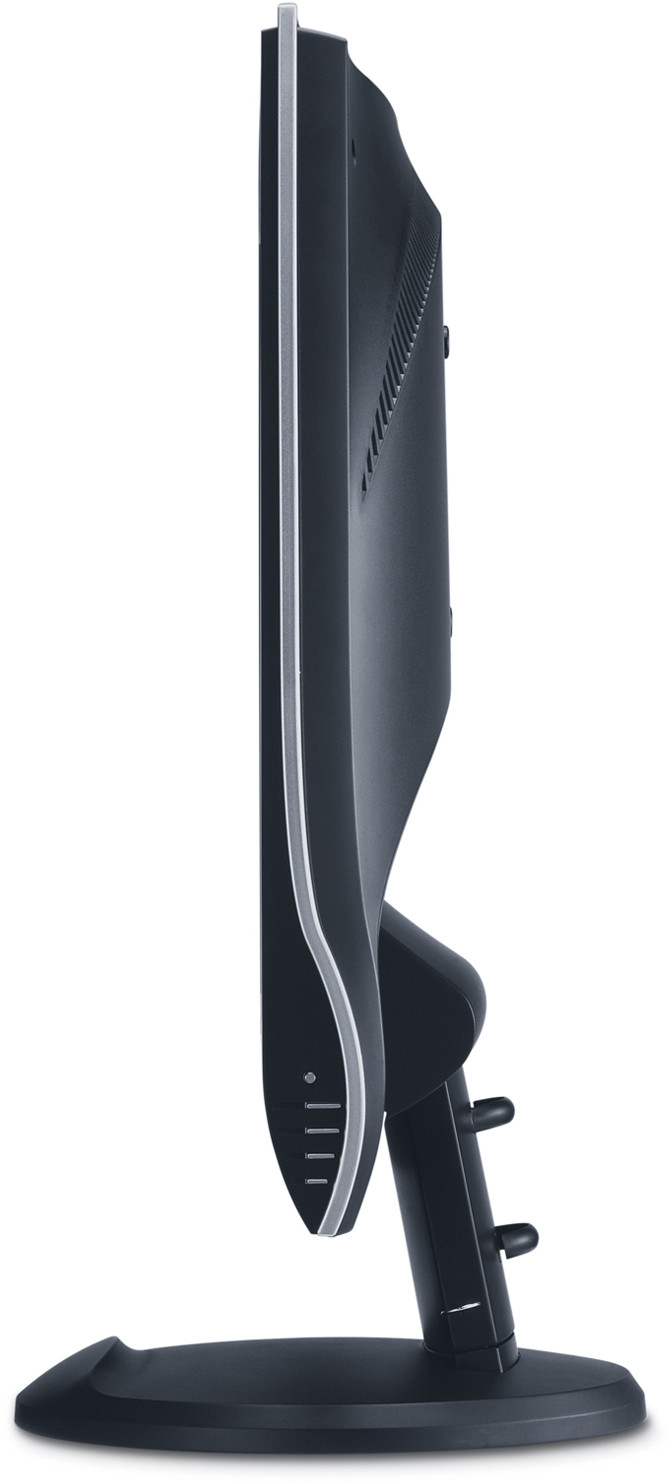

The 17” ViewSonic VG730m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivelfeatures, the VG730m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position andgreatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG730m is the ideal LCD monitor for business, home office, government or education use.Digital performance and ergonomic adjustability
It’s not just a multimedia LCD. It’s a ViewSonic.
REVIEWS
SPECIFICATIONS
- COLORSBlack
- LCDType: 43cm / 17" TN colour TFT active matrix SXGA LCD
Rapport de contraste: 600:1 (typ.)
Angles de vue: 150° horizontal, 145° vertical (at 10:1)
170° horizontal, 155° vertical (at 5:1)
Luminosité: 280cd/m² (typ.)
Zone d'affichage: 33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
Résolution optimale: 1280 x 1024@60Hz
Temps de réponse: 8ms (off-on-off) (typ.)
Source lumière: Long life, 50,000 hrs. (typ)
Surface panneau: Anti-glare (3H)
Pas de pixel: 0.264mm
Prise en charge des couleurs: 16.7M colours supported (6-bit + 2-bit FRC)
Horloge pixel: 140MHz - COMPATIBILITÉOrdinateur: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- Dimensions (mm)Physique avec support: 387 x 475-555 x 230
Physique sans support: 387 x 367 x 67
Emballage (LxHxP): 445 x 552 x 278 - NORMESTCO’03, GS, Ergo, ISO13406-2 (pixel failure class II), CE, CB, GOST-R, PSB, ENERGY STAR,YCO03, UL/cUL, FCC-B, ICES 003, NOM, TUV-S/IRAM/UL-AR S Mark, SASO, BSMI, C-Tick, MIC, CCC, WEEE, RoHS
- CONTENU DE L'EMBALLAGELCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language) - AUDIOHaut-parleurs: 2 x 1.5 watt integrated stereo speakers
- CONNECTEURSAnalogique: 15-pin mini D-Sub (detachable cable)
Numérique: 24-pin DVI-D (detachable cable)
Alimentation: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - AlimentationTension: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consommation: 35 watt (typ.), <1 watt in power save mode - COMMANDESDe base: Power, menu [1], up, down, select [2], mute
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 5°C–35°C
Humidité: 20%–80% (non-condensation) - PoidsNet avec support: 5.0kg
Brut: 6.9kg - Entrée vidéoFréquence: Fh: 30–82kHz, Fv: 50–75Hz
Synchronisation: H/V separated (TTL)
Analogique: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Numérique: DVI-D (TMDS, 100 ohms) - GESTION ALIMENTATIONMeets TCO’03 and ENERGY STAR standards
- SÉCURITÉKensington security port
- MONTAGE MURALVESA FDMI 100mm x 100mm
- ERGONOMIEInclinaison: Down 5°, up 20°
Rotation horizontale: 360° swivel base
Réglage de la hauteur: 0~80mm
