OVERVIEW
The VA705-LED, a 43cm/17” LED display, is a professionally built monitor for government and corporate applications. Its small size and SXGA 1280 x 1024 resolution allows for an efficient working environment. This Energy Star® certified display comes with a long-lasting power-saving LED backlight as well as ViewSonic’s exclusive ECO Mode that reduces power consumption based on different lighting environment and minimizes maintenance effort and costs. Embedded dynamic contrast ratio technology not only enhances the dark and bright contrast of images, but helps to produce a high 10,000,000:1 ratio to deliver perfect image performance. The built-in sRGB colour correction technology revives image colour and captures realistic images for consistent colour performance for professional presentations, photographs, graphic design or printing. The VA705-LED provides an eco-friendly solution and increases productivity, it is ideal for office applications.SPECIFICATIONS
- LCDRapport de contraste: 1,000:1 (typ.)
Angles de vue: 170° / 160° (typ.)
Zone d'affichage: 43cm (17”)
Résolution optimale: 1280 x 1024
Temps de réponse: Typ. 5 ms
Rapport largeur/hauteur: 4:3
Surface panneau: Anti-glare, hard-coating (3H)
Horloge pixel: 0.264 mm x 0.264 mm
Luminosité: 250 cd / m² (typ.)
Rapport de contraste dynamique: 10,000,000:1
Rétroéclairage: White-light LED
Durée de vie du rétroéclairage: 40,000 hours (min.) - COMPATIBILITÉOrdinateur: VGA up to 1280 x 1024
Mac®: MAC up to 1280 x 1024 - Dimensions (mm)Physique avec support: 379 x 400 x 210mm (14.92” x 15.74” x 8.26”)
Physique sans support: 379 x 337.4 x 68mm (14.92” x 13.28” x 2.67”)
- NORMESUL, CUL, FCC-B (ICES), CB, CE, TCO 6.0, ICES-003B,
TUV/GS, TUV ERGO (covers ISO13406-2 & MPRII),
TUV-S, NOM, GOST-R, HYGIENIC (20 copies),
Energy Star, CCC, BSMI, PSB, C-TICK, KTL/MIC,
SASO, WEEE, RoHS - EntréeSynchronisation: Separate Sync
Analogique: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)

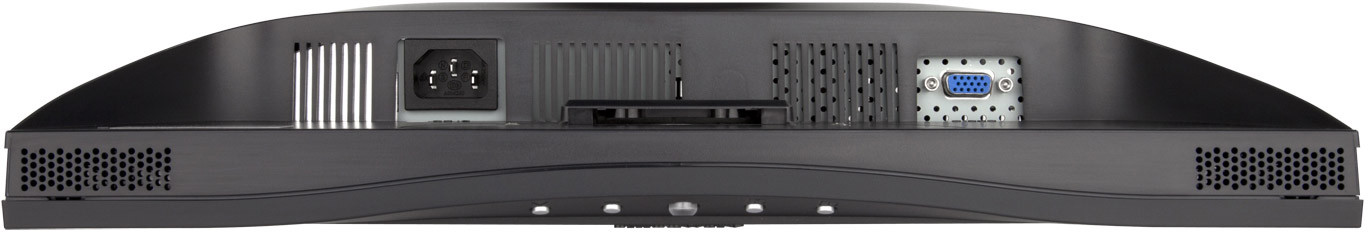

Fréquence: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz - CONNECTEURSAnalogique: 15-pin mini D-sub x 1
Alimentation: Internal Power Board , 3-pin Plug (CEE22) x 1 - AlimentationTension: AC 100 - 240V (universal); 50 / 60 Hz
Consommation: 20W (typ.); Optimise: 15W (typ.); Off/Standby <= 0.5W - MONTAGE VESA™100mm x 100mm
- ERGONOMIEInclinaison: 20° ~ -3°
- PoidsNet avec le support: 2.91 Kg (6.41 lbs)
Net sans le support: 2.56 Kg (5.64 lbs) - CONDITIONS D'EXPLOITATIONHumidité: 10% to 90% (non-condensing)
Température: 32° F to 104° F (0° C to 40° C)
