Super contrast ratio widescreen

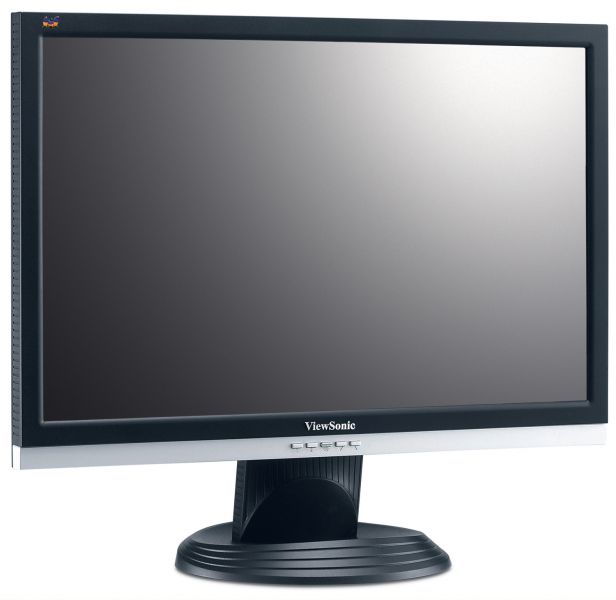

ViewSonic’s 51cm / 20" VA2016w LCD brings widescreen performance to budget-conscious users. The 16:10 aspect ratio and high 1680 x 1050 resolution allow you to view two documents side-by-side or work in multiple applications simultaneously. The 2000:1 Dynamic Contrast Ratio delivers amazingly sharp and crisp images. PC gamers will appreciate the immersive gaming action delivered by fast 5ms video response. You’ll be amazed by the extreme clarity and brilliant colours of the VA2016w. This widescreen LCD features a stylish chassis that complements any desktop while delivering brilliant image quality and reliable performance all at an appealing price point. It’s the easy choice for gamers, home and small office users and corporate professionals.
It's not just another widescreen LCD. It's a ViewSonic.
SPECIFICATIONS
- COLORSBlack
- LCDType: 20” Wide TN colour TFT active matrix WSXGA+ LCD
Rapport de contraste: 1000:1 (typ.), 2000:1 (DCR, typ.)
Angles de vue: 170° horizontal, 160° vertical (at 10:1)
175° horizontal, 170° vertical (at 5:1)
Luminosité: 300cd/m²
Zone d'affichage: 43.3cm horizontal x 27.1cm vertical, 51.1cm diagonal
Résolution optimale: 1680 x 1050@60Hz
Temps de réponse: 5ms (off-on-off) (typ.)
Source lumière: Long life, 40000 (min.)
Surface panneau: Anti-glare (3H)
Pas de pixel: 0.258mm
Prise en charge des couleurs: 16.7M colours supported (6-bit + 2-bit FRC)
Horloge pixel: 135MHz - COMPATIBILITÉOrdinateur: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- Dimensions (mm)Physique avec support: 472 x 408 x 225
Physique sans support: 472 x 327 x 65
Emballage (LxHxP): 526 x 448 x 127 - NORMESTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, WEEE, RoHS
- CONTENU DE L'EMBALLAGELCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- CONNECTEURSAnalogique: 15-pin mini D-Sub (detachable cable)
Alimentation: 3-pin AC plug (CEE22) - AlimentationTension: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consommation: 38 watt (typ.), <1 watt in power save mode - COMMANDESDe base: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 0°C–40°C
Humidité: 20%–90% (non-condensation) - PoidsNet avec support: 4.9kg
Brut: 6.4kg - Entrée vidéoFréquence: Fh: 30–82kHz, Fv: 50–75 Hz
Synchronisation: H/V separate (TTL), composite, sync on green
Analogique: RGB analogue (0.7/1.0 Vp-p, 75 ohm) - GESTION ALIMENTATIONTCO’03 and ENERGY STAR standards
- SÉCURITÉKensington security port
- MONTAGE MURALVESA FDMI 100mm x 100mm
- ERGONOMIEInclinaison: Down 5°, Up 20°
