Entertainment in every room

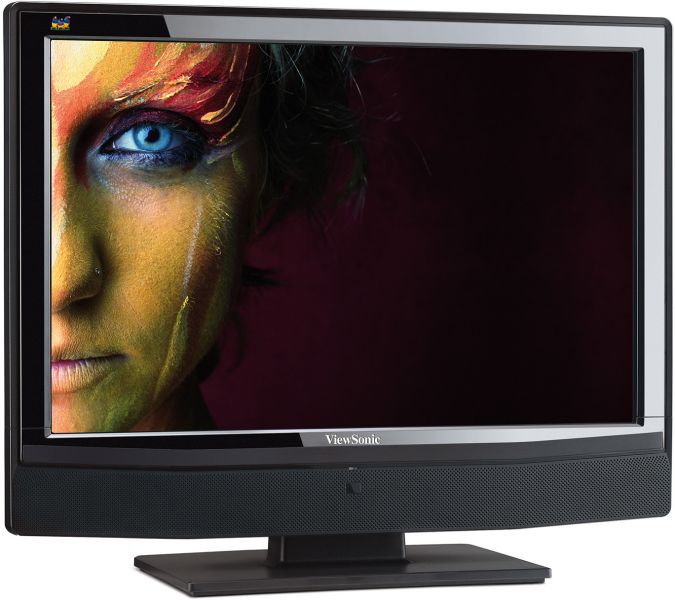

ViewSonic’s 22“ NX2240w widescreen LCD TV impresses with large cinema format entertainment and brings high-definition images into every room. With its small footprint and thanks to the integrated tuner, it brings your favourite movie, show or newscast into your kitchen, bedroom, home office or even to your shop countertop. Numerous inputs incl. HDMI, SCART, and PC-VGA make the NX2240w very versatile and ideal for use both at home and at work. With its 16:10 widescreen ratio it is perfectly suited to watch movies in native cinema aspect ratio plus it brings more space onto your desktop. High brightness and contrast levels guarantee crisp, vibrant colours in almost every application. The built-in stereo sound system delivers perfect audio performance.
SPECIFICATIONS
- COLORSBlack
- LCDType: 22“ TN colour TFT active matrix WSXGA + LCD
Rapport de contraste: 1000:1 (typ.)
Angles de vue: 170° horizontal, 160° vertical (at 10:1)
Luminosité: 300 cd/m² (typ.)
Zone d'affichage: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Temps de réponse: 5ms (grey-to-grey)
Rapport largeur/hauteur: 16:10
Surface panneau: Anti-glare 3H - COMPATIBILITÉOrdinateur: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
- Dimensions (mm)Larg x prof x htr mm: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging) - NORMESCE, CB, GOST, SASO, WEEE, RoHS
- CONTENU DE L'EMBALLAGELCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)
- AUDIOHaut-parleurs: 2 x 2 Watt
- CONNECTEURSNumérique: 1 x HDMI
Entrée S-vidéo: 1 x 4-pin mini DIN jack
Casque: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART2 (CVBS, RGB, Audio)
Syntoniseur: 1 x Coax RF (PAL/SECAM)
PC: 1 x 15-pin mini D-sub
Alimentation: 3-pin plug (CEE22)
Vidéo composite: 1 x RCA (CVBS)
Vidéo en composante: Via 15-pin mini D-sub to 3 x RCA component video adapter - AlimentationTension: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Consommation: <75 watt (max.) - COMMANDESDe base: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset) - CONDITIONS D'EXPLOITATIONTempérature: 32-104ºF (0-40ºC)
Humidité: 10% - 85% (non-condensation) - PoidsNet: 6.2kg (with base) 5.5kg (without base)
Brut: 8.7kg - TELETEXTYes (10 pages)
- Entrée vidéoPAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
