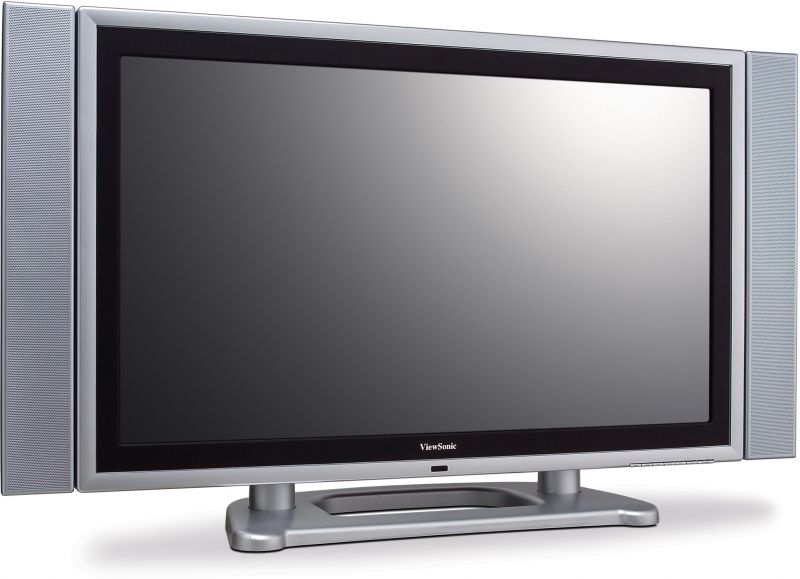

ND4210w
107 cm / 42" HD LCD Network Display with intergrated internet protocol (IP) networking
Dynamic digital signage
ViewSonic's ND4210w 107 cm / 42" HD network display is one of the latest generation LCD displays with integrated industry standard Internet Protocol (IP) networking – another time ViewSonic sets new standards to access digital content. The ND4210w directly decodes video over IP and can be REMOTELY MANAGED FROM VIRTUALLY ANYWHERE IN THE WORLD via the Internet. ViewSonic brings its heritage of award- winning display and media networking technologies to the world of commercial digital signage. Especially designed for business installations, ND4210w CUSTOMISABLE DISPLAYS CAN PLAY UNIQUE OR IDENTICAL CONTENT in multiple locations within a building, across a large business campus or even in diverse locations across the country. Brilliantly display call centre information boards, window advertisements, transportation depot information, restaurant menus, and in-store merchandising.
SPECIFICATIONS
- LCDType: 107 cm / 42" IPS colour TFT active matrix, wide 1366 x 768
Rapport de contraste: 1600:1 (typ.)
Angles de vue: 178° horizontal, 178° vertical (at 10:1)
Luminosité: 500cd/m²
Zone d'affichage: 93.0cm (horizontal) x 52.3cm (vertical), 107cm diagonal
Résolution optimale: 1366 x 768@60Hz
Temps de réponse: 8ms (off-on-off) (typ.)
Rapport largeur/hauteur: 16:9
Surface panneau: Anti-glare (3H)
Prise en charge des couleurs: 16.7M colours (8-bit) - Dimensions (mm)Physique (LxHxP): 1243 x 739 x 304 (with stand)
- NORMESCB, UL/cUL, FCC - 15B/IC - ES003B, CE (EN55022/55024/LVD), C-Tick, NOM-019, TÜV-S Mark, CB, SASO, SABS, CCC, BSMI, PSB, GOST-R
- CONTENU DE L'EMBALLAGELCD Monitor, power cable, Ethernet cable, remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM
- CONNECTEURSAlimentation: 3-pin AC plug (CEE22)
USB: 2 x USB (4-pin Typ A) (support for HIB and WLAN connection)
Audio: 1 x RCA set R/L
1 x external speakers R/L (8 ohms)
Réseau/Guirlande: 2 x RJ-45 - AlimentationTension: AC 100– 240V, 50/60Hz (auto switch), internal power supply
Consommation: 390 watt (typ.), +/- 10% watts - CONDITIONS D'EXPLOITATIONTempérature: 5°C – 40°C
Humidité: 20% – 85% (non-condensation) - PoidsNet: 33kg
Brut: 41kg - DECODAGEVidéo: MPEG-1,2,4, Macromedia® Flash™
Audio: MPEG-1 (layers 1, 2, 3), MP3, WMA, AAC, Dolby® AC-3 (pass through) - PROTOCOLE DE DIFFUSION EN CONTINUTypes: HTTP, UDP, RTP, IP/TV (separate A/V), ISMA, local file playback
- FICHIER IMAGEFormats: JPEG, BMP
- MONTAGE MURALVESA FDMI 200mm x 200mm
- JEU DE PUCES VIDEOSigma EM8621L
Freescale MPC8247 - FORMAT BALAYAGE VIDEOSDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
- STOCKAGE LOCAL / MEMOIREHDD: 40GB
RAM: 128MB
Flash: 64MB
RAM Sigma: 64MB
CompactFlash: up to 1GB
