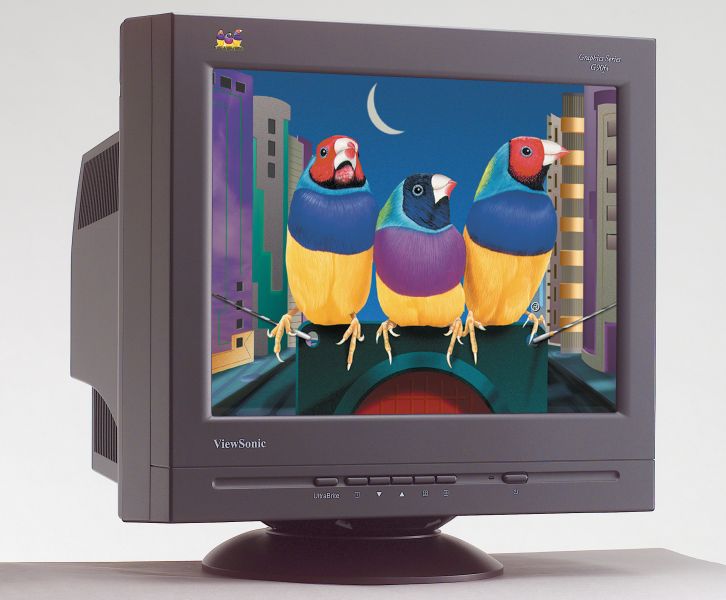

48 cm / 19" PerfectFlat® Monitor
With its PerfectFlat® screen and ultra-fine shadow mask, the midnight grey 48 cm / 19" ViewSonic G90fB makes a decidedly elegant impression. It delivers edge-to-edge, distortion-free images with minimised reflection and glare. This model boasts high resolution and is TCO'03 certified to meet strict demands for ergonomics and recyclability. Adjust your screen with the OnView® controls and secure them with the OSD lock function ensuring optimum screen performance. Whether for general day-to-day applications or modern home entertainment, the versatile G90fB is a top choice.
REVIEWS


“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”
SPECIFICATIONS
- COLORSBlack
- COMPATIBILITÉOrdinateur: PC and compatible (from VGA up to 1920 x 1440)
Mac®: Power Mac™ G3/G4
Autres: Most Workstations - Dimensions (mm)Physique (mm): 445 x 424 x 465
- NORMESTCO'03, TÜV/GS, TÜV/Ergo, CE, CB, GOST-R, UL/cUL1950, FCC-B, DHHS, ICES-003, NOM, CCC, PSB, BSMI, Argentina, SASO
- Signal d'entréeFréquence: Fh: 30 – 97kHz
Fv: 50 – 160Hz
Vidéo: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL) - CONNECTEURSAlimentation: 3-pin plug (IEC320)
Signal: 15-pin mini D-sub - AlimentationTension: AC 90 – 264V, 50/60Hz (± 2Hz) (auto switch)
Consommation: 70W (typ.), < 2W in power save mode - COMMANDESOSD: Contrast, brightness, zoom, H/V position, H/V size, pincushion, pin balance, trapezoid, parallelogram, top/bottom hook, tilt, V moiré reduction, ViewMatch® colour (9300k, 6500k, 5000k, user RGB), degauss, OSD position, language, ViewMeter (mode information), memory recall, OSD lock
Physique: Power on/off, menu [1], up, down, select [2], recall - CONDITIONS D'EXPLOITATIONTempérature: 0°C to 40°C
Humidité: 5% to 95% (non condensation) - PoidsNet: 18kg
- Entrée vidéoBande passante: 240MHz (typ.)
- GESTION ALIMENTATIONMeets TCO'03 and Energy Star™-standards
- CRTType: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat®
Pas de masque: 0.20mm horizontal x 0.13mm vertical, 0.25mm diagonal
Phosphor: Pigment coated P22 (Cadmium free)
Surface vitrée: Tint (TM ~ 53.6%), ARAG® screen treatment - SIGNAL VIDEOVidéo: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL)
Fréquence : Fh: 30 – 97kHz
Fv: 50 – 160Hz - PLUG & PLAYDDC1, DDC2B
- Mauvaise convergence0.25mm (max.) at centre
0.35mm (max.) at corner - MODES PROGRAMMABLESPar défaut: 12
Utilisateur: 10 - Zone d'affichageRéglage par défaut: 352mm (H) x 264mm (V) (typ.)
Balayage maximum: Maximum Scan 360mm (H) x 270mm (V)
(depending on signal timing used)
