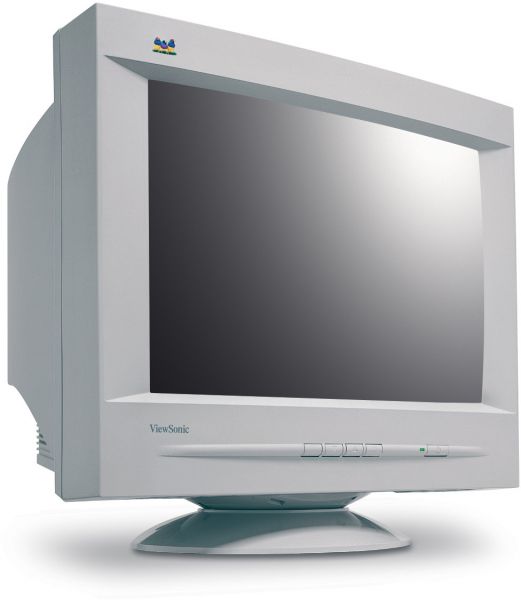

43 cm / 17" (16" viewable) Monitor
ViewSonic®, again with the E70 sets the standard for price performance leadership. The E70 is the ideal choice for SoHo (small office/home office) or educational users. With a 43 cm / 17" (16" viewable) screen, 0.27mm dot pitch and a maximum resolution of 1280 x 1024, the E70 delivers crisp, sharp, colourful images for business, educational applications, general graphics and internet browsing. Intuitive digital controls makes screen adjustments easy in both PC or Mac® environments, whilst thanks to Windows®, Plug & Play ensures a worry free set-up.
SPECIFICATIONS
- COMPATIBILITÉOrdinateur: PC and compatibles (from VGA up to 1280 x 1024 non-interlaced)
Mac®: Power Mac® - Dimensions (mm)Physique (LxHxP): 410mm (W) x 425mm (H) x 402mm (D)
- NORMESCE, CB, TÜV/GS, TÜV/Ergo, MPRII, UL, cUL, DHHS, FCC-B, ICES-003, Argentina-TÜV/S, NOM, PSB, C-tick, BSMI
- Signal d'entréeFréquence: Fh: 30 - 70kHz,
Fv: 50 - 160Hz
Vidéo: RGB Analogue (0.7V/1.0Vp-p, 75 ohms)
Sync: H/V separated (TTL), composite - CONNECTEURSAlimentation: 3-pin plug (IEC320)
Signal: 15 pin mini D-sub, attached cable - AlimentationTension: AC 90 - 264V, 50/60Hz (auto switch)
Consommation: 75W (typ.), < 2 watt in power save mode - COMMANDESDe base: Power on/off, Key 1, Key 2, up, down
OSD: Contrast, Brightness, zoom, H/V Size, H/V Position, Pin-balance, Pincushion, Parallel, Trapezoid, Rotation, moiré reduction, degauss, ViewMatch colour adjust (9300K, 6500K, 5000K, User), mode information (ViewMeter), language, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 0°C to 40°C
Humidité: 5% to 95% (no condensation) - PoidsNet: 14kg
- Entrée vidéoBande passante: 120MHz (Typical)
- GESTION ALIMENTATIONMeets MPR II
- CRTType: 43cm / 17" (16" diagonal viewable area), 90°deflection
Pas de masque: 0.27mm dot pitch
Phosphor: RGB P22 medium/short persistence
Surface vitrée: Anti-static, anti-glare, AR coat (TM=50%) - PLUG & PLAYDDC1, DDC2B
- Mauvaise convergence0.25mm (max.) at centre
0.35mm (max.) at corner - Zone d'affichageRéglage par défaut: 310mm (H) x 230mm (V) (typ.)
Balayage maximum: 325mm (H) x 243mm (V) (depending on signal timing used)
