CDP6530T

Super Large Format Interactive Digital Signage

Sales Enquiry

GALLERY

OVERVIEW

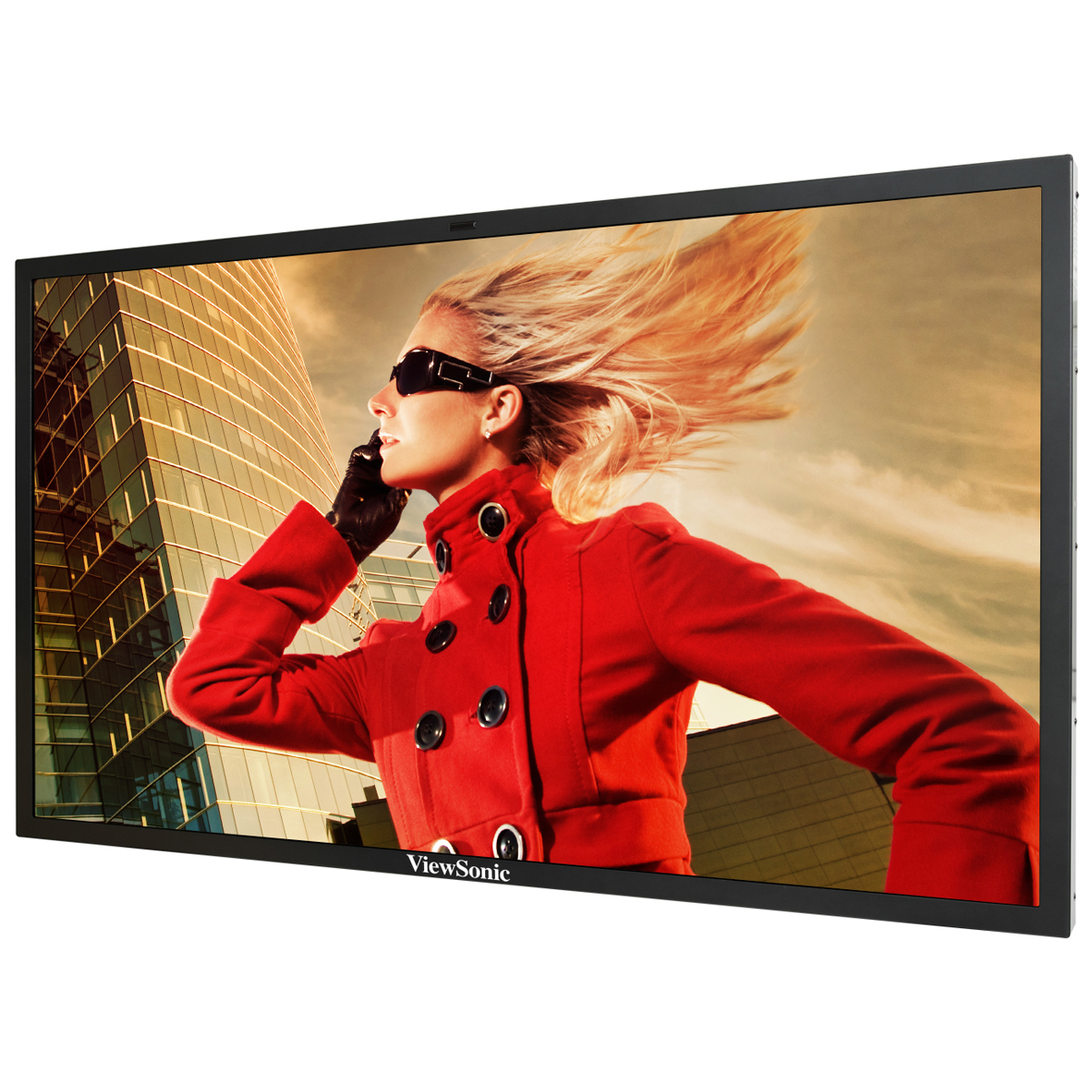

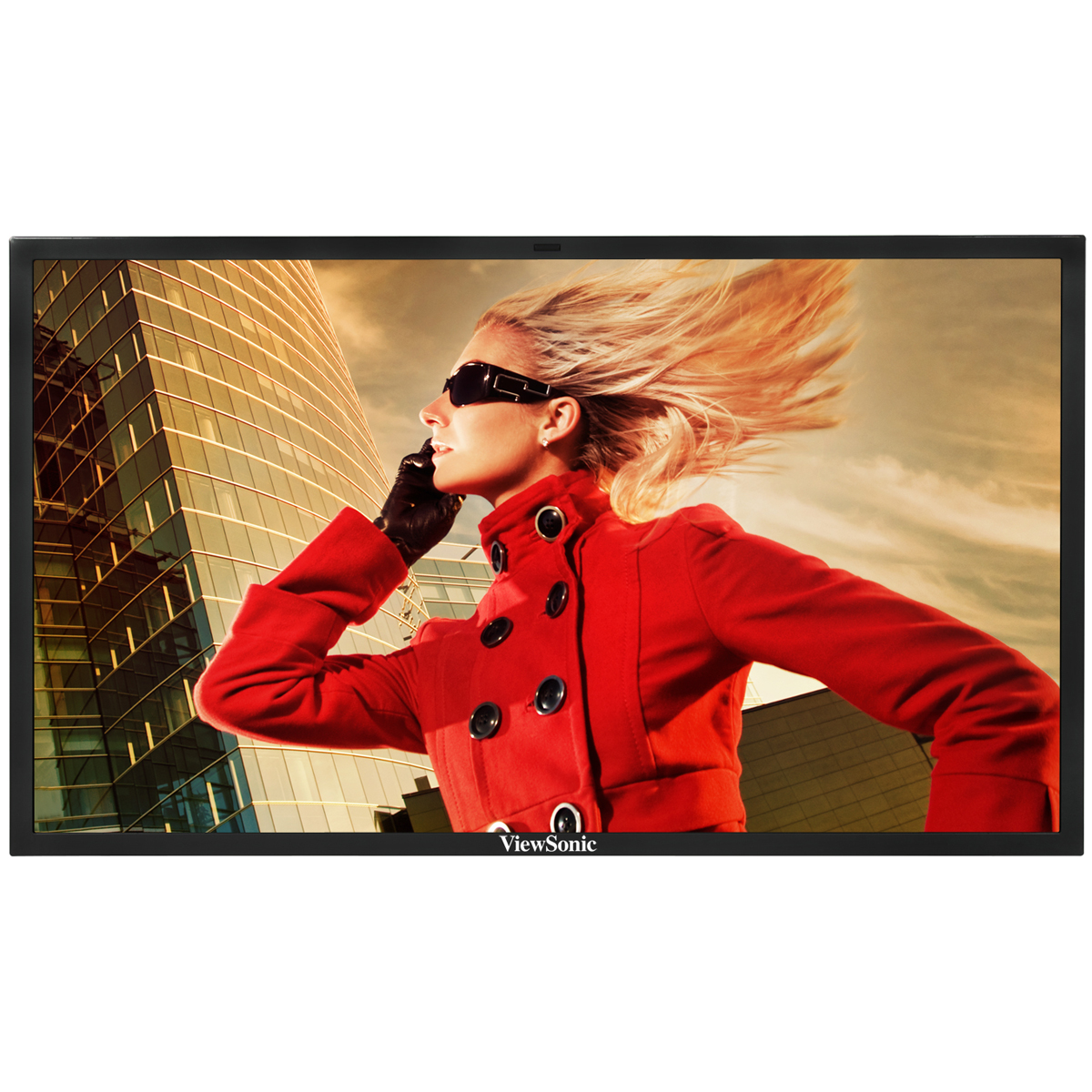

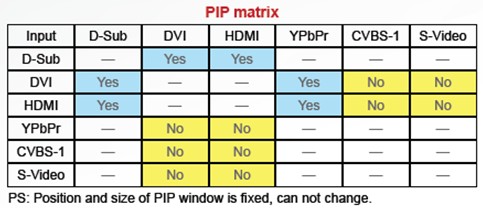

The ViewSonic ® CDP6530-T is a full HD touch interactive commercial display with 1920x1080p panel resolution with 500 nits (typ) of brightness and 20,000:1 dynamic contrast ratio. Key features include optical 2-touch capability usablewith your finger or stylus. Additional features include versatile inputs including an Intel® OPS slot for easy integration of a media player, as well as the traditional HDMI, DVI, VGA, YPbPr, S-video CVBS inputs. Built-in 12W (x2) speakers are also provided. The new CDP6530-T Also features internal scheduling as well as a tiling feature with video wall support up to a 10x10 display matrix. Other features include remote and front panel lockout, PIP (picture in picture) built in AC power for adding a media player and RS-232 loop through for automated control.

Advanced ClearPicture™ – Clearer, Crisper, Sharper Images

Advanced ClearPicture™ image processing eliminates noise, increasescontrast and detail and optimizes color for rich, vibrant images.High-definition images look amazing and even standard television imagesare unbelievably smooth and sharp.

Vivid Graphics, Clear Text

Ultra-high brightness of 500 nits (typ), contrast ratio of 20,000:1, and1920x1080 full HD optimum resolution provide vibrant video and crispdata, all while using up to 35% less power* than standard CCFL displays.

Applications:

Ideal for way finding

Transportation

Public interactive advertising

Hospitality

Corporate messaging

Expand Your Options with Plug-and-Play Connectivity

Versatile inputs include – HDMI, DVI, VGA, YPbPr, CVBS (BNC) S-video andcomposite video. RS232 daisy-chain capable."

SPECIFICATIONS

COLORS
Black
LCD
Type: 65" (64.6" viewable) color TFT active matrix, wide LCD
Rapport de contraste: 5000:1 (typ)
20,000:1 (Dynamic)
Angles de vue: 178º horizontal, 178º vertical
Luminosité: 500 cd/m2 (typ)
Zone d'affichage: 56.2" horizontal x 31.6" vertical; 64.5" diagonal
Résolution optimale: 1920x1080, 600mm dot pitch
Temps de réponse: 8ms
Source lumière: Long life, 50,000 hrs. (typ)
Rapport largeur/hauteur: 16:9
Surface panneau: Anti-glare, hard coating (3H)
Dimensions (mm)
Physique avec support: 59.9" x 40.4" x 16.4" / 1522 x 1026 x 417 mm
Physique sans support: 59.9" x 35.5" x 5.4" / 1522 x 903 x 138 mm
Emballage: 64.8" x 41.2" x 11.7" / 1647 x 1046 x 298 mm

NORMES
FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS
CONTENU DE L'EMBALLAGE

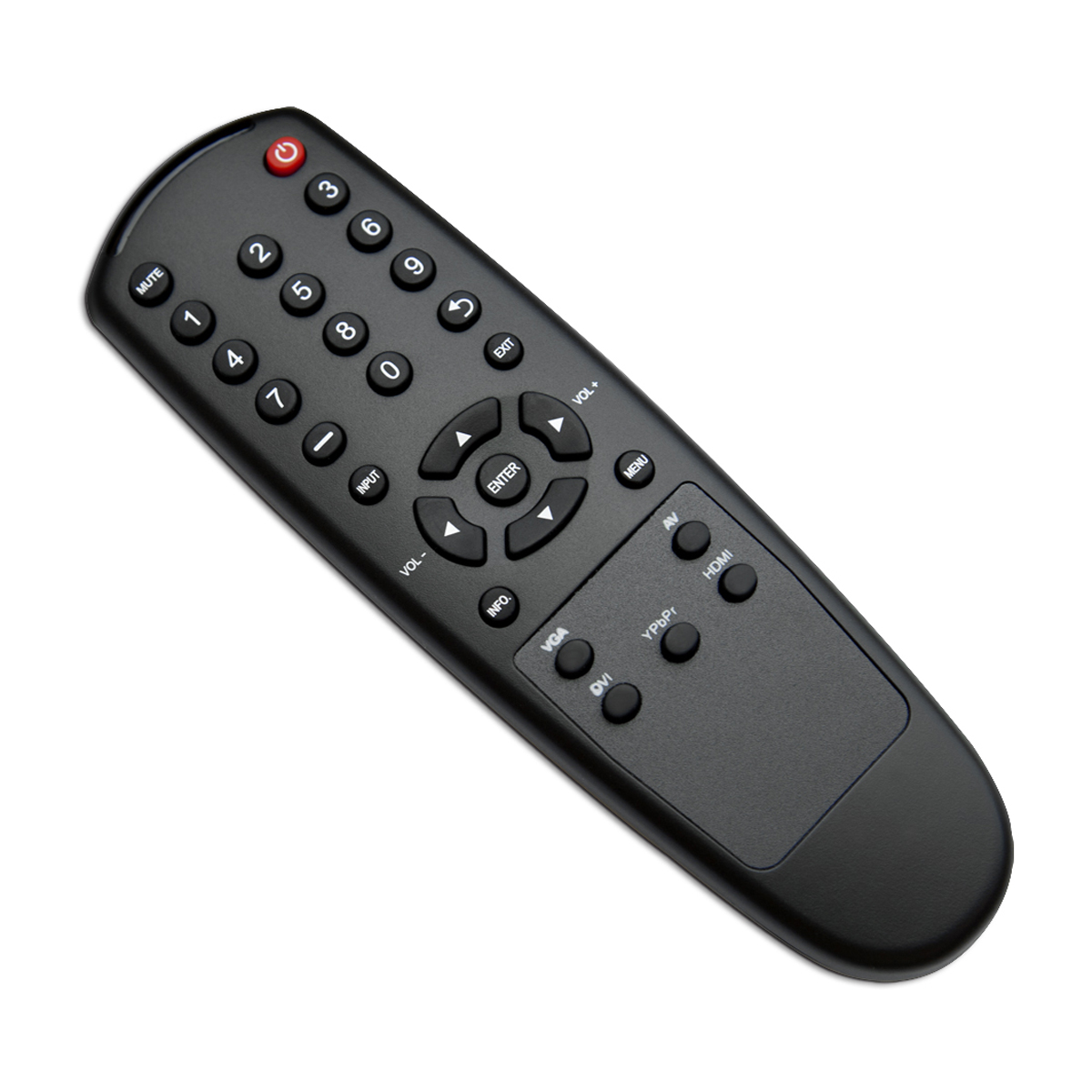

CDP6530-T LCD display, power cable, remote control with batteries,
User Guide CD
AUDIO
Amplificateur: 12-watt / 8 ohm
Entrée
Entrée vidéo: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
Sortie vidéo: VGA, component
Control Input/Output: RS-232
Signal d'entrée
Comp. TV/Vidéo: 480i, 480p, 720p, 1080i, 1080p

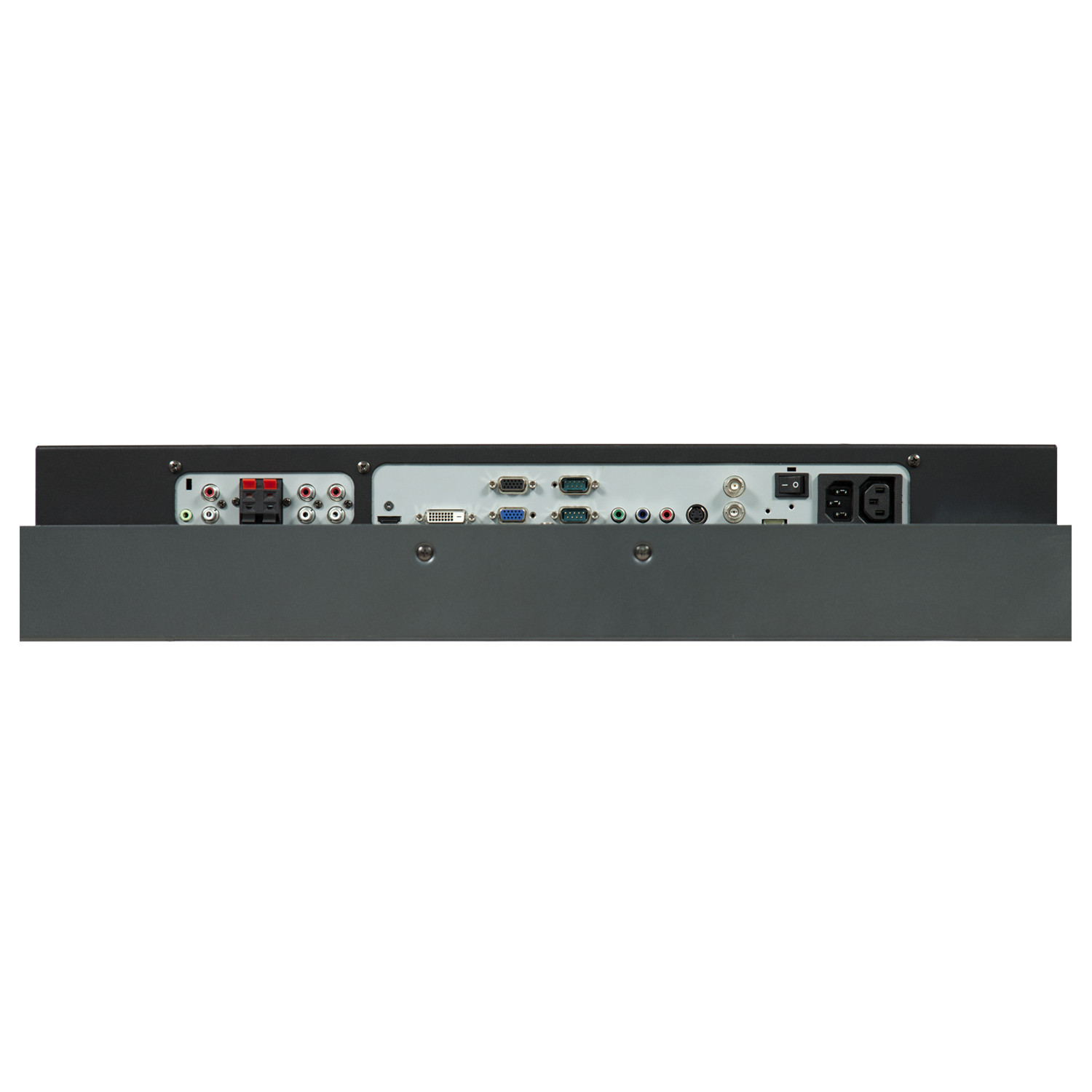

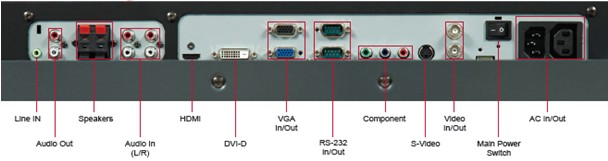

CONNECTEURS
Numérique: HDMI, DVI, S-video YPbPr, CVBS
Alimentation: 3-pin plug
Analogique: 15-pin mini D-sub (VGA)
Alimentation
Tension: AC 100–240V (universal), 50–60Hz
Consommation: 520W (typ)
COMMANDES
Photo: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Panneau frontal: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position
Audio: Volume, mute, audio source
Affichage
Touch: Type: Optical Imaging
Capability: 2 simultaneous touches
Support OS: Windows® 2000, XP, Vista®, Windows 7 (multi-touch requires
driver), Max OS X, and Linux (requires evtouch)
Touch Resolution: 32,767 x 32,767
Accuracy: +/- 3.5 mm over 95% of touchable area
Response Time: 9 ms to 22 ms depending on configuration; 14 ms (typ)
Touch Method: Touch with any object, Finger, Pen or Brush
Connection: USB
Glass: 5mm tempered glass
ACCESSOIRES DISPONIBLES EN OPTION
Stand (optional), Wall Mount (WMK-013),
Wall Mount with Locking Media Player Cradle (WMK-028)
MONTAGE MURAL
VESA 200mm x 400mm, 400mm x 400mm
Poids
Brut: 189.6 lb. / 86.0 kg
Net: 156.5 lb. / 71 kg
CONDITIONS D'EXPLOITATION
Humidité: 20–90% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC)
AUDIO OUT
Speakers: Internal 12-watt (x2)
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
COUNTRY OF ORIGIN
Taiwan
Résolution
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p
