- NORMES
FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®, RoHS
- CONTENU DE L'EMBALLAGE

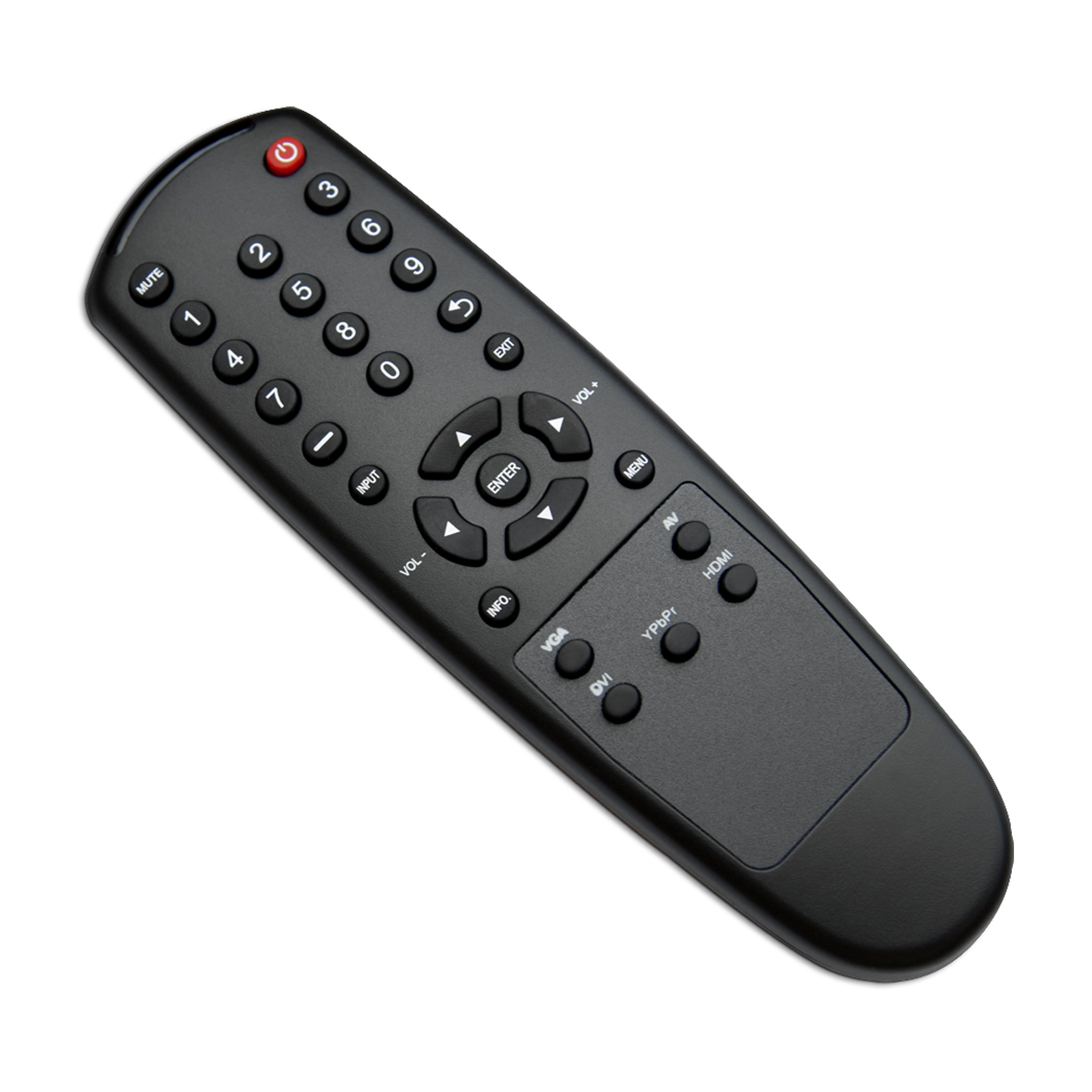

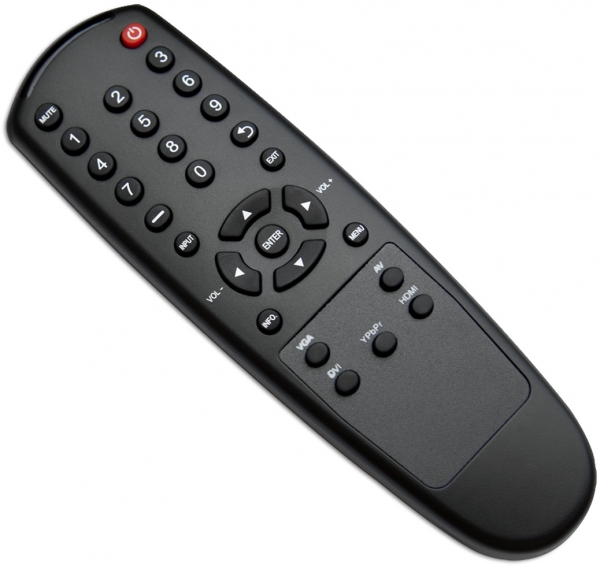

LCD display, power cable, remote control with batteries,
User Guide CD
- AUDIO
Amplificateur: 12-watt / 8 ohm
- Entrée
Entrée vidéo: HDMI, DVI, component, VGA, S-video, CVBS (BNC)
Sortie vidéo: VGA, component, DVI (Loop through)
Control Input/Output: RS-232
- Signal d'entrée
Comp. TV/Vidéo: 480i, 480p, 720p, 1080i, 1080p

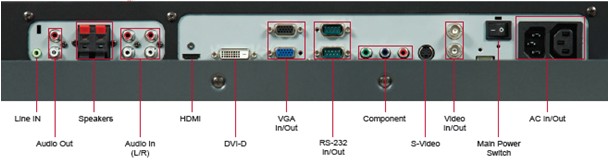

- CONNECTEURS
Numérique: HDMI, DVI, S-video YPbPr, CVBS
Alimentation: 3-pin plug
Analogique: 15-pin mini D-sub (VGA)
- Alimentation
Tension: AC 100–240V (universal), 50–60Hz
Consommation: 520W (typ)
- COMMANDES
Photo: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Panneau frontal: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position
Audio: Volume, mute, audio source
- ACCESSOIRES DISPONIBLES EN OPTION
Stand (optional), Wall Mount (WMK-013),
Wall Mount with Locking Media Player Cradle (WMK-028)
- MONTAGE MURAL

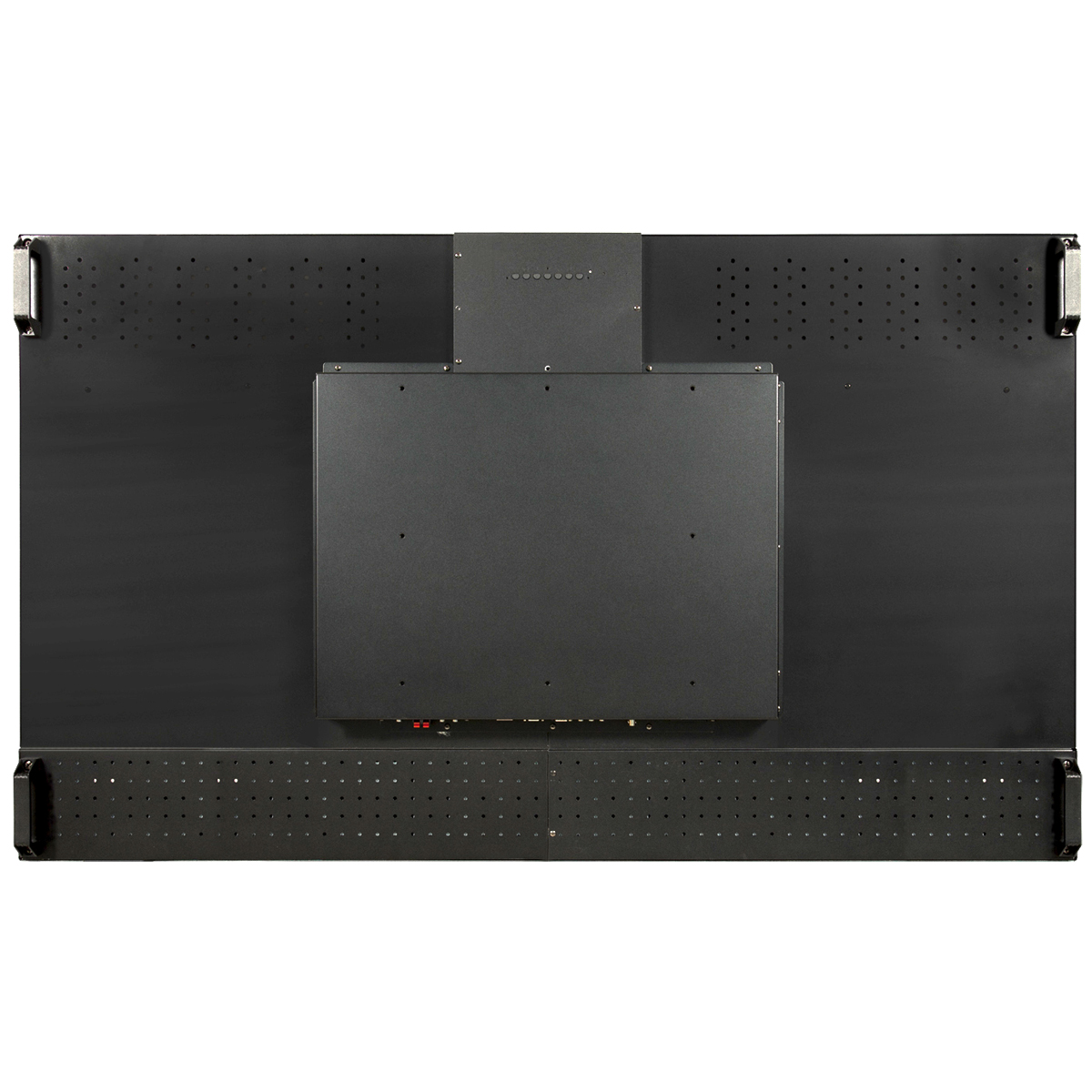

VESA 200mm x 400mm, 400mm x 400mm
- Poids
Brut: 176.4 lb. (80.0 kg)
Net: 154.3 lb. (70.0 kg)
- CONDITIONS D'EXPLOITATION
Humidité: 20–90% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC)
- AUDIO OUT
Speakers: Internal 12-watt (x2)
- RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
- Résolution
640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60Hz to 75 Hz
1024 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 768 at 60 Hz, 60Hz to 75 Hz
1360 x 768 at 60 Hz, 60Hz to 75 Hz
1280 x 1024 at 60Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, SECAM, 4.43 NTSC
Component: 480i,480p,720p,1080i,1080p
