OVERVIEW

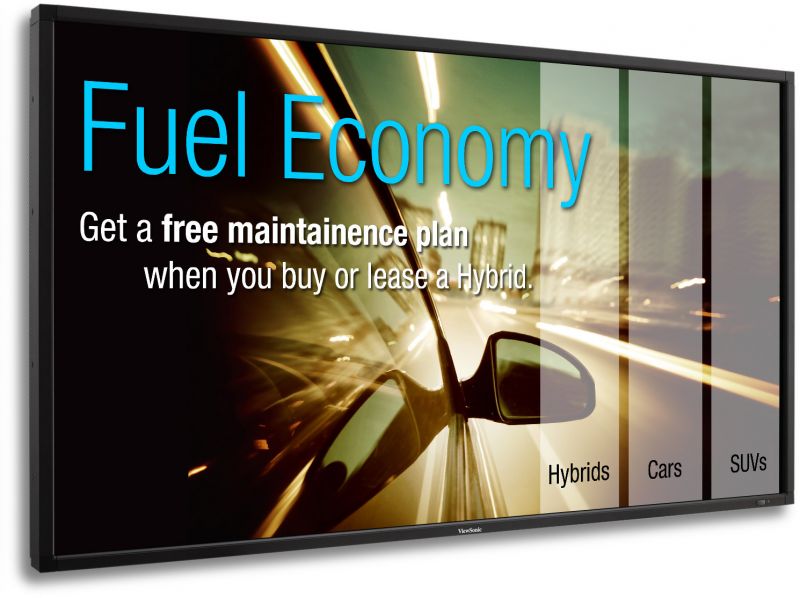

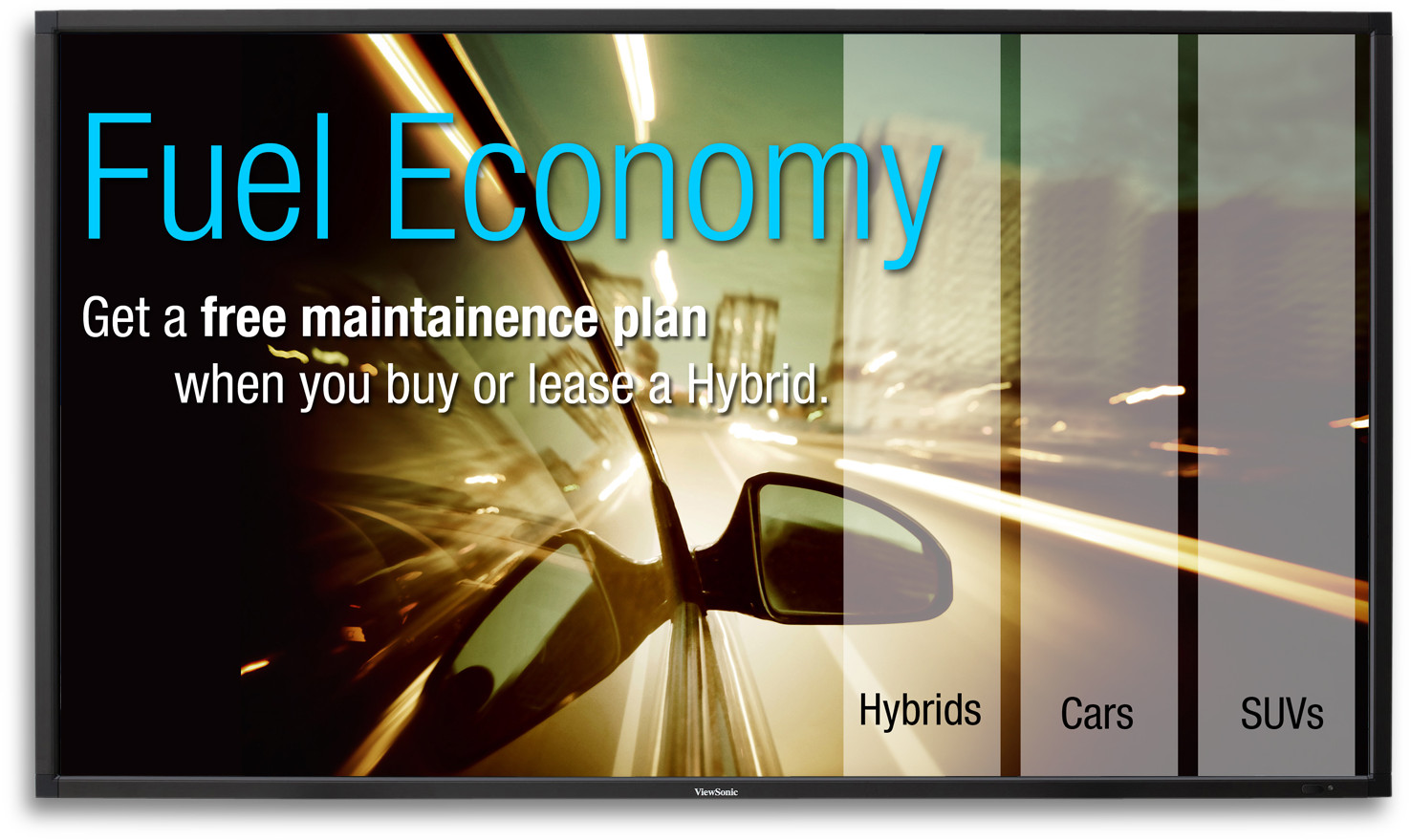

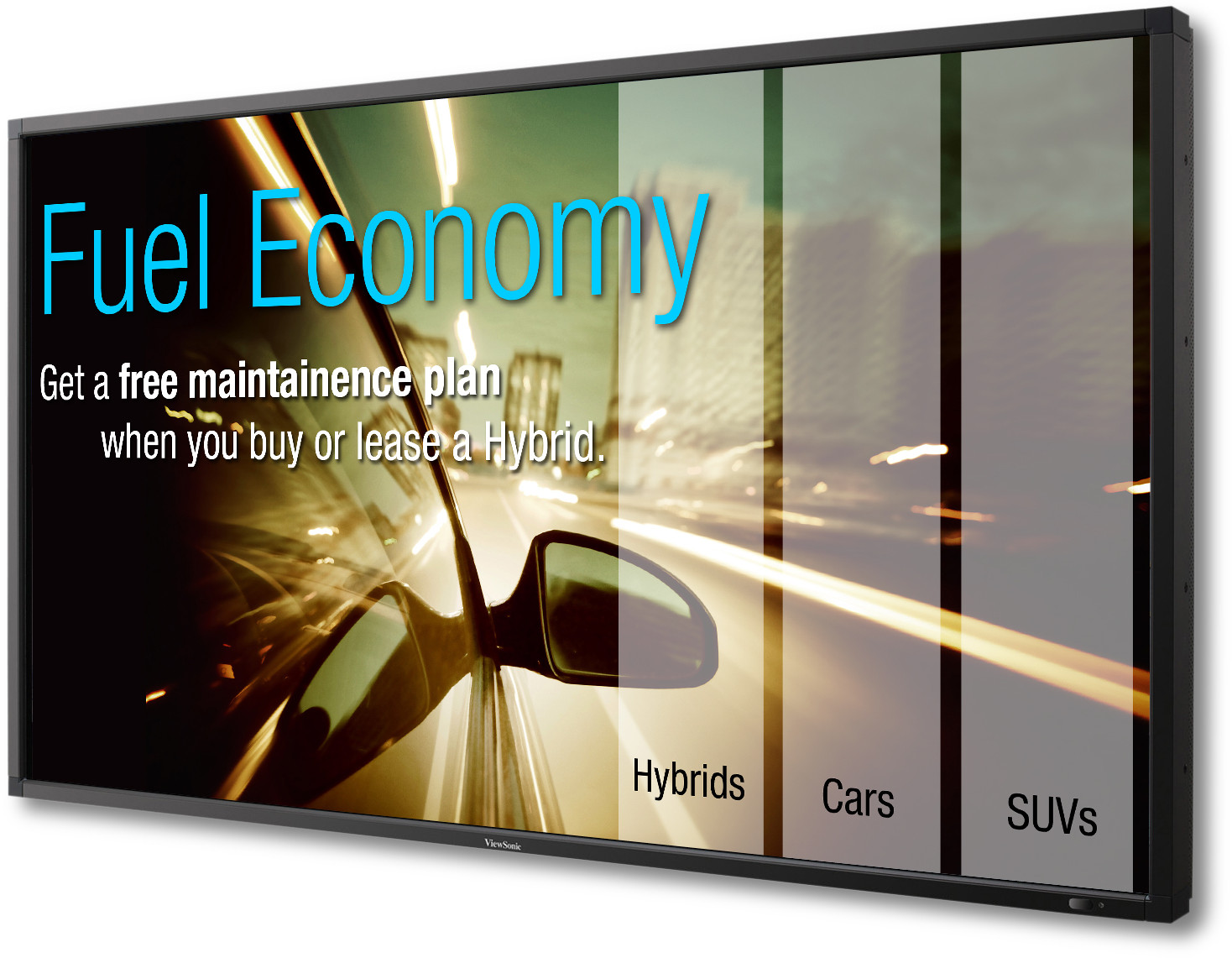

ViewSonic’s 42" CD4233 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.1080p 9ms panel for vibrant video and crisp images
16.3mm slim bezel
Display wall capability up to 5x5
RS-232 daisy-chain capable
VGA and DVI inputs/outputs for flexible connectivity and control
Remote and panel control lock out
7 day on/off scheduling
Screen saver/image sticking protection
Built-in 5Wx2 speaker with 7Wx2 output
Installation options include stand or VESA wall mount
SPECIFICATIONS
- COLORSBlack
- LCDType: 42" color TFT active matrix, wide LCD
Rapport de contraste: 1100:1 (typ)
Angles de vue: 178º horizontal, 178º vertical
Luminosité: 700 cd/m2 (typ)
Zone d'affichage: 36.6" horizontal x 20.6" vertical; 42" diagonal
Résolution optimale: 1920x1080, 600mm dot pitch
Temps de réponse: 9ms
Source lumière: Long life, 50,000 hrs. (typ)
Rapport largeur/hauteur: 16:9
Surface panneau: Anti-glare, hard coating (3H) - Dimensions (mm)Physique sans support: 38.1" x 22.0" x 4.9" (967.6mm x559.6mm x 123.1mm)
Physical with stand (optional): 38.1" x 25.5" x 15.9" (967.6mm x 647.7mm x 403.9mm)
- NORMESFCC, ICES003, UL, cUL, CE, CB, ENERGY STAR®
- CONTENU DE L'EMBALLAGELCD display, power cable, remote control with batteries,
User Guide CD - AUDIOAmplificateur: 7-watt / 8 ohm

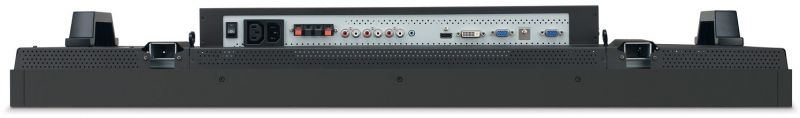

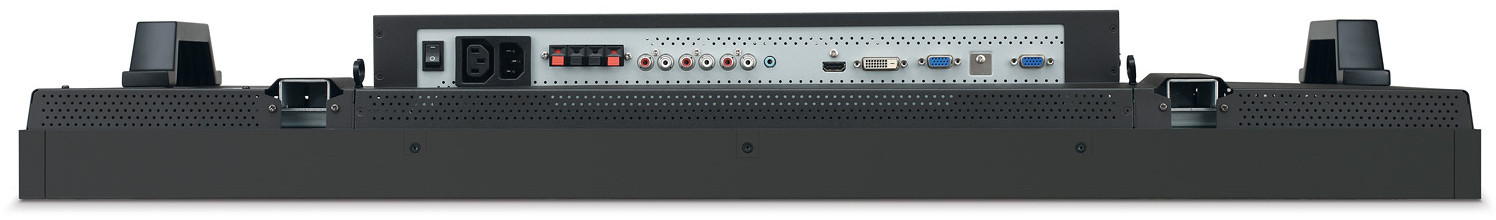

- EntréeEntrée vidéo: HDMI, DVI, component, VGA, S-Video, composite
Sortie vidéo: VGA, component, DVI
Control Input/Output: RS-232 - CONNECTEURSNumérique: HDMI, DVI
Alimentation: 3-pin plug
Analogique: 15-pin mini D-sub (VGA) - AlimentationTension: AC 100–240V (universal), 50–60Hz
Consommation: 280W (typ) - COMMANDESPhoto: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Panneau frontal: Power, Exit, +, –, Menu/Enter
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position

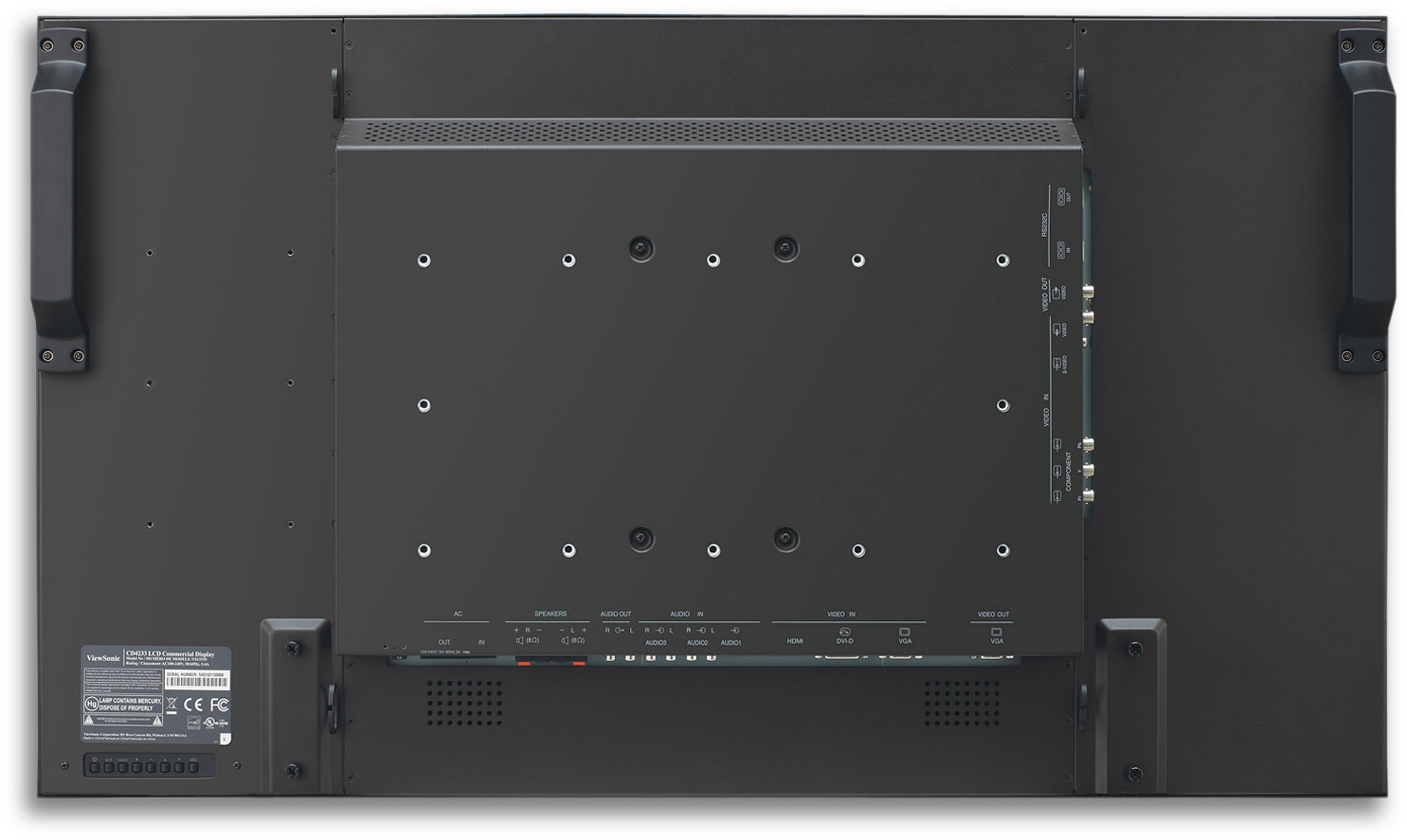

Audio: Volume, mute, audio source - MONTAGE MURALVESA 100mm x 100mm, 12 holes
- PoidsNet avec le support: 69.8 lb. (31.7 kg)
Net sans le support: 65.0 lb. (29.5 kg)
Gross without stand: 76.5 lb. (34.7 kg) - CONDITIONS D'EXPLOITATIONHumidité: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - INPUT SIGNALVideo: 480i, 480p, 720p, 1080i, 1080p
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
