Get your message across, brilliantly

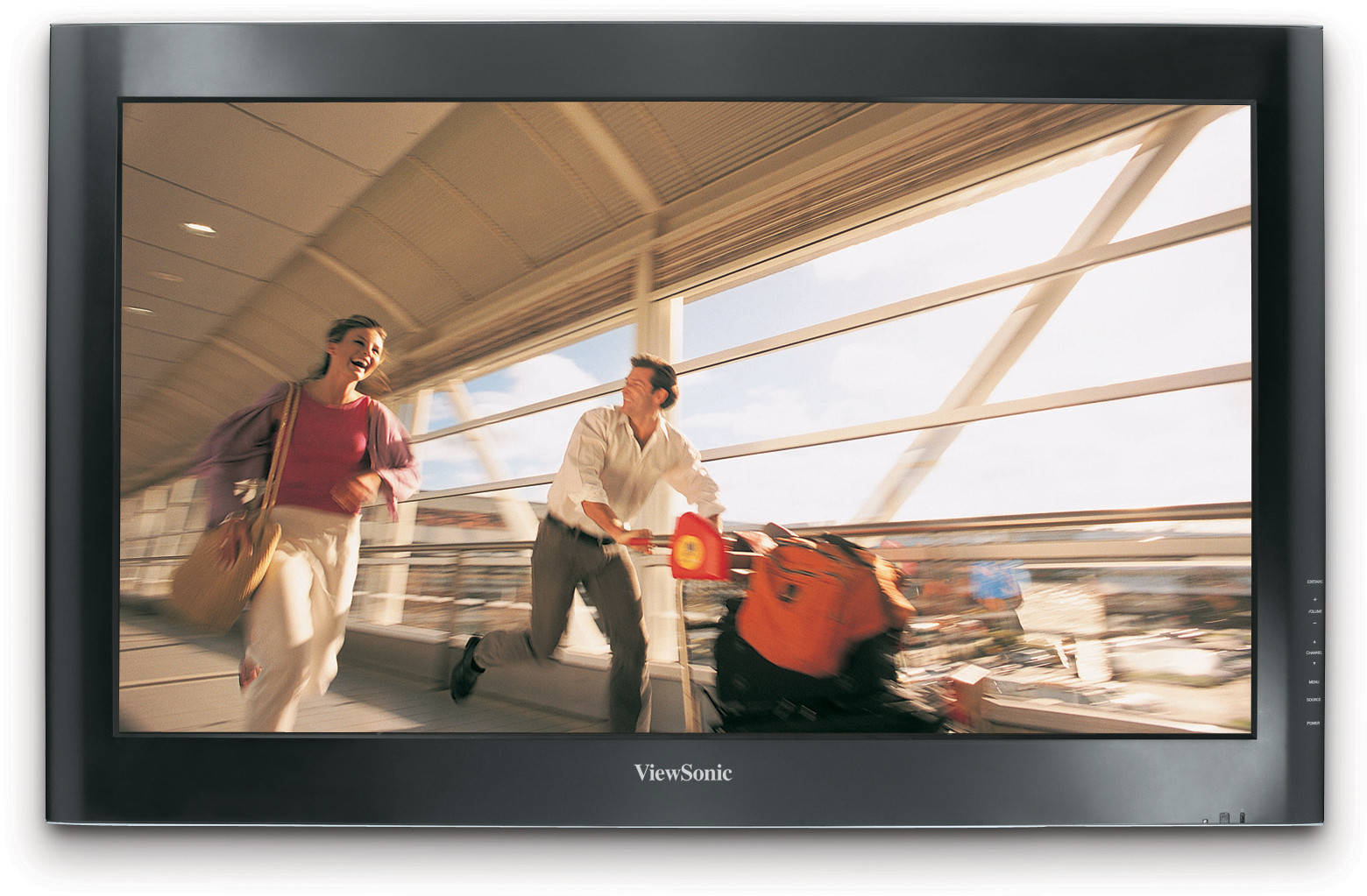

ViewSonic’s 32” CD3200 Commercial Display is designed for use in educational, retail, public and commercial signage applications. This widescreen LCD ACCOMMODATES MIXED MEDIA CONTENT with enough room for movies, internet content, digital pictures, PowerPoint, Flash files and much more. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution display crystal clear images in virtually any room lighting while the fast 8ms response time delivers fast-action video. MULTIPLE INPUTS INCLUDING HDMI, S-video, component, composite and PC VGA, give you plenty of connectivity options for all your digital signage needs.
SPECIFICATIONS
- COLORSBlack
- LCDType: 81 cm / 32" colour TFT active matrix, wide XGA 1366 x 768
Rapport de contraste: 1200:1 (typ.)
Angles de vue: 176° horizontal, 176° vertical
Luminosité: 500cd/m² (typ.)
Surface vitrée: Anti-glare, hard coating (3H)
Zone d'affichage: 69.8cm (horizontal) x 39.2cm (vertical), 81.3cm diagonal
Temps de réponse: 8ms (grey-to-grey typ.)
Rapport largeur/hauteur: 16:9
Résolution native: 1366 x 768 - Dimensions (mm)Physique (LxHxP): 828mm x 515 x 99mm (without stand)
- NORMESCE, CB, Gost, UL/cUL, FCC, NOM, WEEE, RoHS
- CONTENU DE L'EMBALLAGELCD display, power cable, remote control, batteries, Quick Start Guide, User Guide
- AUDIOHaut-parleurs: 2 x 10-watt (optional)
- EntréePC: RGB analogue (75 ohms, 0.7 Vp-p), RS232 (control)
TV: 2 x SCART, 1 x composite, 1 x component YPbPr/YCbCr, 1 x S-video
Audio: 3.5mm mini stereo audio in/out and RCA (left/right) audio in
1 x RCA R/L Out
Numérique: HDMI (with HDCP and audio support)
Syntoniseur: None - Signal d'entréeVidéo: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
- CONNECTEURSAnalogique: 1 x 15-pin mini D-Sub (detachable cable)
Numérique: 1 x HDMI (with HDCP)
Alimentation: 3-pin plug
Entrée vidéo composite: 1 x RCA (CVBS)
Entrée S-vidéo: 1 x 4-pin mini DIN jack (Y/C)
Entrée vidéo composite: 1 x RCA (YPbPr/YCbCr)
COMMANDES: 1 x D-sub RS-232
USB: 1 x USB Typ B (for firmware update)
Audio: 1 x 3.5mm mini stereo audio in
2 x RCA (left/right) audio in
3 x RCA (left/right/subwoofer) audio line 0ut
1 x SP/DIF (optic) HDMI loop through
2 x speaker connector (for optional speakers) - AlimentationTension: AC 100–240V (universal), 50/60Hz
Consommation: < 220watt (typ.) - COMMANDESDe base: Power, channel +/-, volume +/-, menu, source, exit/wide
Mode AV: Brightness, contrast, colour, hue, sharpness, colour temperature, sound (volume, bass, treble, balance), ARC, OSD language, reset all
OSD: Auto sync, contrast, brightness, H/V position, colour temperature, aspect ratio control (ARC), OSD language, reset all, treble, balance - CONDITIONS D'EXPLOITATIONTempérature: 0°C–40°C
Humidité: 10–85% (non-condensing) - PoidsNet: 22.2kg (without stand)
Brut: 33.0kg (without stand) - MONTAGE MURALVESA FDMI 100mm x 100mm, 100mm x 200mm
