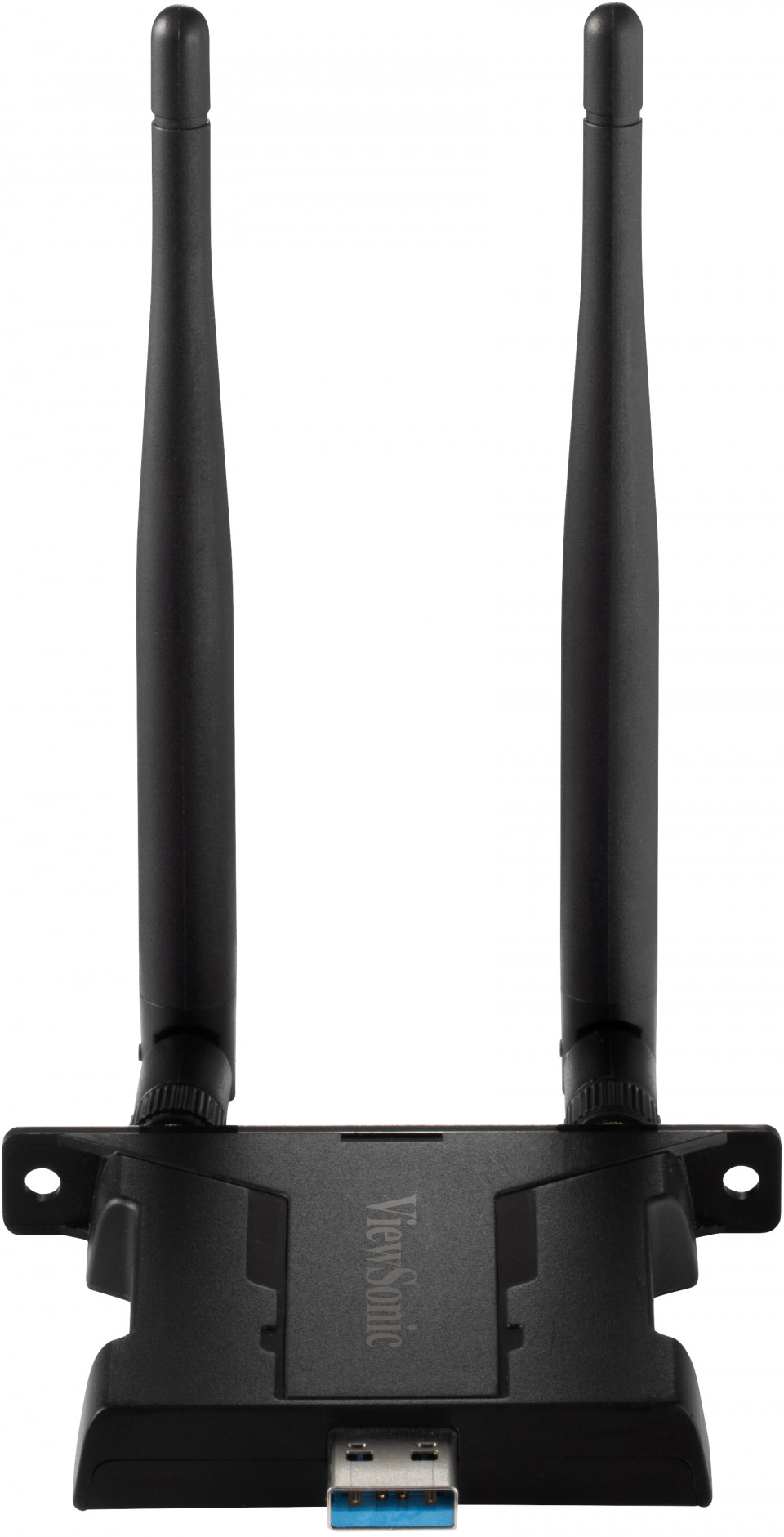

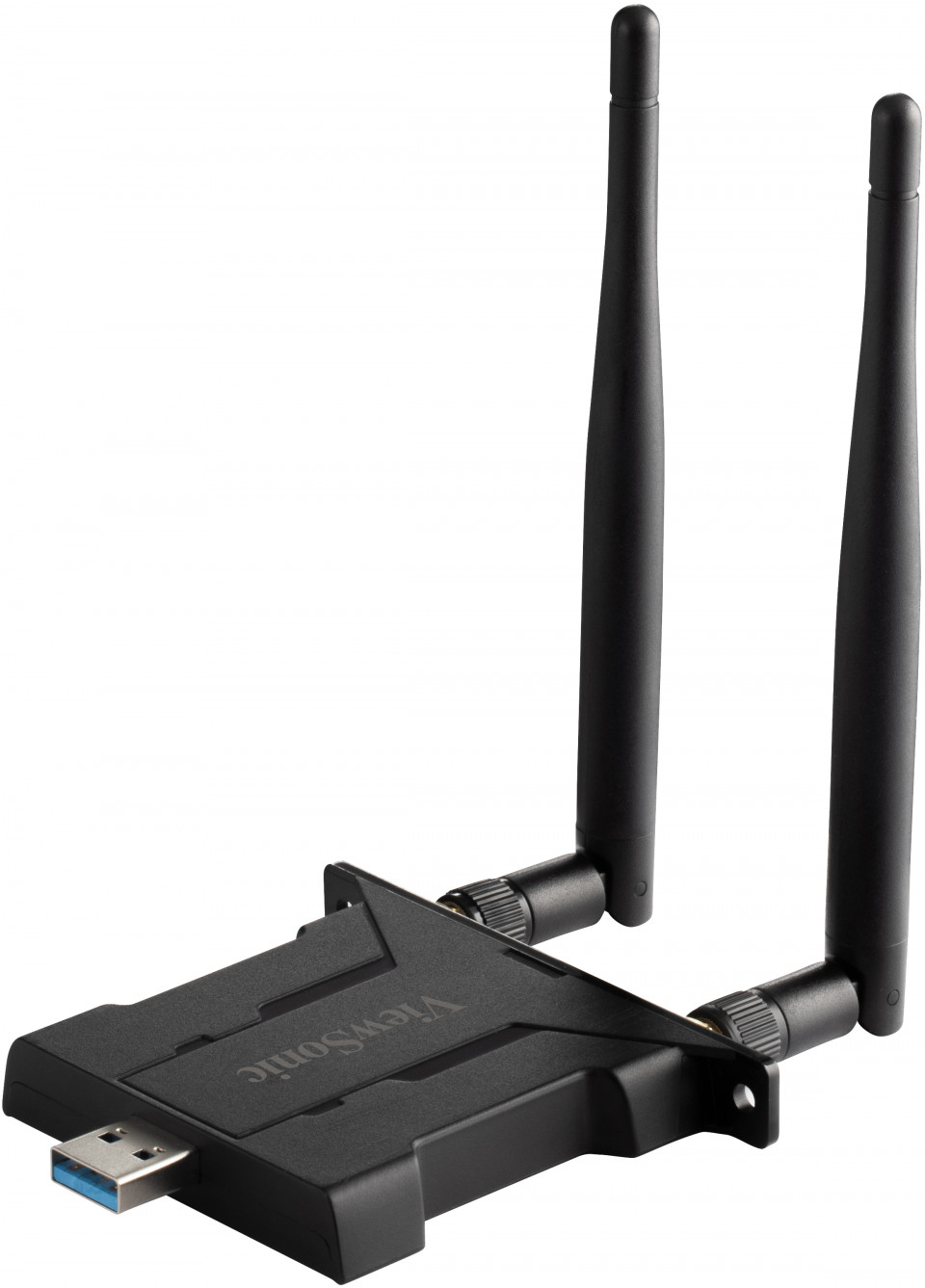

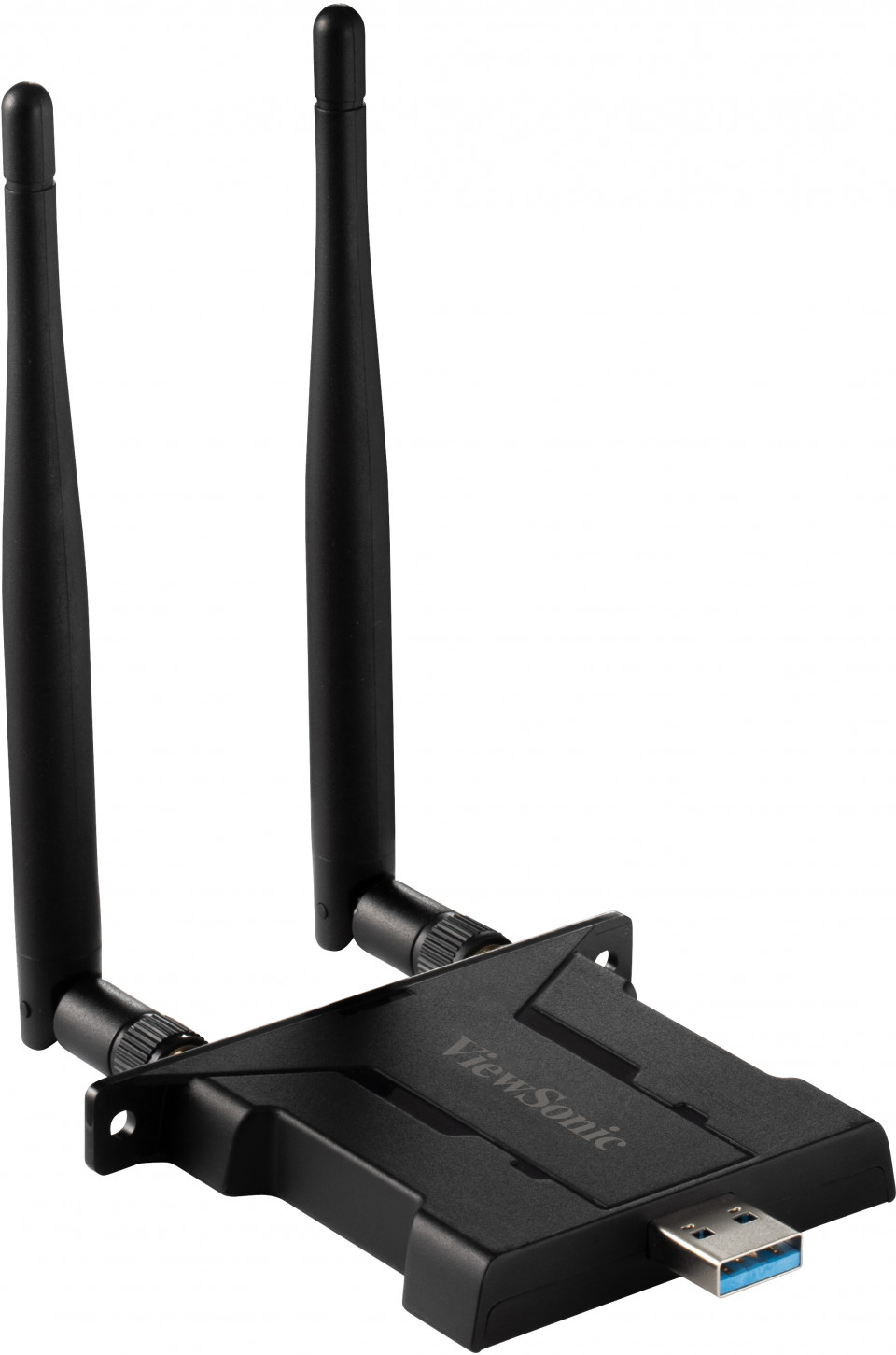

VB-WIFI-005
ViewSonic Wireless Module for ViewBoard® and Presentation Display with Wi-fi 6 connectivity
OVERVIEW
The ViewSonic® VB-WIFI-005 wireless module delivers a fast wireless internet connection for ViewBoard and Presentation Display. It supports dual-frequency 2.4GHz and 5GHz bandwidth, along with Wifi 6 (802.11ax standard).Faster Connections
An optional Wifi module for the ViewBoards and Presentation Display to help run lessons smoothly and get a more interactive discussion in the office. Wifi 6 offers faster internet speeds for the ever more bandwidth-demanding applications like video conferences, live streaming, and connected device networks.
Dual Band Wireless Support
Supporting both 2.4 and 5 GHz dual-band wireless transmission helps users adjust settings to their needs. A 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at a shorter range. Smoothly streams multimedia content such as videos and images without any delays.
SPECIFICATIONS
- Wifi-StandardWifi Standard: 802.11 a/b/g/n/ac/ax
- BTBluetooth: Support 2.1/3.0/4.0/5.2 BLE
- PowerRequirements: 5V DC, 0.9A
Consumption: < 4.5W
- DimensionPhysical: 3.90x0.43x3.03 in / 99x11x77mm
Packaging: 3.54x0.63x6.18 in / 90x16x157mm - WEIGHTNet: 0.07lb / 30g
Gross: 0.18lb / 80g - OPERATING CONDITIONTemperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing - COMPLIANCECE, FCC, FCC ID, IC, IC ID, NCC, RoHS, WEEE, REACH
COMPATIBLE WITH VB-WIFI-005

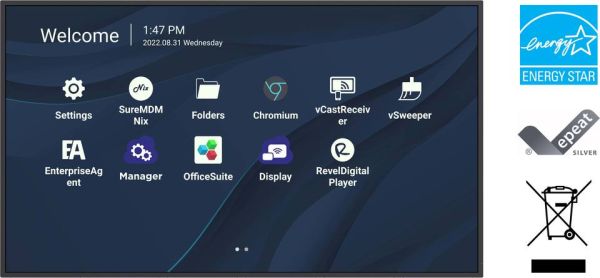

43" 4K Presentation Display
43" 4K Professional Commercial Display with ProAV Integration
55" 4K Presentation Display
55" 4K Professional Commercial Display with ProAV Integration
65" 4K Presentation Display
65" 4K Professional Commercial Display with ProAV Integration
75" 4K Presentation Display
75" 4K Professional Commercial Display with ProAV Integration
86" 4K Presentation Display
86" 4K Professional Commercial Display with ProAV Integration
98" 4K Presentation Display
98" 4K Professional Commercial Display with ProAV Integration
ViewBoard® 55” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 55” 4K Interactive Display

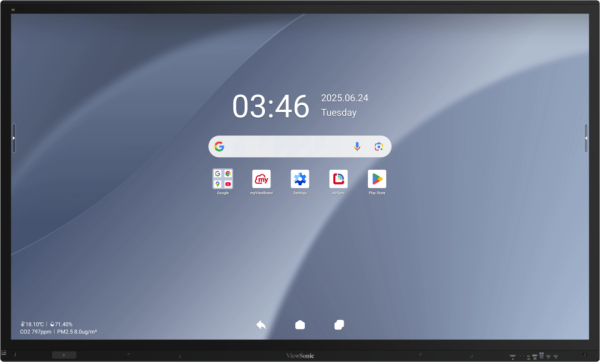

ViewBoard® 65” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
A 65” Digital Hub for Connecting People and Ideas
65“ 4K PCAP Touch EDLA Certified Interactive Display
65“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® 75” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
A 75” Digital Hub for Connecting People and Ideas
75“ 4K PCAP Touch EDLA Certified Interactive Display
75“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® 86" 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86” 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86” 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86” 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
A 86” Digital Hub for Connecting People and Ideas
86“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard 86“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® 98" 4K Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 98” 4K Interactive Display
