Key Features

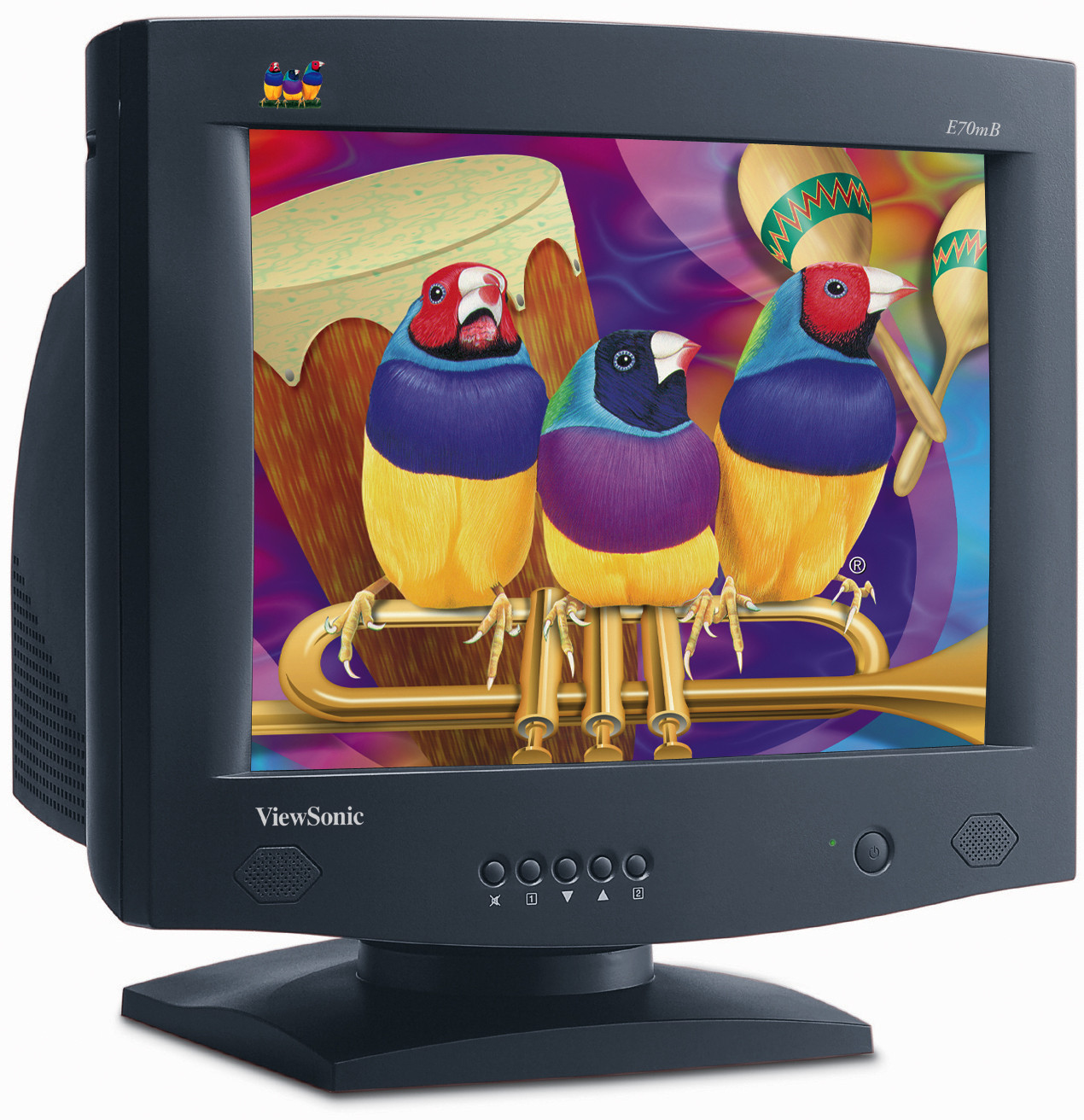

E70mb
Product Description
The ViewSonic E70mb 17" CRT monitor combines PROFESSIONALQUALITY AND RELIABILITY in an affordable multimediapackage. Easy-on-the-eyes 1024 x 768 optimum resolution and0.23mm horizontal dot pitch deliver bright, crisp, precise images.Adjust your screen with the OnView® controls and secure themwith the OSD lock function ENSURING OPTIMUM SCREENPERFORMANCE. Increase desktop space and reduce clutter withintegrated features such as bezel-integrated speakers. The E70mbis ideal for education, Internet and business applications.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    Mac®: Power Mac™ up to 1024 x 768
    PC: VGA up to 1280 x 1024 non-interlaced
  • DIMENSIONS
    W x H x D mm: 406mm x 417mm x 435mm(With Base)

    406mm x 357mm x 435mm(Without Base)
  • REGULATIONS
    TCO’99, CE, ISO9241-3,-7,- 8, TÜV/S,TUV GS, TUV/ ERGO, MPR-II,
    CCC, GOST-R, SASO, PCBC, BSMI, C-Tick, NOM, UL/cUL, DHHS,
    FCC-B, CB, ICES 003, Argentina
  • INPUT SIGNAL
    Frequency: Fh:30~70kHz, Fv:50~160Hz
    Video: RGB analogue (75 ohms, 0.714 Vp-p)
    Sync: H/V separated (TTL)
  • CONNECTOR
    Analogue: 15 pin mini D-sub
    Power: 3-pin plug (IEC320)
  • POWER
    Voltage: AC 100–240V, 50/60Hz
    Consumption: 75W (typ)
  • CONTROLS
    Basic: Power, on/off, 1, down, up, 2, speaker mute
    OnView®: Contrast, brightness, degauss, H./V. size, H./V. position,
    pincushion, pinbalance, trapezoid, parallelogram, tilt, moiré
    reduction, ViewMatch® colour (9300K, 6500K, user), language,
    OSD position, zoom, recall and ViewMeter®
  • OPERATING CONDITIONS
    Temperature: 0–40° C
    Humidity: 5–95% (no condensing)
  • WEIGHT
    Net: 16.2kg
  • VIDEO INPUT
    Bandwidth: 110MHz (typ)
  • POWER MANAGEMENT
    Meets TCO'99 standards
  • CRT
    Type: 43cm / 17'' (16.0" viewable) 90° deflection
    Dot Pitch: 0.23mm horizontal x 0.13mm vertical; 0.27mm diagonal
    Phosphor: RGB P22 medium persistence
    Glass Surface: Tint: TM~52%, anti-static, anti-glare screen coating
  • MISCONVERGENCE
    0.25mm (max) at centre

    0.35mm (max) at corner
  • DISPLAY AREA
    Factory Setting: 310mm horizontal x 230mm vertical
    Maximum Scan: 320mm horizontal x 240mm vertical (dependent upon signal timing)
