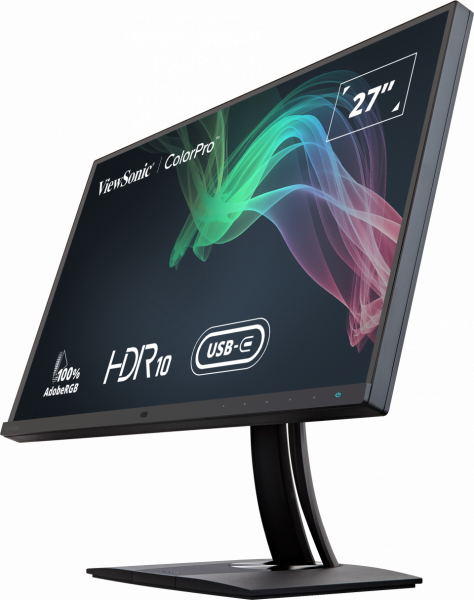

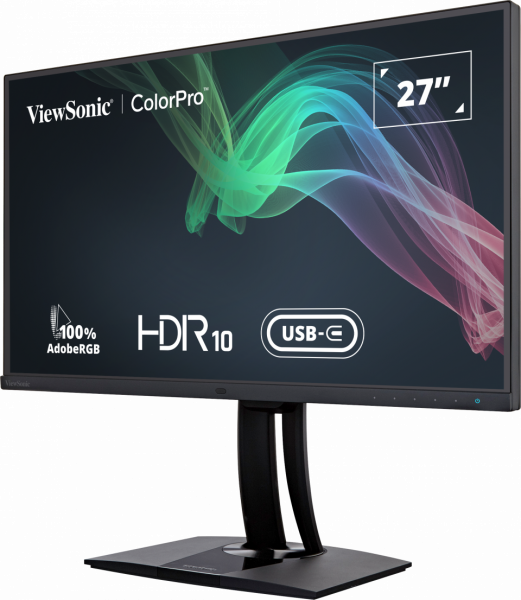

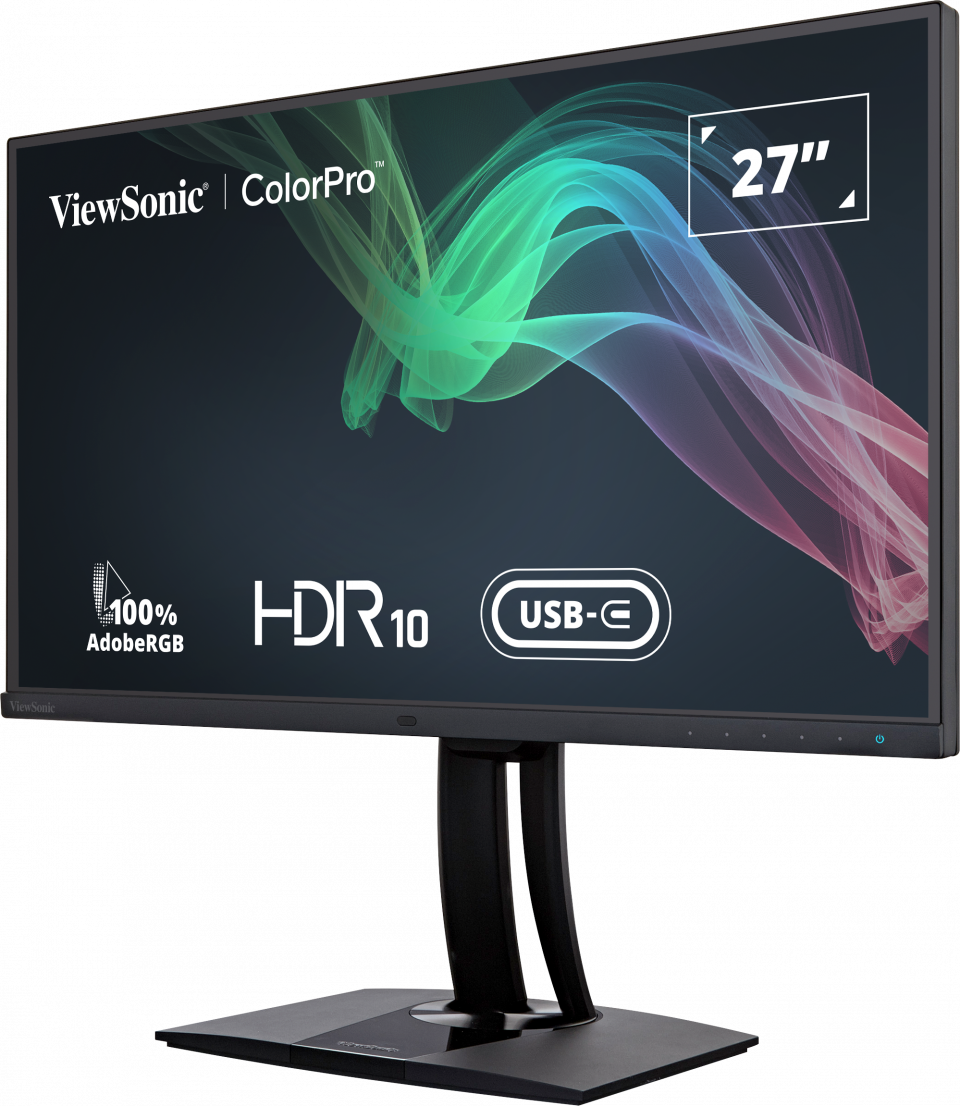

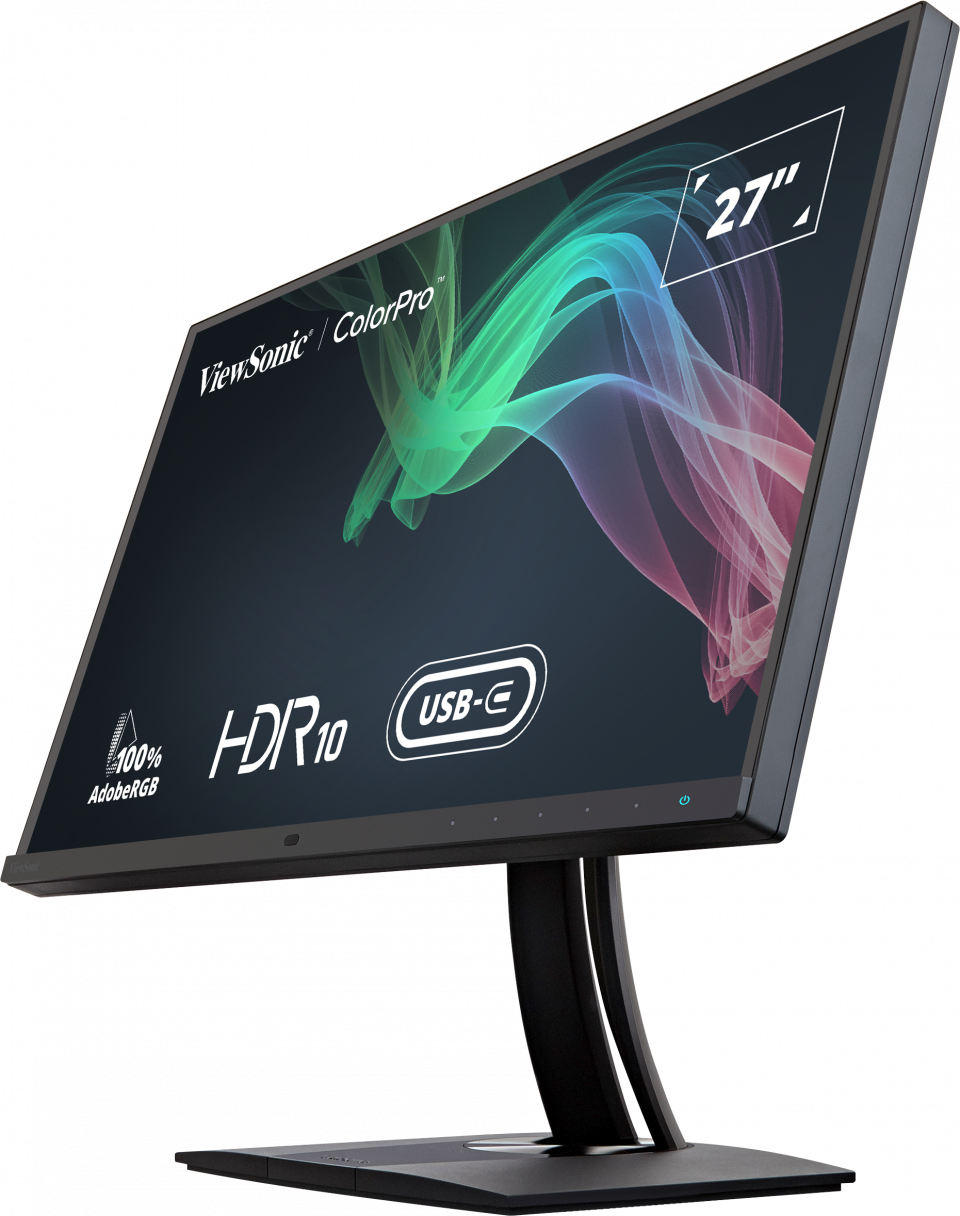

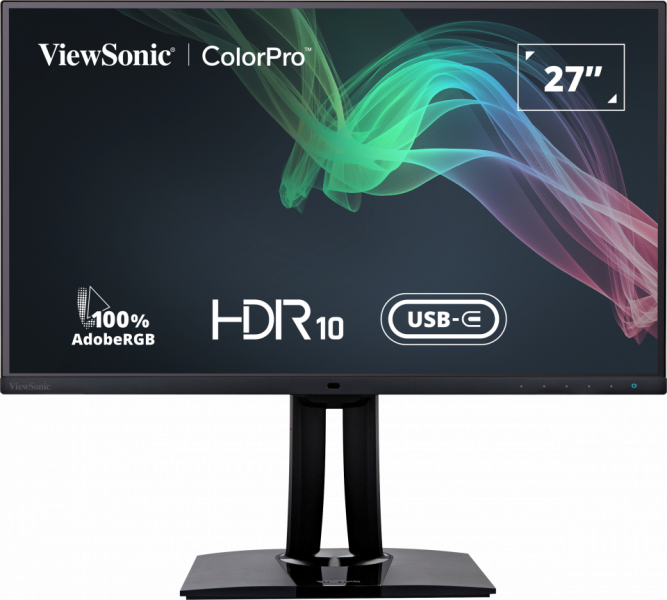

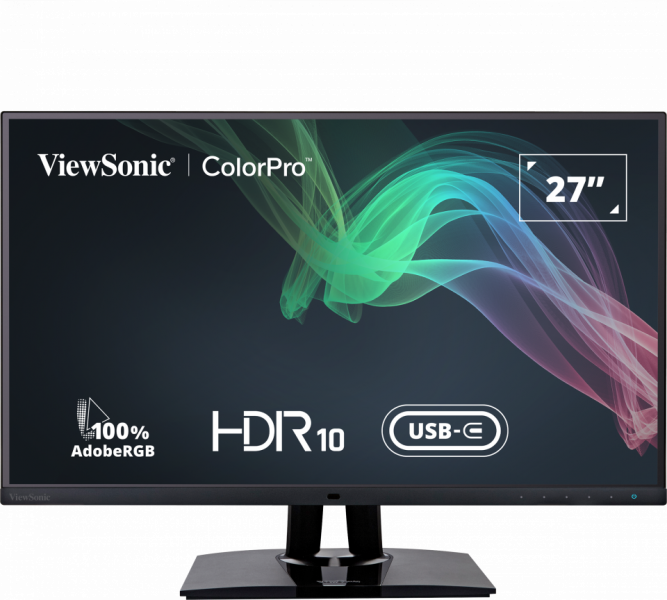

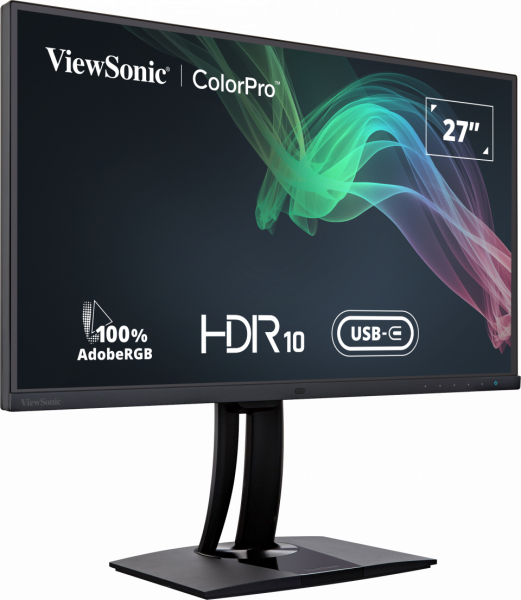

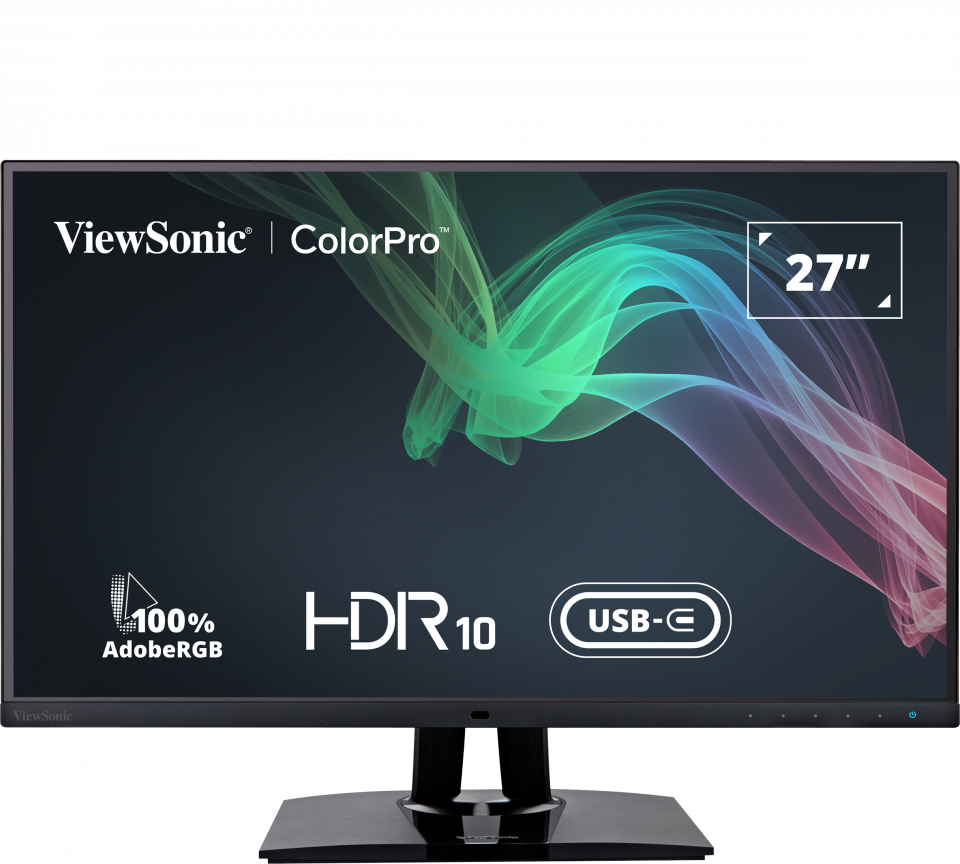

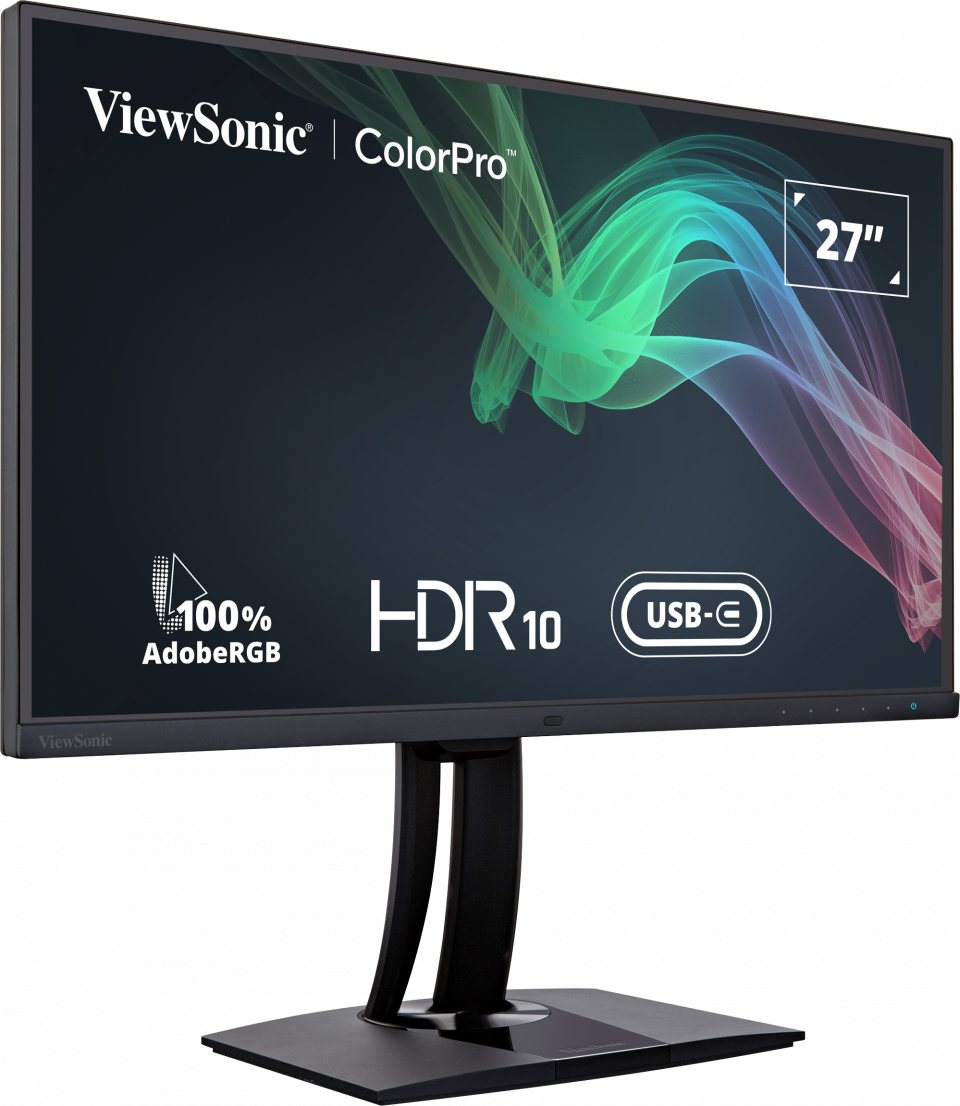

VP2785-4K
27" 100% Adobe RGB Professional Monitor
- 4K Ultra HD resolution
- Backlight sensor
- KVM Switch technology with USB Type-C
- Ergonomic stand with auto pivot
- Hardware colour calibration
OVERVIEW
Covering 100% of the Adobe RGB colour space and 95% DCI-P3, the ViewSonic® VP2785-4K Ultra HD monitor meets the high colour standards of photographers, graphic designers, video editors, print departments, and other design professionals. With a sleek and modern design, the VP2785-4K features future-proof DisplayPort technology, as well as HDMI and USB 3.1 type C ports. To ensure precise, uniform colour, each of our monitors is factory calibrated to deliver an amazing Delta E<2 value for superior colour accuracy. An integrated colour uniformity function ensures consistent chromaticity across the screen, while a 14-bit 3D look-up table generates a stunningly smooth palette of 4.39 trillion colours. What’s more, productivity-boosting features include an advanced ergonomic design, a built-in ambient light and presence sensor, and a KVM switch. Hardware calibration is also available with the optional ViewSonic colourbration Kit, which allows you to quickly and easily calibrate the monitor for photography, graphic design, content creation, and other colour-critical applications.4K Ultra High Pixel Density
With a 27” 4K UHD (3840 x 2160) resolution panel, pixel density on VP2785-4K reaches an impressively high 163 pixels per inch (PPI), including almost four times more on-screen information than Full HD and displaying images in magnificent 4K detail.

Extensive Colour Palette
By achieving 100% Adobe RGB and 95% DCI-P3 colour coverage, VP2785-4K provides the flexibility to work with a wider range of colours than sRGB. This extra colour allows you to take advantage of using richer hues when preparing photos for printing.
*Percentages have been rounded to the nearest integer and calculated by using the specifications as provided by the panel makers.

Cutting-edge ambient light sensor Technology
The advanced ambient sensor on VP2785-4K allows the monitor to reach its comfortable brightness output level to protect your eye.

Vibrant Video Detail
Viewing HDR10 High Dynamic Range content on VP2785-4K brings out the maximum possible detail in both the brighter and darker parts of the image for richer colour and a better overall viewing experience.

Seamless Workflow Management
Industry-leading Keyboard, Video, Mouse (KVM) Switch technology with USB 3.1 Type-C allows user to control peripherals being used alongside VP2785-4K from a single keyboard and mouse. USB 3.1 Type-C provides Windows and Mac OS system users with user-friendly management of power charging, large-quantity data transmission, and video display.
*Only available for devices that support USB Type-C video streaming. Check to see if your device is compatible for USB Type-C video transmission

Streamlined Editing
Picture-by-picture (PBP) in combination with a dual colour engine offers a more productive approach to digital design. VP2785-4K’s PBP functionality allows photographers and designers to simultaneously view and edit images while using separate colour settings, virtually combining the work of two monitors into one.

Simplified Energy Efficiency with Auto Eco-control
VP2785-4K’s built-in ambient light sensor and presence sensor automatically adjust the monitor’s brightness and operating status to the optimal eco setting by detecting changes in ambient lighting and human movement for a more simplified energy efficiency mode.

Comfort & Flexibility

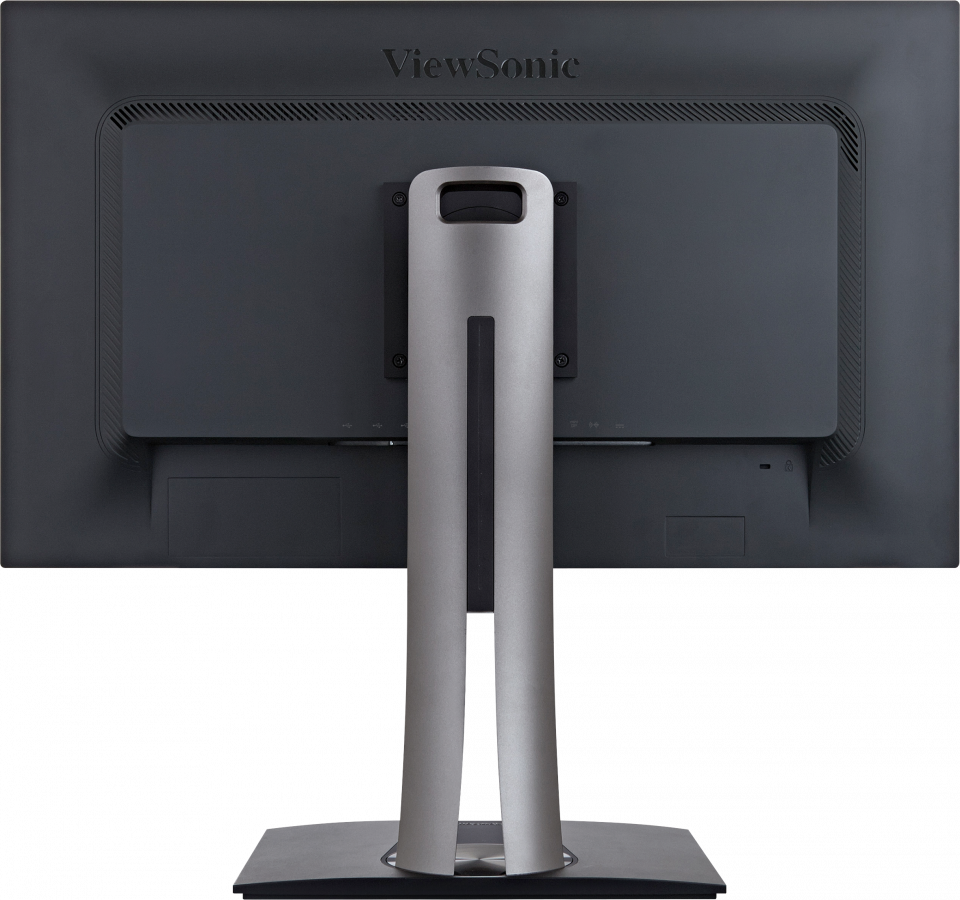

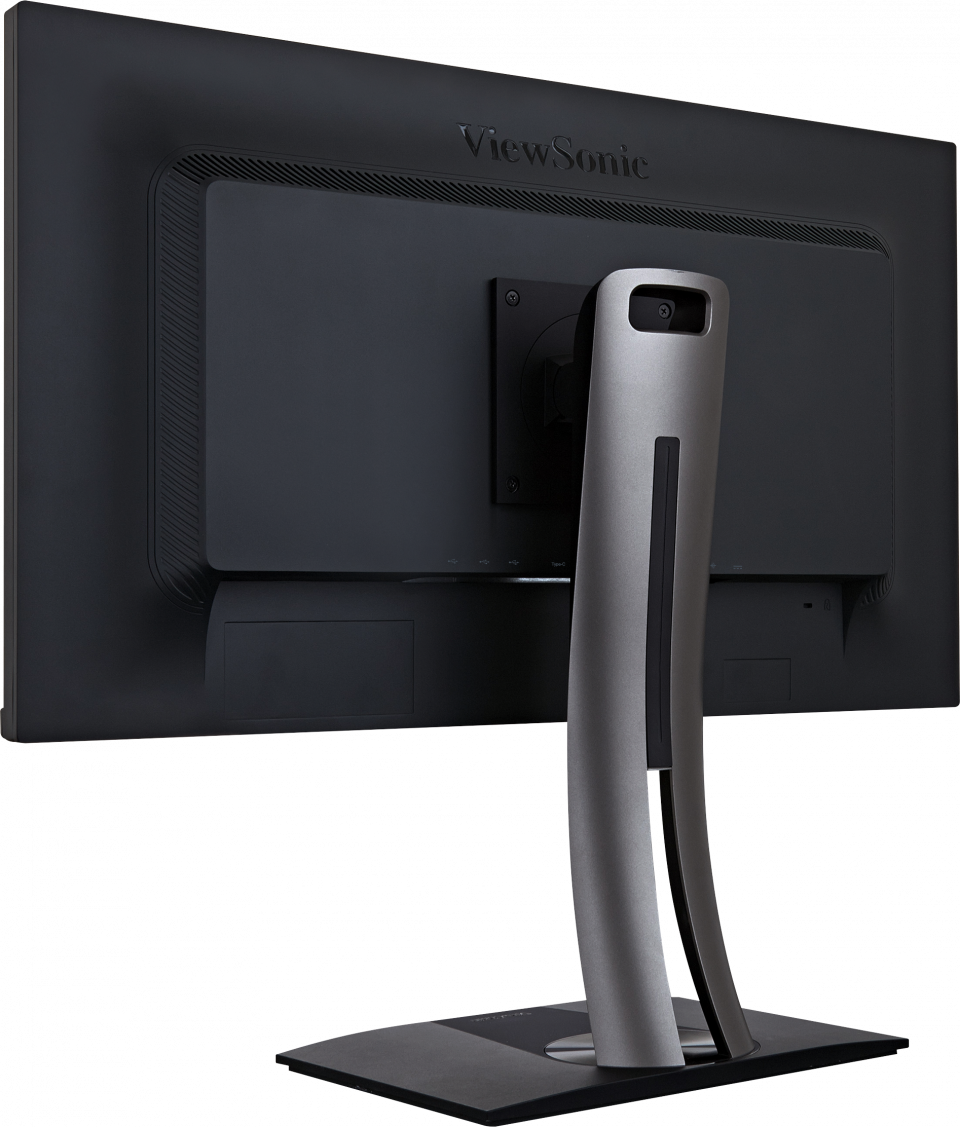

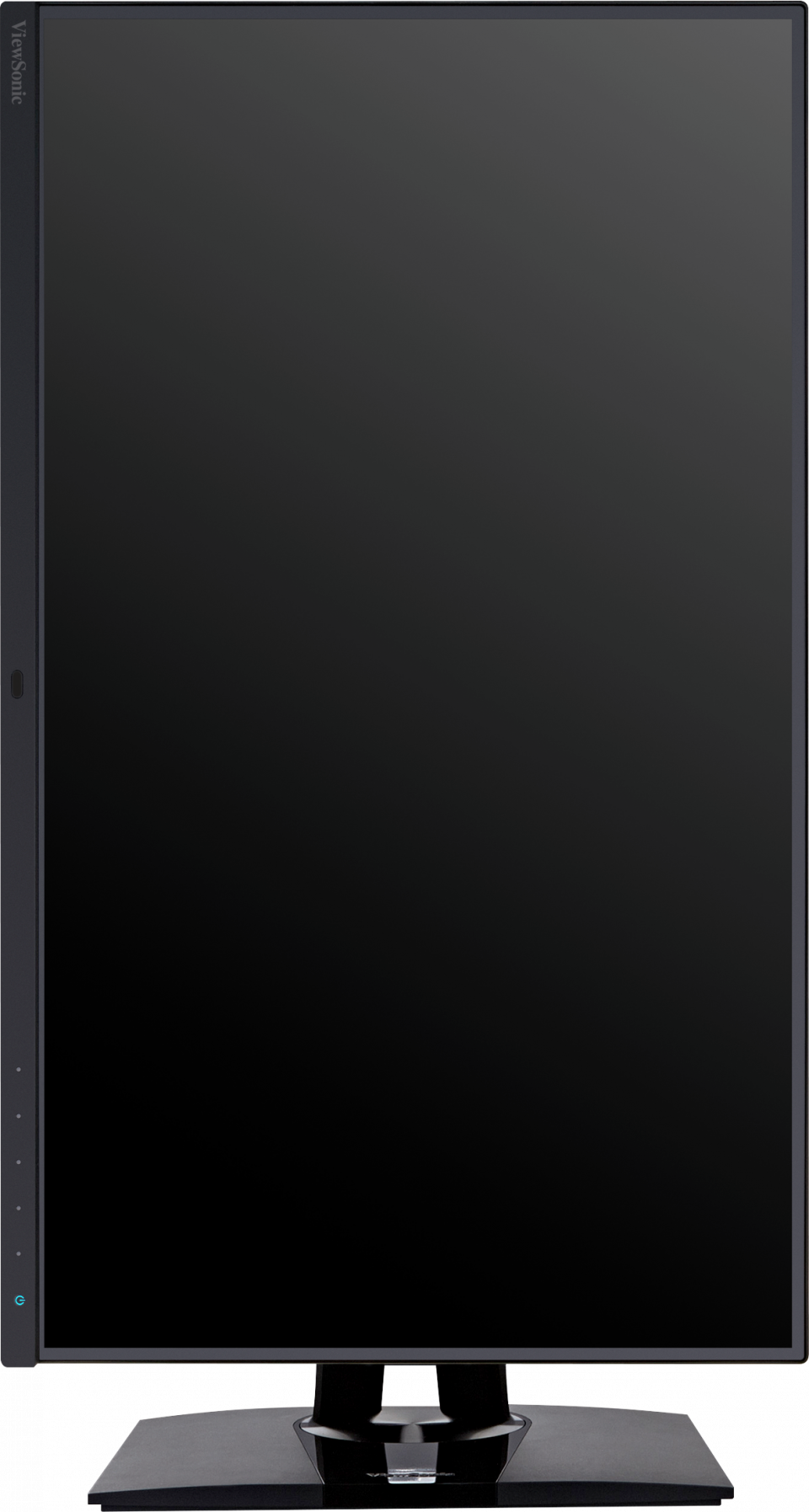

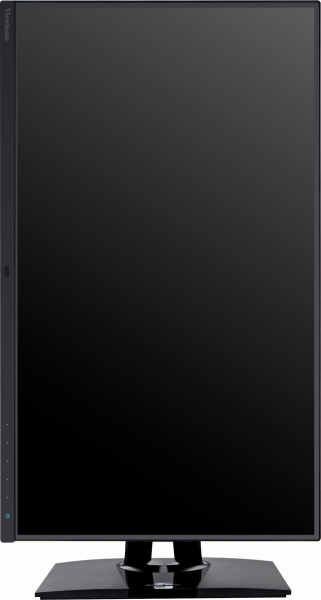

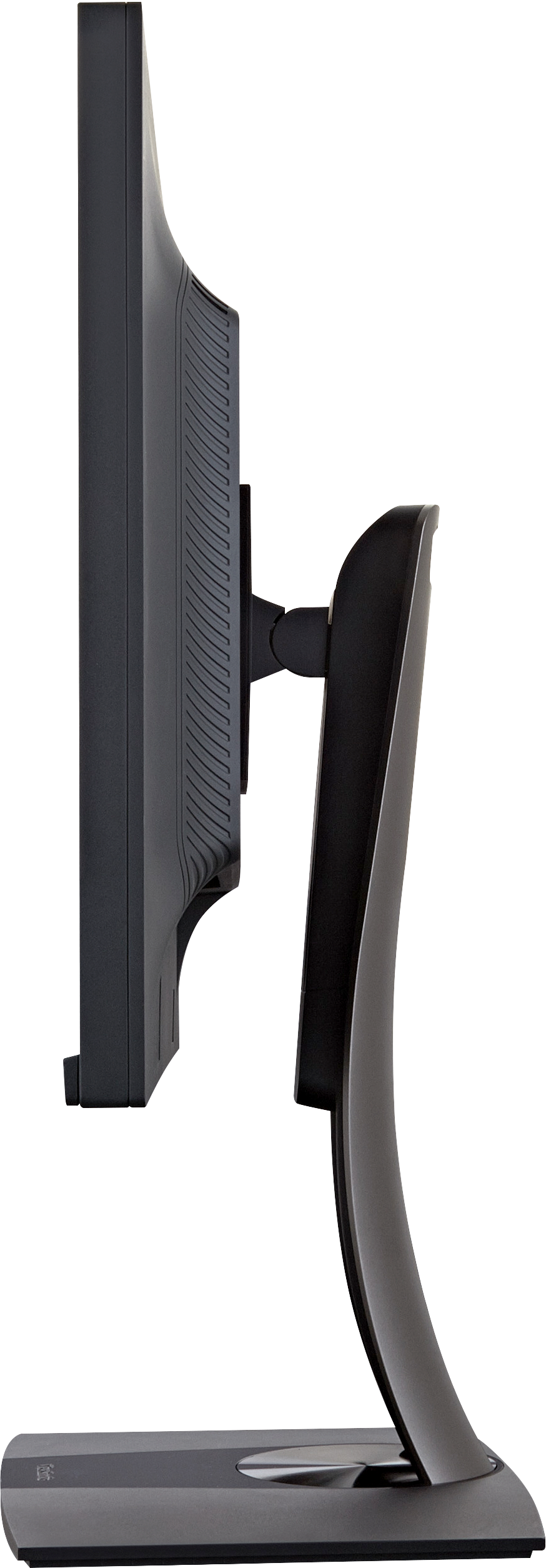

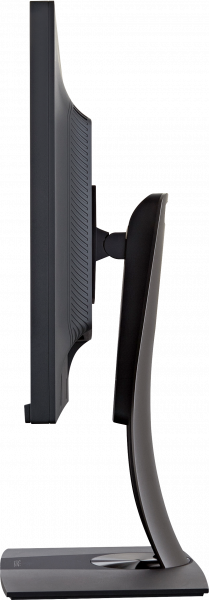

VP2785-4K provides a full range of swivel, pivot, tilt, and height adjustments that allow you to find the most comfortable monitor positioning for you, while Auto Pivot allows photos to automatically adjust to the screen’s orientation when pivoted. The client mount feature on the monitor stand allows easy deployment and provides a tidy desktop environment.
*Please download the Auto Pivot software before activating the Auto Pivot function

Colorbration+ Long-term Color Consistency
ViewSonic’s Colorbration+ offers hardware calibration that aligns communication between the graphics card and the monitor to ensure long-term consistency and accurate colors on ViewSonic ColorPro monitors.
‧ ccDISPLAY PRO / X-Rite i1 Display Pro
‧ ccSTUDIO / i1 Studio / X-Rite i1 Studio
‧ X-Rite i1 Pro 2
‧ Datacolor Spyder X Series
‧ ccSTUDIO/ i1 Studio/ X-Rite ColorMunki Photo
‧ ccSTUDIO/ i1 Studio/X-Rite ColorMunki Design
Please install the Colorbration+ software before activating the calibration function.

Flawless Colour Reproduction
With Delta E<2 colour accuracy, VP2785-4K delivers stunning colour reproduction that ensures colour in your photos are true-to-life and nearly indistinguishable from the colour seen by the naked eye.

Balanced Uniformity
ViewSonic’s uniformity correction balances luminance performance on VP2785-4K with calculated precision, improving delta luminance variance to < 5% for more consistent brightness from edge to edge.
* Uniformity function only works while in Adobe RGB, sRGB, DCI-P3, EBU, SMPTE-C and REC709 colour modes.

Vibrant colour from Any Angle with SuperClear® IPS Panel Technology
Enjoy accurate and vivid colours with consistent levels of brightness on VP2785-4K from any vantage point. SuperClear IPS panel technology delivers best-in-class image quality, whether you are looking at VP2785-4K’s screen from above, below, front, or the side.

Versatile Connectivity with HDCP2.2 Decryption
HDMI, DisplayPort, Mini DP and USB 3.1 inputs offer more flexibility for connecting VP2785-4K with other devices. In addition, VP2785-4K also comes with future-proofed HDCP2.2 (High-Bandwidth Digital Content Protection) content protection to prevent digital image and audio resources from being infringed upon or copied and ensuring compatibility with future 4K content.

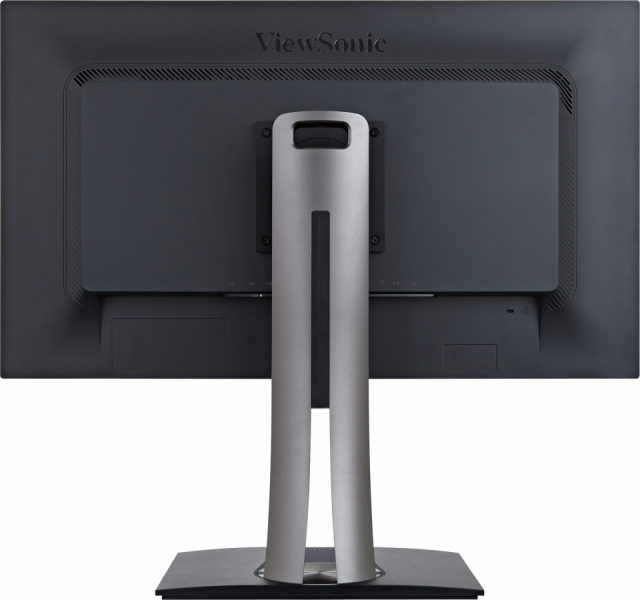

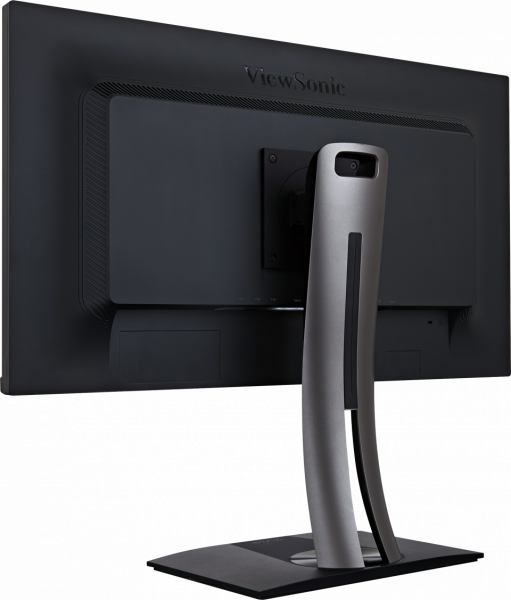

- VESA Compatible(Wall mount 100 x 100 mm)
- USB 3.1 Type A
- USB 3.1 Type A (x2)
- USB 3.1 Type B
- USB 3.1 Type C
- HDMI (x2)
- DisplayPort
- Mini DP
- Audio Out
- DC In
- Kensington Lock Slot
Flawless colour Out of the Box
Every unit is pre-calibrated at the factory and comes with its own colour calibration report. Each report gives you a reading of your panel’s Adobe RGB, DCI-P3, sRGB, EBU, SMPTE-C, REC709, and uniformity, giving you 10 additional item readings than a typical colour report. In addition, time spent fine-tuning VP series monitors before they are ready to be used is four times more than competing brands, bringing our users the highest quality colour calibration possible.

REVIEWS
“While it is very similar to the ViewSonic VP2780-4K, which earned our Editors' Choice way back in 2015, the VP2785-4K offers some distinct improvements. It adds a USB Type-C port, which can charge a laptop that's connected to it, as well as letting you take advantage of an unusual KVM-switch feature.”
“The VP2785-4K combines ergonomic and meaningful design with modern techniques. He has all the usual color profiles, so that photographers, graphic artists, videographers and editors can pursue their work without restrictions.”
“While it is very similar to the ViewSonic VP2780-4K, which earned our Editors' Choice way back in 2015, the VP2785-4K offers some distinct improvements. It adds a USB Type-C port, which can charge a laptop that's connected to it, as well as letting you take advantage of an unusual KVM-switch feature.”
SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 3840 x 2160
Resolution Type: UHD (Ultra HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 150 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 109% size / 99% coverage (Typ)
DCI-P3: 108% size / 95% coverage (Typ)
EBU: 145% size / 100% coverage (Typ)
REC709: 147% size / 100% coverage (Typ)
SMPTE-C: 166% size / 100% coverage (Typ)
NTSC: 104% size (Typ)
sRGB: 147% size / 100% coverage (Typ)
Pixel Size: 0.155 mm (H) x 0.155 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 3840x2160
Mac® Resolution (max): 3840x2160
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 3840x2160 - Connector
- PowerEco Mode (Conserve): 45W
Eco Mode (optimized): 55W
Consumption (typical): 67W
Consumption (max): 70W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
Cable Organization: Yes - ControlsPhysical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 15 ~ 204KHz
Frequency Vertical: 24 ~ 120Hz - Video InputDigital Sync: TMDS - HDMI (v2.1), PCI-E - DisplayPort (v1.4), PCI-E - mini DisplayPort (v1.4), Micro-Packet - Type C
- ErgonomicsHeight Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 21º
Pivot (Right/Left): 90º / 90º - Weight (imperial)Net (lbs): 13.8
Net Without Stand (lbs): 8.5
Gross (lbs): 21.1 - Weight (metric) Net (kg): 6.3
Net Without Stand (kg): 3.8
Gross (kg): 9.6 - Dimensions (imperial) (wxhxd)Packaging (in.): 28.3 x 18.1 x 10.6
Physical (in.): 24.1 x 16.35~21.47 x 8.5
Physical Without Stand (in.): 24.1 x 14.3 x 2.2 - Dimensions (metric) (wxhxd)Packaging (mm): 720 x 460 x 268
Physical (mm): 612 x 415.51~545.51 x 215
Physical Without Stand (mm): 612 x 363 x 57 - GeneralRegulations: cTUVus, FCC-B, ICES003, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, VCCI, PSE(Adaptor), BIS
PACKAGE CONTENTS: VP2785-4K x1, 3-pin Mickey Mouse Plug (IEC C5) x1, mini DisplayPort to DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
