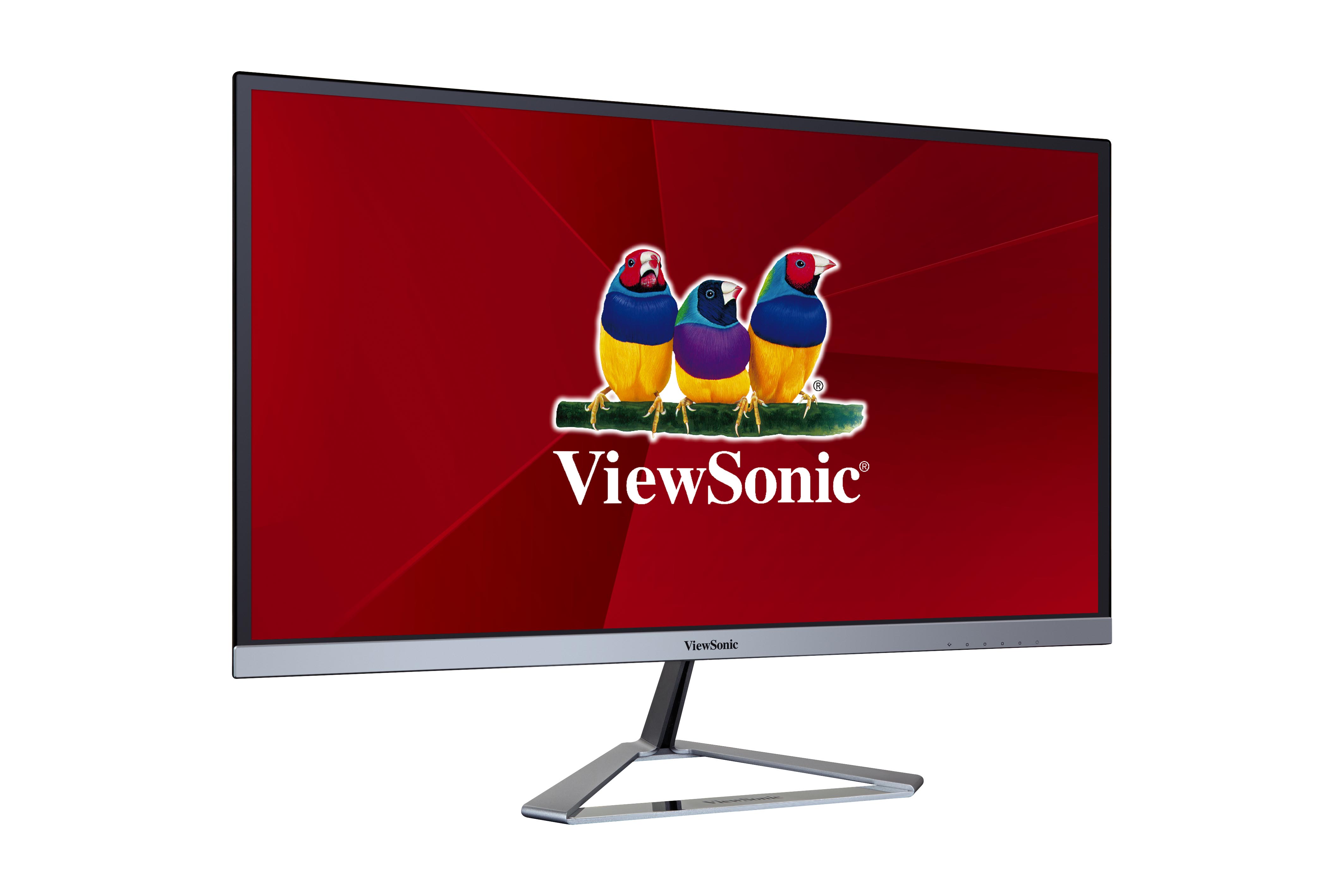

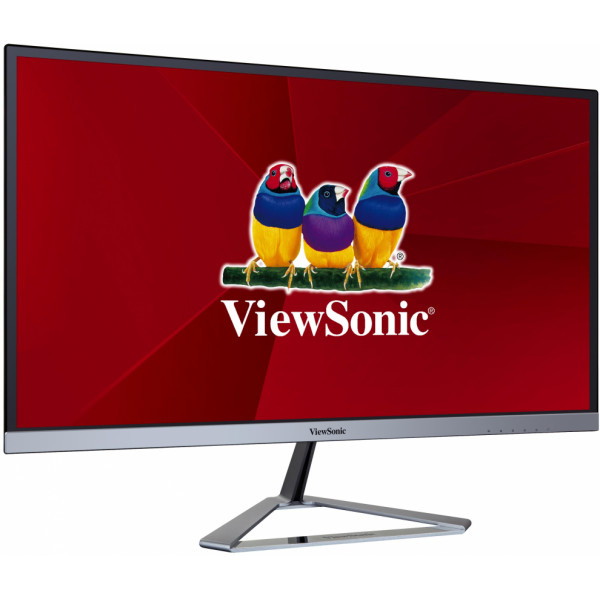

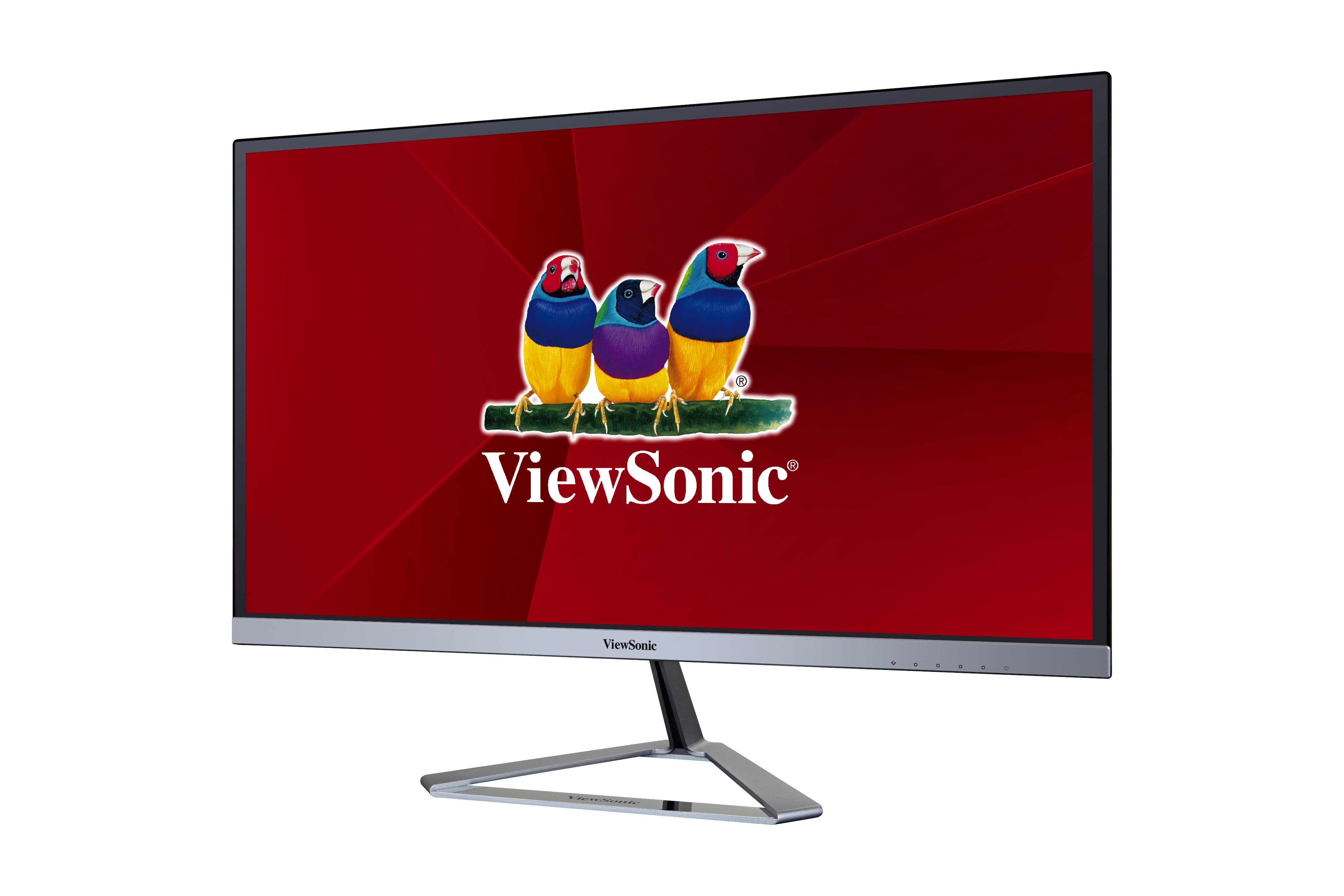

VX2276-smhd
22’’(21.5” viewable) stylish frameless IPS monitor with HDMI, DisplayPort and speakers
OVERVIEW
22’’(21.5” viewable) Full HD LCD Monitor with SuperClear® IPS Panel Technology in stylish silver frameless design. This monitor offers 178 / 178 degree viewing angle, 80M:1 dynamic contrast, VGA, HDMI, DisplayPort input and speakers. Flicker-Free, Blue Light Filter, Low EMI, Low Input Lag and ViewMode optimize the viewing experience

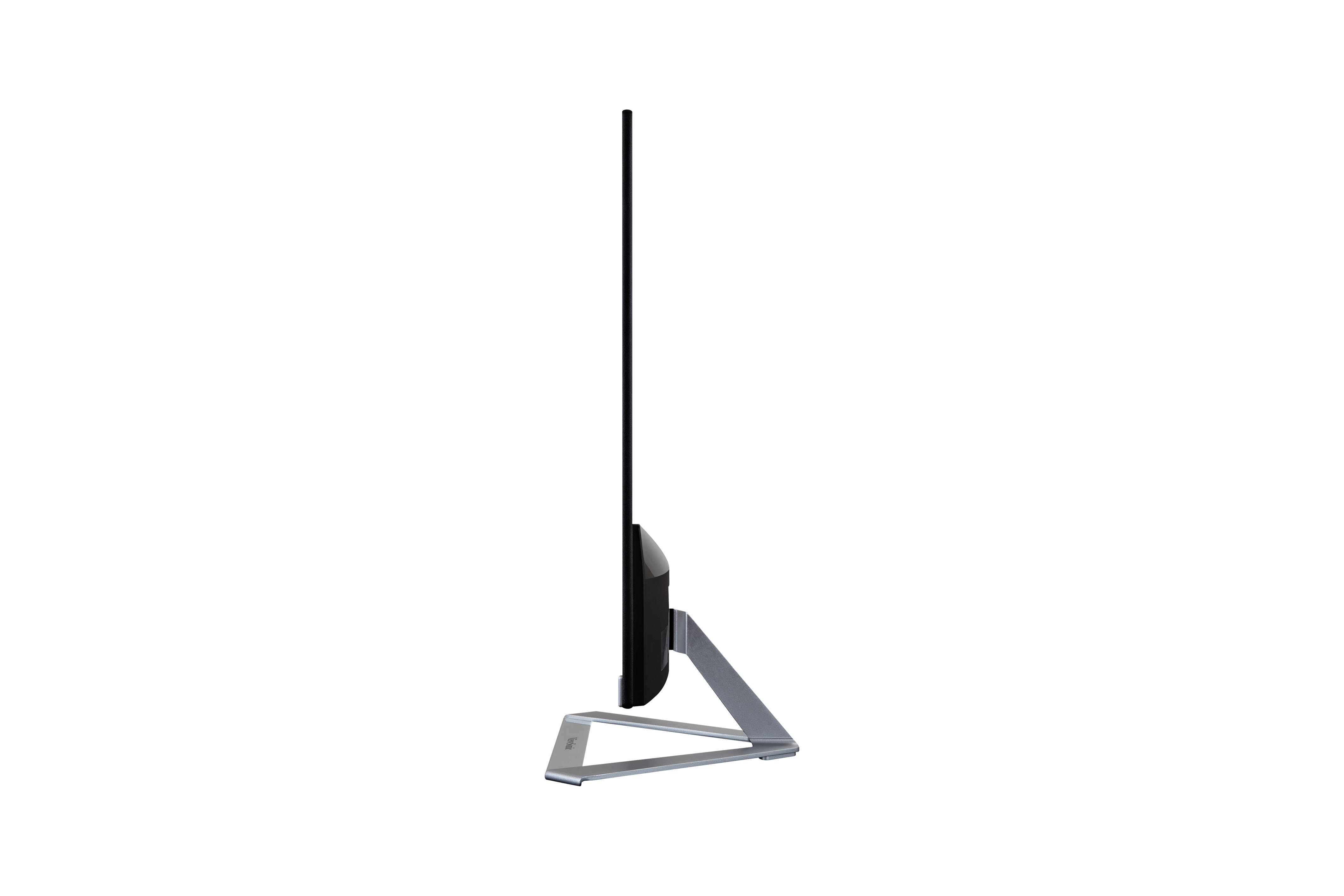

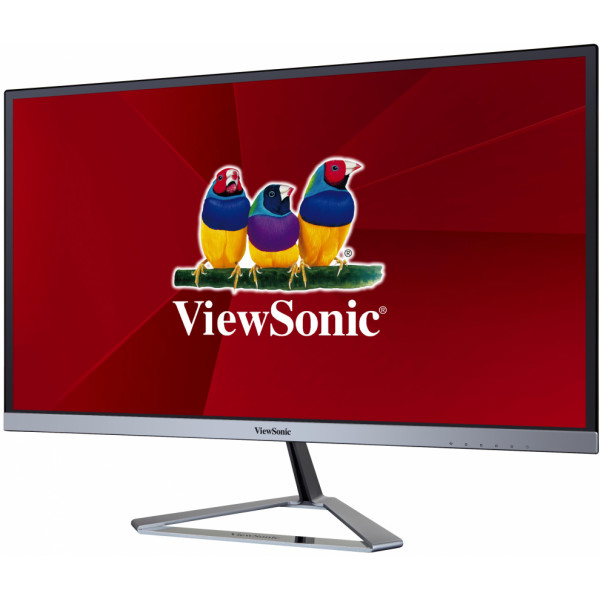

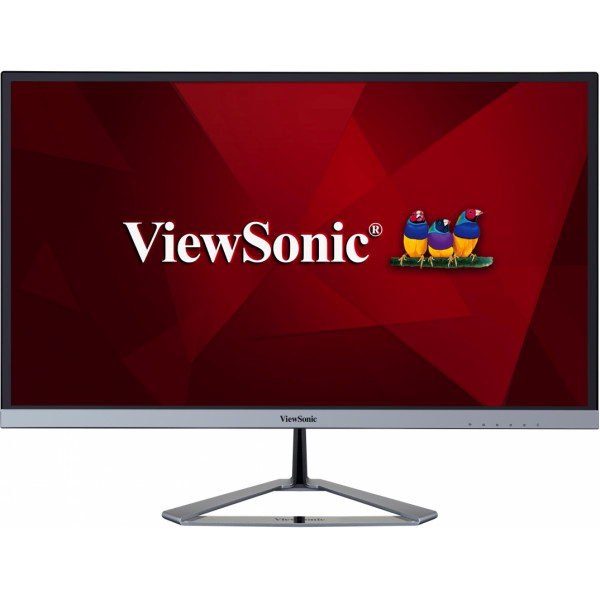

Frameless bezel design

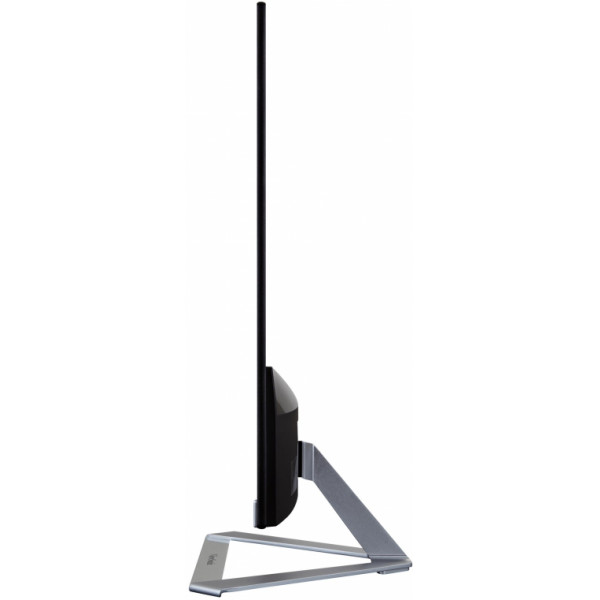

Break free from bulky designs, and prepare for a frameless experience. An ultra slim 6.6 mm panel and a thin 2.2 mm bezel, delivering an incredible visual experience.

SuperClear: Stunning colour Performance & Wide-angle Viewing
With SuperClear IPS panel technology, enjoy accurate and vivid colours with consistent levels of brightness whether you are looking at the screen from above, below, the front, or the side.

Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether while working, gaming, or enjoying the latest in multimedia entertainment.

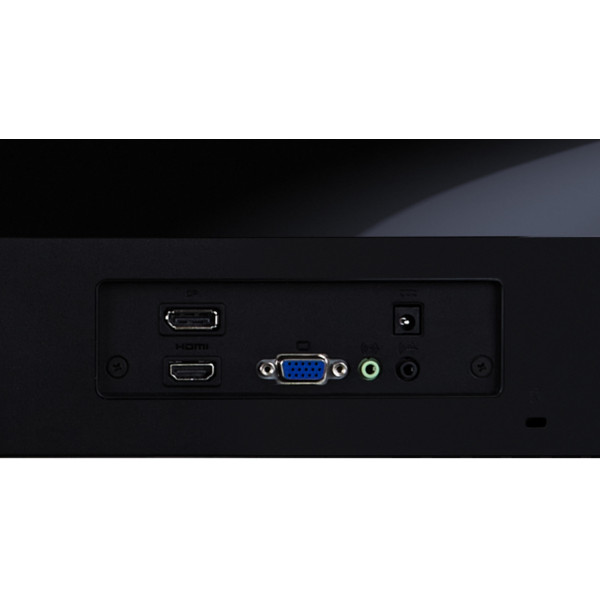

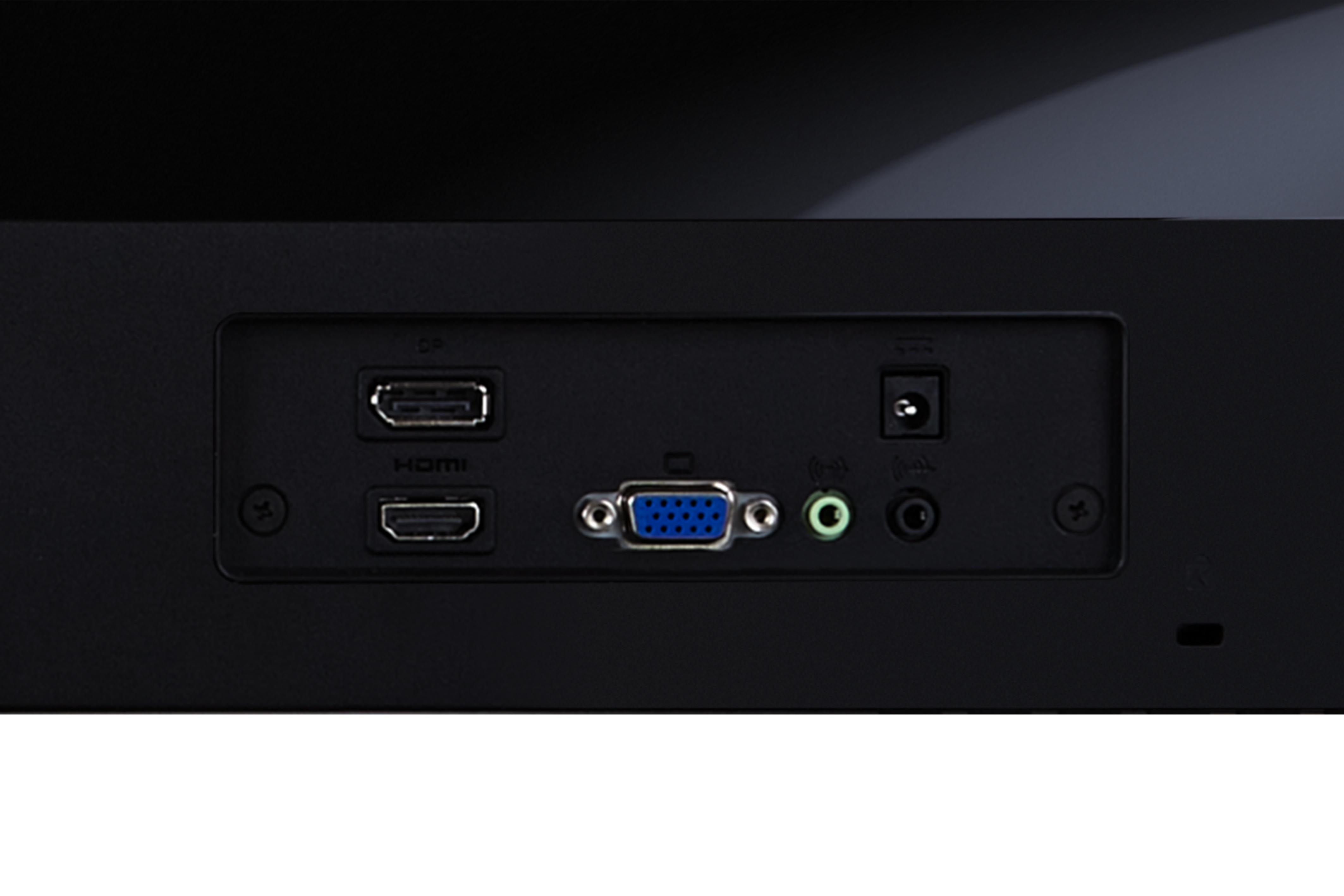

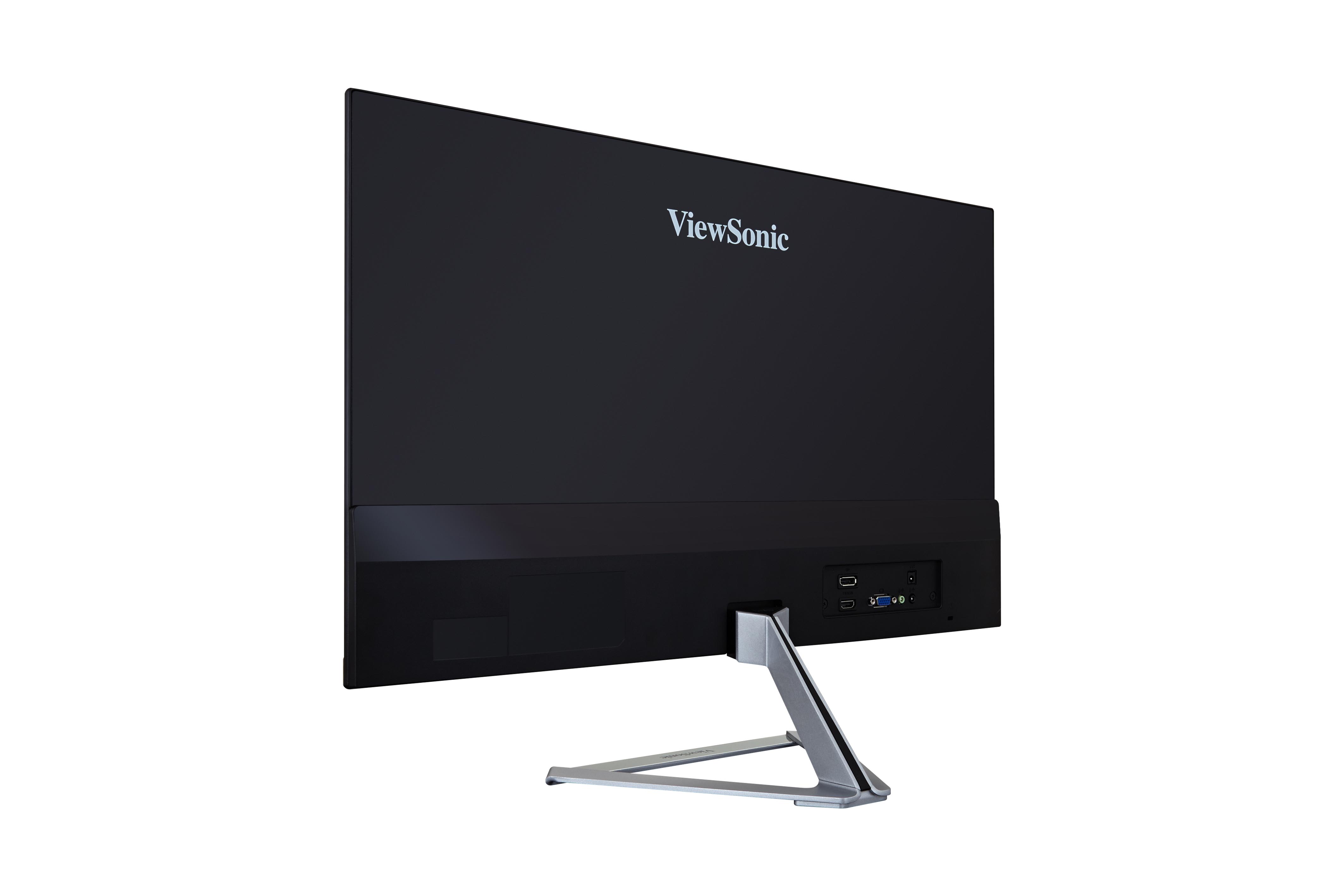

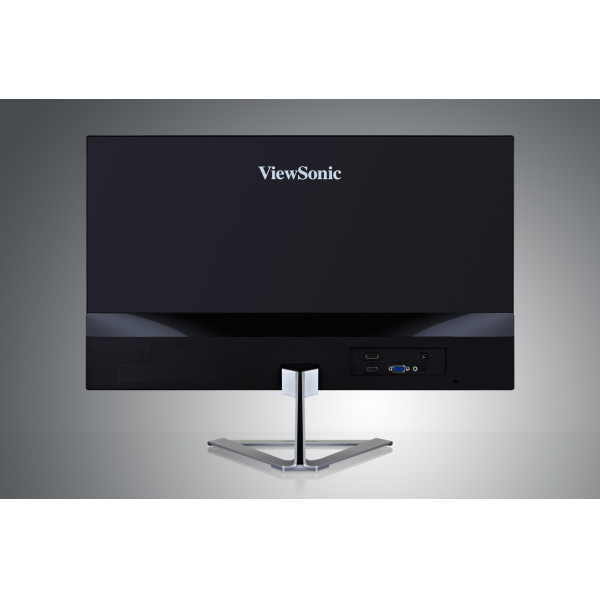

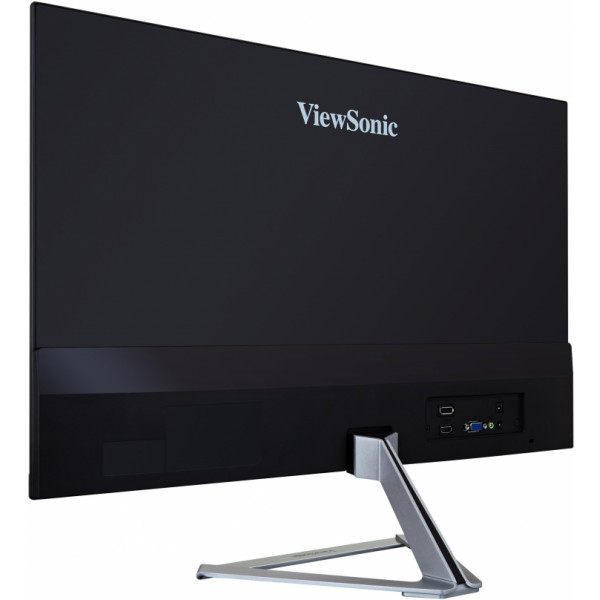

Flexible connectivity
HDMI, DisplayPort and VGA inputs, enable users to connect to game consoles, Blu-ray players, digital cameras, laptops, satellite boxes, and other high-definition devices.

Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods

Low EMI promises a safer viewing experience
ViewSonic offers exclusive Low EMI products,ensuring that our products comply with corresponding national regulations. On top of that, we internally commit to lower radiation emissions based onstringent internal rules.

ViewMode: Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

Dual Integrated Stereo Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

REVIEWS
“the VX2776-smhd is, to our eyes, a solid choice, and it'll look great on your desk as well.”
SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 15W
Eco Mode (optimized): 18W
Consumption (typical): 21W
Consumption (max): 23W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Input SignalFrequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 24 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -5º / 17º
- Weight (imperial)Net (lbs): 5.4
Net Without Stand (lbs): 4.4
Gross (lbs): 8.6 - Weight (metric) Net (kg): 2.4
Net Without Stand (kg): 2
Gross (kg): 3.9 - Dimensions (imperial) (wxhxd)Packaging (in.): 22.2 x 15 x 4.5
Physical (in.): 19.6 x 15.5 x 8.2
Physical Without Stand (in.): 19.6 x 11.9 x 1.3 - Dimensions (metric) (wxhxd)Packaging (mm): 563 x 382 x 115
Physical (mm): 498 x 393 x 209
Physical Without Stand (mm): 498 x 302 x 33 - GeneralRegulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NRCan, REACH, WEEE
PACKAGE CONTENTS: B01GE9QSVK xVX2276-SMHD x1, 3-pin Mickey Mouse Plug (IEC C5) x1, VGA Cable (Male-Male) x1, HDMI Cable (v1.4; Male-Male) x1, Audio Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, , 1 x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
