Pure LCD monitor enjoyment

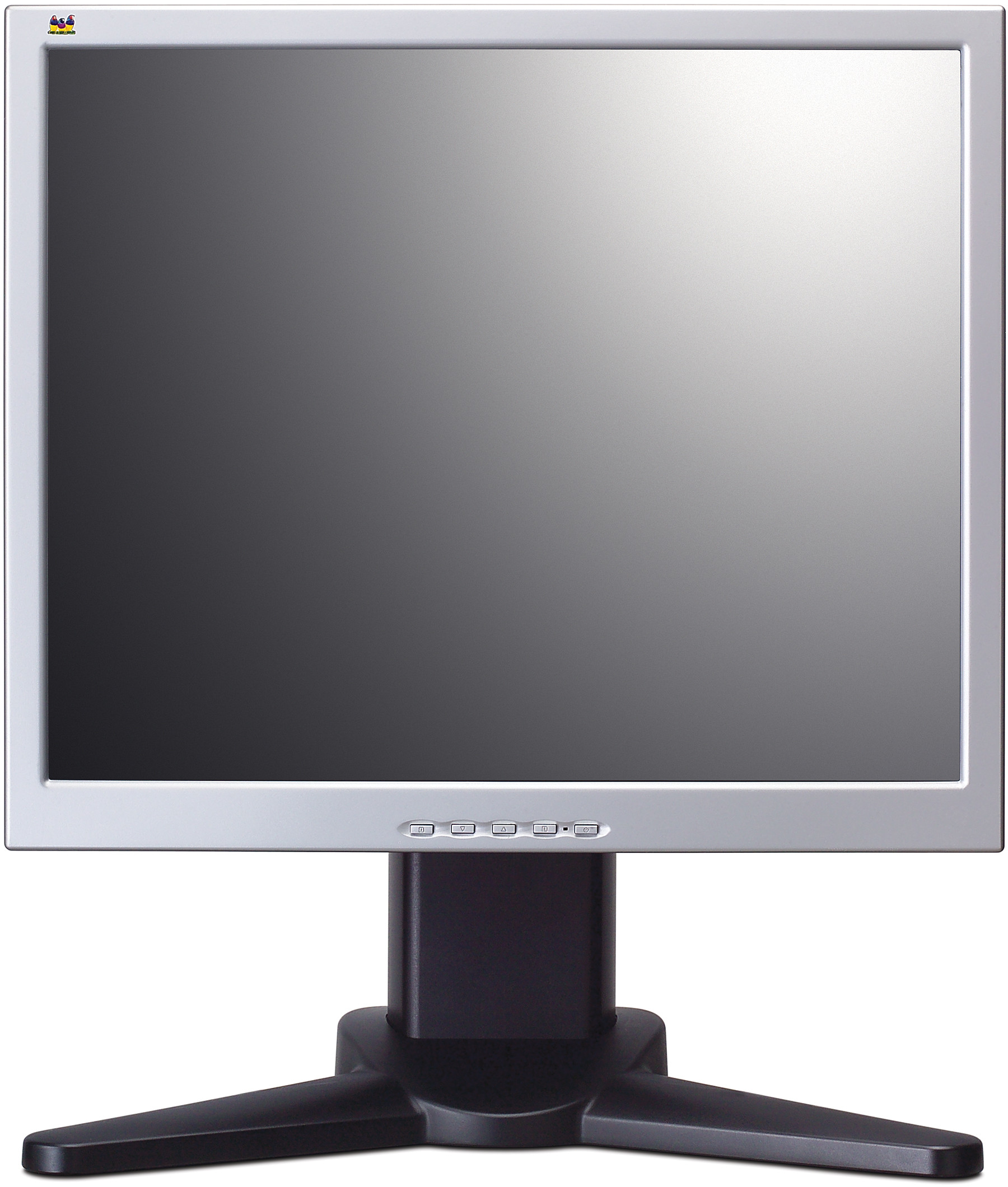

Latest state-of-the-art features make the ViewSonic VP720 perfect for all graphics professionals, gaming developers and corporate executives. ClearMotiv™ technology delivers an ULTRA-FAST 4MS VIDEO RESPONSE TIME that enables high-quality full motion video playback and also makes the monitor ideal for video editing applications. Analogue and digital inputs are available for various connectivity options. This multimedia enhanced model boasts a full 17” viewable screen with a high-definition 1280 x 1024 resolution as well as built-in stereo speakers for maximum convenience. In addition, the VP720 allows for the adjustment of HEIGHT, PIVOT AND TILT to give it an ergonomic edge. It's not just another professional LCD. It's a ViewSonic.
SPECIFICATIONS
- LCDType: 17” TN colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ.)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Display Area: 33.8cm horizontal x 27.0cm vertical, 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 4ms (Grey-to-Grey), 8ms (off-on-off) (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.264mm
Bandwidth: 135MHz
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Brightness: 280cd/m² - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced (max. 60Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 60Hz) - DIMENSIONSW x H x D mm: 376 x 463 x 229 (with stand)
376 x 320 x 68 (without stand)
- REGULATIONSTCO’03, TÜV/GS, TÜV/ERGO, CE, CB, UL, cUL, FCC-B (ICES), ICES-003B,
ENERGY, Energy Star, NOM, ISO13406-2 (pixel failure class II), GOST-R
(+Hygienic), BSMI, CCC, PSB, C-TICK, TÜV-S, KTL/MIC, SASO, WEEE, RoHS - PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) - WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - INPUTSync: H/V separate (TTL), composite, sync on green
Digital: DVI-D (TMDS, 100 ohm)
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
Frequency: Fh: 24 – 82kHz, Fv: 50 – 85Hz - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable)
Audio: 3.5mm stereo audio line-in
Power: 3-pin (CEE22) - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: <45 watt (max.), ≤1 watt in power save mode - CONTROLSBasic: Power on/off, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio
adjust (volume, mute), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
5000K, user RGB), information (resolution, H/V frequency, pixel clock, model
number, serial number, website), manual image adjust (H/V position, H size,
fine tune, sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background), OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C - 40°C
Humidity: 10% - 90% (non-condensation) - WEIGHTNet: 5.45kg (with stand), 3.7kg (without stand)
- POWER MANAGEMENTMeets TCO’03, ENERGY and Energy Star standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA FPMPMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
Height Adjustment: 0~100mm
Pivot: 0°~90° - AUDIOSpeakers: 2 x 1 watt
