OVERVIEW

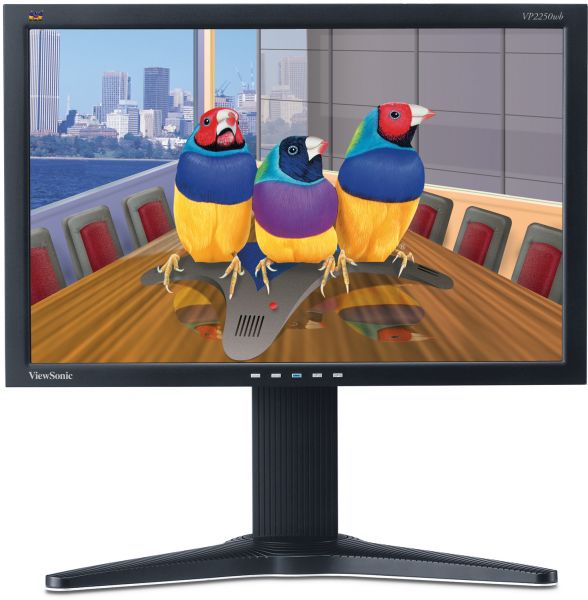

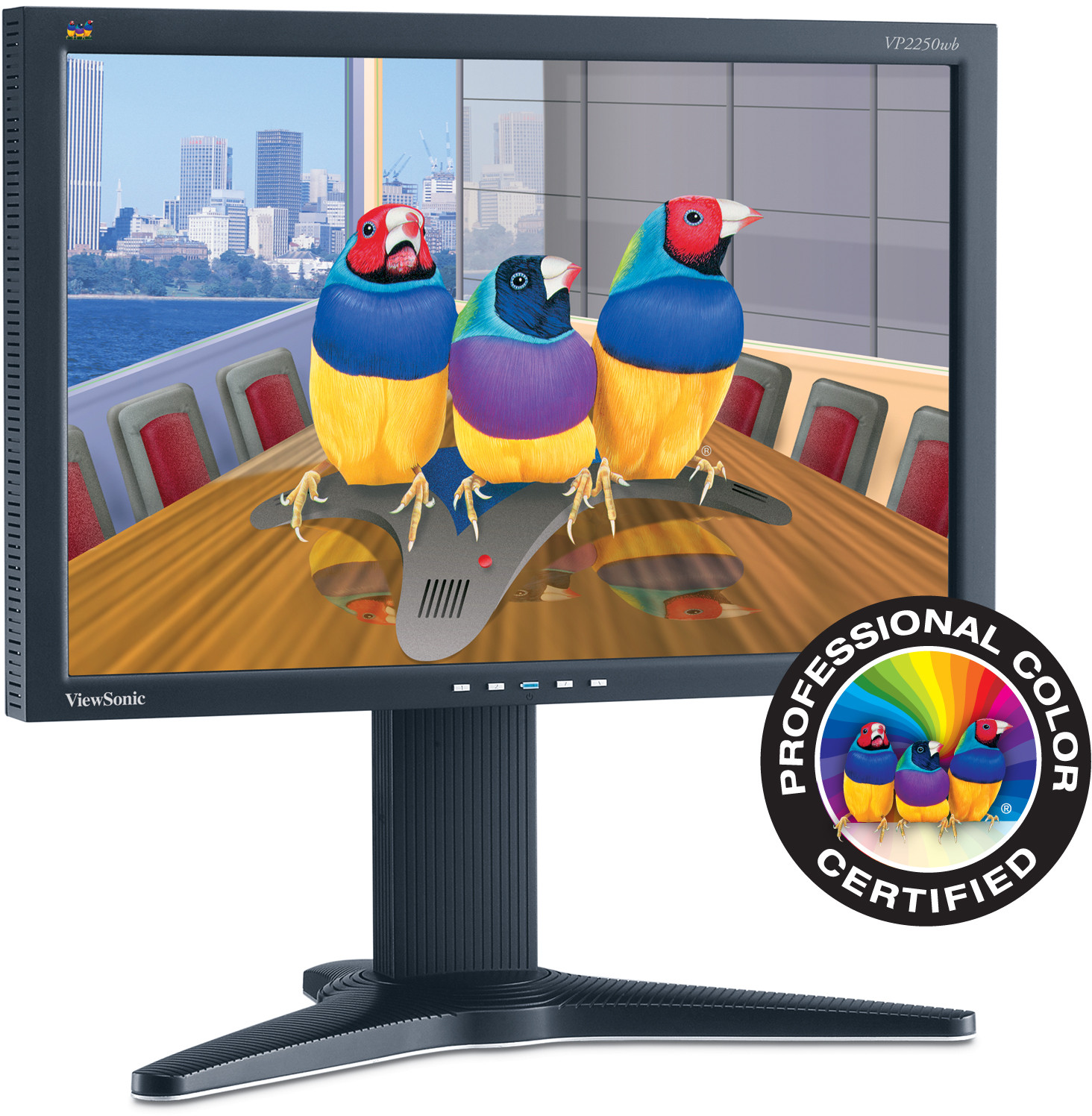

ViewSonic’s 55 cm / 21.6" VP2250wb widescreen LCD is a professional- grade display with 106% NTSC colour capability for richer more natural colours. Ideal for graphics production, financial and medical professionals where precise colour rendition is vital to the job. The VP2250wb features 3000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms (grey-to-grey) response time for SUPERIORFRONT-OF-SCREEN PERFORMANCE. Designed with the discriminating professional in mind, this display offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/analogue inputs plus 4 USB ports to deliver a versatile and flexible professional package. Step into a world of amazing colour and accuracy with the VP2250wb.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS


“Based on the ROI potential, its performance and ViewSonic's channel program, the Test Center can recommend the VP2250wb for VAR customers who are seeking substantial display upgrades over older models.”


“"For those who want a 22-inch monitor that can properly reproduce colors but who can't justify the stratospheric price commanded by some models, the $559 ViewSonic VP2250wb offers some welcome middle ground." - Les Shu”

“"The bottom line is that this new ViewSonic model has a significantly larger color gamut than typical consumer home/office LCD computer displays and better supports the Adobe Photoshop standard and requirement for editing digital photography." - David E. Brooks”






SPECIFICATIONS
- COLORSBlack
- LCDType: 55 cm / 21.6" TN colour active matrix WSXGA+
Contrast Ratio: 1000:1 (typ.), 3000:1 DCR (typ.)
Viewing Angles: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brightness: 300cd/m² (typ.)
Display Area: 46.5cm horizontal x 29.1cm vertical, 54.9cm diagonal
Optimum Resolution: 1680 x 1050@60Hz
Response Time: 2ms (grey-to-grey), 5ms (off-on-off, typ)
Light Source: Long life, 40000 hrs. (typ.)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.276mm
Colour Support: 16.7M colours supported (6-bit+2-bit HI FRC)
Pixel Clock: 205MHz (analogue), 165MHz (digital)
Colour Gamut: Wide colour gamut: 106% NTSC - COMPATIBILITYPC: VGA up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native reslution) preferred
Mac®: Power Mac™ up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native resolution) preferred
- DIMENSIONSPhysical With Stand: 510 x 388-508 x 309
Physical Without Stand: 510 x 334 x 66
W x H x D mm: 590 x 493 x 271 - REGULATIONSTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL, cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY STAR®, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, WEEE, RoHS
- PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- CONNECTORAnalogue: 15-pin mini D-sub (detachable cable)
Digital: 1 x 24-pin DVI-D (detachable cable) (HDCP enabled)
Power: Power 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - POWERVoltage: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consumption: 50 watt (typ., without USB peripherals connected), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2], main power switch
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast], colour space [RGB, YUV]), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - OPERATING CONDITIONSTemperature: 0° to 40°
Humidity: 10% to 90% (non-condensation) - WEIGHTNet With Stand: 7.3kg
Net Without Stand: 4.9kg
Gross: 9.6kg - VIDEO INPUTFrequency: Fh: 24-95kHz, Fv: 50-85Hz
Sync: H/V separated (TTL), composite, sync on green
Analogue: RGB analogue, (0.7/1.0 Vp-p, 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - POWER MANAGEMENTMeets TCO’03 and ENERGY STAR standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm

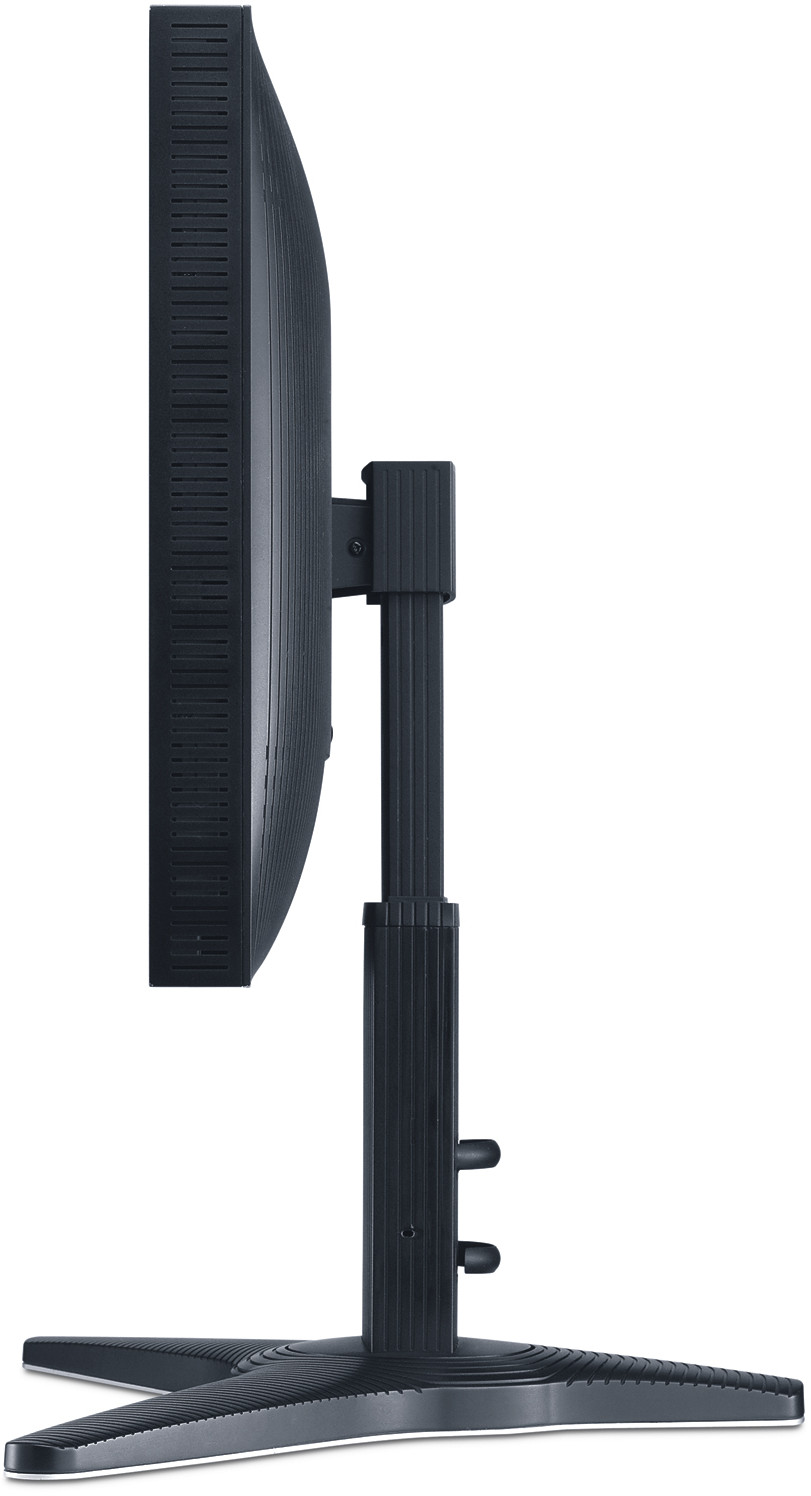

- ERGONOMICSTilt: Down 5°, Up 20°
Swivel: 120° (60°left/60° right)
Height Adjustment: 0~120mm
Pivot: 0°–90°
