OVERVIEW

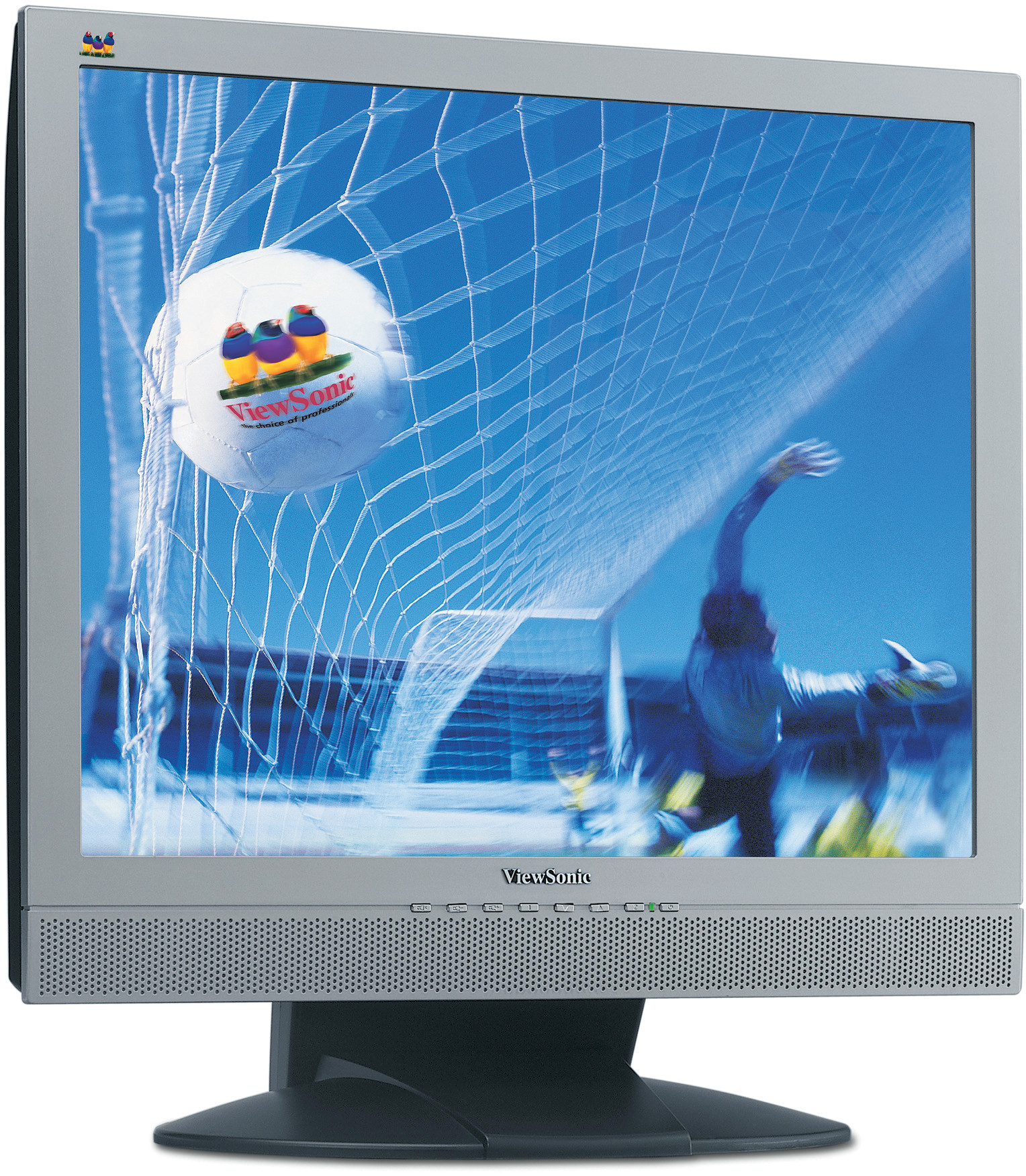

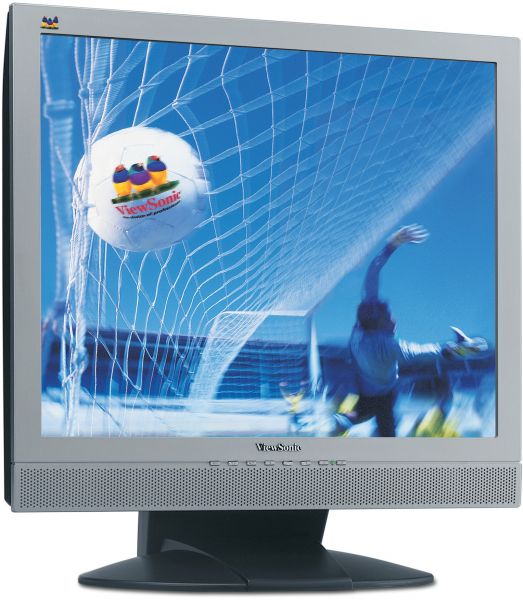

The 19" ViewSonic VG910s LCD display combines a refined slim-bezel design with the quality you have come to expect from ViewSonic. OPTISYNC® TECHNOLOGY supports both digital (DVI) and analogue (VGA) signals for added versatility and connectivity. Enjoy a true multimedia experience with dual built-in 3-watt speakers, delivering rich stereo sound to your desktop. All this combined with CLEARMOTIVTM BROADCAST-QUALITY VIDEO featuring 20ms response, an ultra-high 1000:1 contrast ratio (typ), and 170° viewing angles make the VG910s an ideal LCD display for home, small/home office, corporate, government or educa- tion use.SPECIFICATIONS
- LCDType: 48cm / 19" colour TFT active matrix SXGA LCD
Contrast Ratio: 1000:1 (typ)
Viewing Angles: 170° horizontal, 170° vertical@ 10:1
170° horizontal, 170° vertical @ 5:1
Brightness: 250cd/m2 (typ)
Display Area: 37.6cm horizontal x 30.1cm vertical x 48.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 20ms (typ)
Panel Surface: Anti-glare
Colour Support: 16.7M colours (8-bit) - COMPATIBILITYMac®: Power MacTM G3/G4 up to 1280 x 1024
PC: VGA up to 1280 x 1024 - DIMENSIONSPhysical (mm): 422.4mm x 438.5mm x 180.6mm (with stand)
422.4mm x 382.1mm x 62mm (without stand)
- REGULATIONSTCO ́03, TÜV/GS, ISO 13406-2 (class 2) TÜV-S, TÜV/Ergo, UL, CUL, FCC-B, CB REPORT, CE, EPA, NOM, NEMKO, SEMKO, DEMKO, FIMKO, GOST-R, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, ENERGY
- AUDIOSpeaker: 2x3-watts
Amplifier: 3 watts @1kHz - CONNECTORPower: 3-pin AC plug
Analogue/Digital: 15-pin mini D-sub, DVI-D
Audio: 3.5mm audio line-in - POWERVoltage: AC 100–240V, 50–60Hz internal power supply
Consumption: < 50 W (typ); ≤ 1 watt in power save mode - CONTROLSBasic: Power (soft), 1, down, up, 2, mute, volume up, volume down
OSD: Auto image adjust, contrast, brightness, input select, audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K- default, 5400K, 5000K, user colour), information (mode, model number, serial number), balance, bass, treble, manual image adjust (H. size, H. position, V. position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout), OSD background, memory recall - OPERATING CONDITIONSTemperature: 0–40°C
Humidity: 10–90% (non-condensing) - WEIGHTNet: 6.8 kg
- VIDEO INPUTFrequency: Fh: 30~82kHz, Fv: 50~85Hz
Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms)
Sync: H/V separated (TTL) - POWER MANAGEMENTMeets TCO, Energy Star and ENERGY standards.
