Multimedia functionality and high performance in space-saving design.

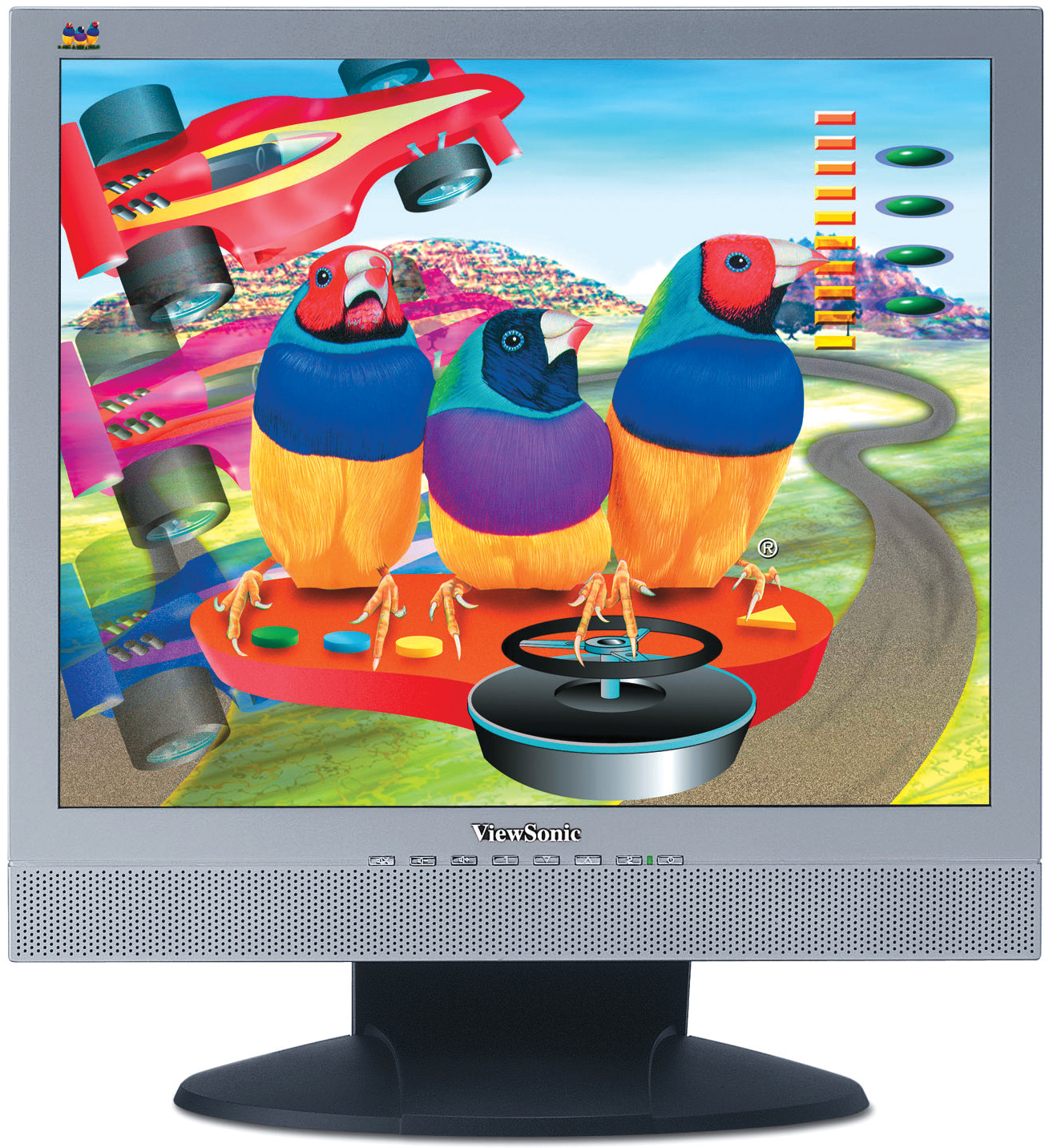

The 43cm / 17" ViewSonic VG712s LCD display combine a refined slim-bezel design with the quality you have come to expect from ViewSonic. OPTISYNC® TECHNOLOGY supports both digital (DVI) and analogue (VGA) signals for added versatility and connectivity. Two built-in 3-WATT SPEAKERS, deliver rich, stereo sound to your desktop. Combine all this with CLEARMOTIV™ BROADCASTQUALITY VIDEO featuring an ultra-fast 8ms video response time and a 500:1 contrast ratio (typ) and you have the ideal LCD display for home, small/home office, corporate, government or education use.SPECIFICATIONS
- LCDType: 43mm / 17.0" colour TFT active matrix SXGA LCD
Contrast Ratio: 500:1 (typ)
Viewing Angles: 140° horizontal, 130° vertical (at 10:1)
160° horizontal, 160° vertical (at 5:1)
Display Area: 33.8cm horizontal x 27cm vertical; 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ.)
Panel Surface: Anti-glare
Colour Support: 16.2M colours (6-bit + 2-bit FRC)
Brightness: 300 cd/m² (typ) - COMPATIBILITYPC: VGA up to 1280 x 1024
Mac®: Power Mac™ G3/G4 up to 1280 x 1024 - DIMENSIONSPhysical With Stand: 378mm x 405mm x 177mm
Physical Without Stand: 378mm x 405mm x 50mm
- REGULATIONSTCO´03, TÜV/GS, ISO 13406-2 (class 2) TÜV-S, TÜV/Ergo, UL,
CUL, FCC-B, CB REPORT, CE, EPA, NOM, NEMKO, SEMKO,
DEMKO, FIMKO, GOST-R, PCBC, VCCI, BSMI, CCC, PSB, C-TICK,
ENERGY - AUDIOSpeaker: 2x3-watts
Amplifier: 3 watts @1kHz - CONNECTORAudio: 3.5mm audio line-in
Signal: 15-pin mini D-sub, DVI-D2
Power: 3-pin AC plug - POWERVoltage: AC 100-240V, 50-60Hz (auto switch), external power supply
Consumption: <36W (typ), ≤1W in power save mode - CONTROLSBasic: Power (soft), 1, down, up, 2, mute, volume up, volume down
OSD: Auto image adjust, contrast, brightness input select, audio adjust
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500Kdefault,
5400K, 5000K, user colour), information (mode, model
number, serial number), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language, resolution
notice, OSD position, OSD timeout), memory recall - OPERATING CONDITIONSTemperature: 0–40°C
Humidity: 10–90% (non-condensing) - WEIGHTNet: 5.3kg
- VIDEO INPUTSync: H/V separated (TTL)
Analogue: RGB analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms)
Frequency: Fh: 30~82kHz, Fv: 50~85Hz - POWER MANAGEMENTMeets TCO’03 and ENERGY standards.
