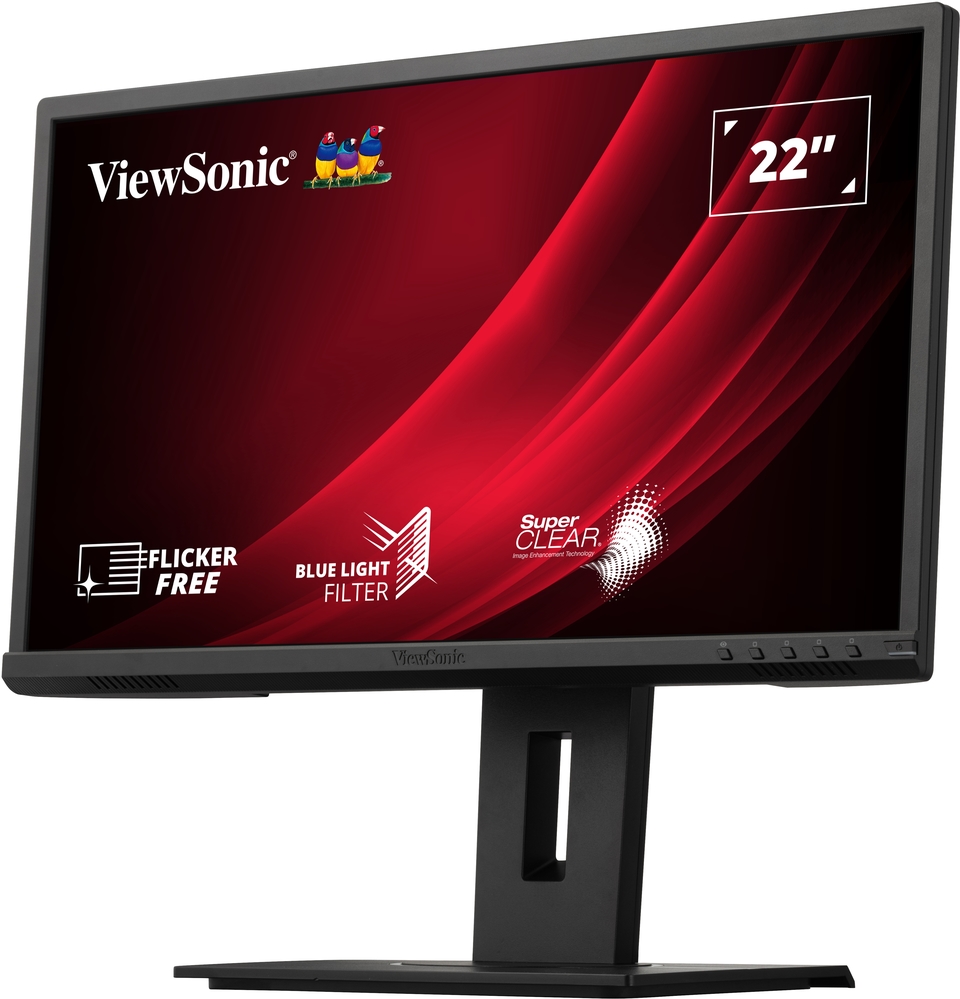

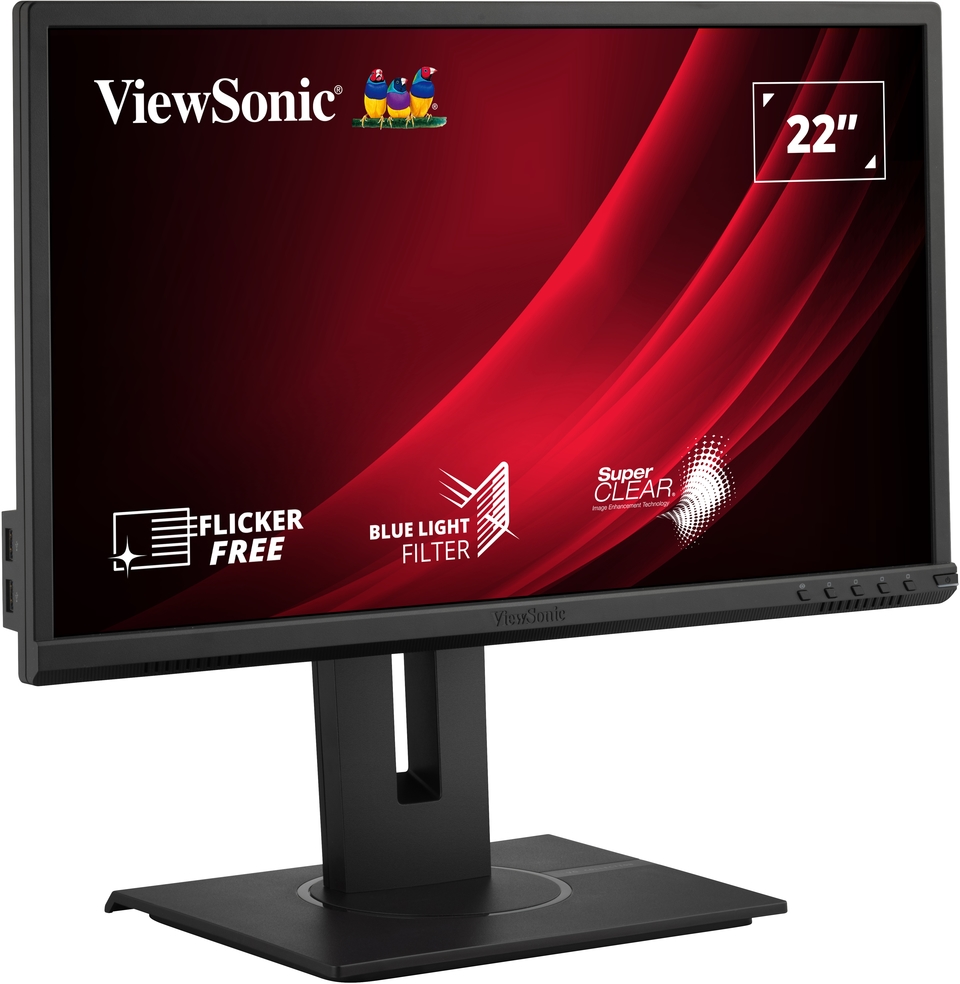

VG2240

22” Full HD Ergonomic Business Monitor

Ergonomic flexibility with quickrelease stand
100Hz Refresh rate delivers fluid visuals
vDisplay Manager productivity software for maximized multitasking
Dual front facing speakers for clear audio
HDMI, DisplayPort, VGA, and USB3.2 ports for extended connectivity

Sales Enquiry

GALLERY

OVERVIEW

The ViewSonic VG2240 is a 22” Full HD ergonomic business monitor designed to increase productivity and efficiency within the home and office workspace. Providing the full spectrum of ergonomic flexibility, the VG2240 can tilt, swivel, pivot, and height adjustment to adapt to any setup or workflow, while the built-in vDisplay Manager productivity software delivers efficient multi-tasking ability and streamlined display control. Dual front-facing speakers ensure a perfect audio-visual experience to provide teams with quality remote communication and collaboration. The beautifully designed display includes a 3-sided narrow bezel for uninterrupted viewing in multi-monitor display setups as well HDMI. DisplayPort, VGA, and USB3.2 connectivity. Complete with an easy-to-install quick release stand that reduces setup time to only a few minutes, the VG2240 offers a high-performance, purpose-built display solution designed for workspace productivity.

Ergonomic Workstation

Discover a monitor that has been designed to address the challenges of the modern work setup.

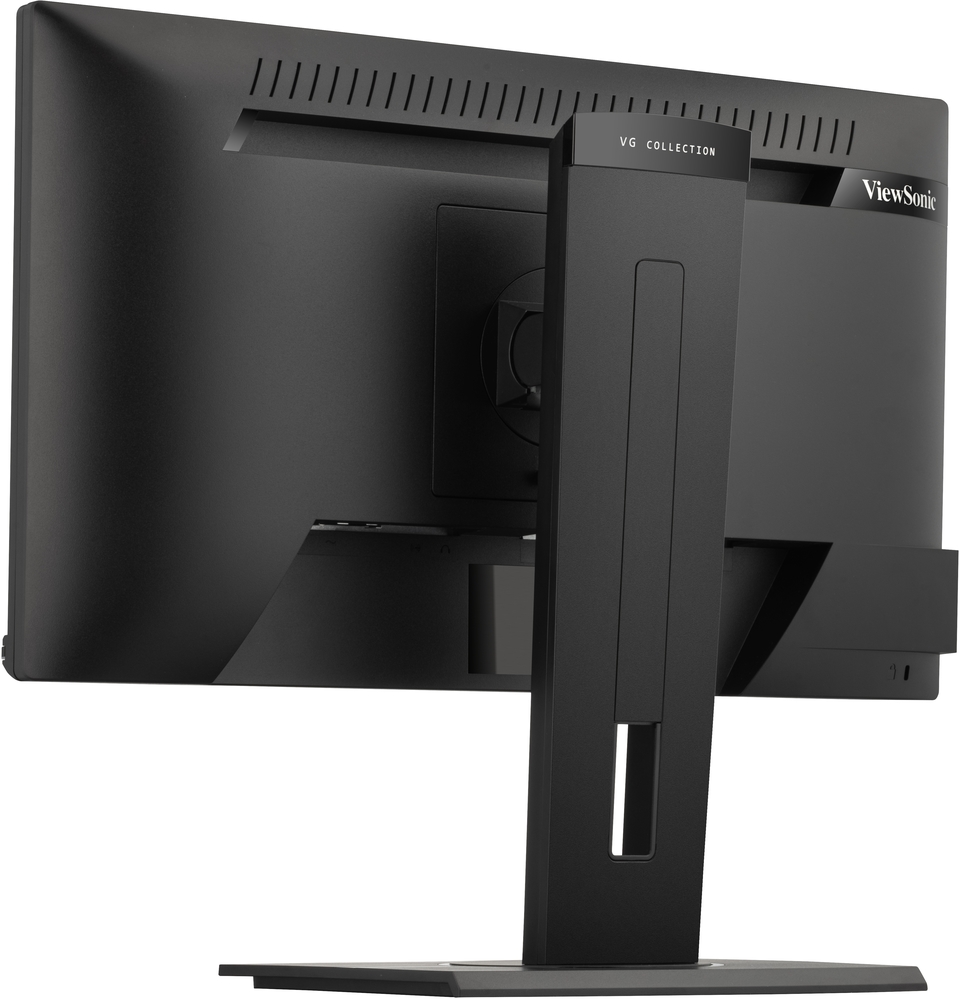

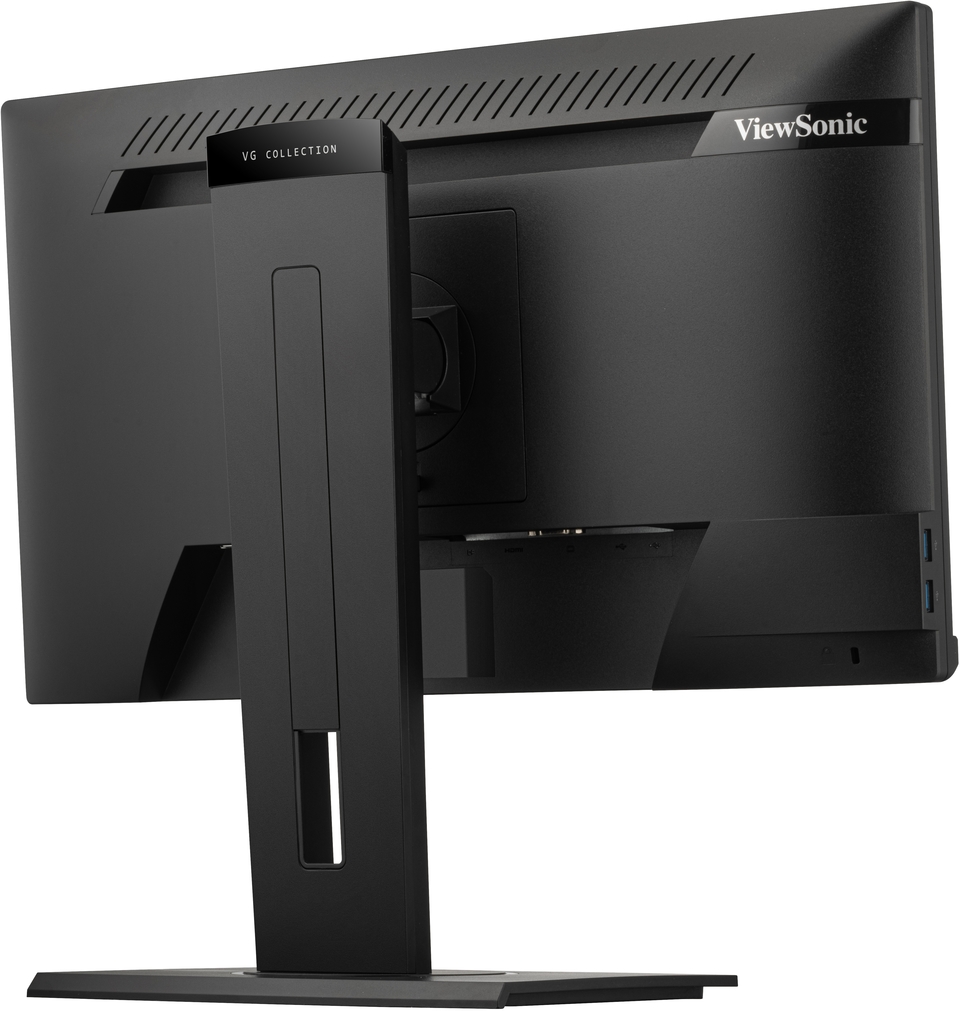

Complete Ergonomic Flexibility

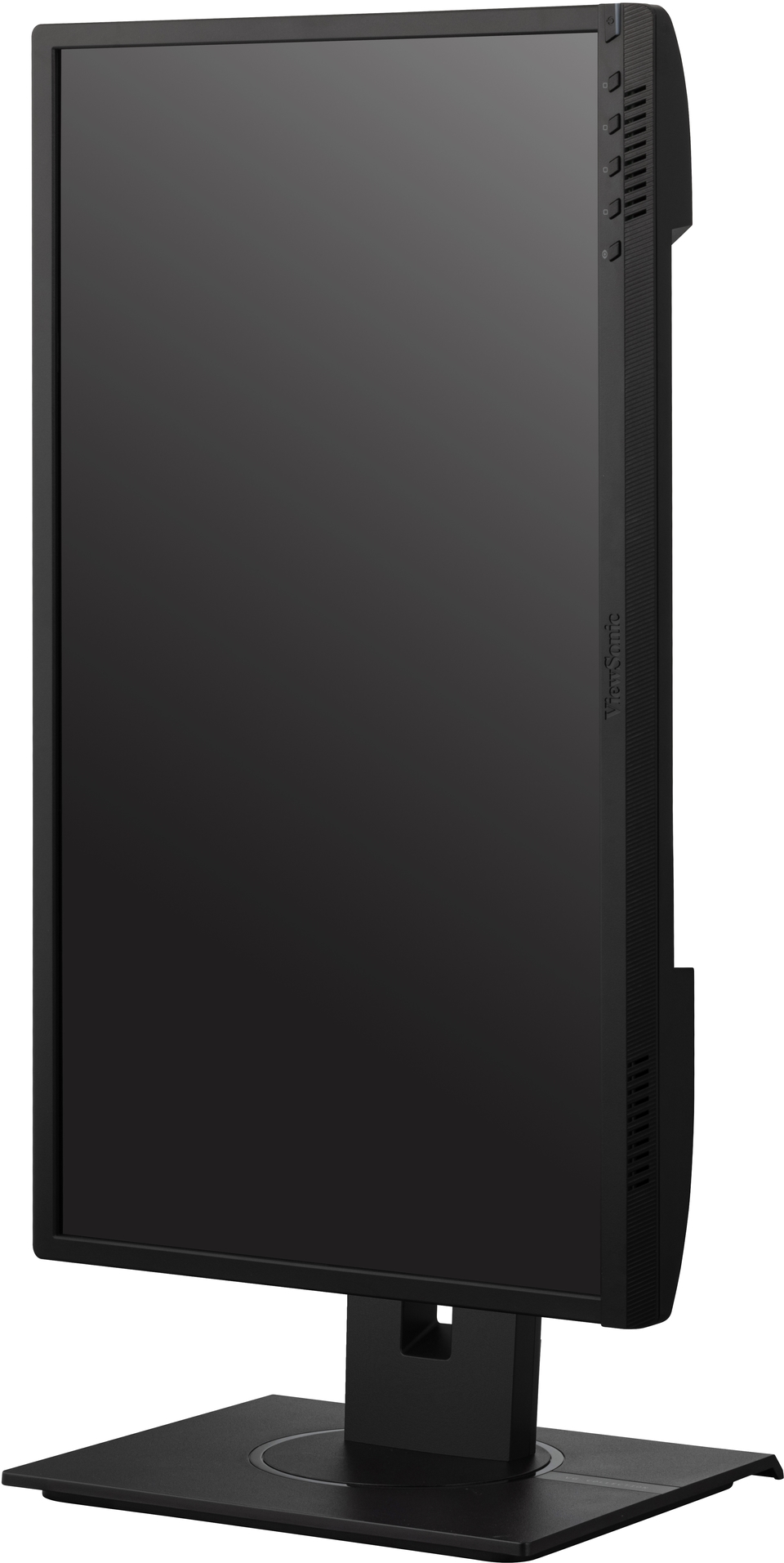

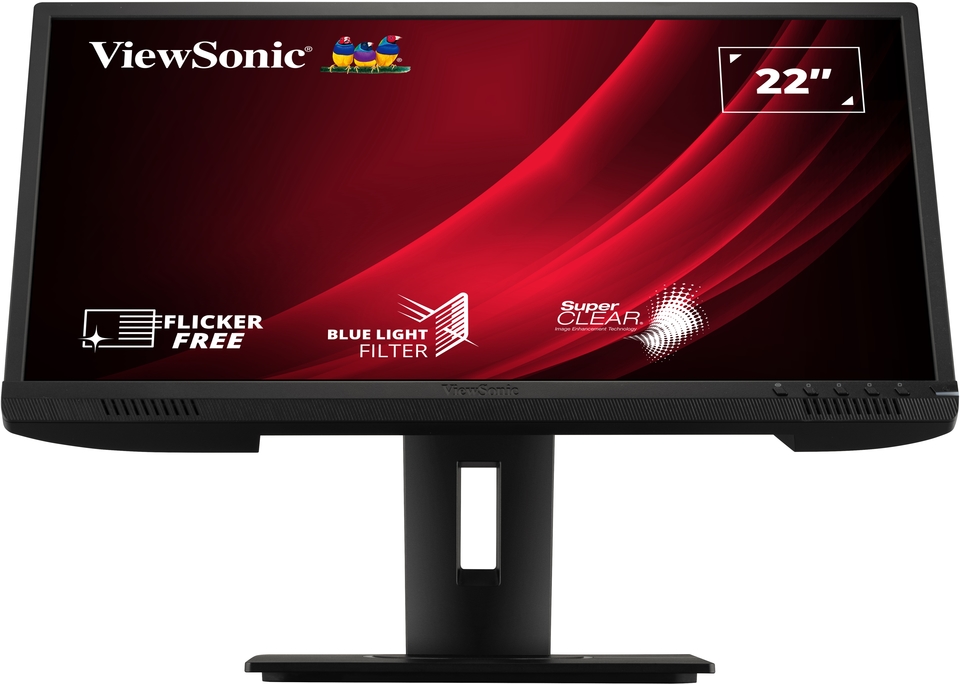

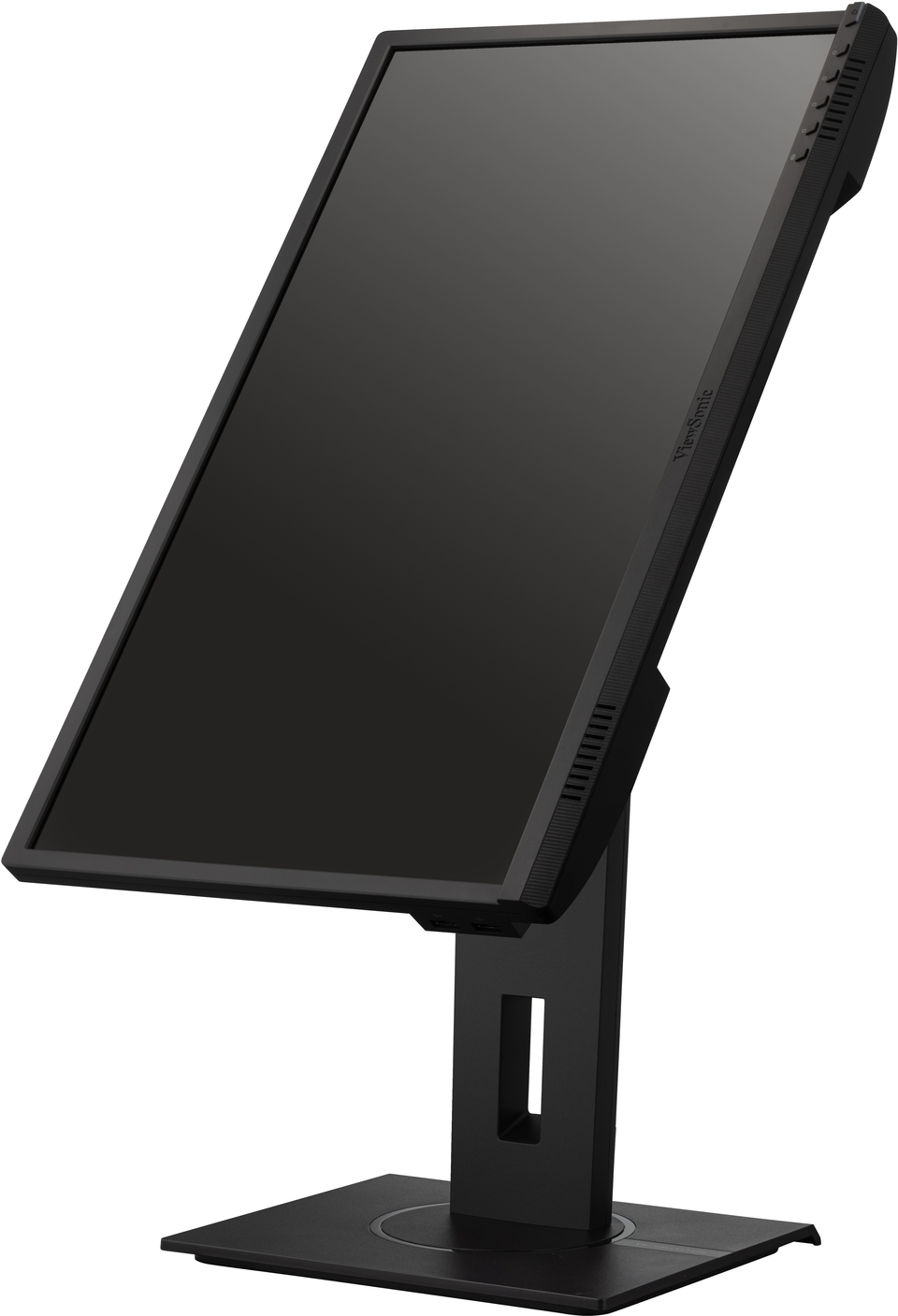

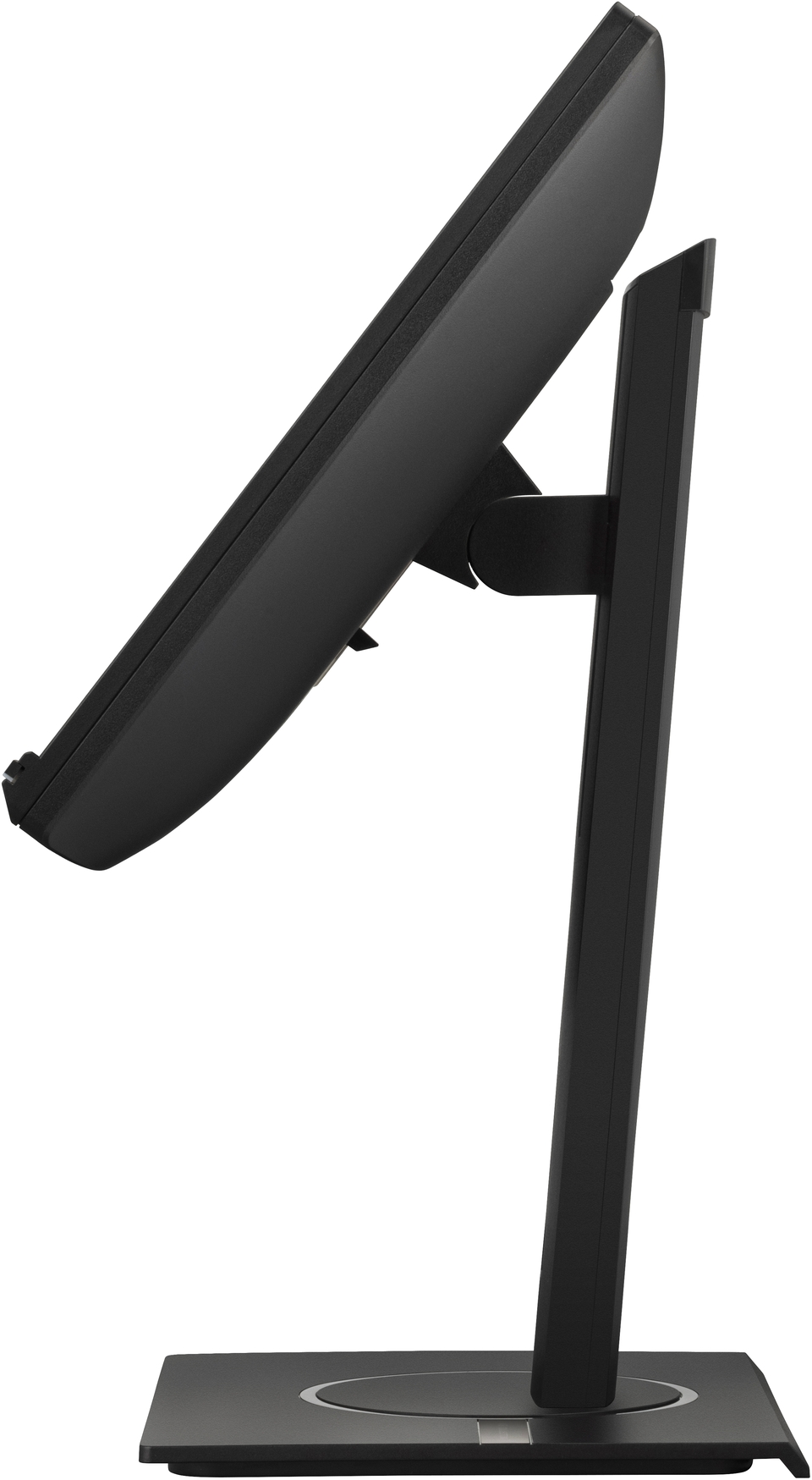

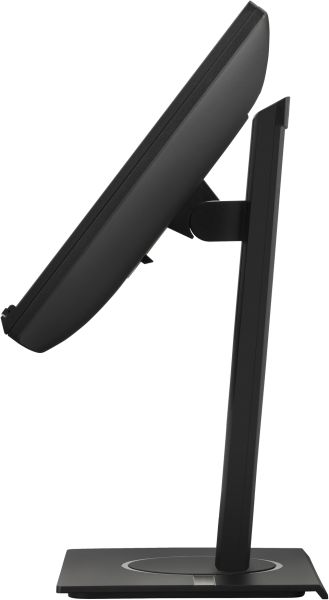

Effortlessly swivel the display up to 120° degrees, tilt up to -5° to 40° degrees, raise the display up to 130mm, and pivot 90° degrees for portrait viewing. The VG2240 offers the full range of convenient flexibility for every task and workflow.

More Convenient Workspace

Smooth Visuals With 100Hz Refresh Rate

With a fast 100Hz screen refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.

100Hz Refresh Rate

Uninterrupted Viewing

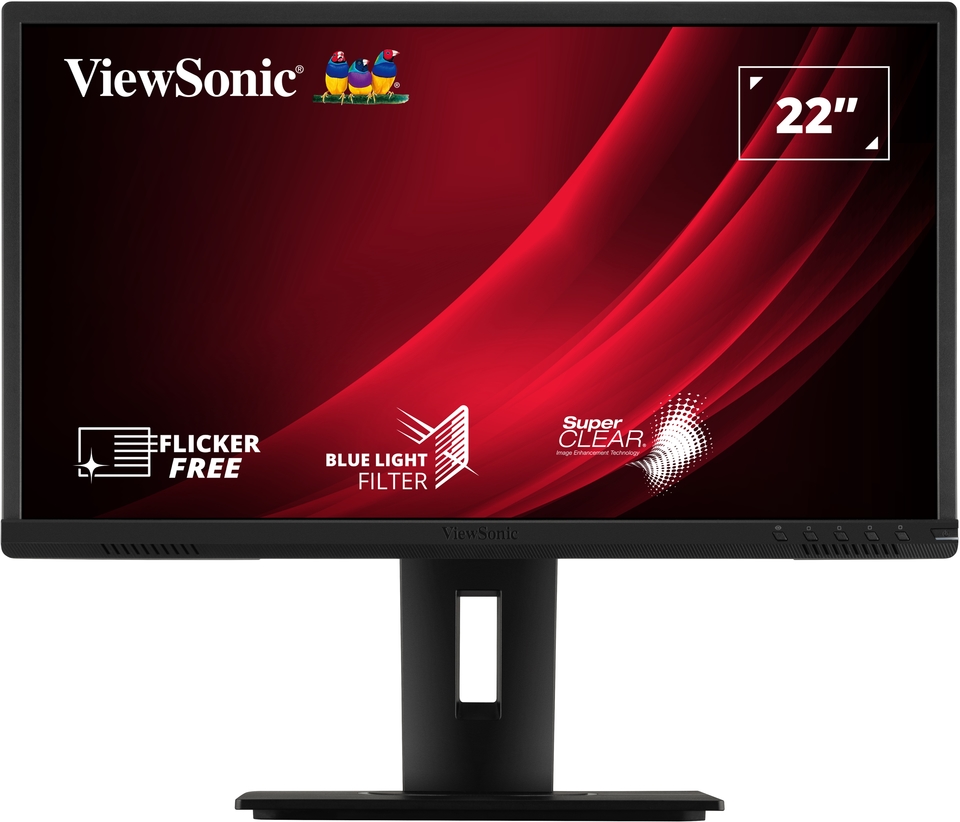

The narrow three-sided bezel gives the monitor a stylish feel and delivers uninterrupted viewing in multi-monitor setups.

Minimalistic Bezel Design

Viewing Clarity from Wide Angles

Enjoy superb performance and better viewing quality from horizontal to vertical angles. With SuperClear® Vertical Alignment panel technology, the monitor remains clear and in good contrast color from 178° all around, whether you are looking at the screen from above, below, the front, or the side.

SuperClear® VA 178°/178°

Clear Audio

Designed with a dual 2W front-firing speaker, the VG2240 delivers a clear sound to provide complete multi-sensory immersion.

Dual Front-Facing Speakers

Inbuilt Multi-tasking and Efficiency Software

Work smart with efficient OSD command and control through vDisplay Manager. Personalize split-screen displays, auto-launch applications, and customize display settings to maximize multi-tasking abilities and overall efficiency.

vDisplay Manager Software

Inbuilt Multi-tasking and Efficiency Software 1

Eye ProTech for Comfort Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

Flicker-Free & Blue Light Filter

Extended Connectivity for External Devices

The VG2240 provides built-in HDMI, DisplayPort, VGA, and USB3.2 ports to easily connect additional devices to further support your workflow.

VGA, DisplayPort, HDMI, USB3.2 (1 up stream/ 4 down stream)

Extended Connectivity for External Devices 1

Effortless Installation in 4 Easy Steps

Instant assembly with no expertise required. Simply open the box, connect the base to the quick release stand, snap the stand into place using the slots, and lift the fully assembled display out of the box within minutes.

Quick Release Stand

Effortless Installation in 4 Easy Steps 1

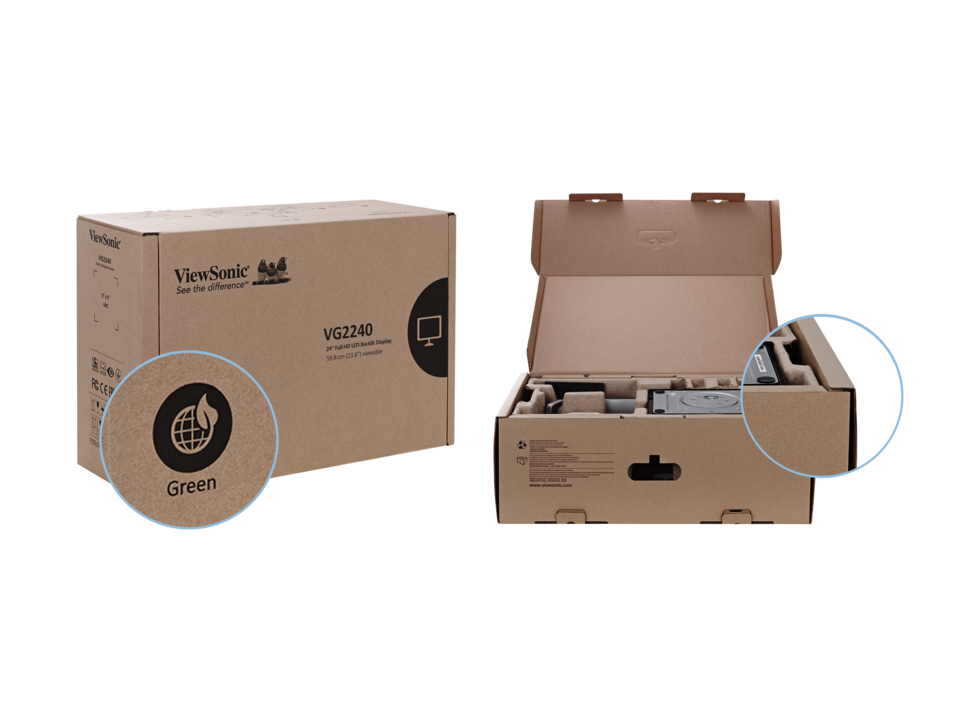

Eco-friendly, biodegradable packaging

The packaging of the VG2240 has been designed with the environment in mind. Paper-based packaging allows for easy disposal through recycling, while hand holes and mono color printing eliminates the use of plastics and pollutants.

Paper-based, Biodegradable Packaging

Minimized Total Cost of Ownership

Designed for modern offices, the VG2240 helps reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns to user experience and screen performance, every feature of this monitor has been carefully designed to meet the demands of modern-day work and reduce the TCO for business owners.

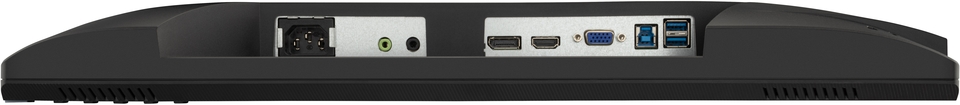

Dimension & I/O Ports

Menu Control Panel
VESA Compatible
(Wall Mount 100 x 100mm)
AC In
Line-in
Headphone
Display Port1.2
HDMI
D-Sub
USB 3.0 Up Stream(Type B)
USB 3.0 Down Stream(Type A)
USB 3.0 Down Stream(Type A)

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 100
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 3.2 Type A Down Stream: 4
USB 3.2 Type B Up Stream: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 12.35W
Eco Mode (optimized): 14.43W
Consumption (typical): 17.18W
Consumption (max): 18.89W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 24 ~ 110KHz, DisplayPort (v1.2): 24 ~ 110KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz, DisplayPort (v1.2): 50 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Height Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 40º
Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 11.5
Net Without Stand (lbs): 6.2
Gross (lbs): 16.8
Weight (metric)
Net (kg): 5.2
Net Without Stand (kg): 2.8
Gross (kg): 7.6
Dimensions (imperial) (wxhxd)
Packaging (in.): 21.9 x 14.9 x 8.3
Physical (in.): 19.7 x 15.23~19.56 x 8.1
Physical Without Stand (in.): 19.7 x 11.6 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 556 x 379 x 210
Physical (mm): 501 x 386.85~496.96 x 206
Physical Without Stand (mm): 501 x 294 x 51
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO
PACKAGE CONTENTS: VG2240 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
