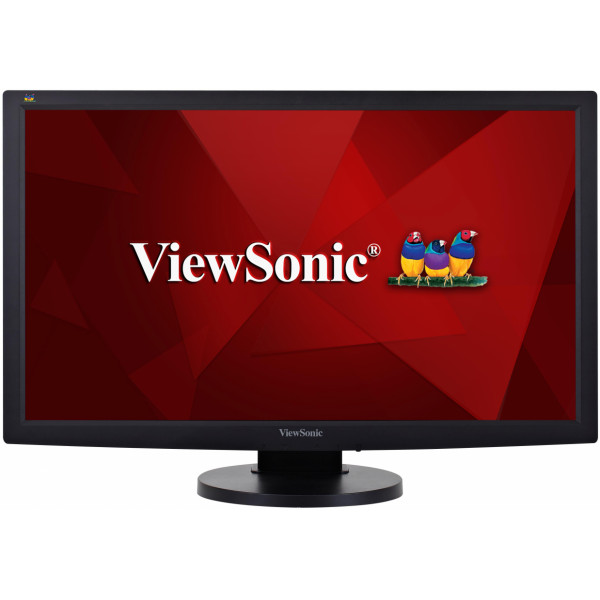

VG2233-LED
22" Ergonomic Business Monitor
- Full HD 1080p resolution
- Flicker-Free and Blue Light Filter
- VGA and DVI inputs
- Eco-mode
- VESA mountable
OVERVIEW
The ViewSonic® VG2233-LED is a 21.5" display ideal for demanding business professionals. With a native 1920x1080 resolution, the VG2233-LED delivers vibrant images and crisp text. Users will also find comfort in the fully ergonomic height adjust, swivel, and tilt features. Equipped with a VESA-mountable design, the display can be mounted on a wall or any VESA-compliant monitor stand. The VG2233-LED also saves up to 50% in energy usage with its efficient LED backlight. With ViewSonic’s industry-best pixel performance guarantee, and a 3-year warranty, the VG2233-LED provides users with peace of mind.Ergonomic design for comfortable working environments
Users can reduce eyestrain and physical fatigue by adjusting the monitor to create their own most comfortable work environment. The VG2233-LED is designed to maximize comfort and productivity with advanced ergonomic technology. This fully ergonomic design offers over 10cm of height adjustment, 340˚ swivel, and a tilt angle from -5˚ to 25˚.
![]() | Full HD resolution for superb pixel performanceExperience the most amazing clarity and detail for any of your computer applications, Microsoft Office Suite operations, or for enjoying the latest multimedia entertainment. The VG2233-LED features full HD 1920x1080 resolution to ensure excellent pixel-by-pixel image performance. Additionally, this 16:9 large screen allows the user to operate multiple windows side by side, thus facilitating a more efficient work environment. |
![]() | MEGA Dynamic Contrast Ratio delivers sharp and crisp imagesThe superior dynamic contrast ratio of 20,000,000:1 delivers a broader range of grayscale, with darker blacks and brighter whites, to ensure all images displayed are rich and detailed. An extremely fast 5ms response time results in crisp and clear video performance. Experience digital broadcast-quality, full-motion video with razor-sharp images that never blur. |
![]() | Eco Mode saves energy and lowers total cost of ownershipViewSonic’s proprietary Eco Mode function is built into all LED displays to provide setting options to “Optimize” (75%) and “Conserve” (50%). Both modes reduce display brightness and conserve up to 40% more energy. Eco Mode adjusts brightness and improves visibility, especially in low ambient light, to reduce eye fatigue and prolong display lamp lifetime. With Eco Mode, replacement expenditures are reduced while practicing eco-friendliness. |

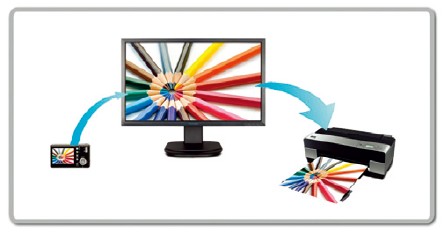

![]() | sRGB delivers the most accurate color performanceAccurate and consistent color performance is essential for professionals in graphic design, video editing, and other multimedia related environments. With built-in sRGB color correction technology, the VG2233-LED reproduces images in their original and authentic colors. |

![]() | ![]() sRGB color correction technology delivers the most accurate color performance availableViewSonic LCD monitors come standard with embedded sRGB color correction technology which reproduces a 100 % sRGB rich color and matches original input sources without decreasing or compromising color quality. sRGB technology ensures all displayed images/videos are identical to their original sources and are displayed in rich color for diversified multimedia content. |
![]() | ViewSplit for multi-taskingViewsonic's exclusive desktop software that allows users to divide or split their screen into multiple sections to increase efficiency and boost productivity.* available to download from ViewSonic website |
SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 170º horizontal, 160º vertical
Backlight Life (Hours): 40000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- PowerEco Mode (Conserve): 15W
Eco Mode (optimized): 18W
Consumption (typical): 22W
Consumption (max): 26W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz - Video InputDigital Sync: TMDS - DVI-D
Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomicsHeight Adjust (mm): 100
Swivel: 340º
Tilt (Forward/Back): -5º / 25º
Pivot (Right/Left): 90º / 0º - Weight (imperial)Net (lbs): 10.3
Net Without Stand (lbs): 6.8
Gross (lbs): 13.3 - Weight (metric) Net (kg): 4.7
Net Without Stand (kg): 3.1
Gross (kg): 6 - Dimensions (imperial) (wxhxd)Packaging (in.): 24.6 x 15.5 x 2
Physical (in.): 19.9 x 14.41~18.34 x 8
Physical Without Stand (in.): 19.9 x 12.3 x 2 - Dimensions (metric) (wxhxd)Packaging (mm): 624 x 393 x 51
Physical (mm): 506 x 365.9~465.9 x 204
Physical Without Stand (mm): 506 x 312 x 51 - GeneralRegulations: CEC, REACH, WEEE, VCCI
PACKAGE CONTENTS: VG2233-LED x1, 3-pin Plug (IEC C13 / CEE22) x1, DVI Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
