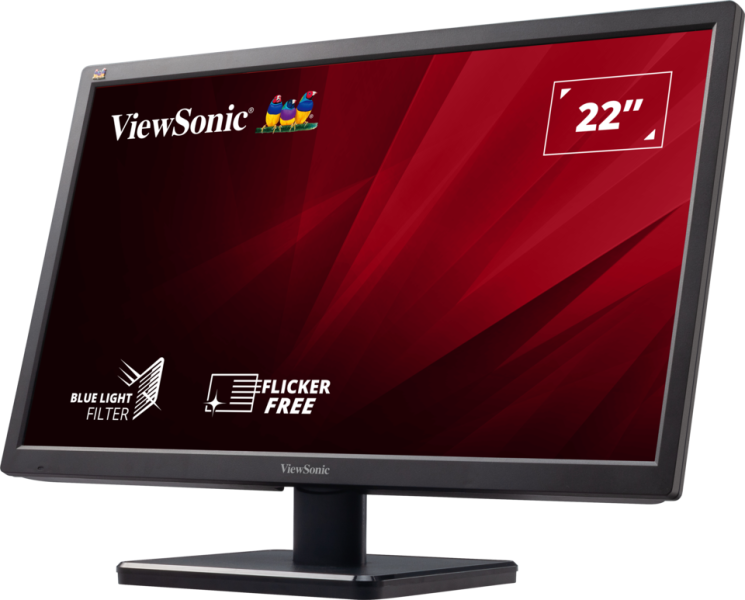

VA2223-H
22” 1080p Cost-Effective Monitor with HDMI and VGA Input
- HDMI and VGA input
- Superior color rendering options
- Comfortable viewing
- Low energy consumption
- VESA mountable
OVERVIEW

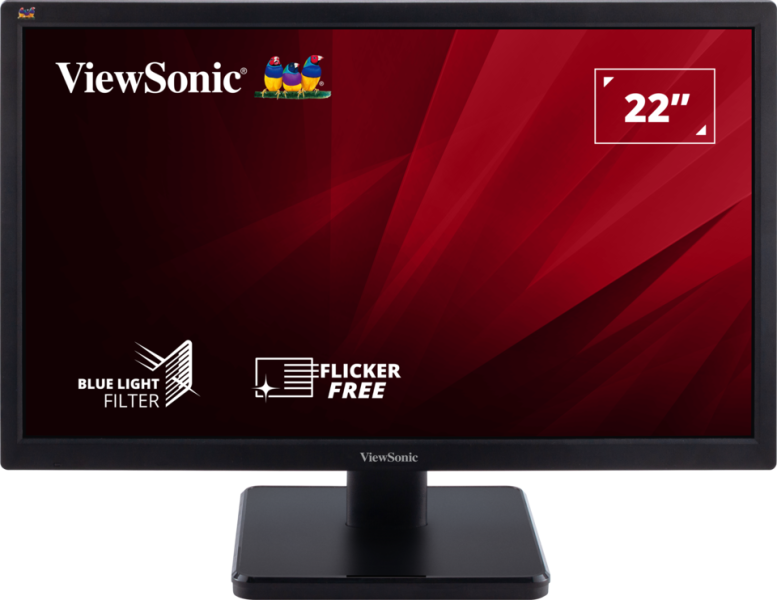

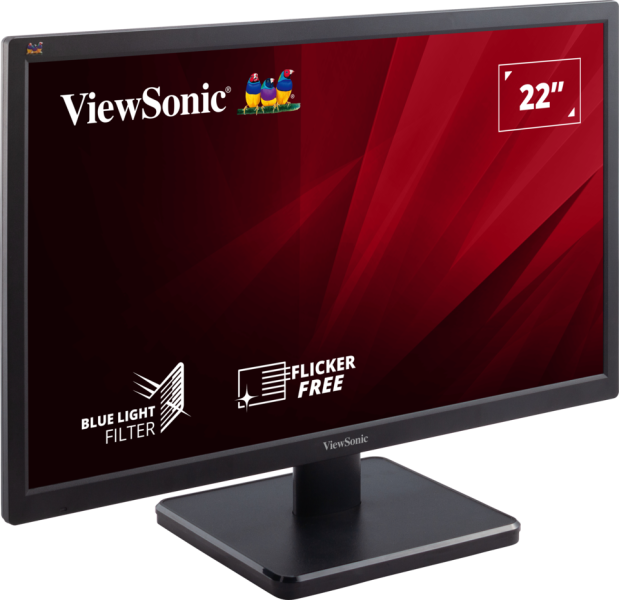

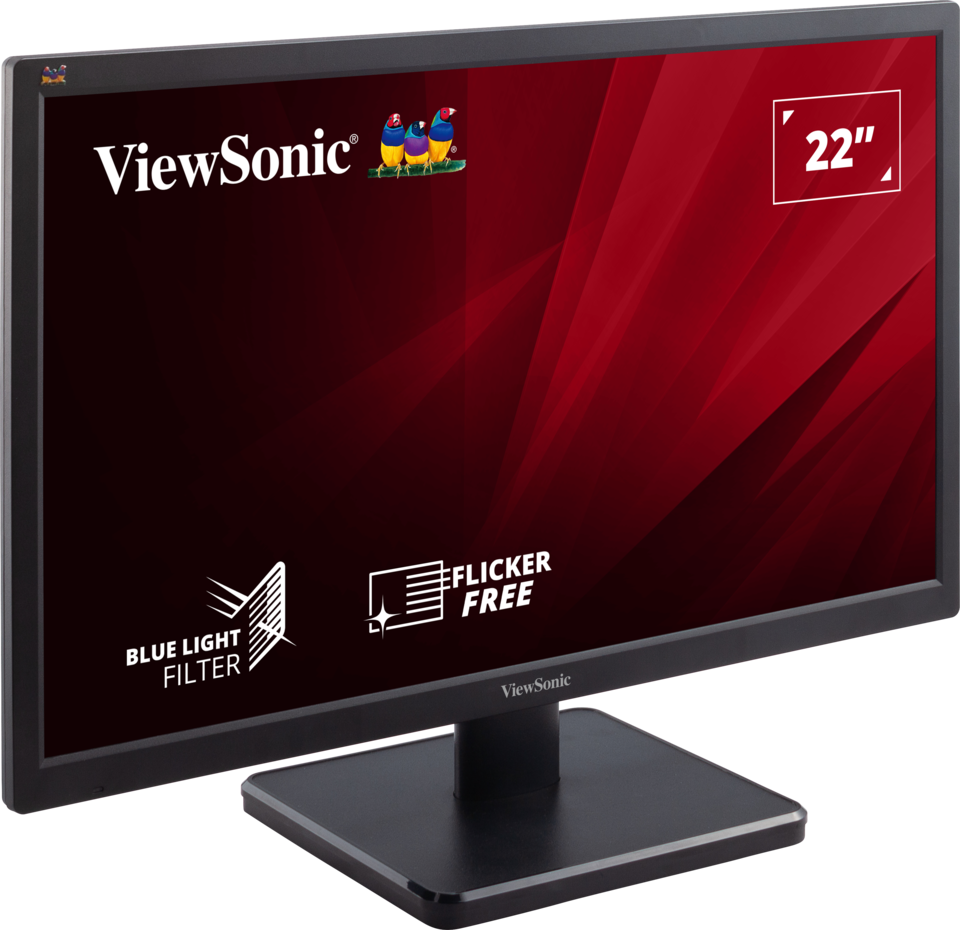

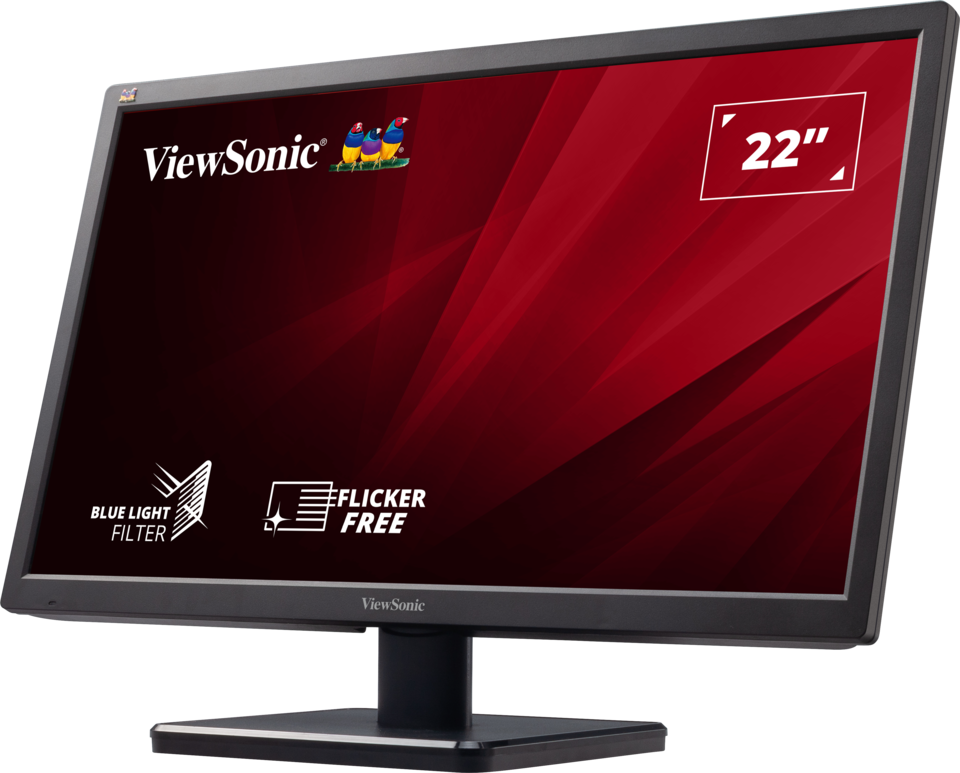

The ViewSonic VA2223-H is a cost-effective 22” Full HD monitor with HDMI and VGA input that is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more detailed content. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. A VESA-compatible mount adapts easily to multi-monitor or wall-mount set ups.Superior Color Rendering Options
ViewSonic’s unique ViewMode feature offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.
ViewMode: Game / Movie / Web / Text / Mono / Mac
Comfortable Viewing
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
Flicker-Free & Blue Light Filter Technology
Low Energy Consumption
The energy-saving Eco-mode takes energy efficiency into consideration while also offering stunning screen performance.
Eco-Mode
VESA Mountable
Mount the monitor by using its VESA-compatible mount.
75 mm x 75 mm

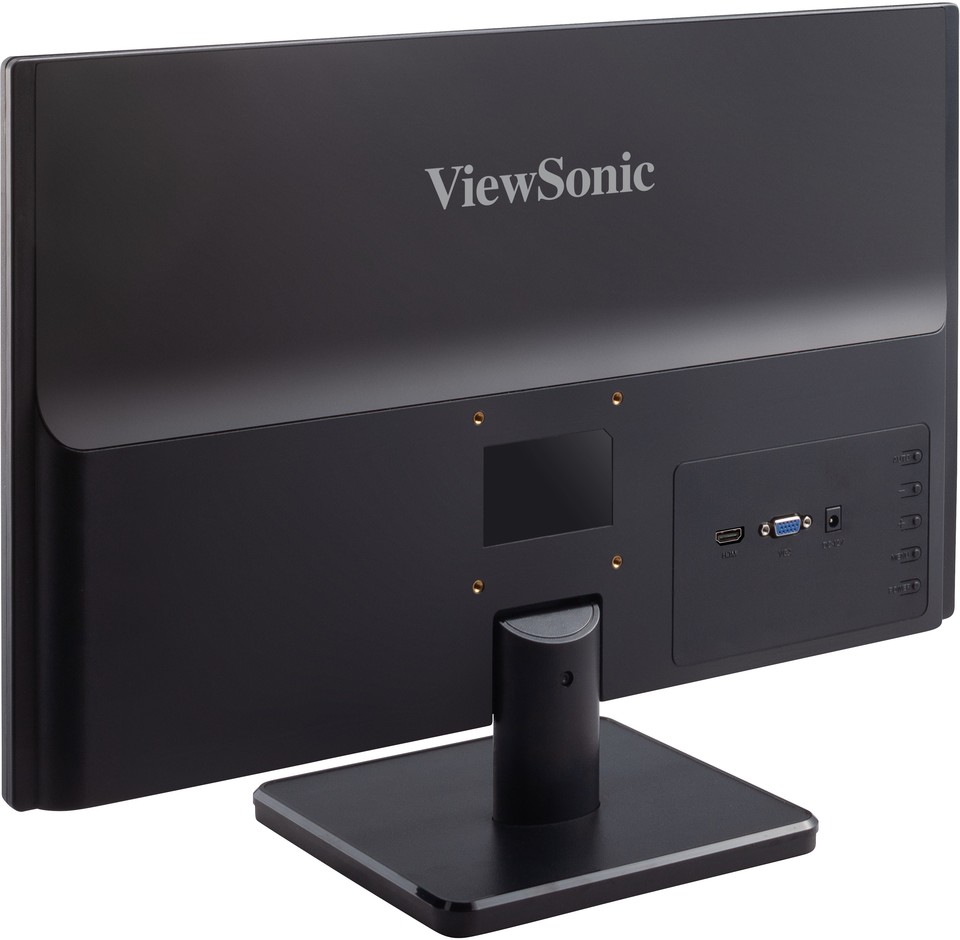

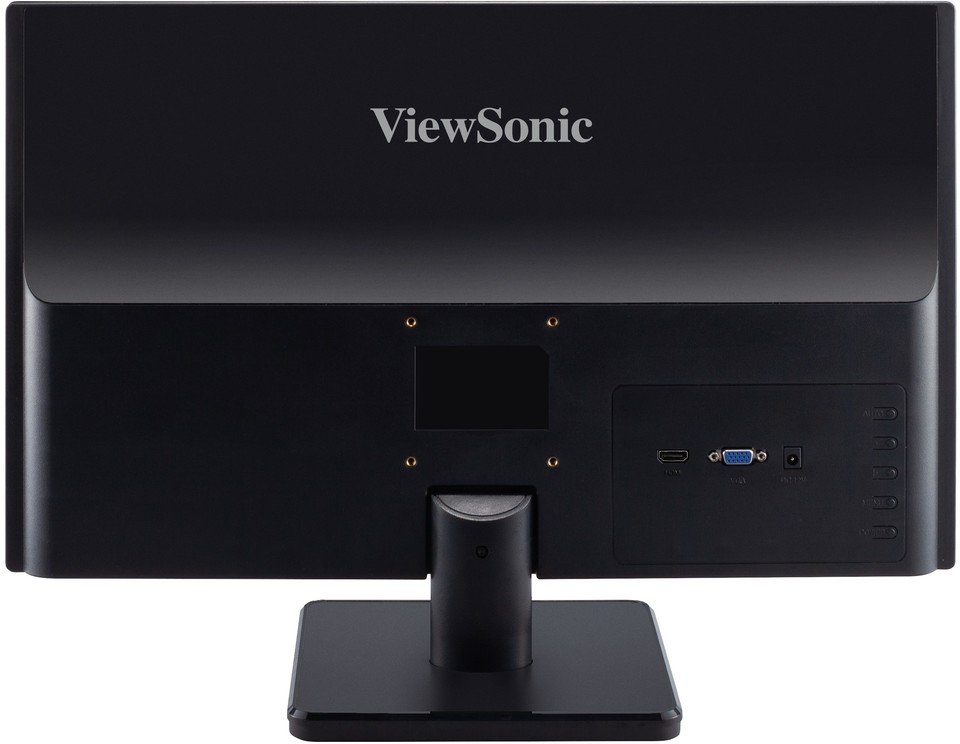

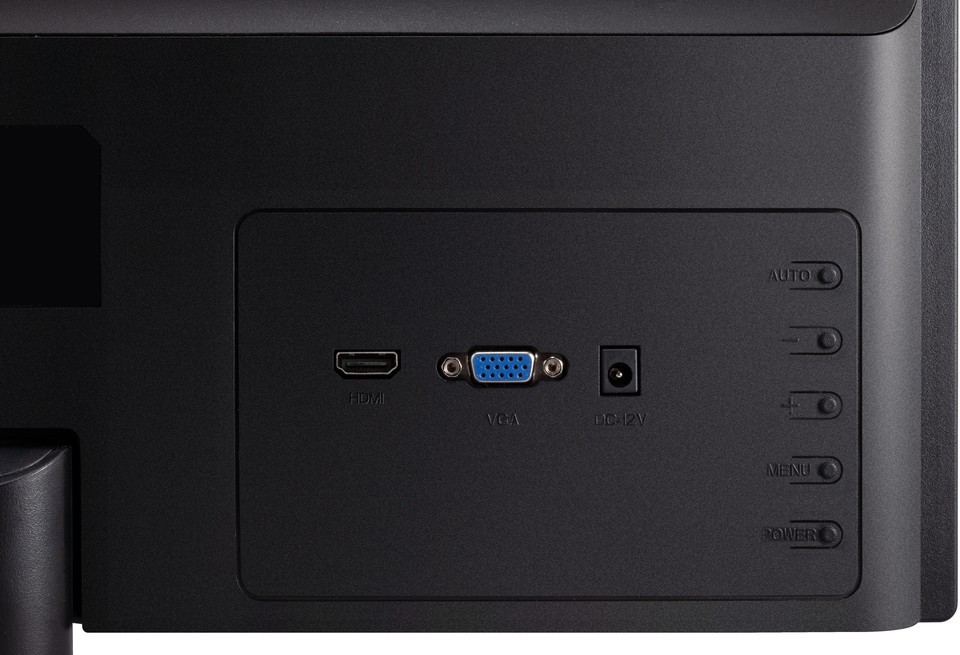

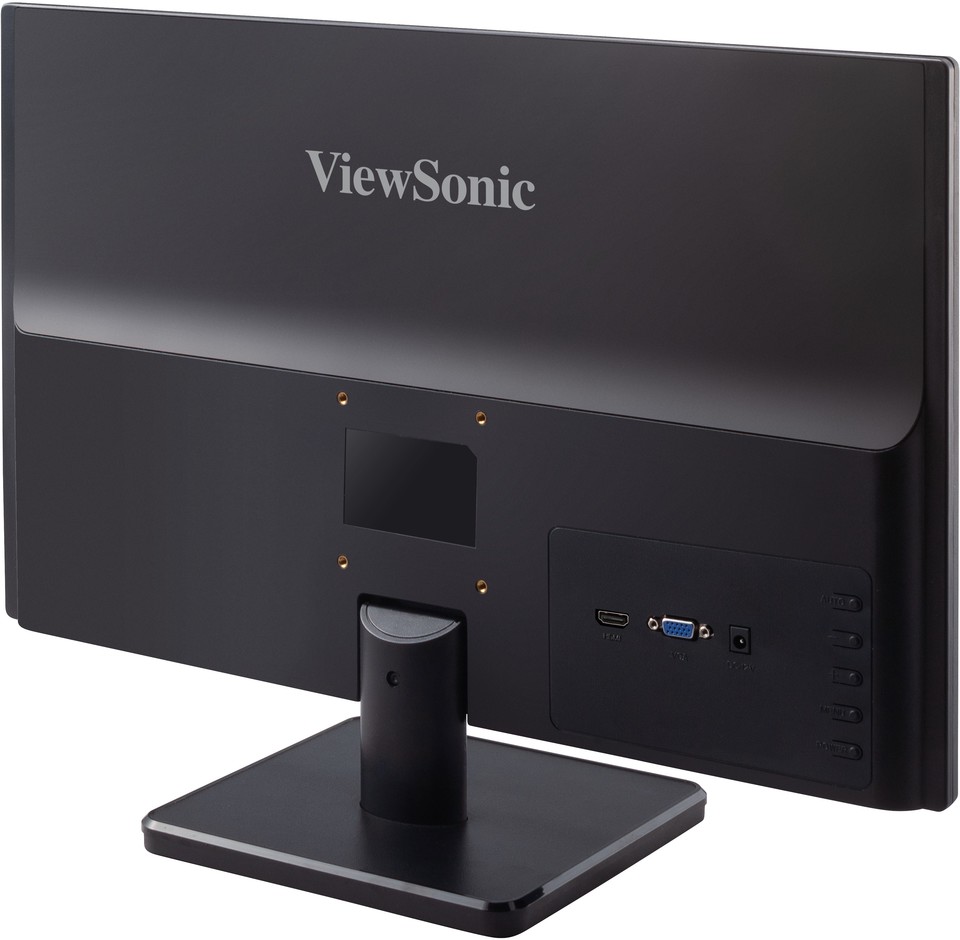

Dimensions & I/O Ports
- VESA Compatible
(Wall Mount 75x75mm) - Menu Control Panel
- AC In
- VGA
- HDMI
SPECIFICATIONS
- DisplayDisplay Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: TN Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 1920x1080 - ConnectorVGA: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 18W
Eco Mode (optimized): 20W
Consumption (typical): 22W
Consumption (max): 24W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: External Power Adaptor - ControlsPhysical Controls: Auto, -, +, Menu, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 75 x 75 mm
- Input SignalFrequency Horizontal: 24 ~ 82KHz
Frequency Vertical: 50 ~ 75Hz - Video InputDigital Sync: TMDS - HDMI (v1.4)

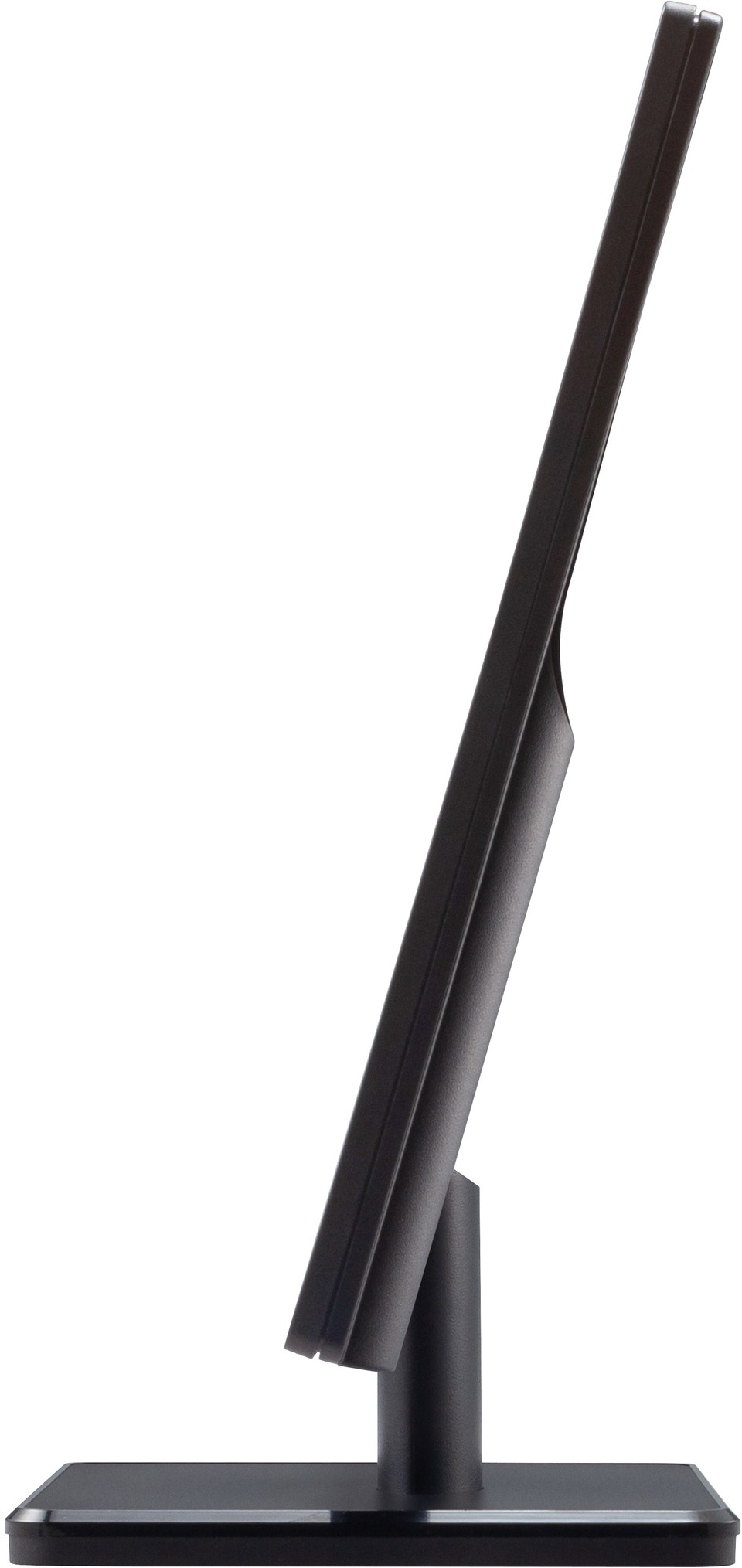

Analog Sync: Separate - RGB Analog - ErgonomicsTilt (Forward/Back): -4º / 14º
- Weight (imperial)Net (lbs): 4.6
Net Without Stand (lbs): 4
Gross (lbs): 6.6 - Weight (metric) Net (kg): 2.1
Net Without Stand (kg): 1.8
Gross (kg): 3 - Dimensions (imperial) (wxhxd)Packaging (in.): 22.1 x 14.4 x 4.3
Physical (in.): 20.1 x 14.6 x 7.3
Physical Without Stand (in.): 20.1 x 12.2 x 1 - Dimensions (metric) (wxhxd)Packaging (mm): 562 x 365 x 110
Physical (mm): 510 x 370 x 185
Physical Without Stand (mm): 510 x 310 x 25 - GeneralRegulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, PSB
PACKAGE CONTENTS: VA2223-H x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1, Power plug x1 or 2 (by country)
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
