OVERVIEW

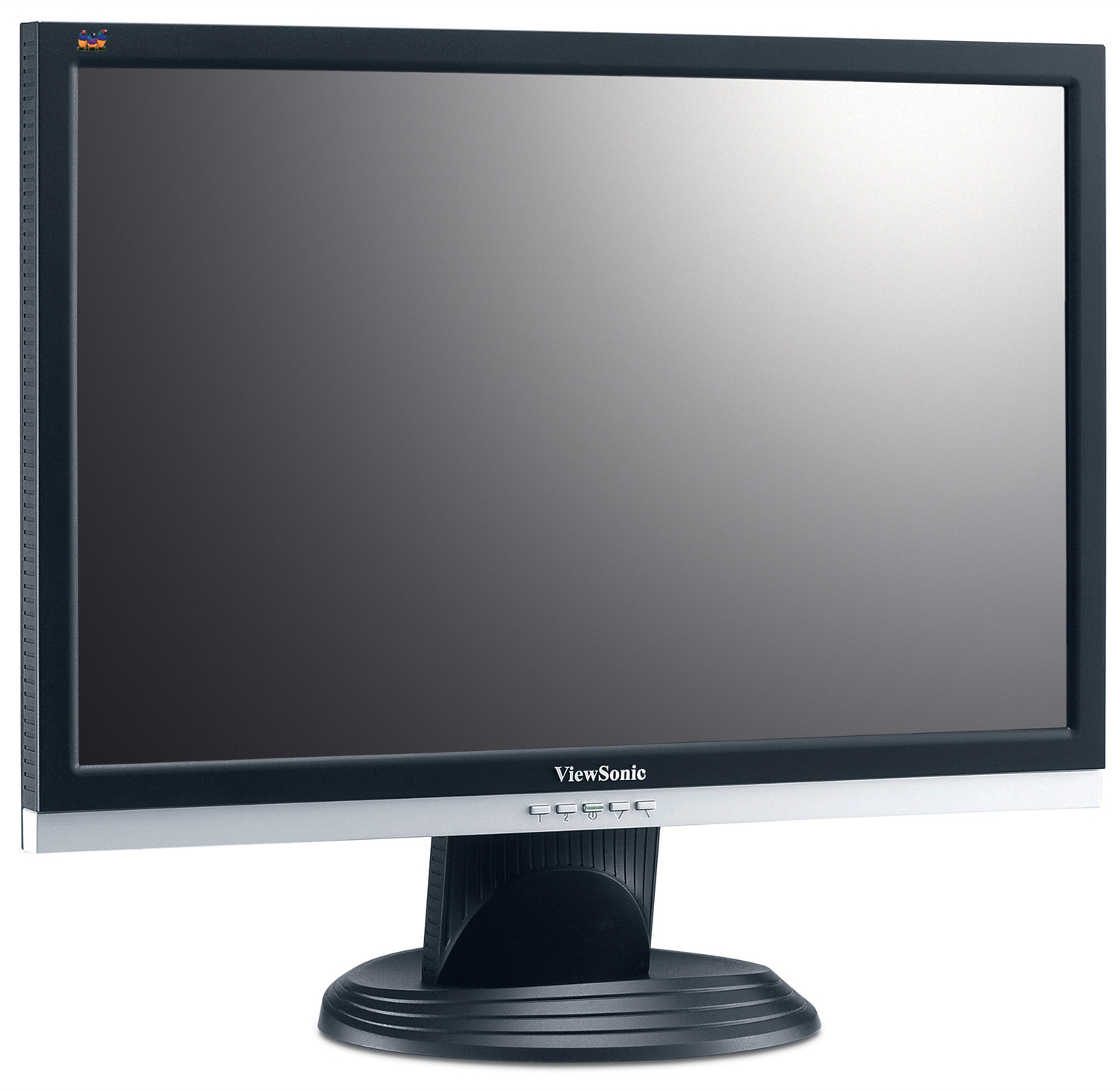

ViewSonic's 56 cm / 22" VA2216w LCD delivers reliable widescreen performance at a budget-friendly price. Boasting a dynamic contrast ratio of 2000:1, a high brightness level of 300cd/m² and fast video response time of 5ms, this large screen monitor displays sharp text and crystal-clear graphics with vivid colours. The native 16:10 aspect ratio lets you be more productive while working in multiple applications or viewing two documents side-by-side. The new eye-catching slim bezel design saves precious desktop real estate and affords every room an extra touch of style. The VA2216w is the perfect choice for education and government users, small and home office applications and those looking for a high-quality, good price/performance ratio widescreen LCD monitor.
Affordable, widescreen performance
It's not just another widescreen LCD. It's a ViewSonic.
REVIEWS
“Note 2,65”
“Note 2,65”
“Note 2,65”
“Note 2,65”
“Note 2,65”
“Note 2,65”
SPECIFICATIONS
- COLORSBlack
- LCDType: 58 cm / 22" Wide TN colour TFT active matrix WSXGA+ LCD
Contrast Ratio: 1000:1 (typ.), 2000:1 (DCR, typ.)
Viewing Angles: 170° horizontal, 160° vertical (at 10:1)
175° horizontal, 170° vertical (at 5:1)
Brightness: 300cd/m²
Display Area: 47.4cm horizontal x 29.6cm vertical; 55.9cm diagonal
Optimum Resolution: 1680 x 1050@60Hz
Response Time: 5ms (off-on-off) (typ.)
Light Source: Long life, 40000 (min.)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.282mm
Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock: 135MHz - COMPATIBILITYPC: VGA up to 1680 x 1050 non-interlaced
Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
- DIMENSIONSPhysical With Stand: 510 x 432 x 225
Physical Without Stand: 510 x 351 x 61
W x H x D mm: 560 x 474 x 124 - REGULATIONSTCO’03, GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R, Hygienic (20 copies), UL, cUL, FCC-B (ICES), ICES-003B, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, MPR II, TUV-S/IRAM/UL-AR S Mark, CCC, VCCI, WEEE, RoHS
- PACKAGE CONTENTS
LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Power: 3-pin AC plug (CEE22) - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumption: 38 watt (typ.), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C–40°C
Humidity: 20%–90% (non-condensation) - WEIGHTNet With Stand: 5.1kg
Gross: 6.6kg - VIDEO INPUTFrequency: Fh: 24–82kHz, Fv: 50–75 Hz
Sync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm) - POWER MANAGEMENTTCO’03 and ENERGY STAR standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, Up 20°
