OVERVIEW
The ViewSonic VA2046a-LED is a 20” widescreen monitor with an LED backlight and glossy, thin-bezel design ideal for use in the home or at the office. With 1600x900 resolution and a 10M:1 dynamic contrast ratio, the VA2046a-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. VGA inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With an efficient LED backlight and energy-saving Eco mode, the VA2046a-LED is an environmentally friendly display choice. In addition, a 2-year warranty, along with one of the industry’s best pixel performance policies provides great value for the stylish, high-performance VA2046a-LED display. High Resolution for Superior Pixel PerformanceExperience stunning clarity and detail with high-definition office, graphic design, video production, gaming and multimedia applications on ViewSonic’s VA2046a-LED monitor. It features 1600x900 resolution to ensure excellent pixel-by-pixel image performance, while its 10,000,000:1 Mega Dynamic Contrast Ratio guarantees accurate image reproduction with rich, vibrant visual effects. | |
| | |
![]() ![]() | Mega Dynamic Contrast Ratio for Sharp, Crisp ImagesA superior dynamic contrast ratio of 10,000,000:1 better defines the relationship between the darkest and brightest colors, ensuring all displayed images are rich and detailed. Combined with an extremely fast 5ms response time, every motion is naturally and accurately reproduced without any blurs. |
| | |

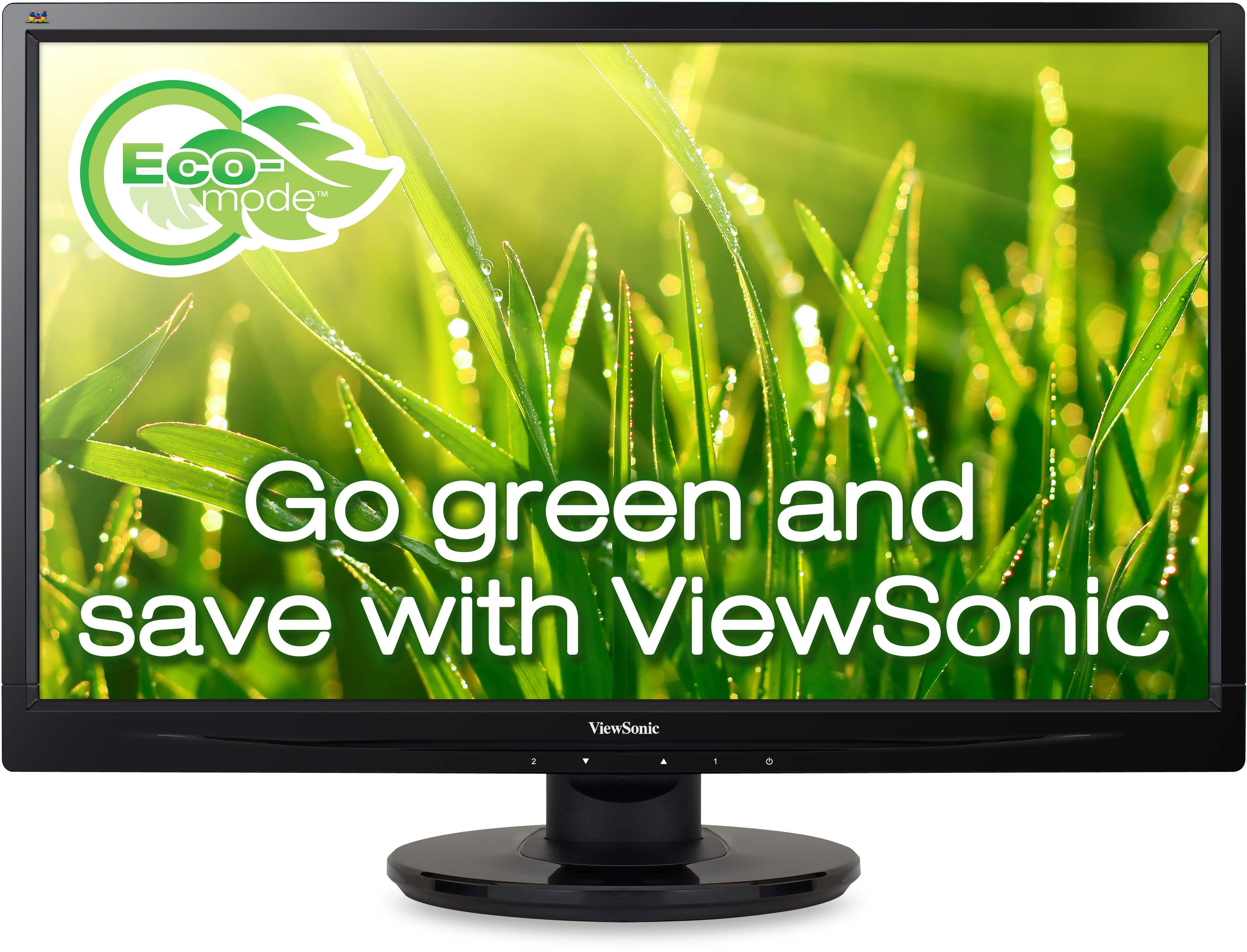

![]() ![]() ![]() ![]() | Energy-Saving Eco-ModeViewSonic’s proprietary Eco-mode function gives you the choice to optimize (75%) or conserve (50%) energy, thus reducing display brightness and conserving energy by up to 50%. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life. |
| | |
|
| Windows® 8 certified complianceWindows® 8 Certified, the VA2046a-LED provides the most updated Windows® 8 experience without any compatibility issues. Experience the all-new Windows 8 operating system with ViewSonic's VA2046a-LED display |
| | |
|

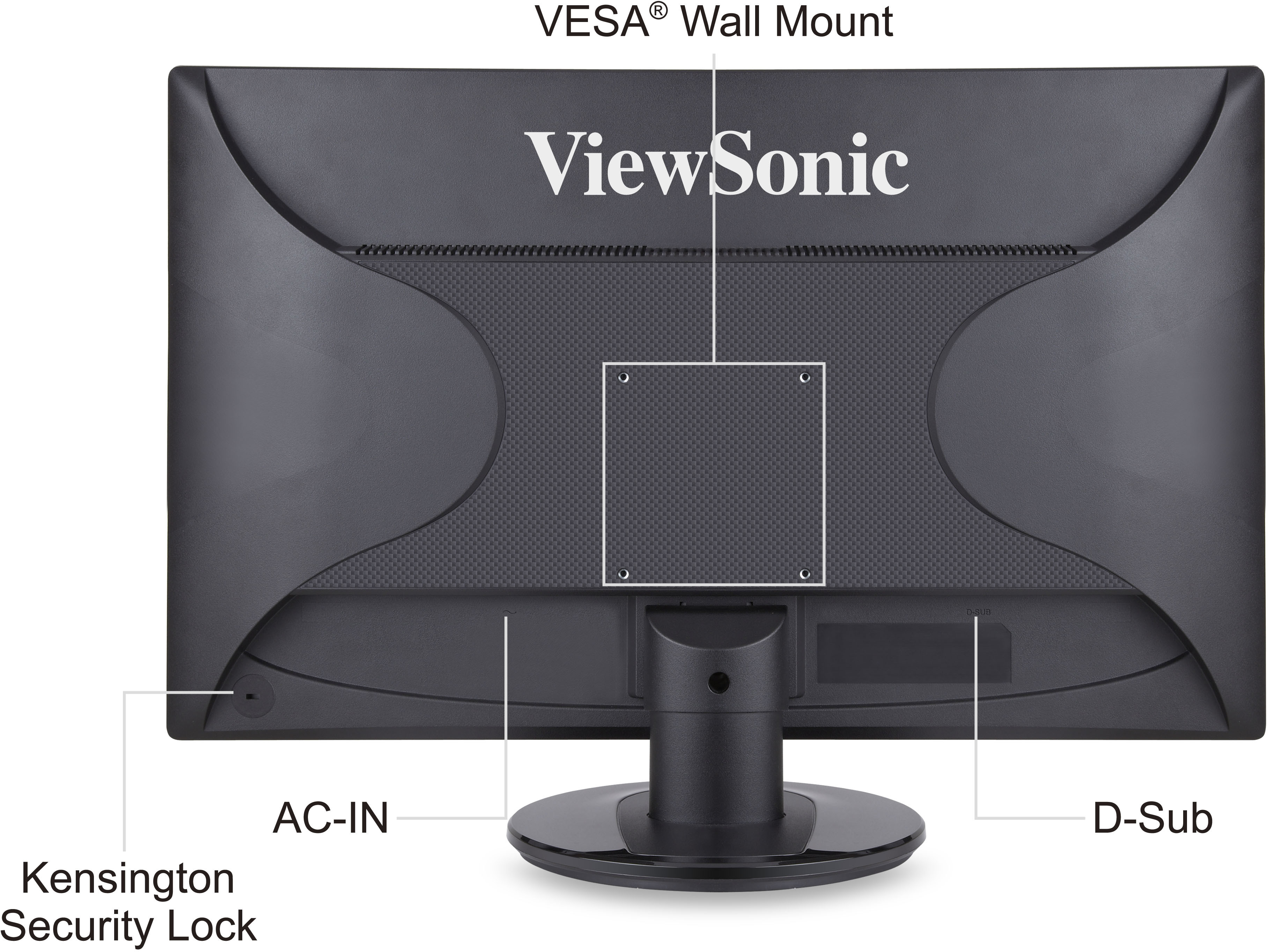

| VESA Mount and Kensington Security Lock CompliantDesigned for use in various settings, the VA2046a-LED’s robust design makes it safe and secure wherever it is installed. That’s because it comes with a Kensington security lock slot and is VESA wall mount compliant – making it the perfect monitor for all office and public settings. |
SPECIFICATIONS
- LCDContrast Ratio: 600:1
Viewing Angles: 90° / 65°
Brightness: 200cd/m²
Display Area: 20” wide (19.5” viewable)
Optimum Resolution: 1600 x 900
Response Time: 5ms
Panel Surface: Anti-glare Type, 3H Hardness
Dynamic Contrast Ratio: 10,000,000:1
Backlight: White-light LED
Backlight Life: 40,000hr (min.) - COMPATIBILITYPC: VGA up to 1600 x 900 Non-interlaced
Mac®: MAC up to 1160 x 900 - DIMENSIONSPhysical With Stand: 478.2 x 360.2 x 197.6 (mm)
18.8" x 14.2" x 7.8"(inch)
Physical Without Stand: 478.2 x 301.8 x 49.0 (mm)
18.8" x 11.9" x 1.9"(inch)
Packaging: 530 x 395 x 116(mm)
20.9" x15.6" x 4.57"(inch)
- REGULATIONSCB, WEEE, RoHS, Vista Premium, Windows 8 , Windows 7, UL, cUL, FCC-B, TUV-S, NOM, CE, GOST-R+Hygienic, SASO, Ukraine, CCC, CEL, BSMI, PSB, C-TICK
- PACKAGE CONTENTSPower Cable *1, D-Sub*1, Quick Start Guide *1, ViewSonic CD Wizard *1
- INPUTDigital: N/A
Analogue: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24 ~ 82kHz; Fv: 50 ~ 75Hz - CONNECTORDigital: N/A
Power: Internal Power Board , 3-pin Plug (CEE22) x 1
USB: N/A
Analog: RGB Analog - POWERVoltage: AC 100 - 240V (Universal); 50 / 60Hz
Consumption: 18W
Eco Mode: Yes
Optimize: 14W
Conserve: 12W - OPERATING CONDITIONSTemperature: 32°F to 104°F (0°C to 40°C)
Humidity: 5% to 90% (No Condensation) - VESA® MOUNT100mm * 100mm
- ERGONOMICSTilt: -5° ~ 18°
Swivel: N/A
Rotation: N/A - AUDIOSpeakers: N/A
- WEIGHTGross: 3.97Kg (8.75lbs)
Net With Stand: 3.0Kg (6.6lbs)
Net Without Stand: 2.6Kg (5.73lbs)
