Enhanced home entertainment.

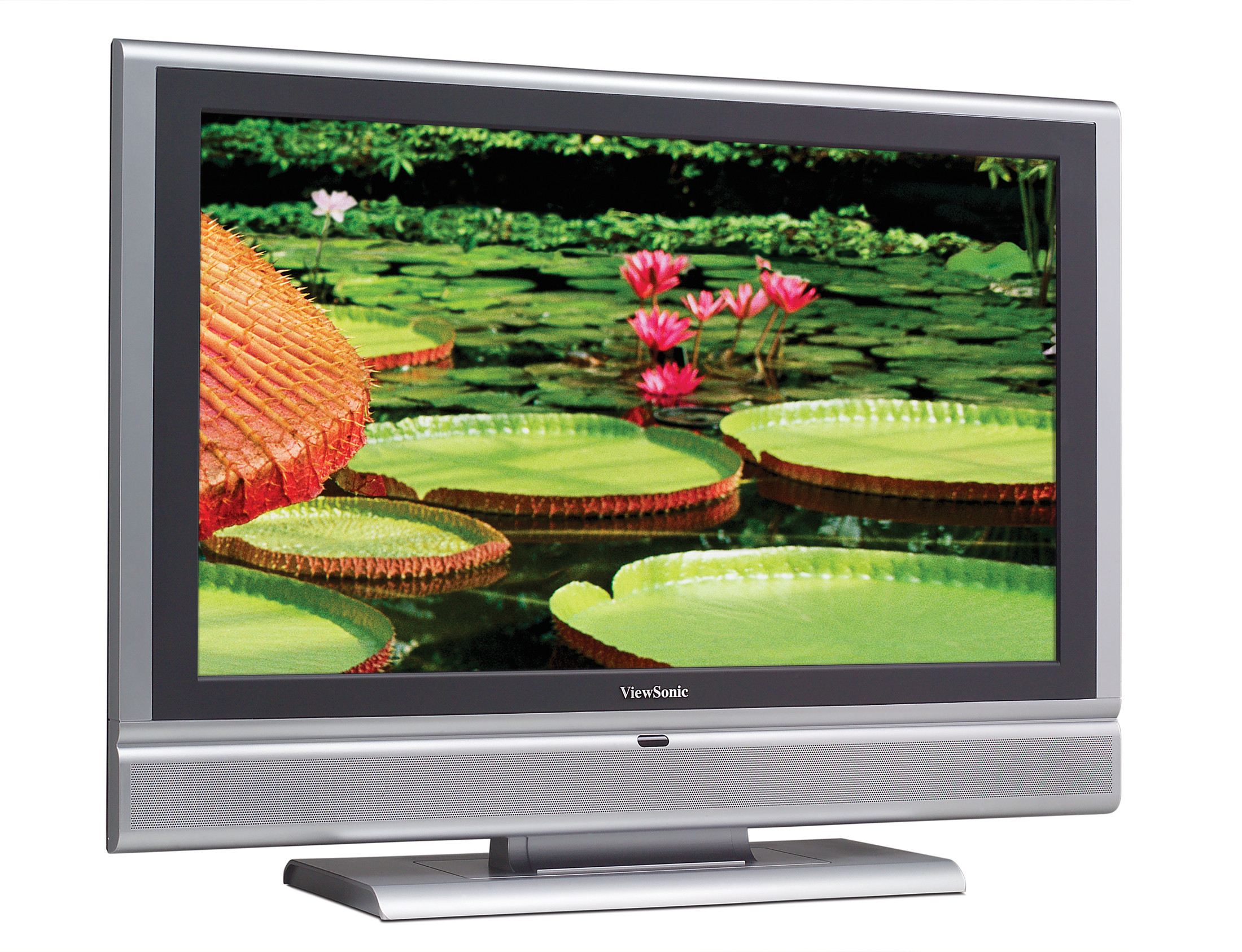

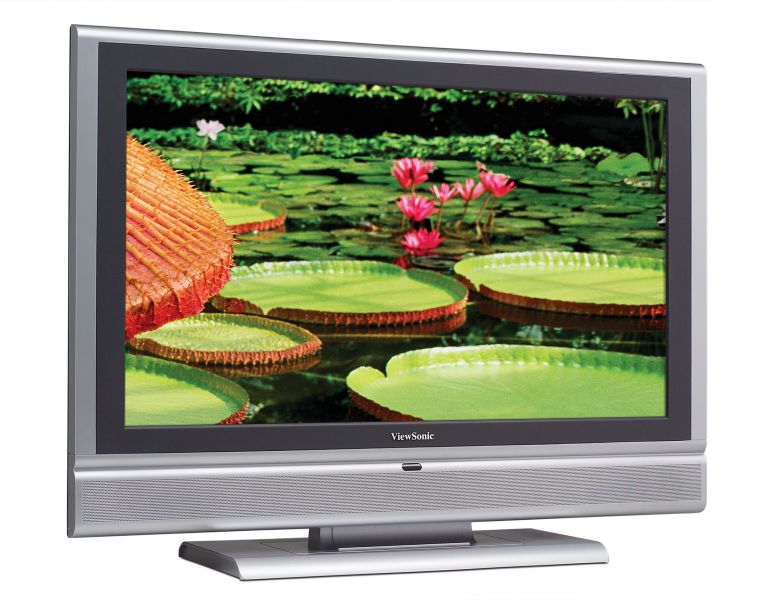

ViewSonic’s NextVision N3200w 32" HD LCD TV features advanced image enhancement technologies that deliver stunning television and video entertainment. INTENSE COLOUR, HIGH CONTRAST IMAGES, 1280 x 768 resolution, and powerful 12-watt stereo speakers with virtual surround sound capability immerse you in the action. Integrated connections give you versatile high-definition TV compatibility regardless of your HD signal source. BRINGS ALL YOUR MULTIMEDIA COMPONENTS TOGETHER, and there's even a digital media reader for viewing your favorite digital photos. The N3200w offers DVI/HDCP (high-definition content protection) capability ensuring long-term compatibility with evolving technology. The stylish flat panel with distinctive design complements your décor and lifestyle.
SPECIFICATIONS
- LCDType: 81cm / 32" wide colour, 1280 x 768 LCD TV
Contrast Ratio: 600:1 (typ)
Viewing Angles: 170° horizontal, 170° vertical
Glass Surface: Anti-Glare, Anti-Reflection
Display Area: 687mm x 412mm
Response Time: 18ms
Aspect Ratio: 15:9
Brightness: 550 cd/m2 (typ) - COMPATIBILITYPC: Compatible from VGA up to 1280 x 1024, 1280 x 768 preferred
Mac®: Power Mac™ G3/G4 up to 1280 x 1024, 1280 x 768 (preferred) - DIMENSIONSW x H x D mm: 1054mm x 623mm x 220mm
- REGULATIONSFCC-B, CSA (c-UL), ICES003, CE, C-Tick/EN55013, CB, PSB
- WARRANTYPlease see:
http://www.viewsoniceurope.com/UK/Support/warranty.htm - CONNECTORAudio: 1 x 3.5mm PC Audio to support both VGA and DVI
S-Video: 1 x S-Video
Headphone: 1 x 3.5 Mini Jack Connector
SCART: SCART 1: (CVBS+Audio/SV+Audio/Monitor Out)
SCART 2: (CVBS+Audio/SV+Audio/RGB/TV Out)
Tuner: PAL I/BG, SECAM L
PC-VGA: 1 x RGB D-Sub 15pin / Firmware Upgrade and Service Port
Composite Video: 1 x RCA Composite
Component Video: 1 x RCA Component
DVI: 1 x DVI-D - POWERVoltage: AC 100-240 Vrms (50/60Hz) (Universal)
Consumption: Max. < 190 W; Off < 4 W - CONTROLSPicture: Brightness, Contrast, Colour, Tint, Sharpness, Video Mode
Audio: Volume, Treble, Bass, Balance, Audio Mode, Speaker, MTS
TV: Current Time, TV on Status, TV on timer, Sleep Timer, Languages,
NR (noise reduction)
Screen: Air/Cable, Auto Scan, Channel Skipped, Channel Select, Preference
Configuration 1: PIP, PIP Position, Source, POP, SWAP, Screen Mode
OSD: Power (soft), Menu, Source, Channel Up/Down,
Volumen Up/Down, Headphone - OPERATING CONDITIONSTemperature: 0–40°C
Humidity: 10–90% (non-condensing) - WEIGHTNet: 22.5 kg
- AUDIOSpeakers: 2 X 12 Watt (3D Surround)
- Video OutputR/L audio
