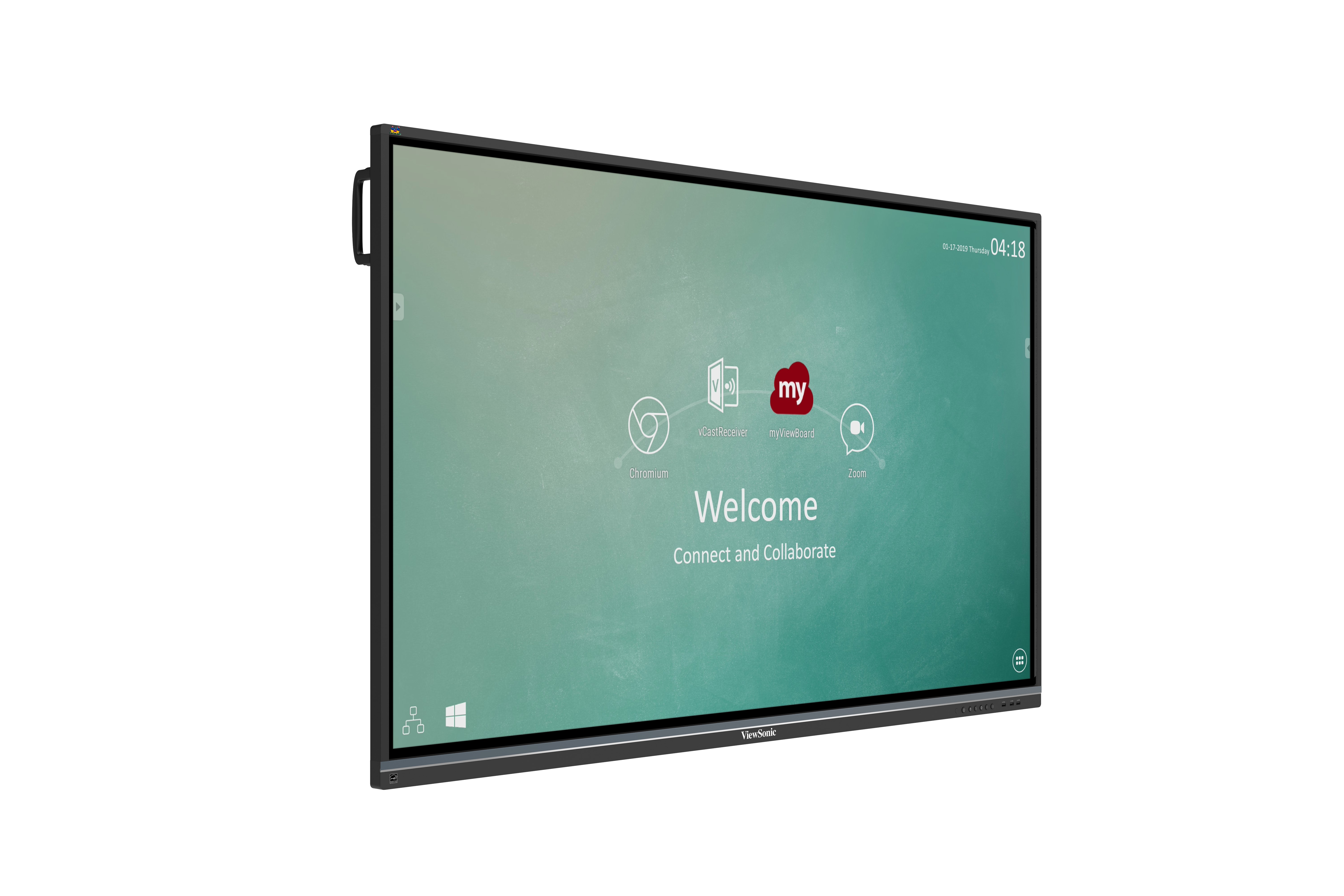

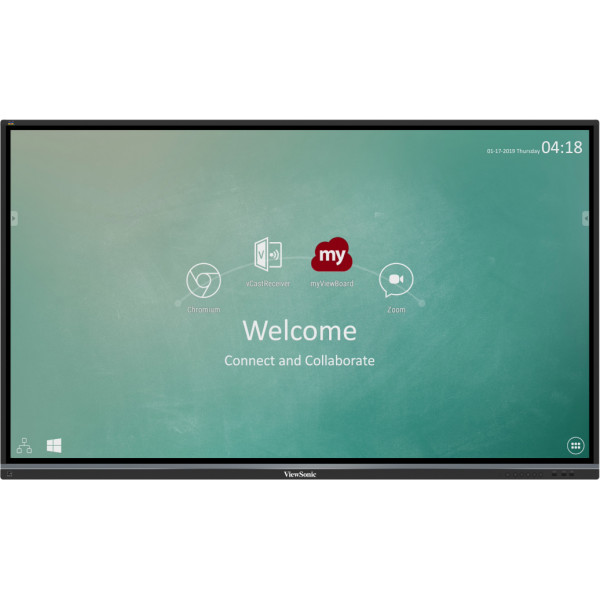

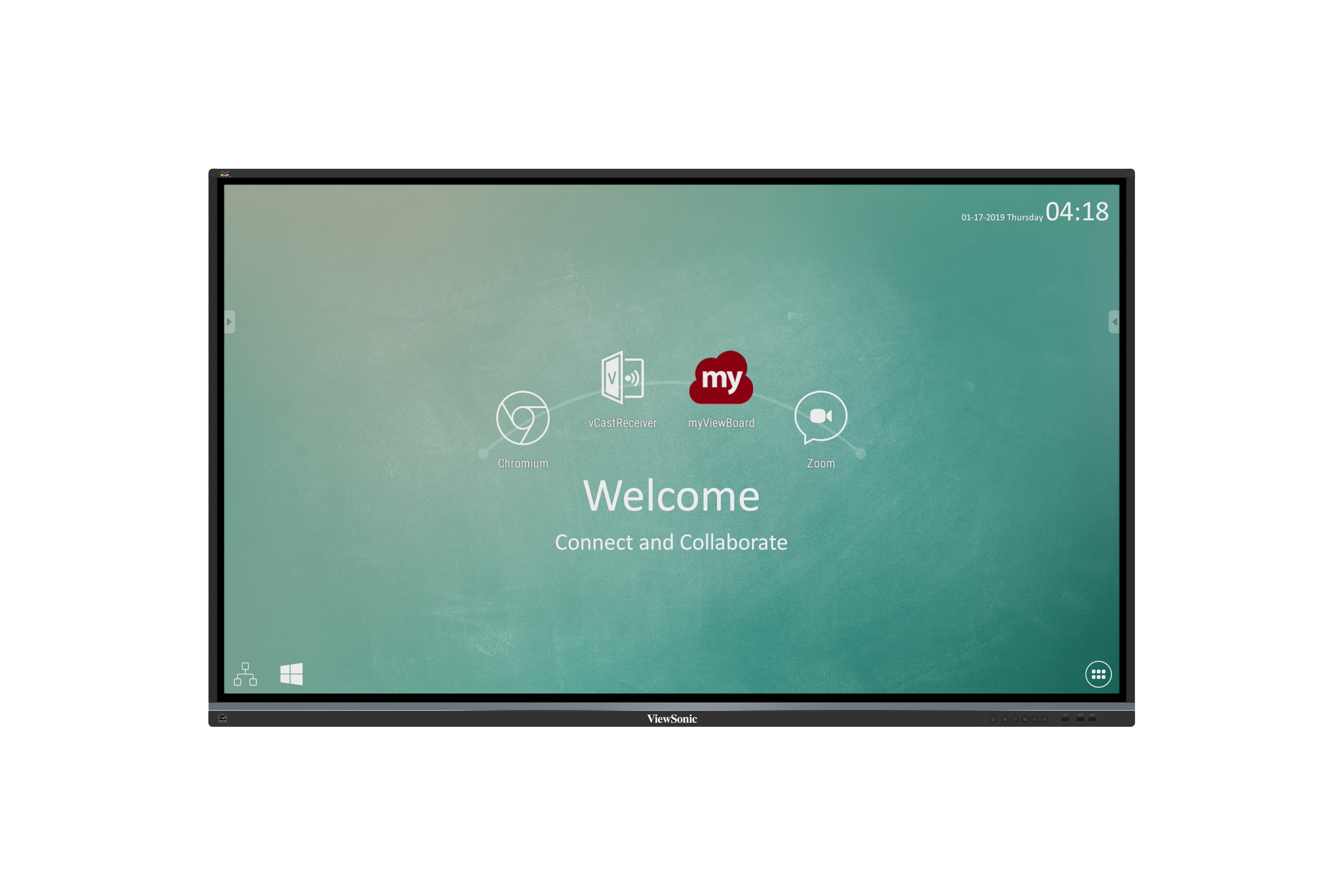

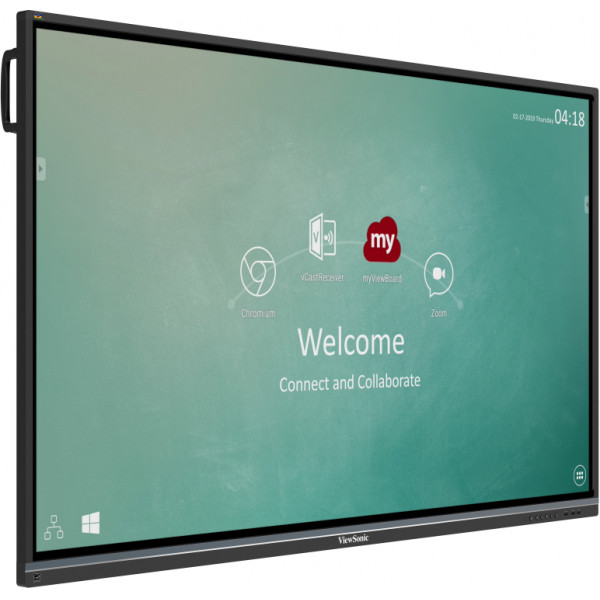

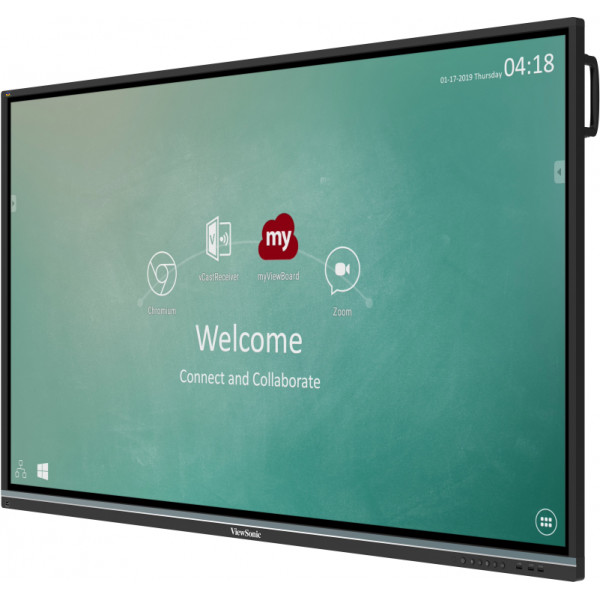

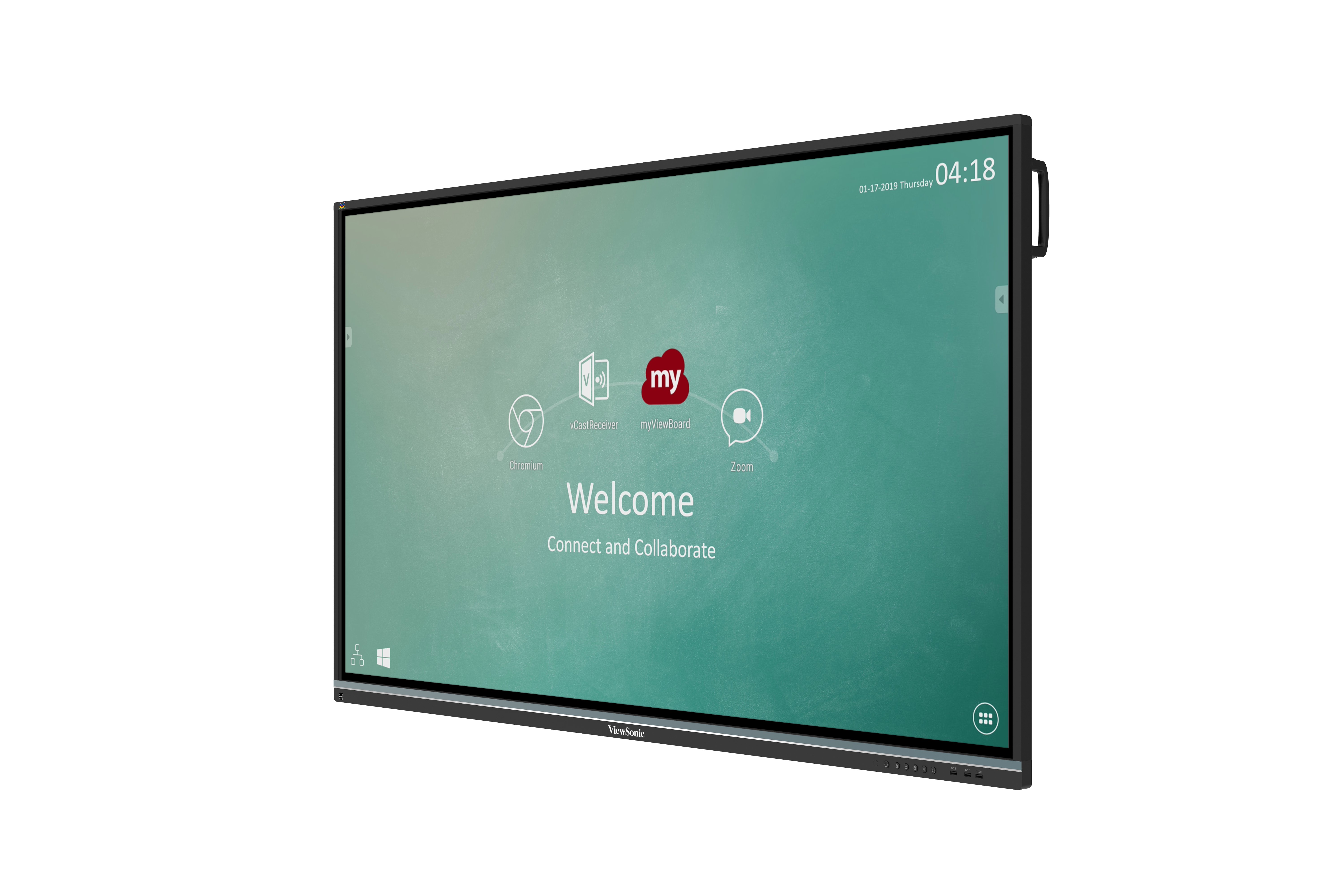

IFP8650-2EP

ViewBoard® 86" 4K Interactive Display

  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • ViewBoard® Cast 4-way split screen content sharing software
  • SmartPort™ shared front USB ports for internal & external PCs
  • 2.1 Stereo sound with built-in subwoofer
Sales Enquiry

OVERVIEW

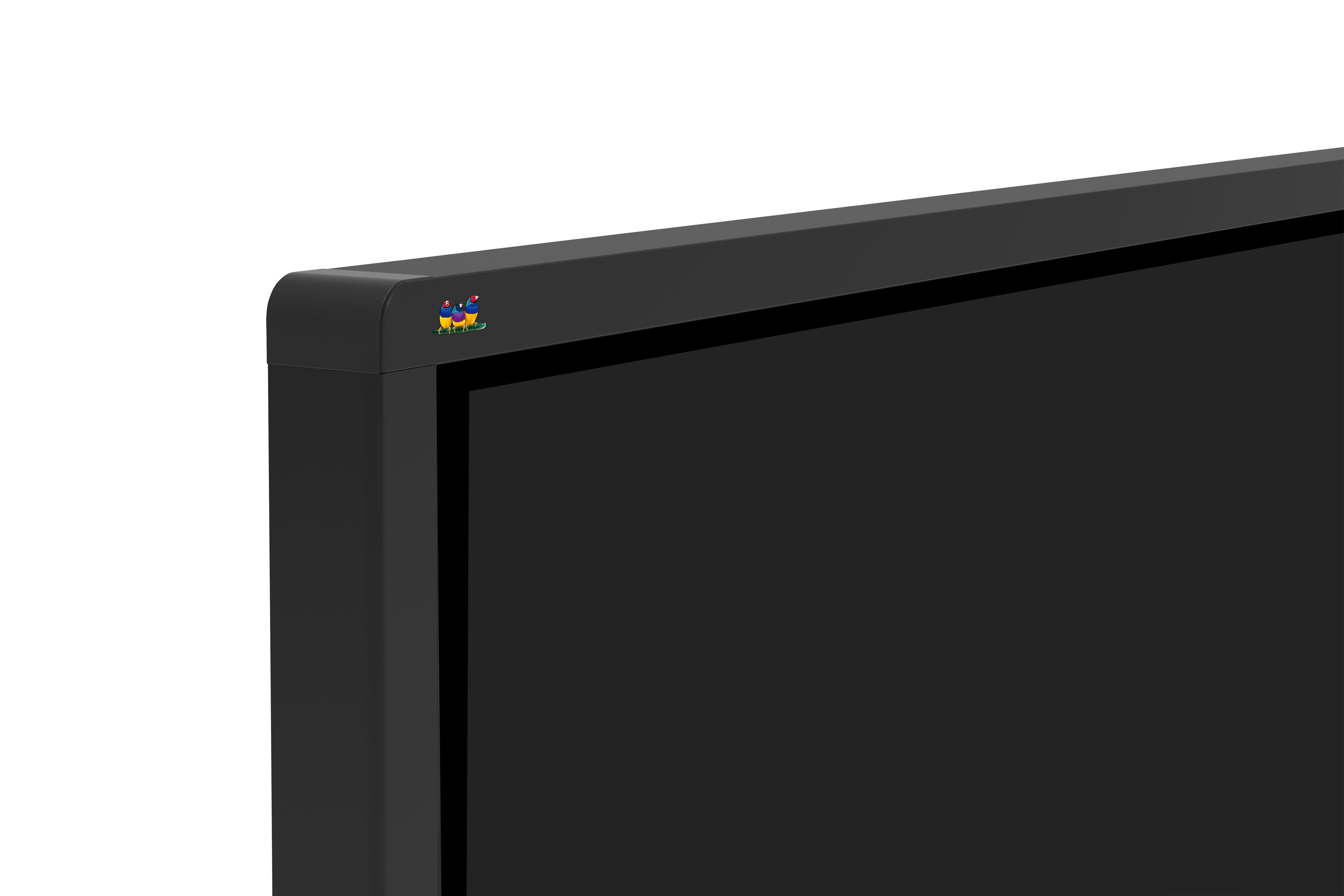

The ViewBoard® IFP50-2EP series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 3mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine-tipped pens. The ViewBoard® IFP50-2EP series is designed with a slim bezel to broaden your viewing experience so that even at the edge of the panel you can write clearly and confidently. Integrated myViewBoard™ digital whiteboard software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split-screen content sharing.

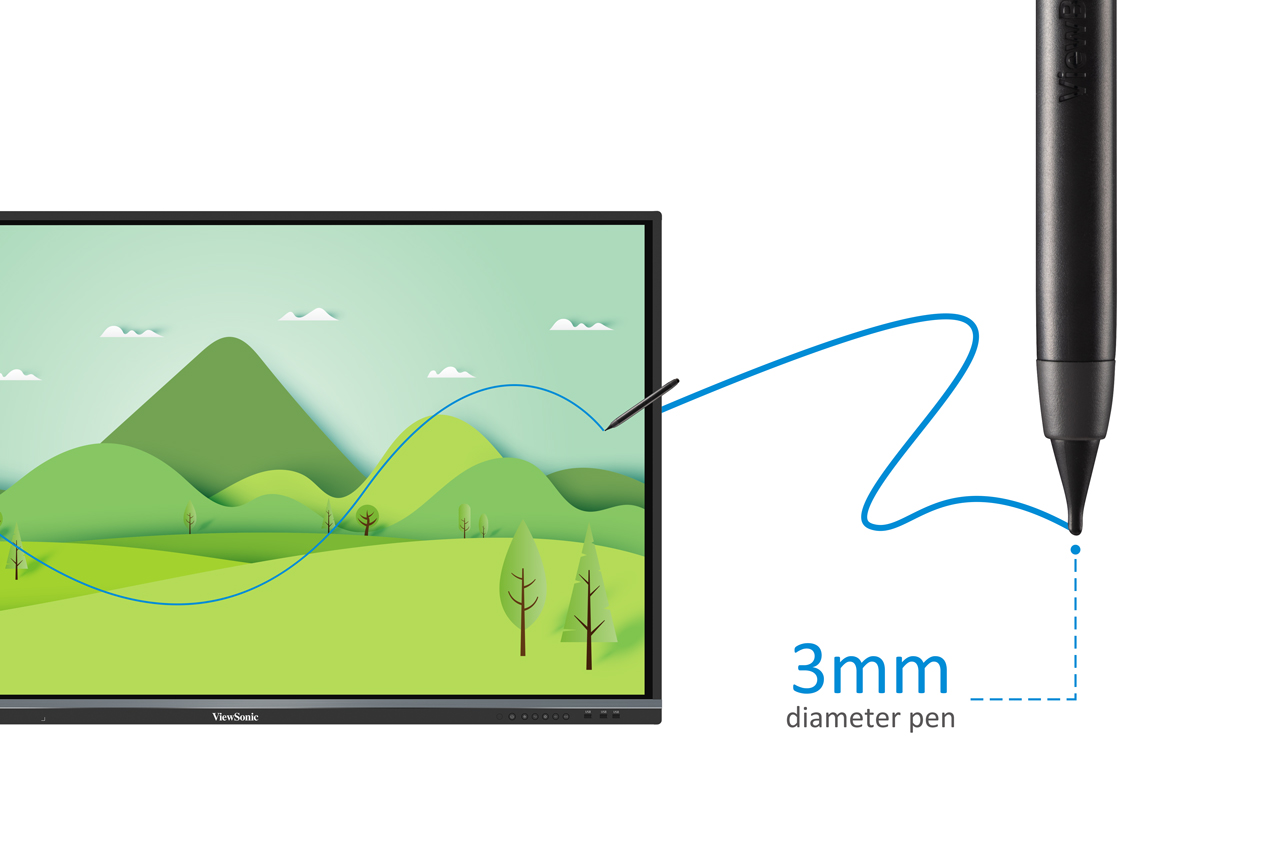

Ultra Fine Touch Technology

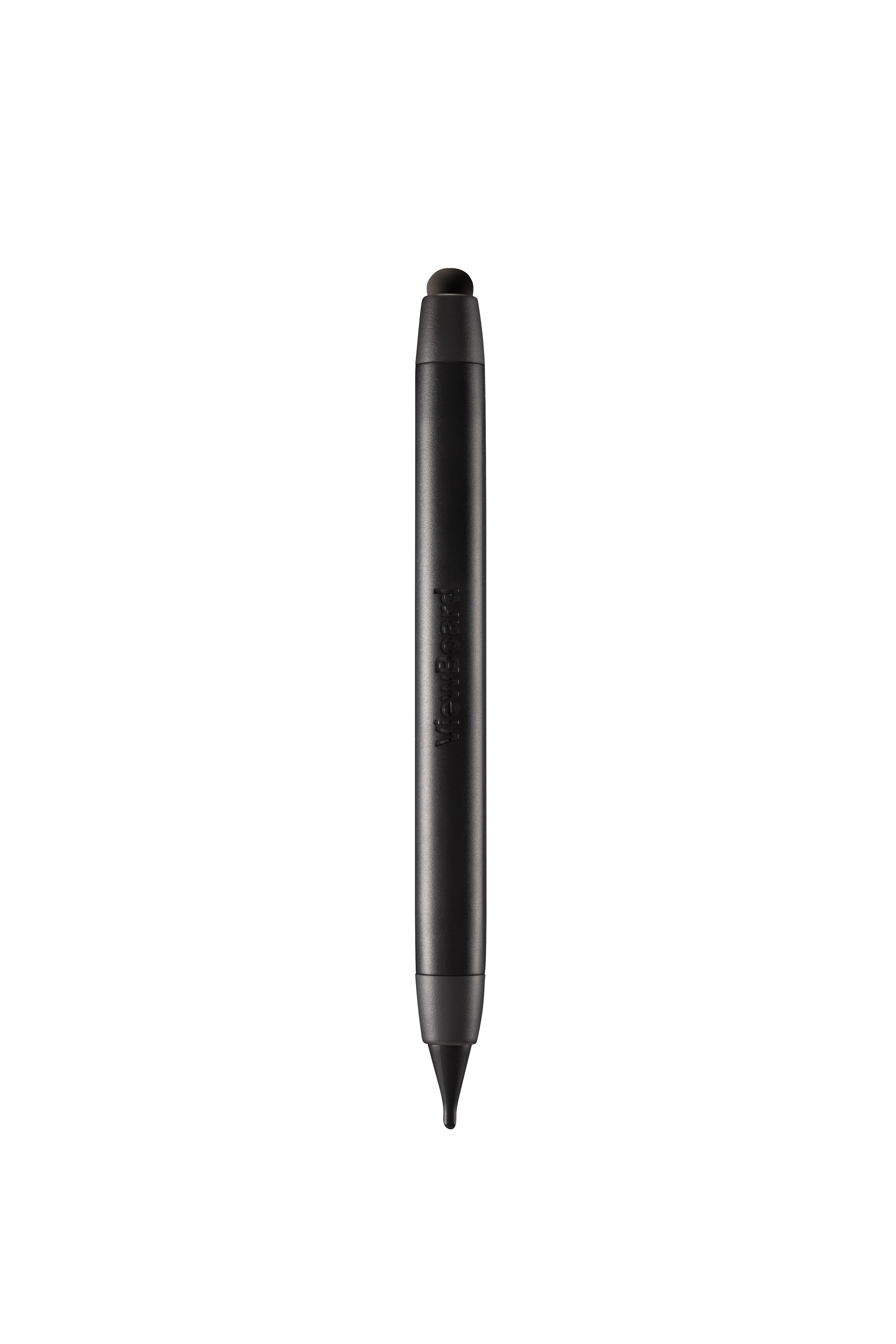

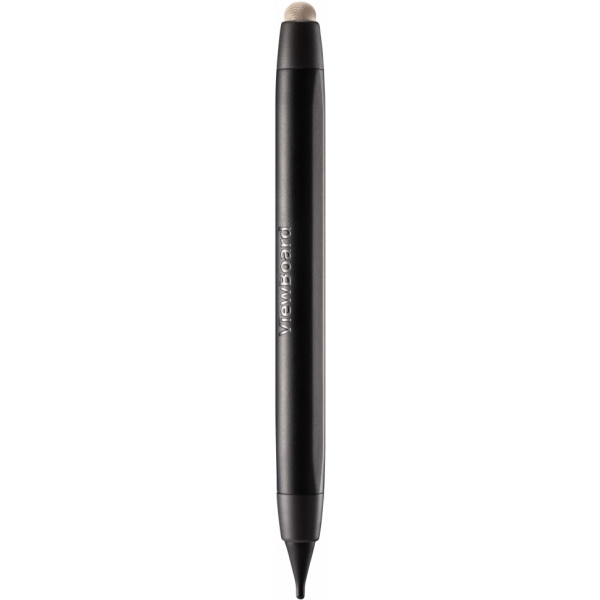

It provides fine precision writing with a 3mm diameter pen tip.

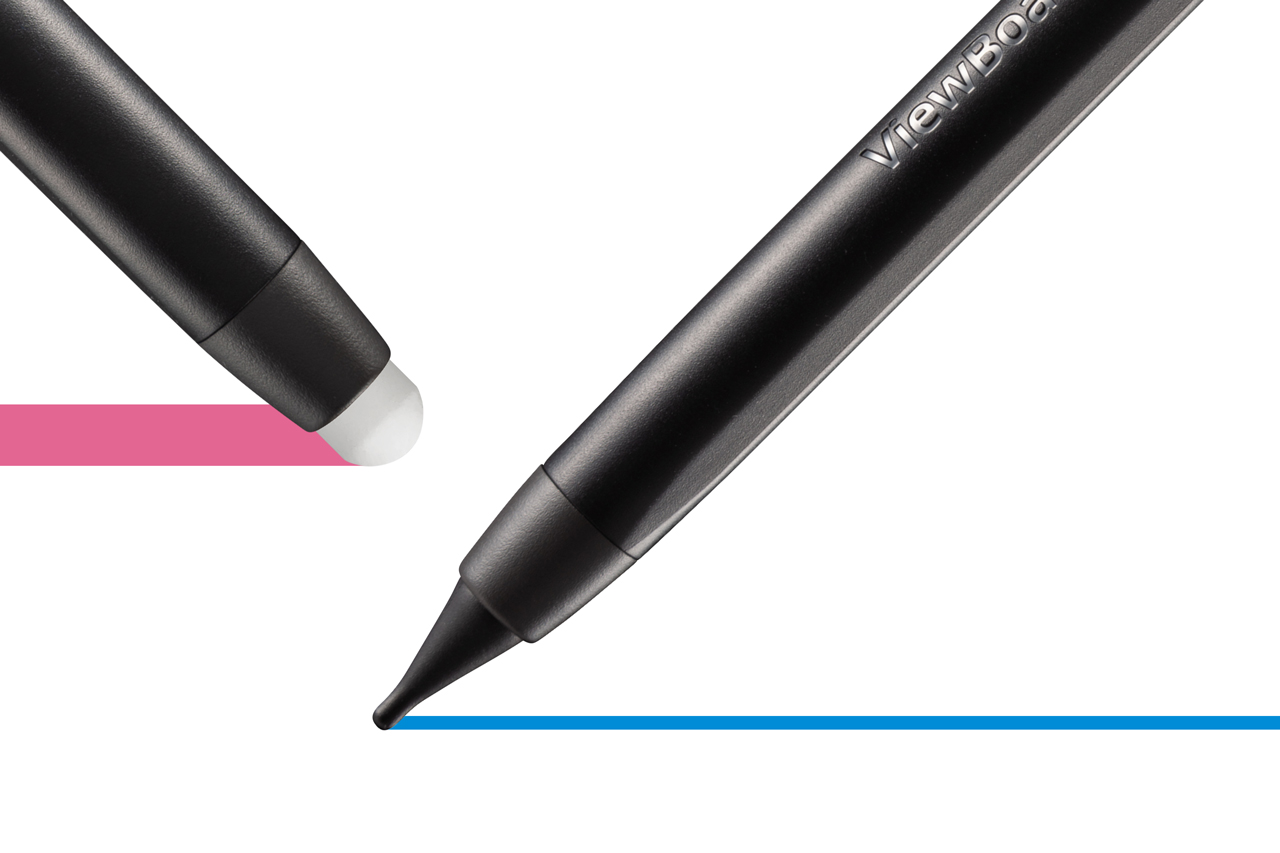

Dual-Pen

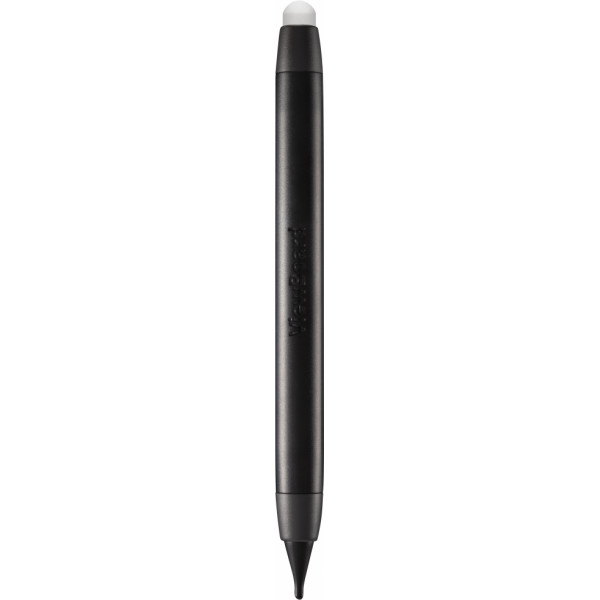

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on Android

Built-in myViewBoard® whiteboarding software to collaborate on the go.

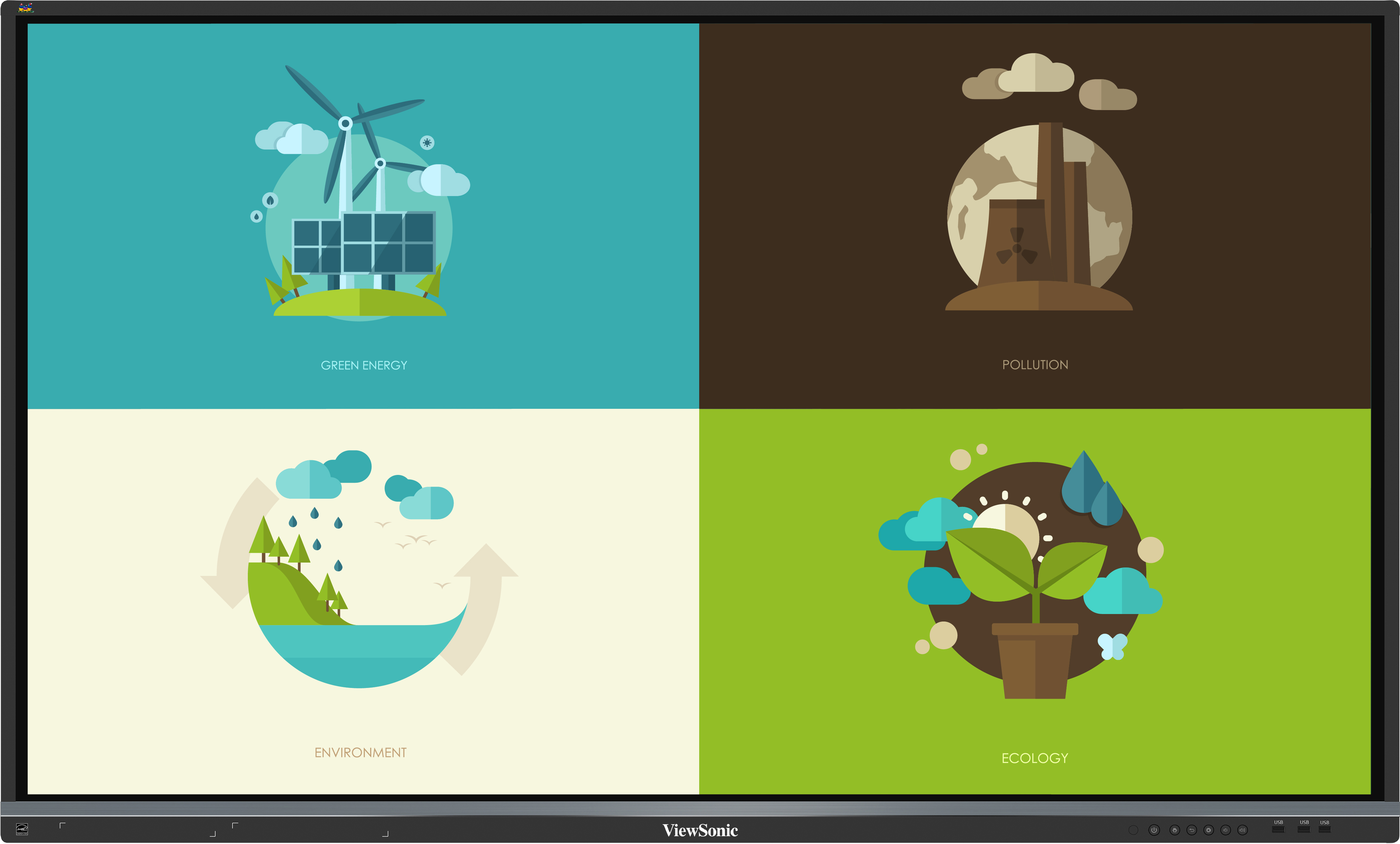

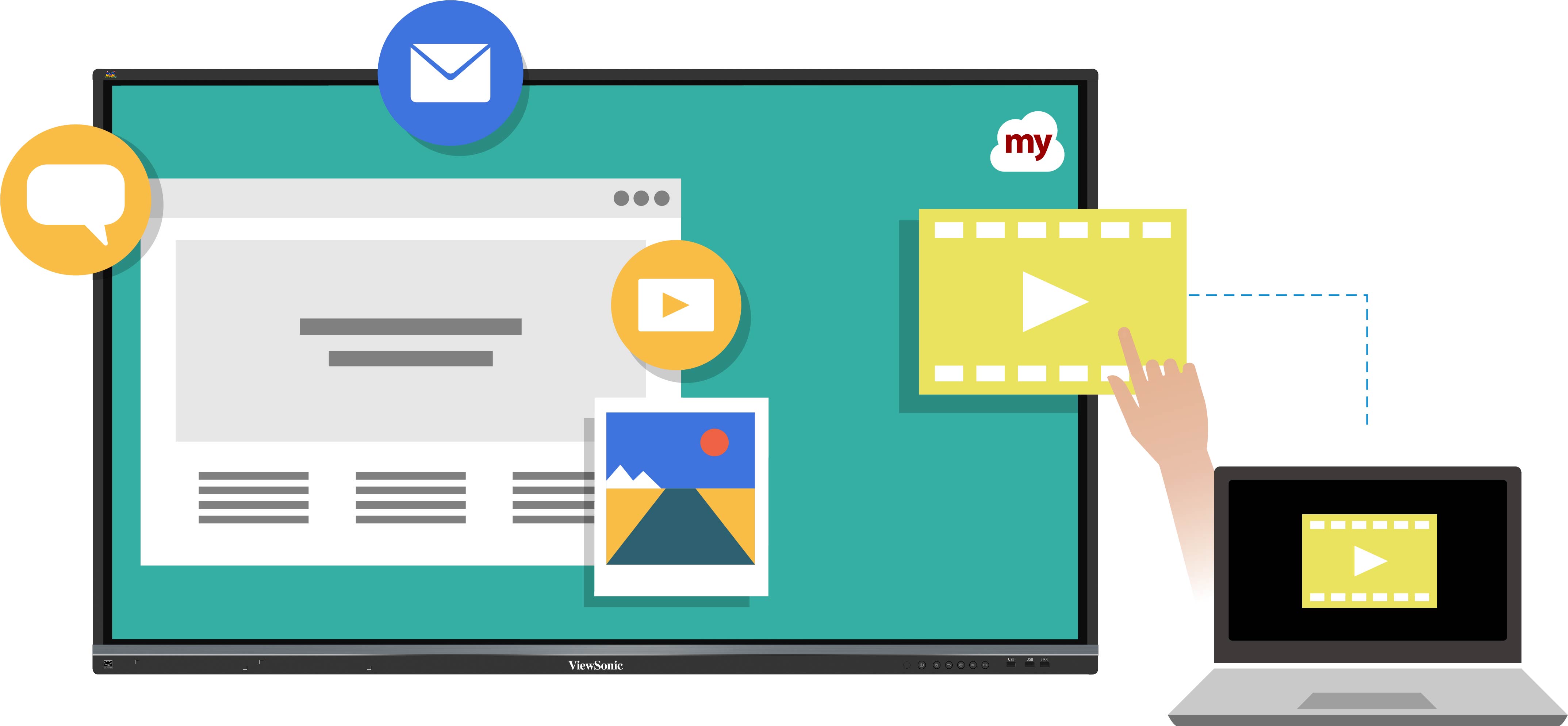

4-way Split Screen

4-way split screen content sharing with built-in ViewBoard® Cast software.

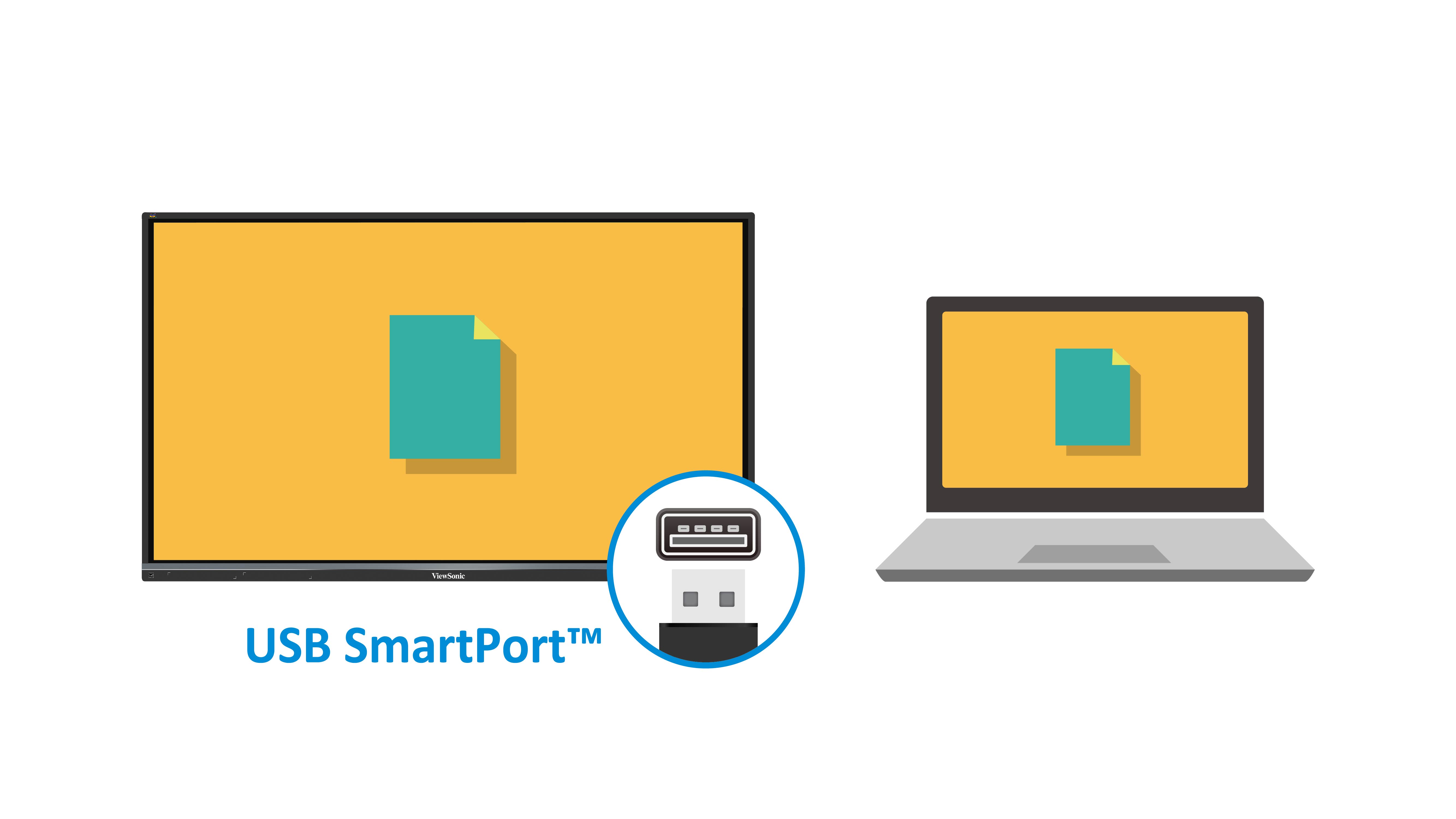

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

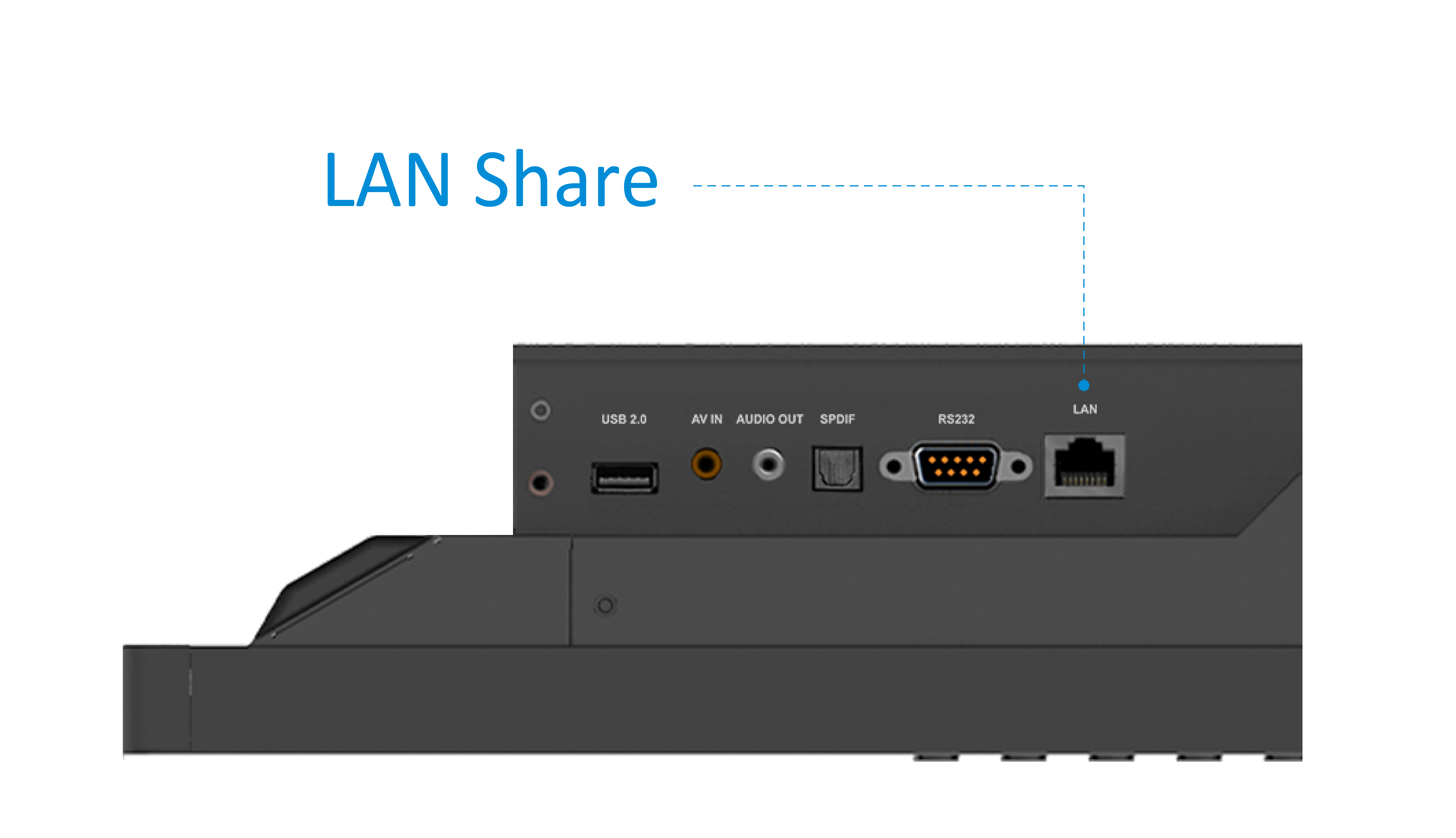

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

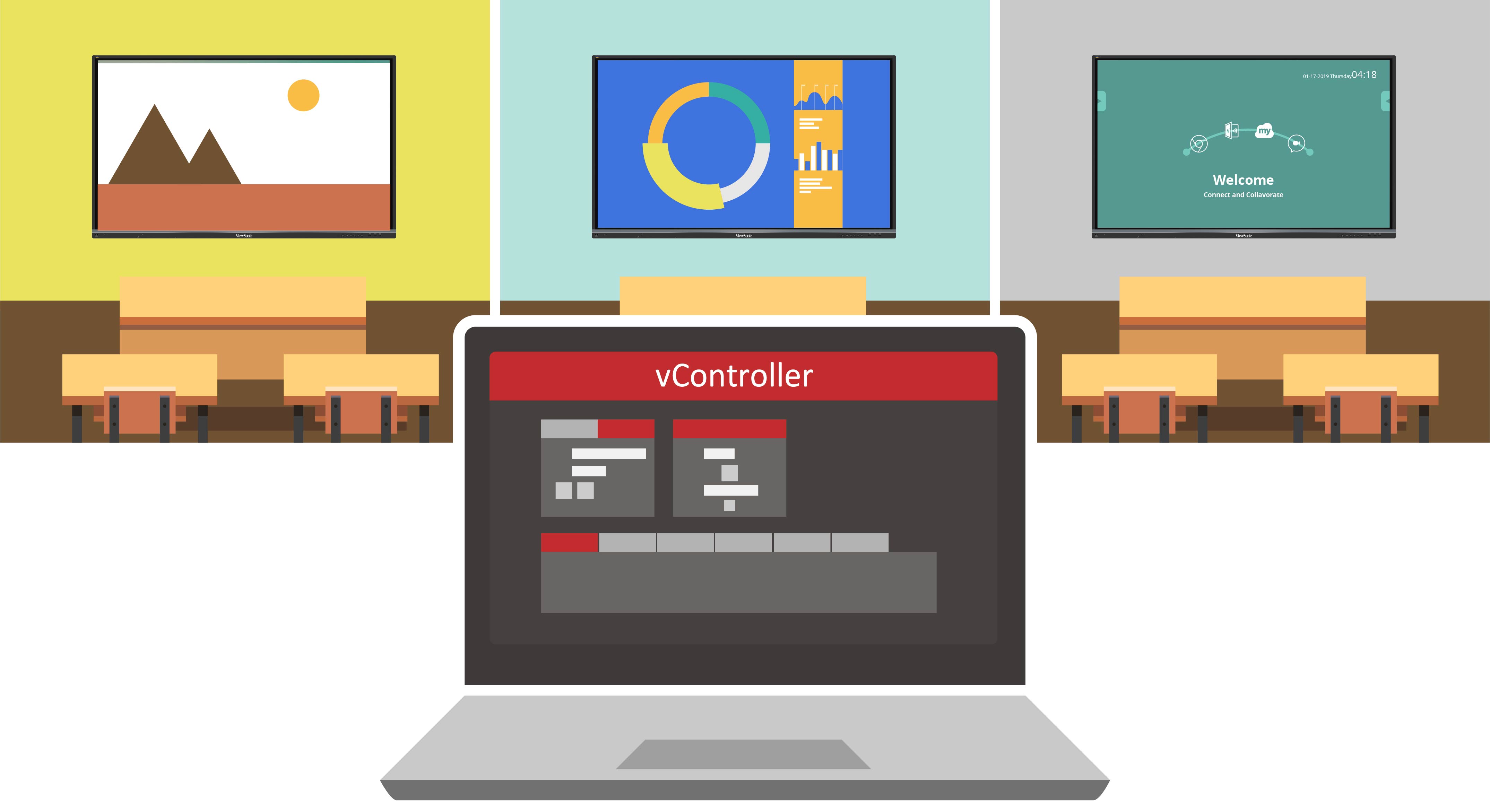

Remote Control

Built-in RS232 port and vController software for remote control.

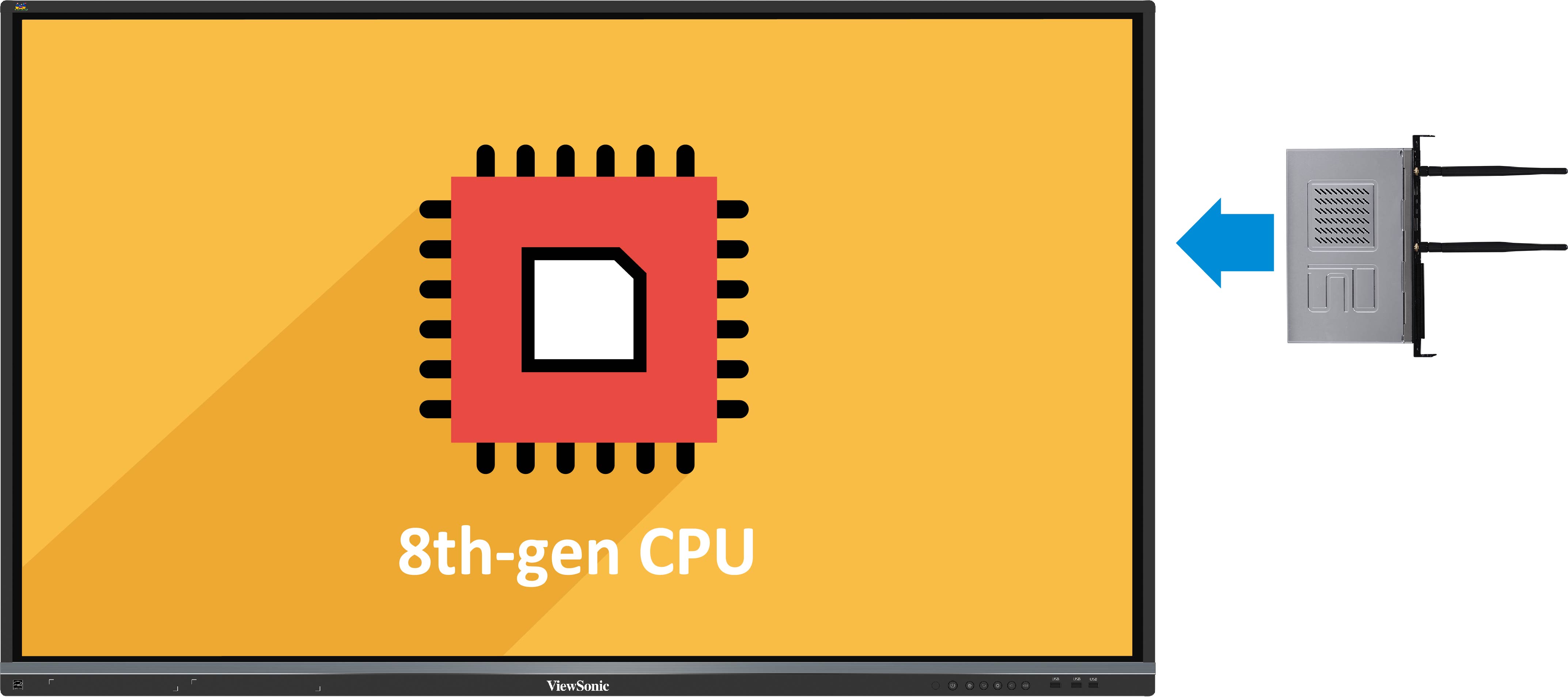

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

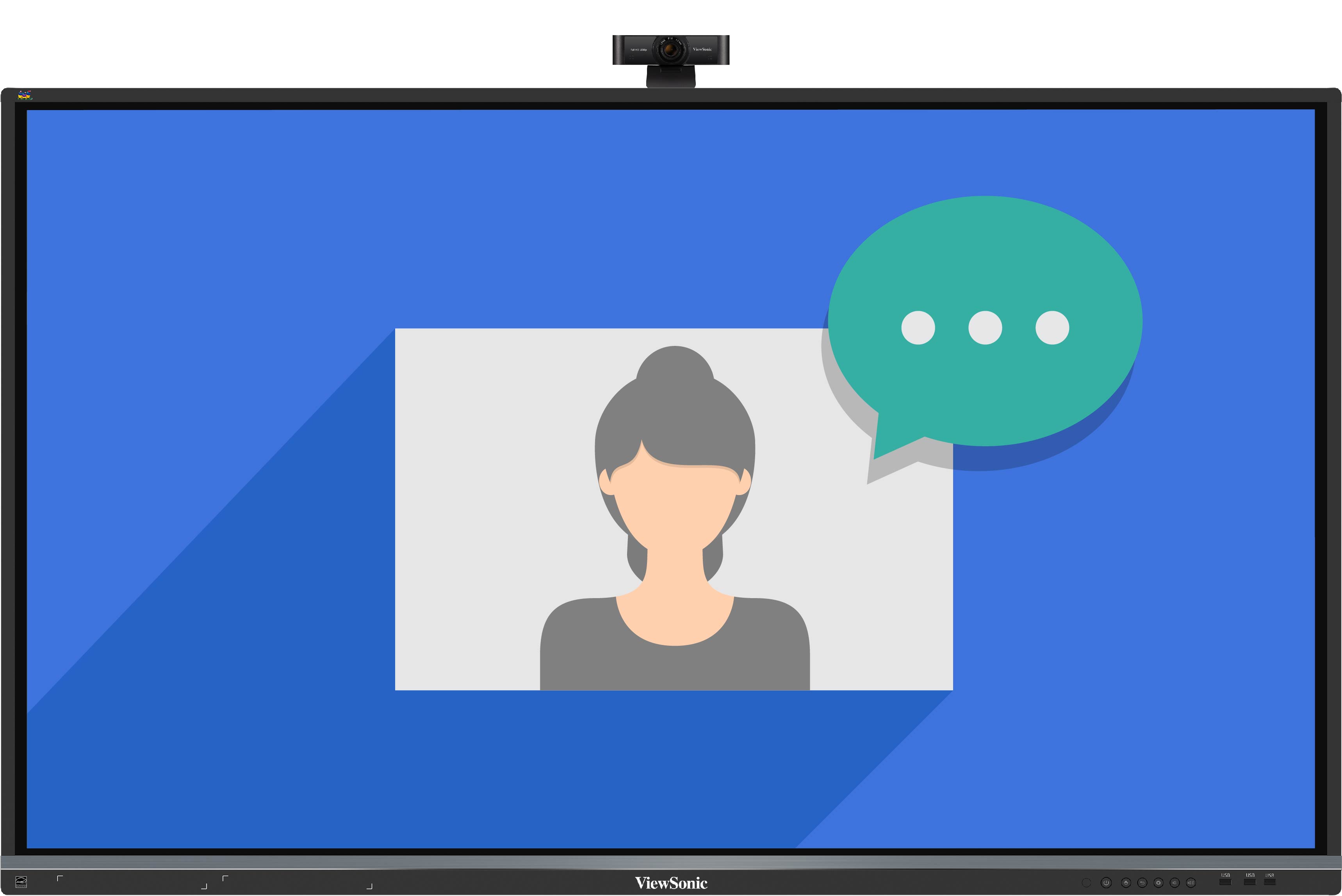

Web Camera

Top-mounted 1080p web camera (Optional).

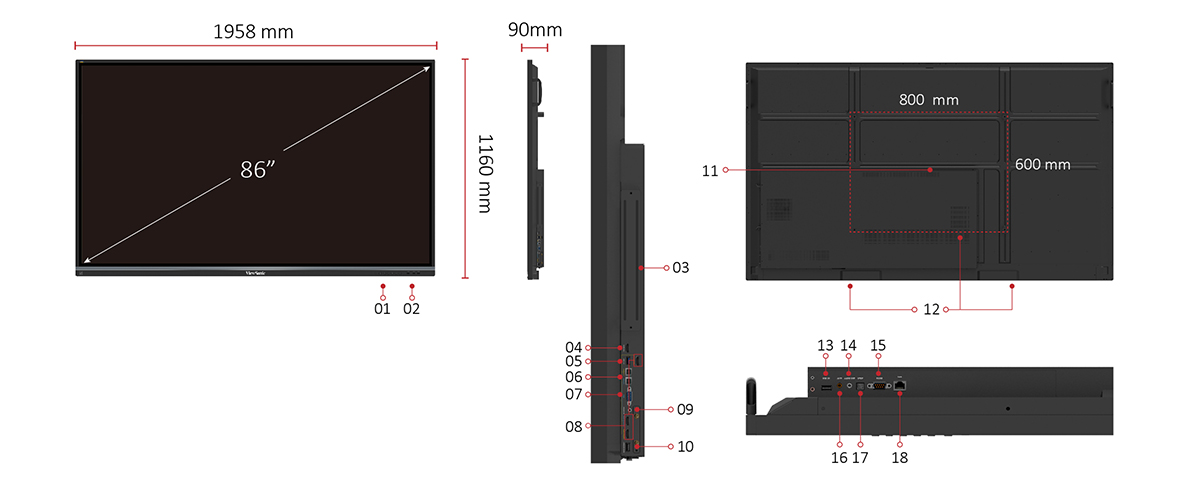

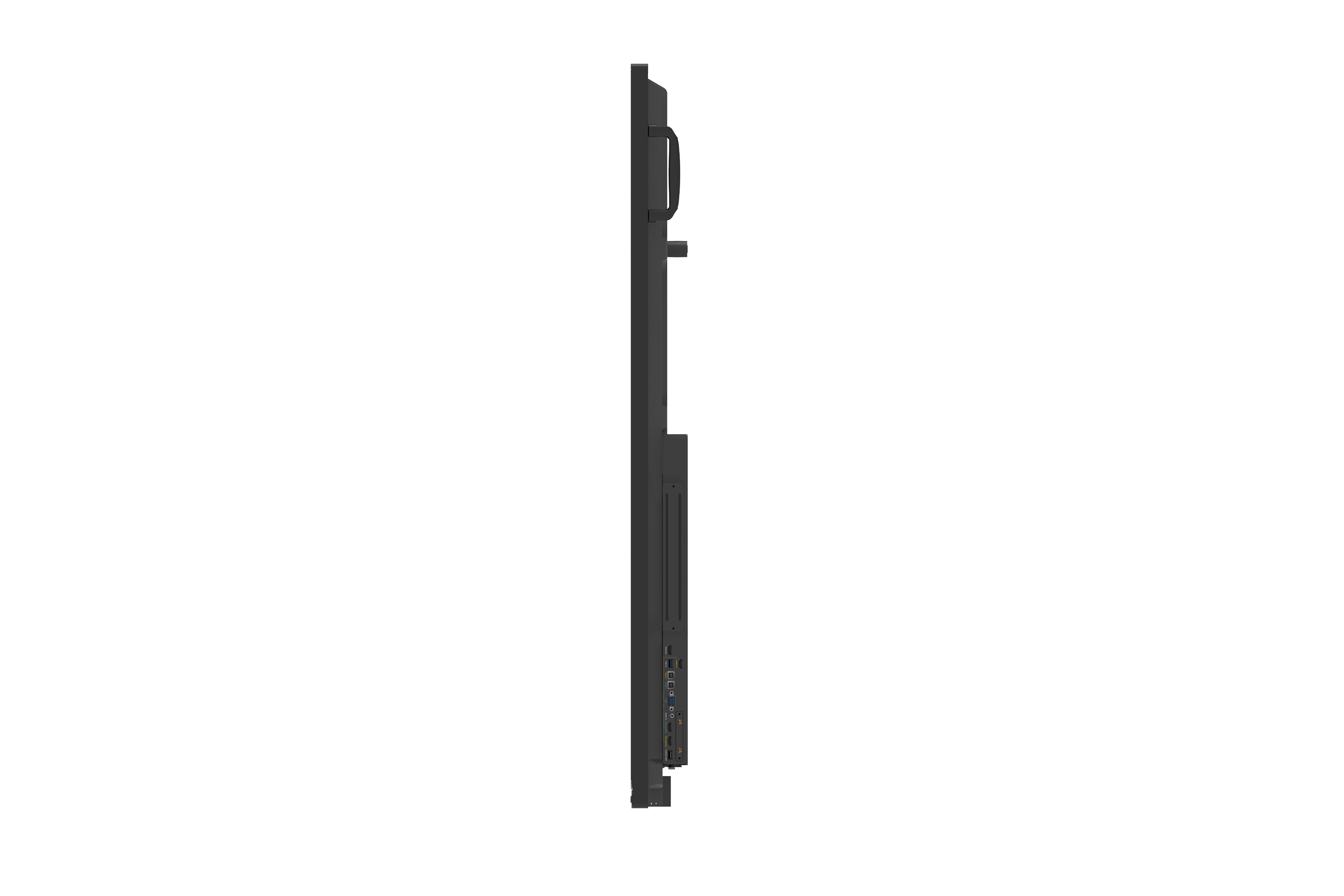

I/O Ports

  1. MENU CONTROLS
  2. USB X 3
  3. EMBEDDED PC SLOT
  4. HDMI OUT
  5. USB 3.0
  6. TOUCH X 2
  7. VGA
  8. HDMI IN X 2
  9. AUDIO IN
  10. CAMERA PORT

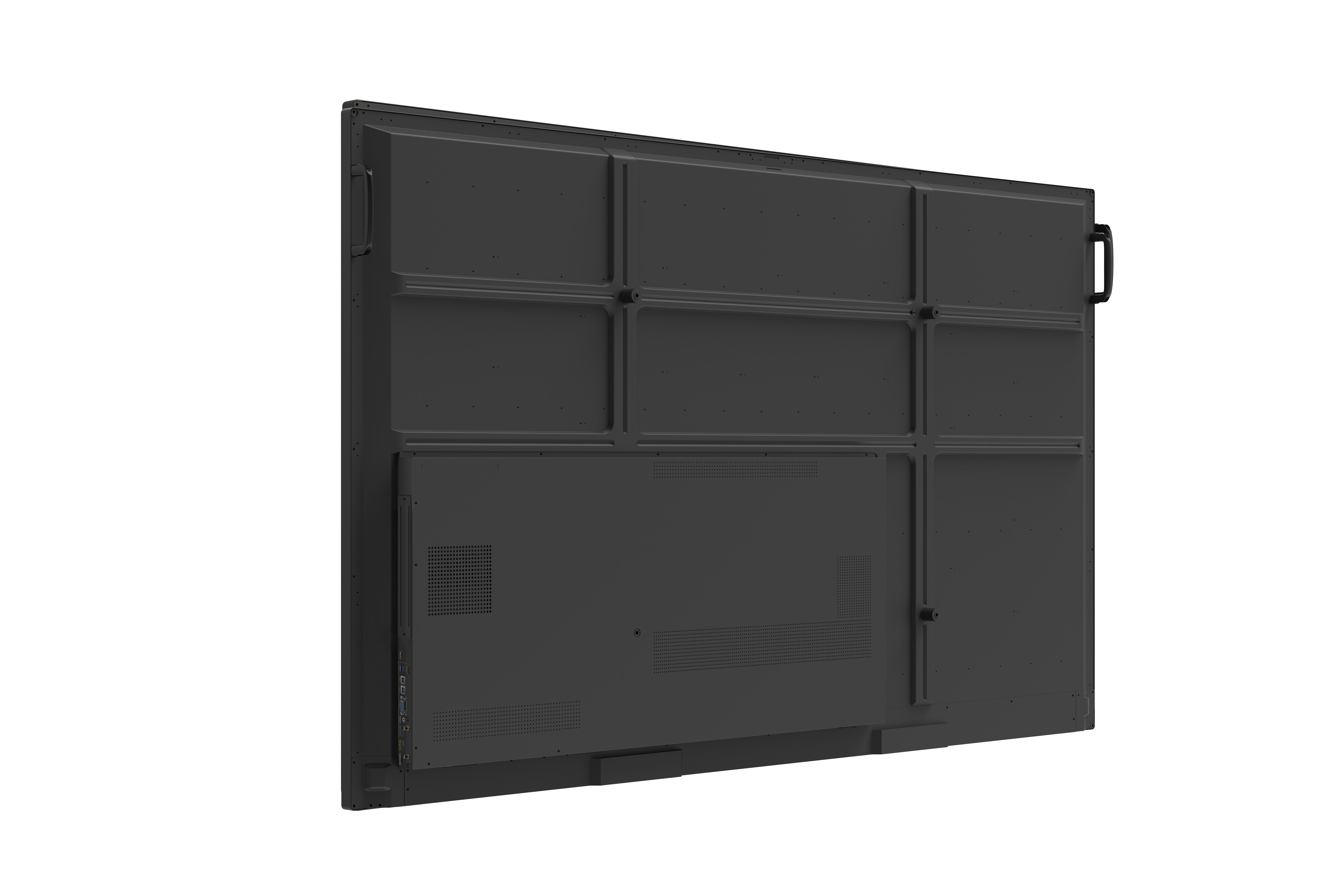

  11. VESA® WALL Mount 800x600 mm
  12. INTERNAL SPEAKERS
  13. USB 2.0
  14. AUDIO OUT
  15. RS232
  16. AV IN
  17. SPDIF
  18. LAN

SPECIFICATIONS


  • Display
    Panel Size: 86"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.) 300 nits (min.)
    Contrast Ratio: 5000:1 (DCR)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare

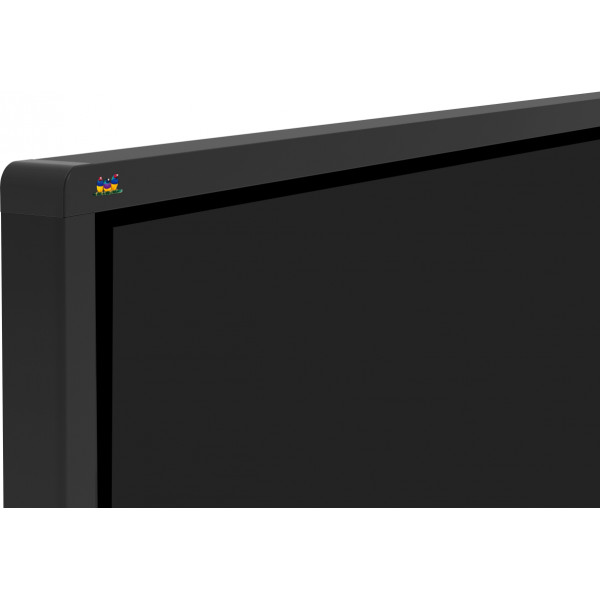

    Bezel: Slim
    Orientation: Landscape
  • Platform
    Processor: ARM Cortex A73 dual-core 1.2GHz
    RAM: 2GB DDR4
    Storage: 16GB
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
