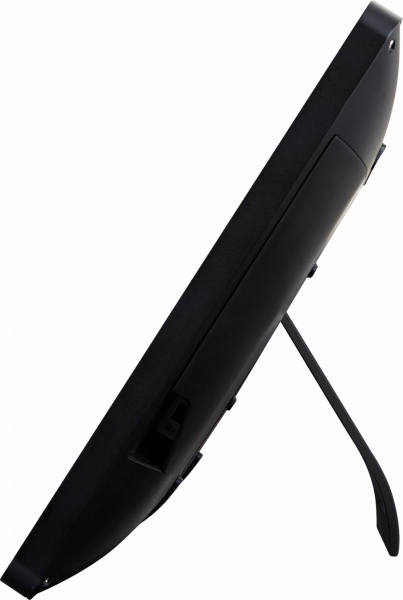

IFP2410

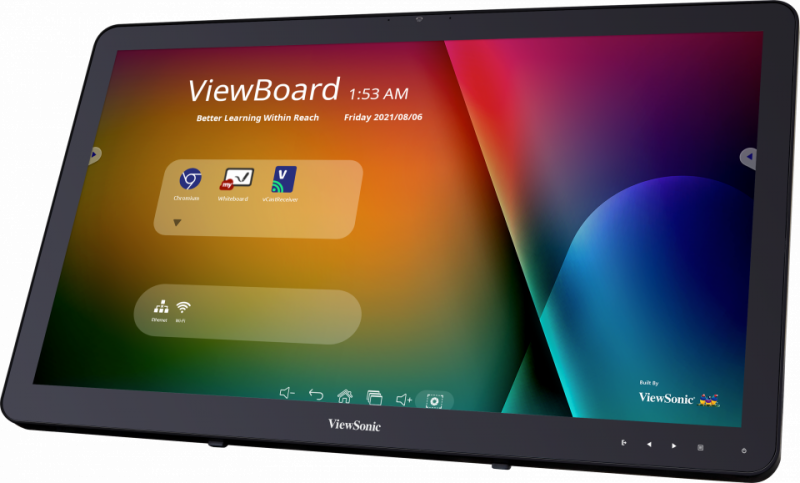

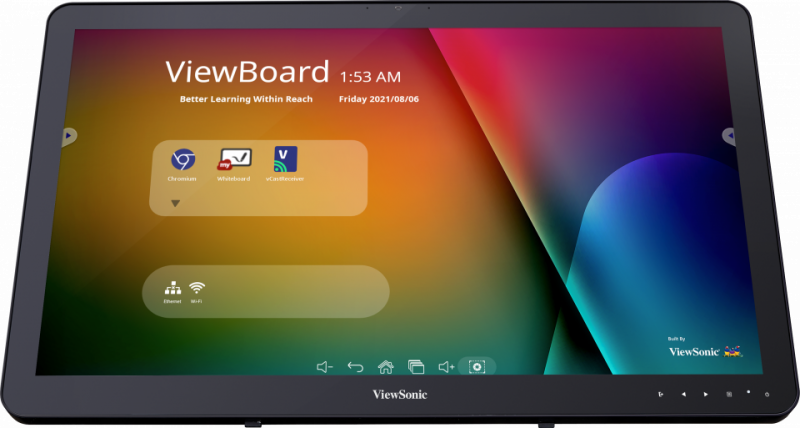

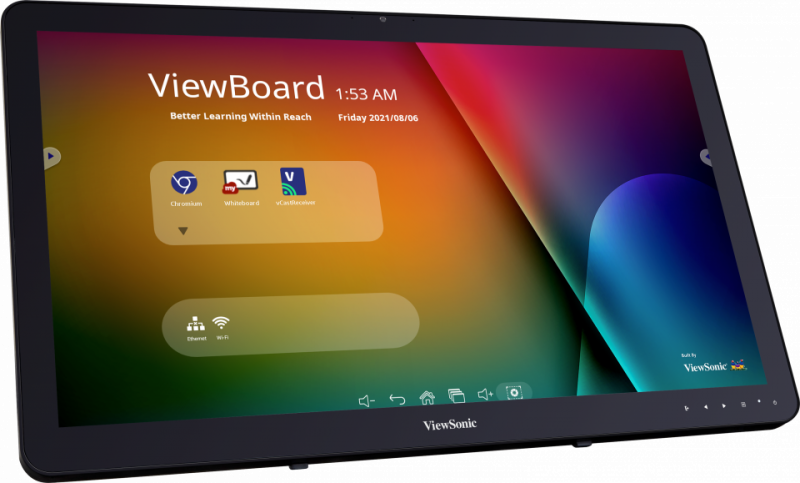

ViewBoard Mini 24'' Interactive Display
- Interactive front-facing teaching and collaboration
- myViewBoard® digital whiteboard software
- ViewBoard® Cast Content Sharing Software
- Android 8.1 embedded OS
- HDMI output to external display
OVERVIEW
The ViewBoard Mini IFP2410 is a 24" interactive display that transforms podiums and lecterns into collaboration hubs for front-facing teaching. With integrated myViewBoard digital whiteboarding software, ViewBoard Cast streaming software, and a 10-point Projected Capacitive (PCAP) touchscreen, the ViewBoard Mini makes content creation and sharing easier than ever before. Educators can manipulate and control content like files, images, and annotations on the ViewBoard Mini touchscreen, then share that content on a larger front-of-classroom display or projector. For dynamic lessons and interactive collaboration, multiple presenters can simultaneously draw, write, and annotate on the ViewBoard Mini making it an ideal collaboration hub for classrooms, lecture halls, and auditoriums.Interactive front-facing teaching and collaboration

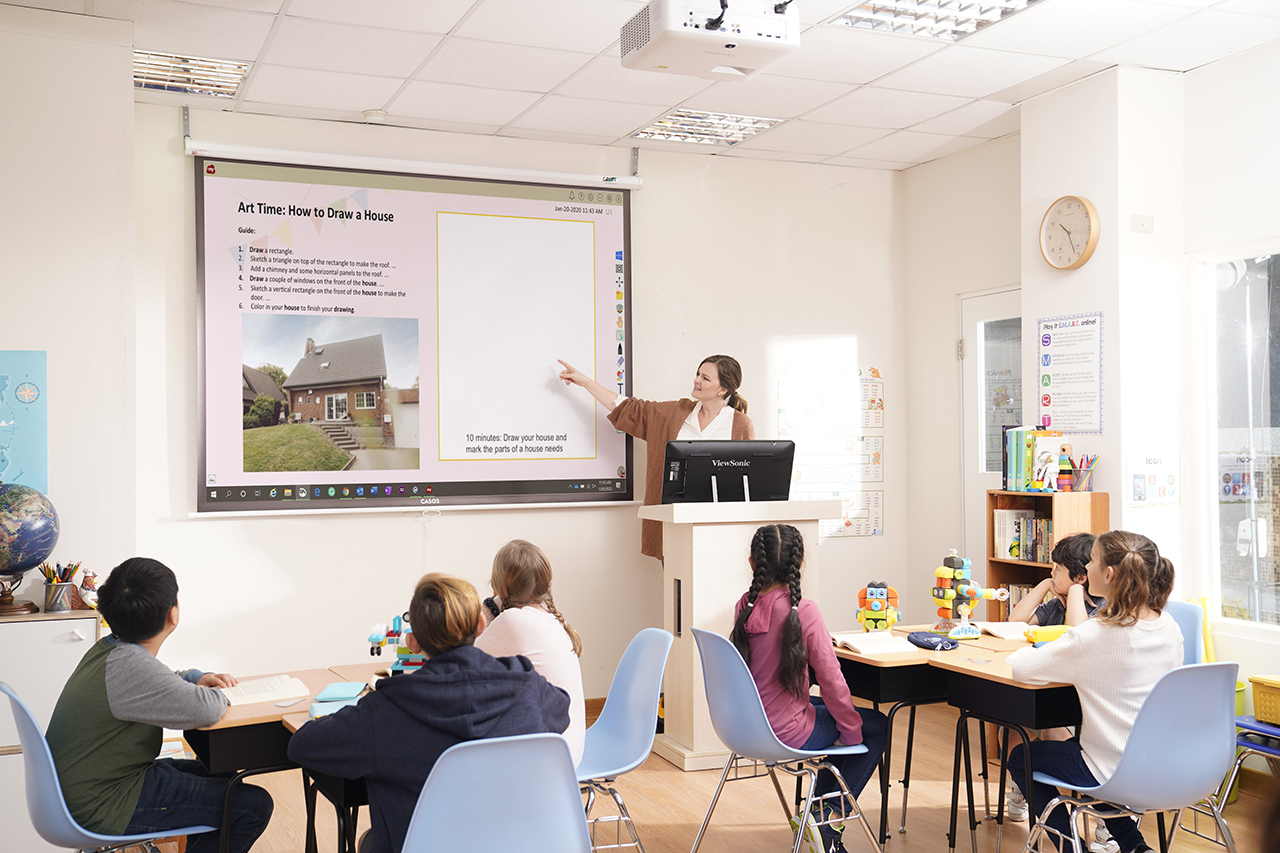

The ViewBoard Mini touchscreen provides a front-facing interactive display solution, allowing the educators to continue to face the audience while annotating on slides. It enables the presenter to be in full control of the presentation, creating interaction and eye contact with the audience for more engagement.

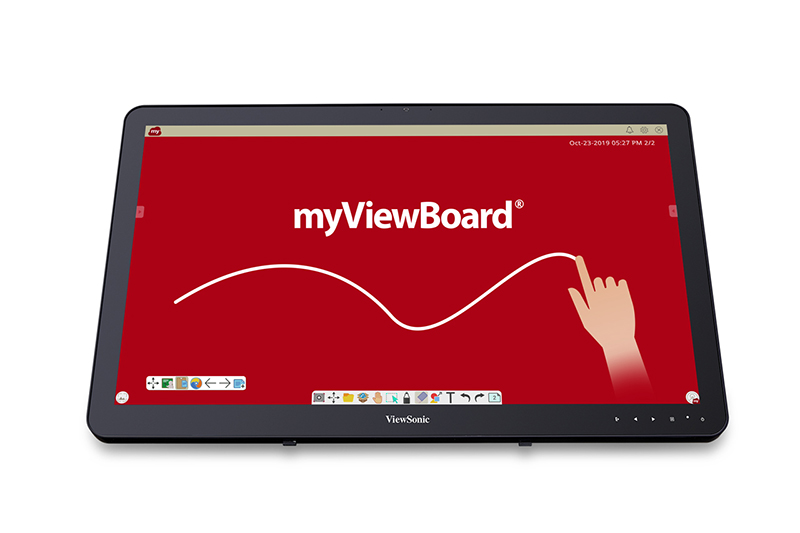

Built-in myViewBoard digital whiteboarding software
myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way you connect and collaborate. Convenient features include multimedia support, screen recording, easy conversion of common office files, QR code sharing and much more.

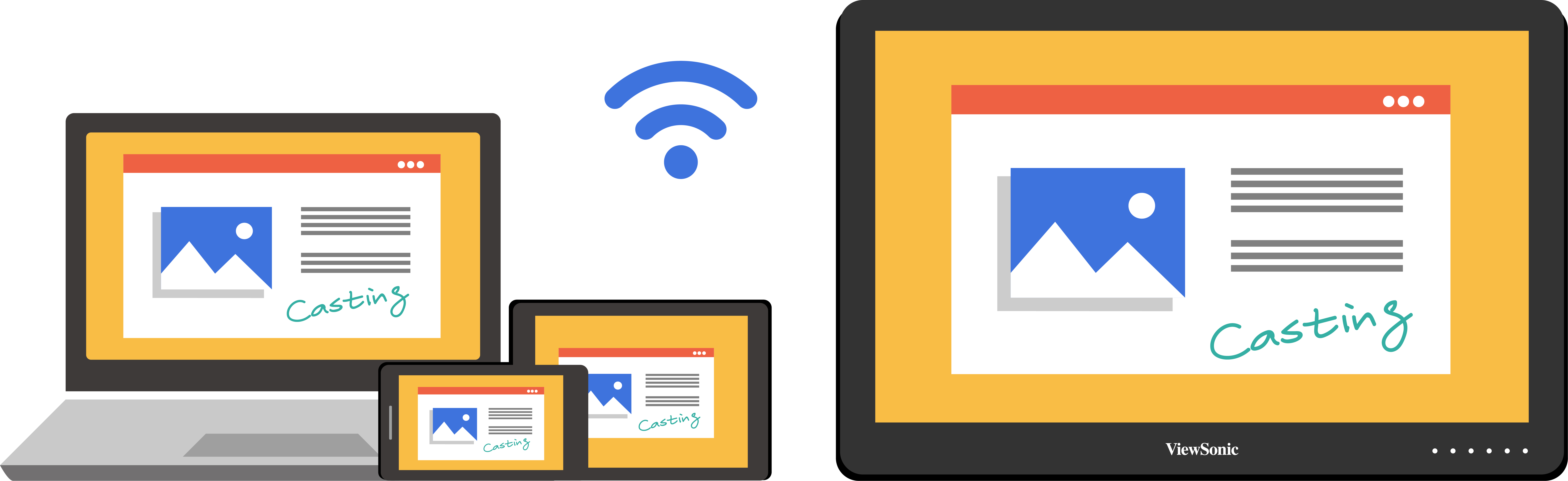

Built-in ViewBoard Cast streaming software
ViewBoard Cast allows you to share all the content on the ViewBoard Mini IFP2410 interactive display, including annotations, directly onto a projection screen for better visibility and long distance installation.

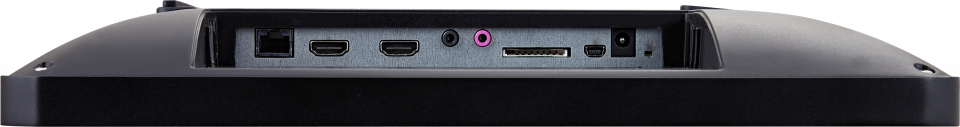

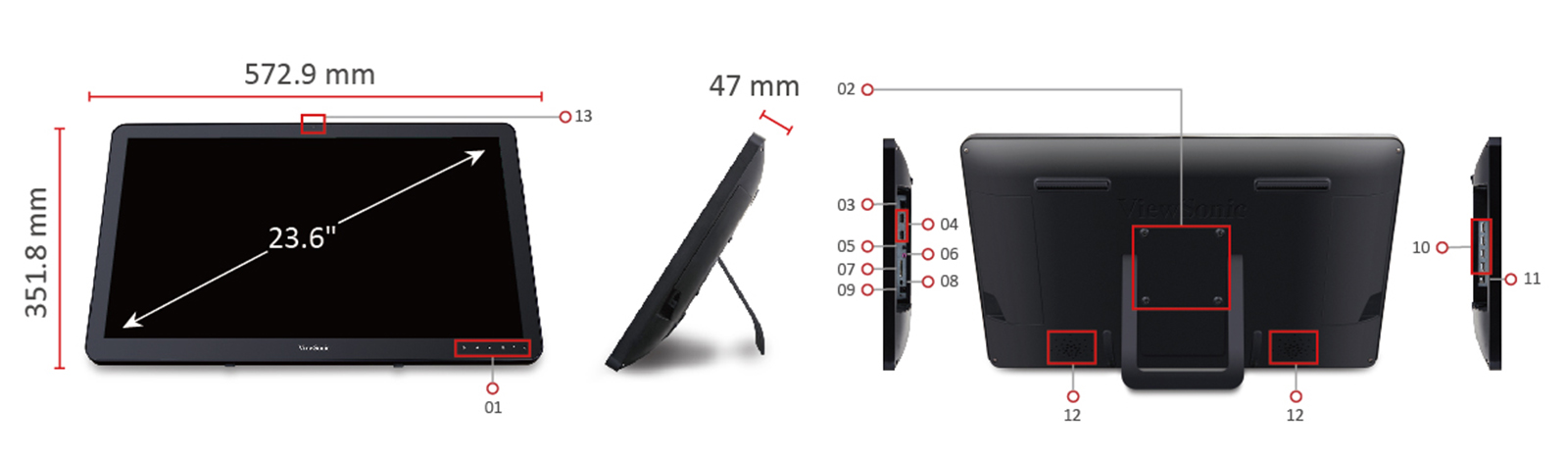

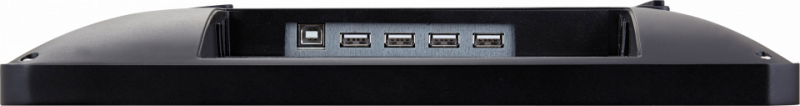

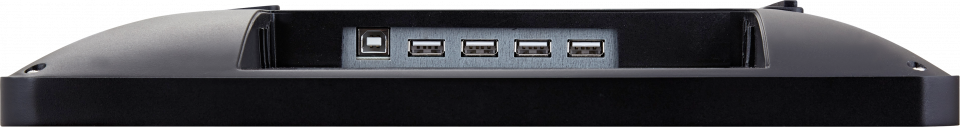

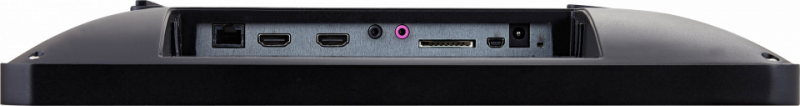

I/O Ports
- Menu Controls

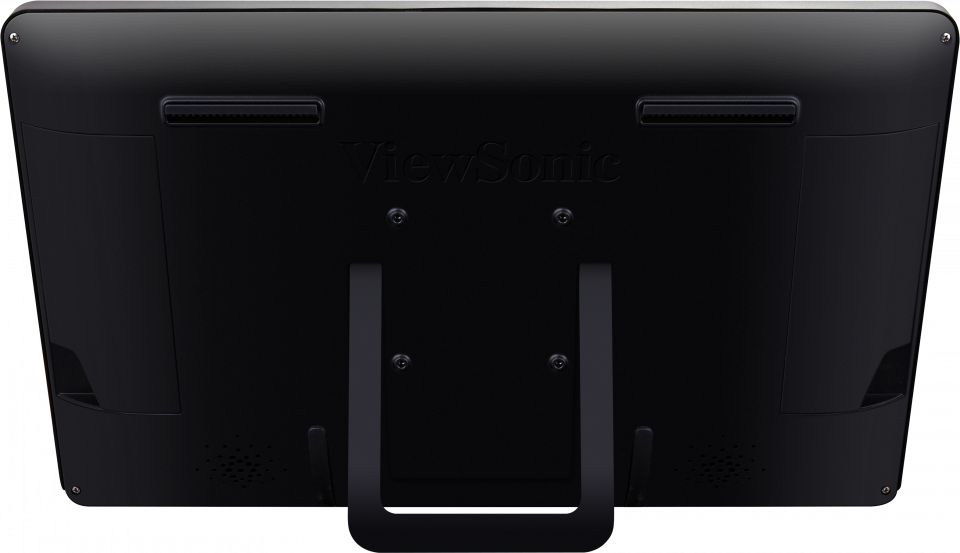

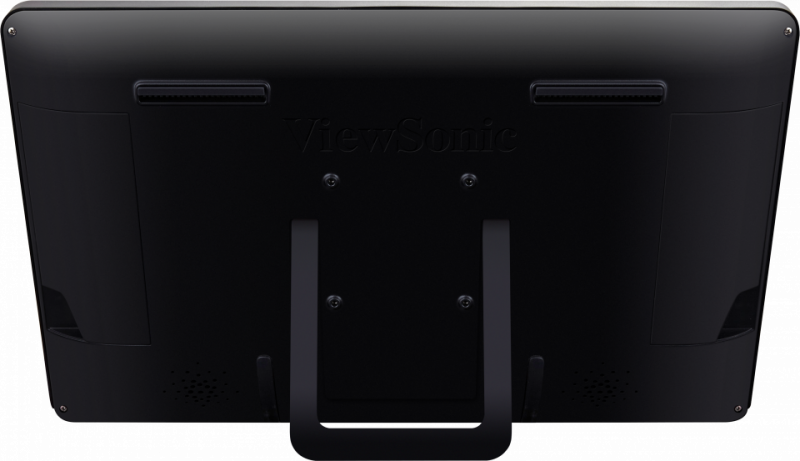

- VESA Compatible (Wall Mount 100 x 100 mm)
- LAN
- HDMI/MHL In/Out
- Audio In
- Headphone
- SD Card Reader
- Mini USB
- DC Power In
- USB 2.0 x 4
- USB Type-B
- Internal Speakers
- Camera
SPECIFICATIONS
- DisplayPanel Size: 23.6"
Panel Type: IPS
Display Area (mm): 544.8(H) x 320.5 (V) (23.6” diagonal)
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Brightness: 250 nits (typ.)
Contrast Ratio: 3000:1 Typ.
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 40,000 Hours Typ.
Orientation: Landscape - PlatformProcessor: ARM based SoC
RAM: 2GB DDR3
Storage: 16GB EMMC iNand - TouchType/ Tech: PCAP touch technology
Touch Point: 10 points touch, 10 points writing
- INPUTHDMI: x1
Audio: x1 PC audio(3.5 mm)
SD/SDHC: Yes - OUTPUTHDMI: x1
- LANRJ45: x1
- USBType A: USB 2.0 x4
Type B: x1 for touch
Mini USB: x1 ( For OTG) - CAMERASecondary Camera (Front): View Angle Free (R/L 178 – Typ.)
Response Time: 5.0MP Autofocus - SPEAKERSSPEAKERS: 2.5Wx2
- COMPATIBILITYHDMI: 480i, 480p,720p,1080i,1080p
- Embedded OSEmbedded OS: Android 8.1
- USB SUPPORTED FILE FORMATUSB SUPPORTED FILE FORMAT: Text: TXTJPEG/BMP/ GIF (non-animated)
Picture: AVI/RM/ RMVB/ MOV/ FLV/ 3GP/ MP4/MKV
Video: Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps
Audio: AAC/ APE/ WMA/ MP3/ OGG/ WAV/ FLAC - Bundle SoftwareBasic Annotation Software: myViewboard for Android
Wireless Presentation with Touch Feedback: Viewboard Cast: vCastReceiver - PowerVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: 35W (typ), 40W (max)
< 0.5W ("Off") - ERGONOMICSWall Mount (VESA® ): 100 x 100
- OPERATING CONDITIONSTemperature (º C): 5°C to 40°C (Landscape only)
Humidity: 20% ~ 90% non-condensing - DIMENSIONS (W x H x D)Physical (mm): 572.9 x 351.8 x 47mm ( 22.6 x 13.9 x 1.9 inches)
Packaging (mm): 643 x 435 x 140 mm ( 25.32 x 17.13 x 4.93 inches) - WEIGHTNet (kg): 5.64 kg (12.43 lb)
Gross (kg): 7.56 Kg (16.65 lb) - REGULATIONSREGULATIONS: FCC, cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP, WEEE
- PACKAGE CONTENTSPACKAGE CONTENTS: 1. IFP2410
2. Power adapter
3. Power cord* (*Applicable power cord is shipped with the product base on the country power type)
4. Quick Start Guide
