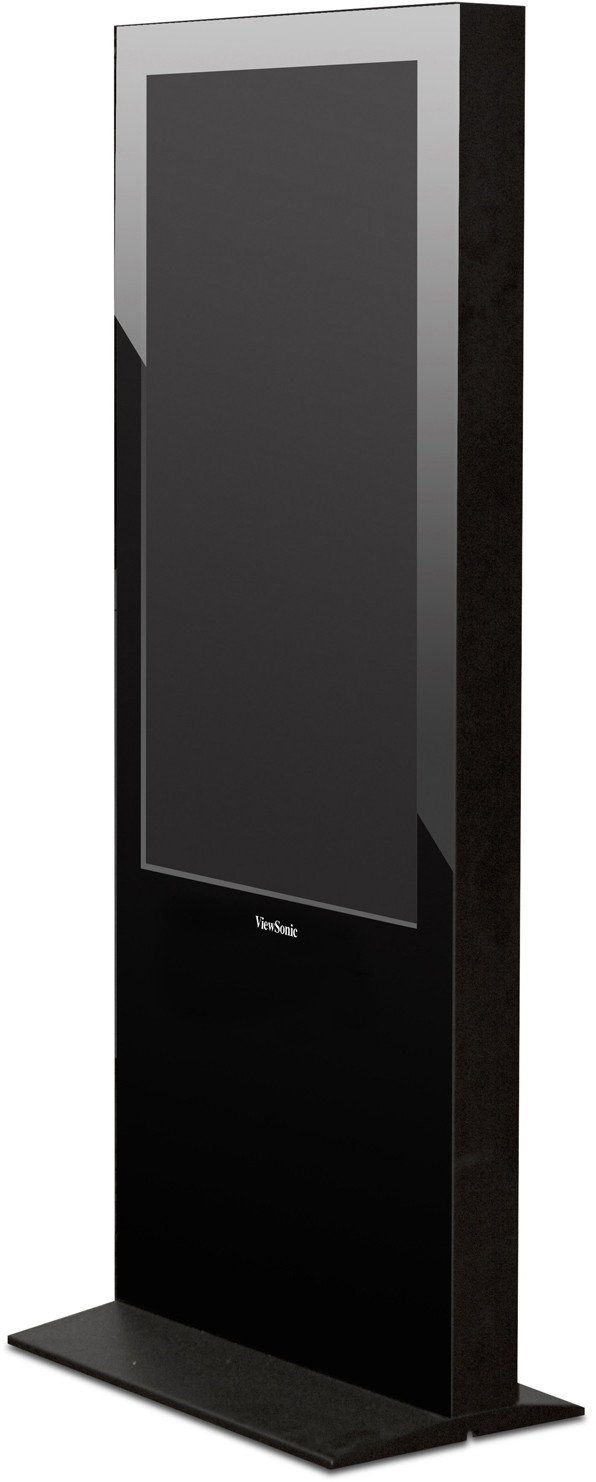

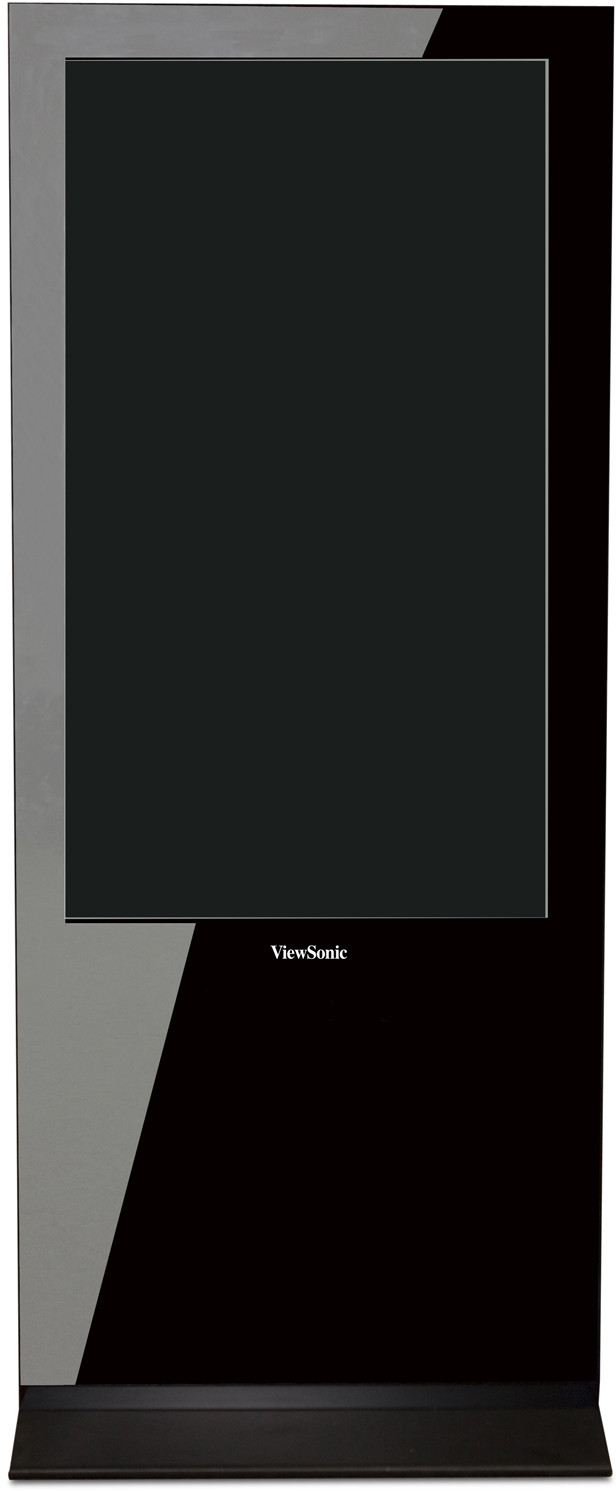

EP5502

Impactful High-Definition Digital Poster

Sales Enquiry

GALLERY

OVERVIEW

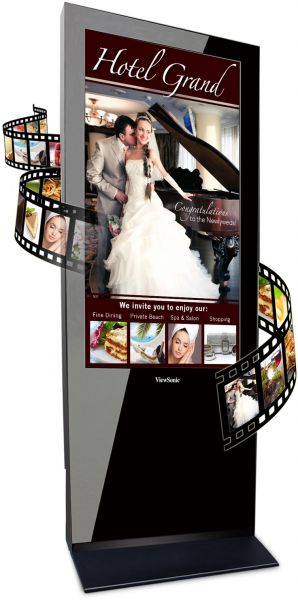

ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful video messaging on high definition digital posters. These sleek new displays feature versatile input connections for easy content uploading or adding your favorite media player. Information is disseminated through the ePoster’s video connectors via or media player or USB thumb drive. ViewSonic’s new ePoster products are available in various sizes and slim profiles fit in beautifully with their limited footprint. Great for announcing special promotions, computergenerated information or communicating multimedia with photos, audio, signage, and video.

55"" Full HD 1920x1080 display resolution

450 nits of brightness with 5,000:1 contrast ratio

Sleek tempered glass faceplate

Versatile video inputs (HDMI, VGA, YPbPr, USB)

Easy loading of content through USB thumb drive

Internal VESA mounting and power supply for adding media players

Compatible with the ViewSonic NMP-570 (W) media player (Optional)

Includes Signage ManagerExpress software

Audio 2x5w

Applications:

• Retail Advertising
• Transportation
• Hospitality
• Education

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Photo Formats: JPEG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC )
DIMENSIONS

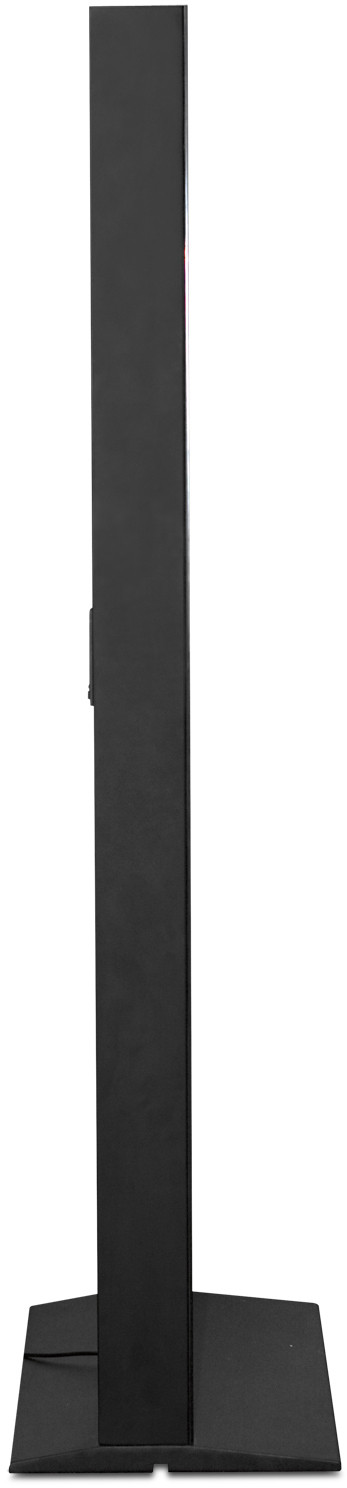

Physical With Stand: 32.68" x 78.7" x 17.72" (830mm x 2000mm x 450mm)

REGULATIONS
FCC, ICES 003, CE
PACKAGE CONTENTS

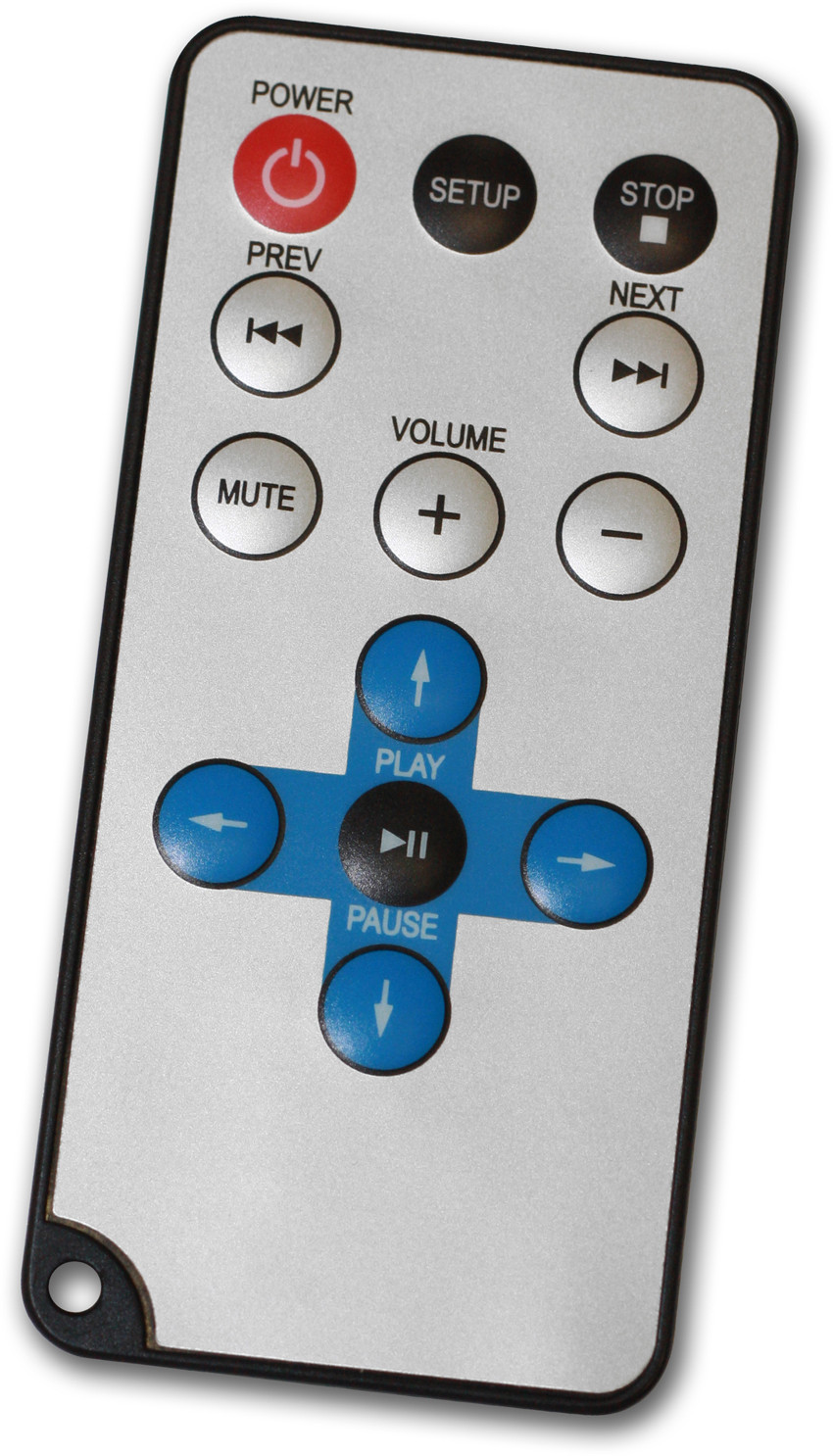

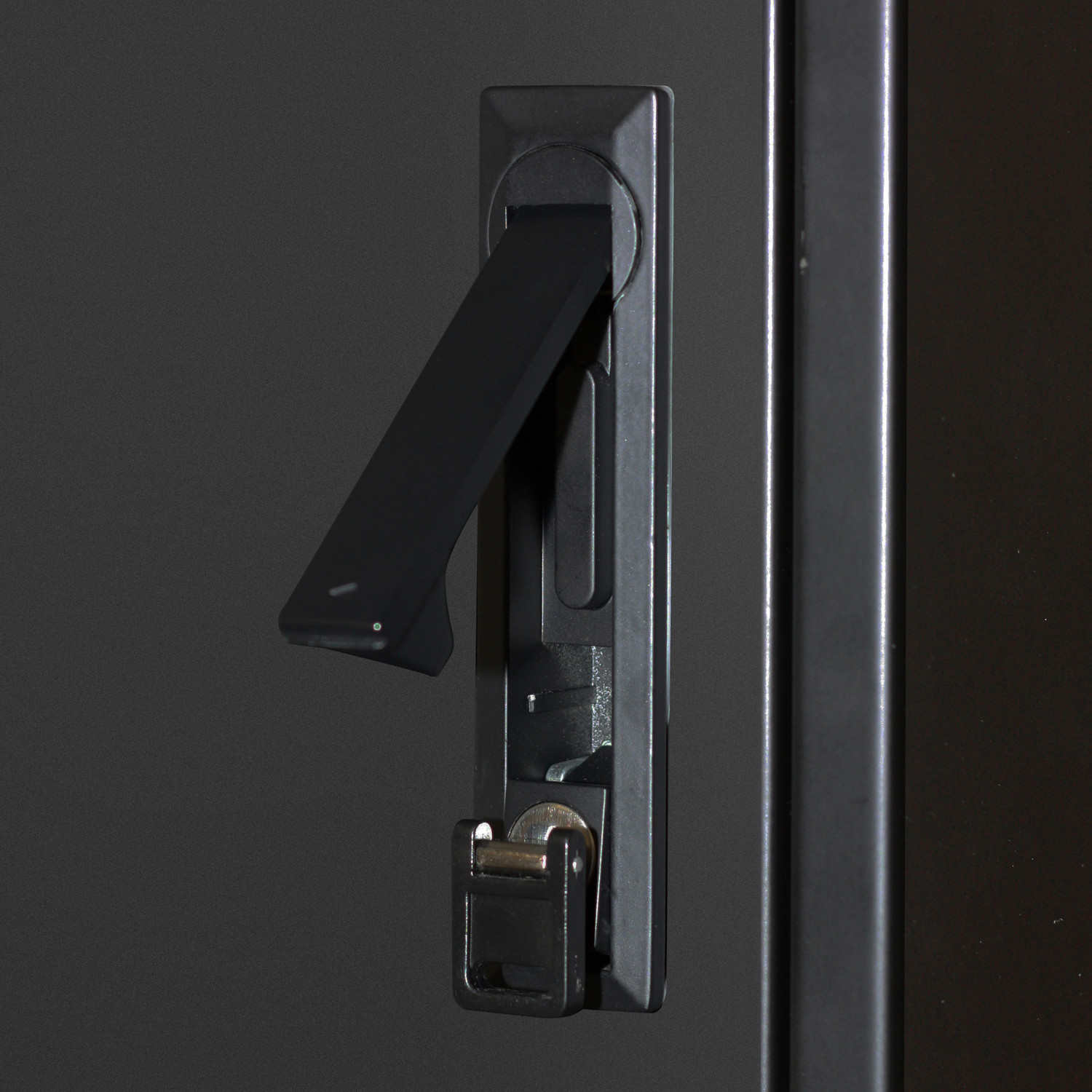

ePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD
AUDIO
Speaker: 5W (x2)
CONNECTOR

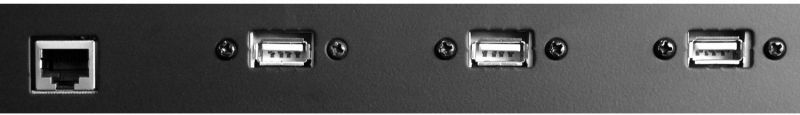

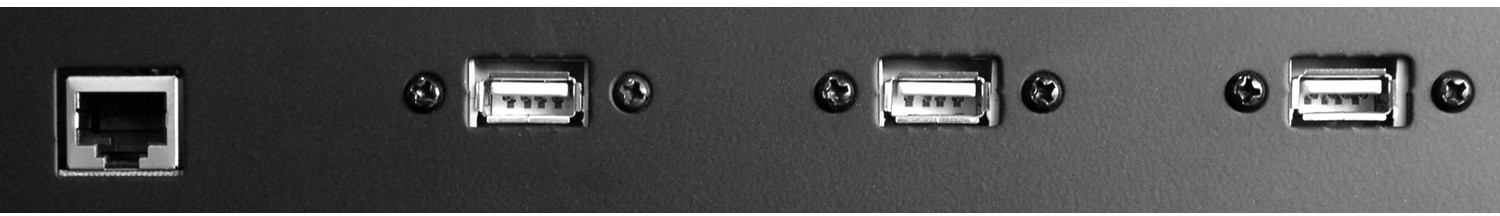

Network: Ethernet RJ-45 (10/100M)
USB: 2.0 (x1)
Card Reader : 2GB Compact Flash
POWER
Consumption: Max 450W
Save Mode (W): Off < 1W
DISPLAY
Contrast Ratio : 5000:1 (typ)
Brightness: 450 cd/m2 (typ)
Type: Diagonal: 55" (139.7 cm)
Resolution: 1920x1080 dots
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 6.0ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
WEIGHT
Gross: 297.6 lbs. (135 kg)
Net: 264.5 lbs. (120 kg)
OPERATING CONDITIONS
Humidity: 20–90% (non-condensing)
Temperature: 32–104º F (0–50º C)

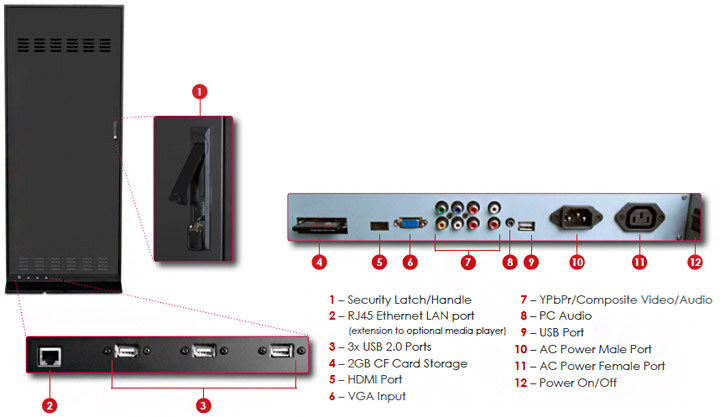

CONNECTORS

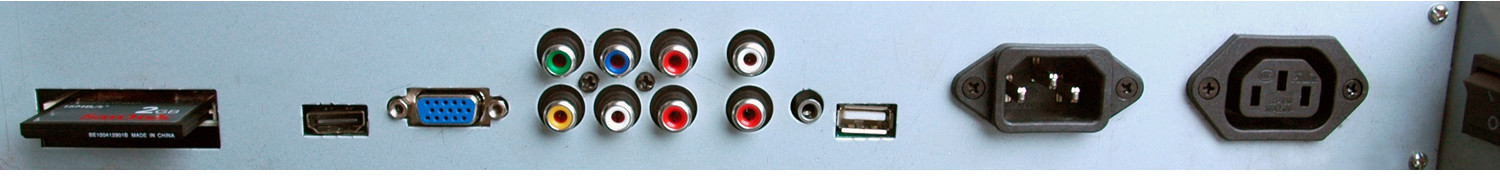

HDMI, VGA, YPbPr, USB, A/V, RJ45 Pigtail
STORAGE ENVIRONMENT
Humidity: 10–90% (non-condensing)
Temperature: -4–140º F (-20–40º C)
CONTENT MANAGEMENT
Operating System: MS Windows
Software: Signage Manager Express
MTBF
50,000 hrs.
