OVERVIEW

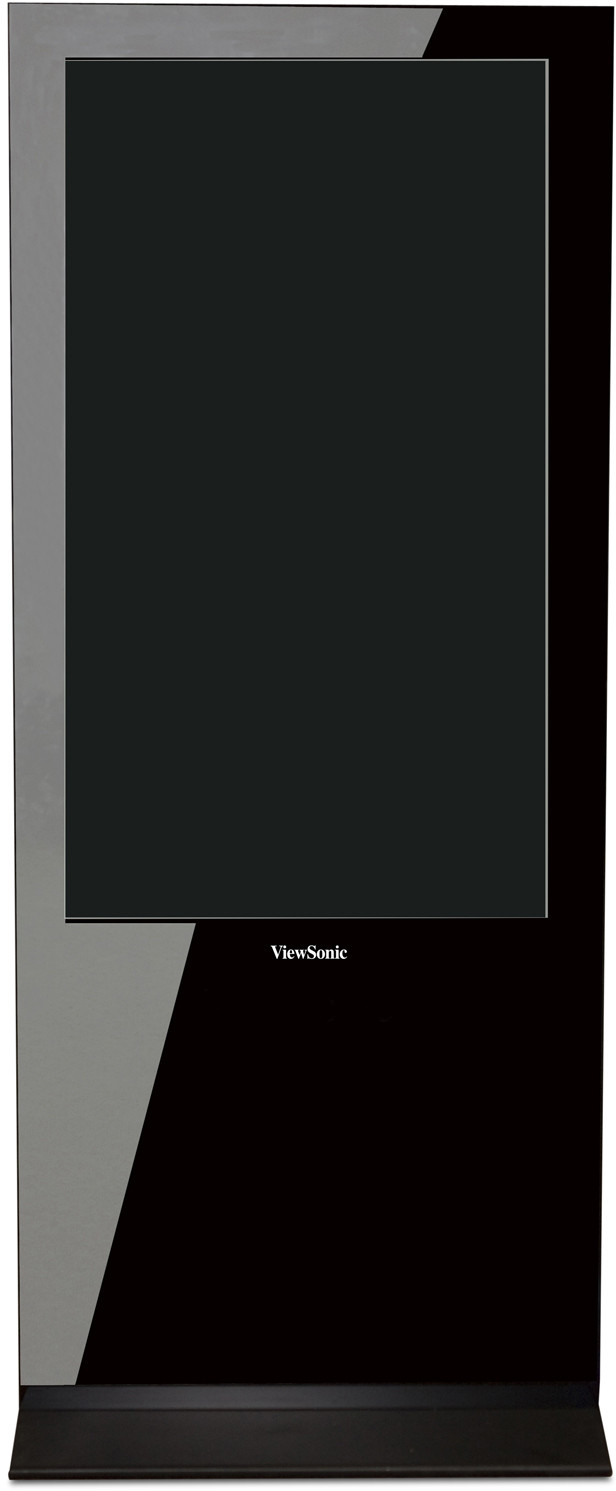

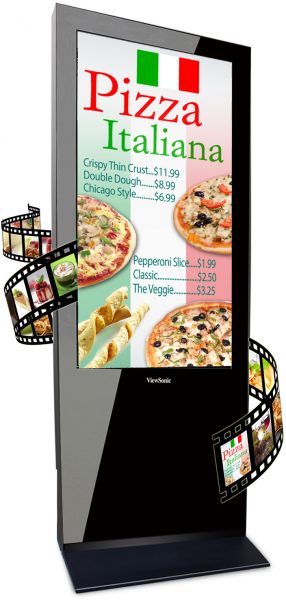

ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful highdefinition digital posters. These sleek new displays feature built-in memory for storing high impact graphics as well as a powerful management tool featuring a content scheduler, duration timer and special effects editor for image transitions. Retail messaging is easy with ViewSonic’s new ePoster family of retail displays. Information is disseminated through the ePoster’s internal network connection or locally via the USB port. ViewSonic’s new ePoster products are available in various sizes and models and can be free standing or wall mounted. Great for announcing special promotions, computer-generated information or communicating multimedia with photos, audio, signage, and video.SPECIFICATIONS
- COLORSBlack
- COMPATIBILITYCard Reader: 2GB Compact Flash

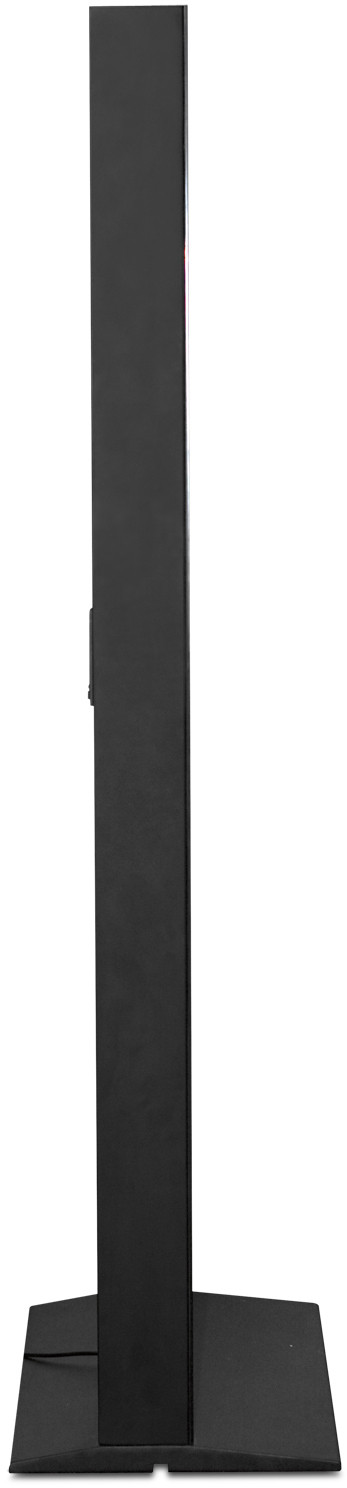

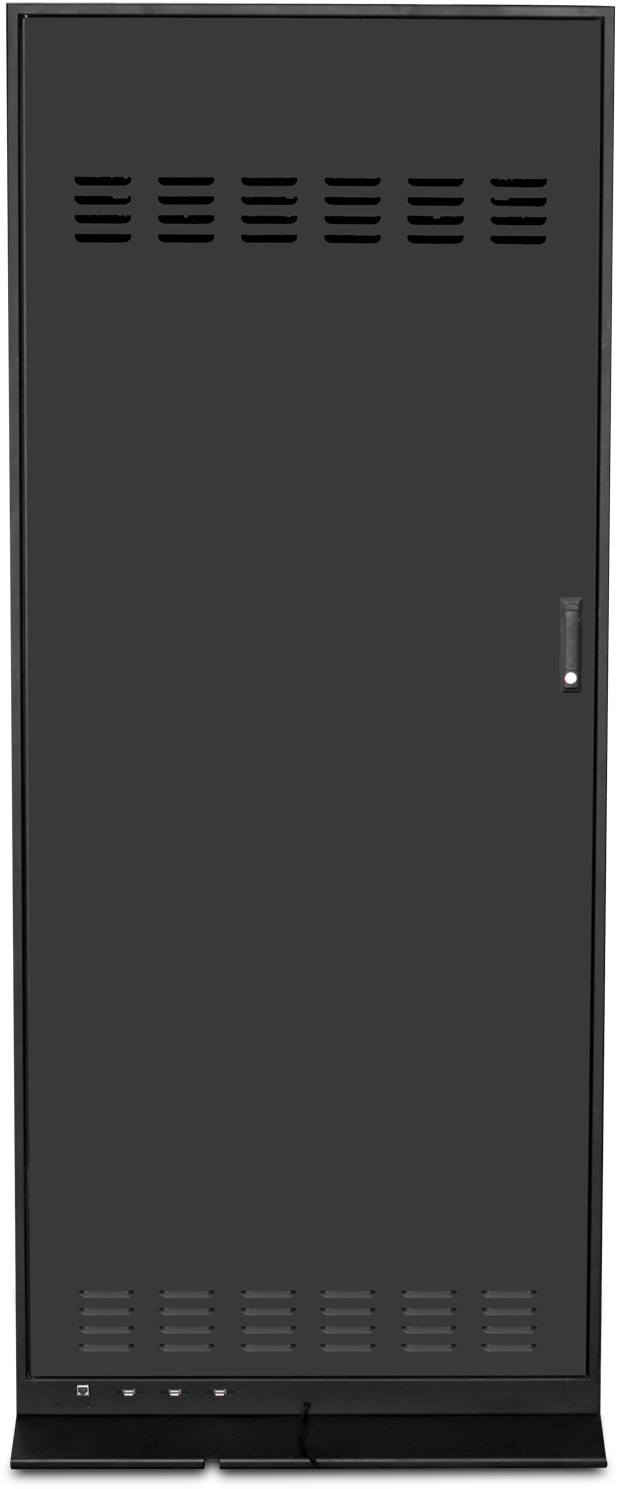

- DIMENSIONSPhysical With Stand: 27.8" x 62.0" x 17.1" (706mm x 1575mm x 450mm)
- REGULATIONSFCC, ICES 003, CE

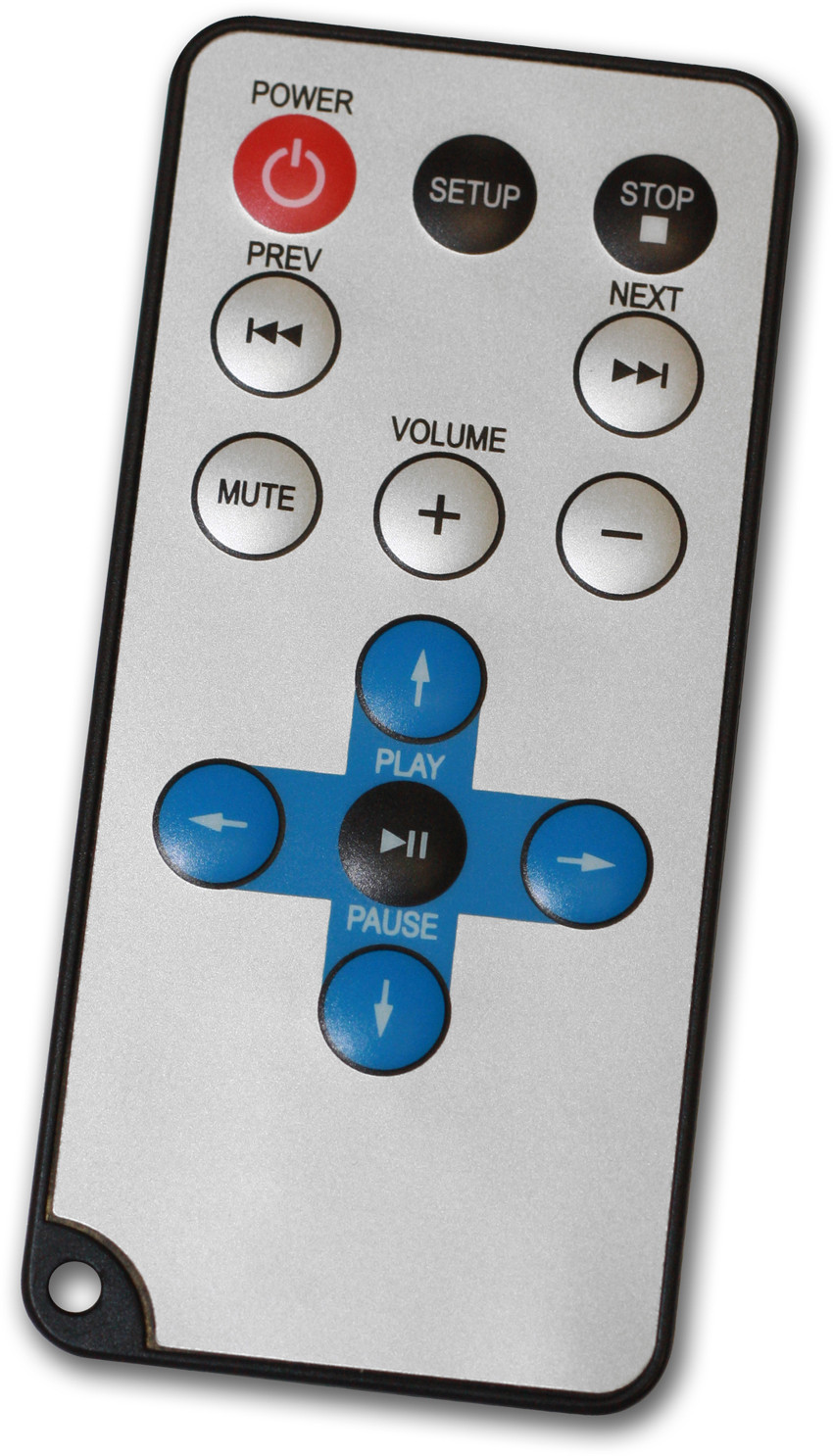

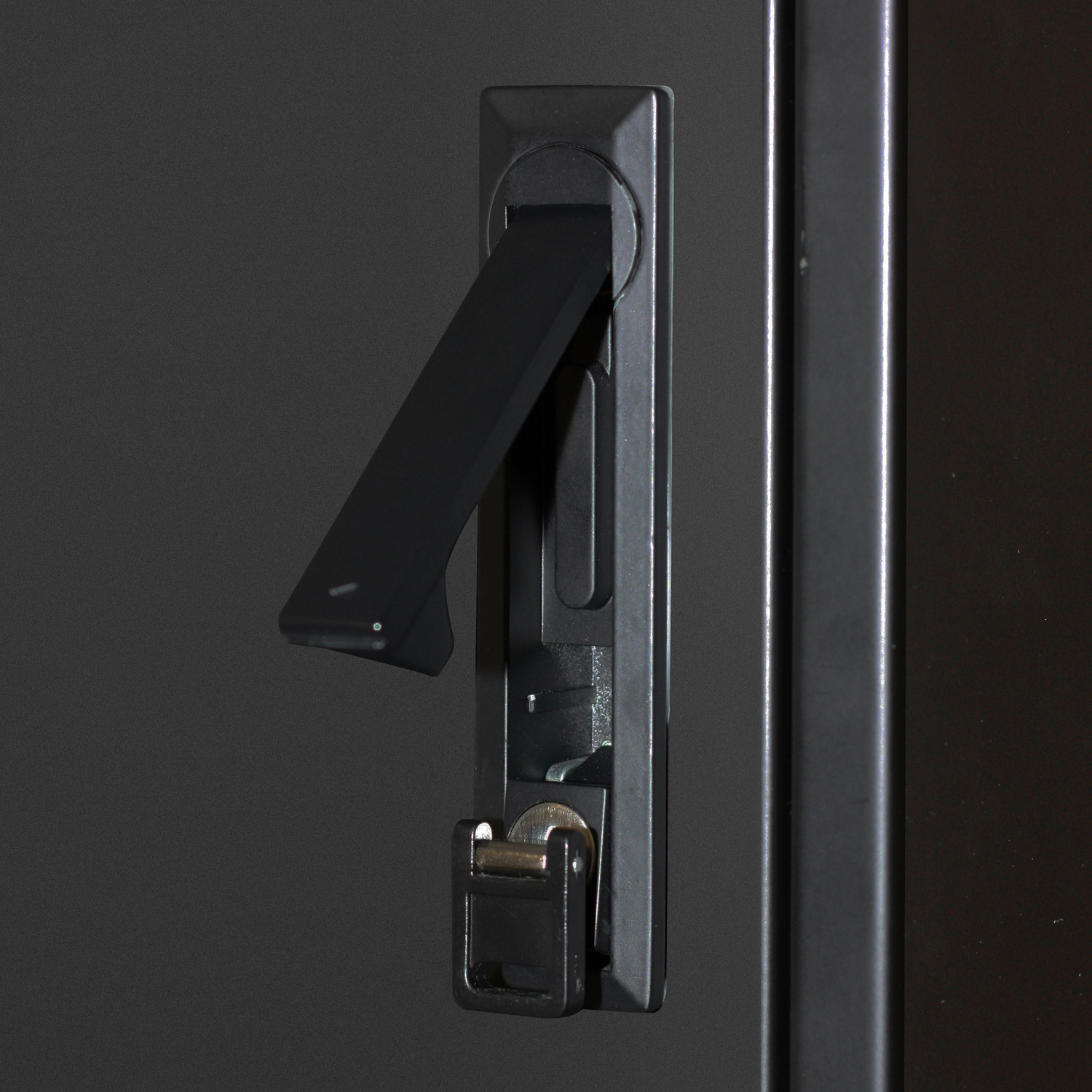

- PACKAGE CONTENTSePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD - AUDIOSpeaker: 5W (x2)
- POWERConsumption: Max 240W
Save Mode (W): Off < 1W
Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz - MEMORYInternal: 2GB
- DISPLAYContrast Ratio : 4000:1 (typ)
Display size: 46" (116.8 cm)
Resolution: 1920x1080 dots
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 8ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
Brightness: 450 cd/m2 (typ) - WEIGHTGross: 286.60 lbs. (130 kg)
Net: 264.55 lbs. (120 kg) - OPERATING CONDITIONSHumidity: 20–90% (non-condensing)

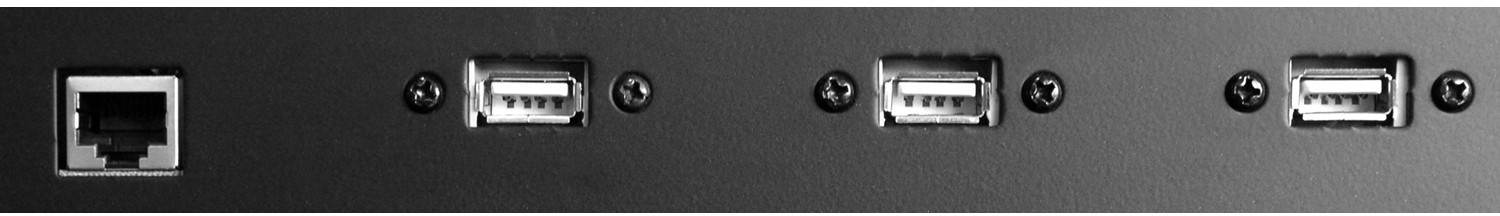

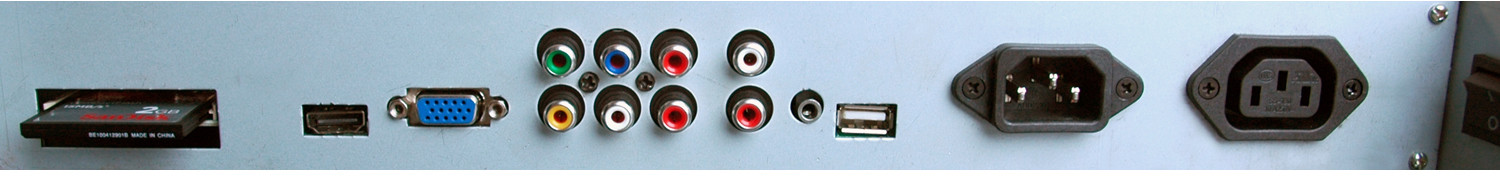

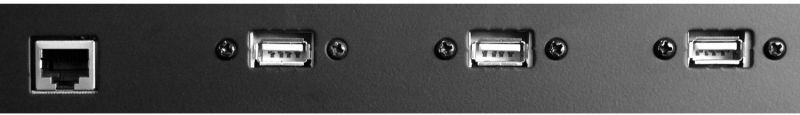

Temperature: 32–104º F (0–40º C) - CONNECTORSHDMI, VGA, yPbPr, USB
- STORAGE ENVIRONMENTHumidity: 10–90% (non-condensing)
Temperature: -4–140º F (-20–60º C) - CONTENT MANAGEMENTOperating System: MS Windows
Software: Signage Manager Express
