OVERVIEW

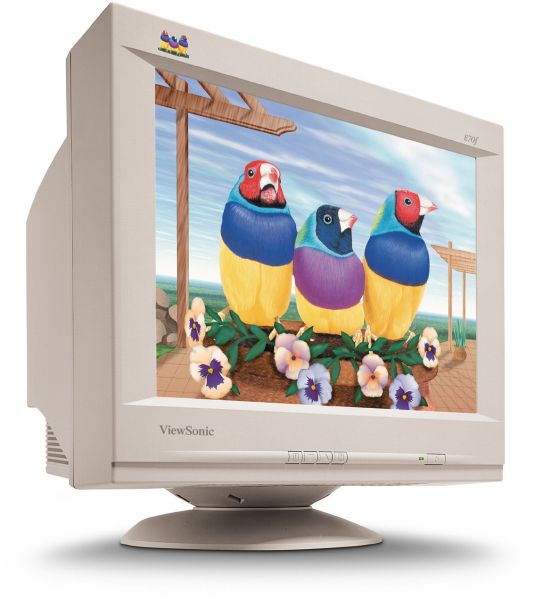

The new 17" (16.0" viewable) ViewSonic E70f monitor is an exceptional value forthose who demand the precise images and minimal glare provided by ourPerfectFlat screen technology. The E70f monitor offers a maximum resolution of1280 x 1024 and boasts a super fine 0.21mm horizontal (0.25mm diagonal) dotpitch for a superior, sharp focus. It is equipped with a new base design for anoptional ViewSonic USB hub. Offering a multitude of upgrades at an affordableprice, the ViewSonic E70f is the ideal PerfectFlat display for education, homeoffice, general business and Internet surfing.SPECIFICATIONS
- COMPATIBILITYPC: IBM and PC compatible from VGA up to
1280 x 1024 (non-interlaced)
Mac®: Power Mac™ compatible (up to 1024 x 768) - DIMENSIONSPhysical (WxHxD): 405mm (W) x 413mm (H) x 420mm (D)
15.9" (W) x 16.3" (H) x 16.5" (D) - REGULATIONSTCO ‘99, TÜV/GS, TÜV/Ergo, ISO9241-3, ISO9241-7,
ISO9241-8, ENERGY STAR®, Energy 2000, MPR-II, CE,
FCC-B, UL, DHHS, NEMKO, DEMKO, SEMKO, FIMKO,
C-Tick, NOM,VCCI, CCIB, GOST, BSMI, PCT, PC99
- WARRANTYThree year limited warranty on CRT, parts and labour
- INPUT SIGNALFrequency: Fh:30~70kHz, Fv:50~120Hz
Video: RGB Analogue (Impedance 75 ohms, 0.7Vp-p)
Sync: H/V separated (TTL) - CONNECTORPower: 3-pin plug (IEC320)
- POWERVoltage: AC 100-240V (auto switch) 50/60 Hz
Consumption: 100W (typical) - CONTROLSOSD: Brightness, contrast, H/V size, H/V position, zoom,
pincushion, pin balance, trapezoid, parallelogram,
rotation, ViewMeter®, ViewMatch® colour, degauss,
H/V moiré, language, recall
Physical: Power ON/OFF, 1, DOWN, UP, 2 - OPERATING CONDITIONSTemperature: 5°C to 60°C (40°F to 140°F)
Humidity: 0% to 95% (non-condensing) - WEIGHTNet: 17Kgs (37.4lbs)
- OTHERDDC1 & DDC2B, VESA® GTF
- VIDEO INPUTBandwidth: 110 MHz
- CRTType: 43cm / 17" (16.0" viewable) 90° deflection
Dot Pitch: 0.21mm Horizontal, 0.13mm Vertical,
0.25mm Diagonal
Phosphor: RGB P22, medium/short persistence
Glass Surface: TM=50.0%, Anti-static, anti-reflection - MISCONVERGENCE0.25 mm (max) centre
0.35 mm (max) corner - DISPLAY AREAFactory Setting: 310mm (H) x 230mm (V) (typical)
Maximum Scan: 320mm (H) x 240 mm (V) [Depending upon signal timing used]
