OVERVIEW

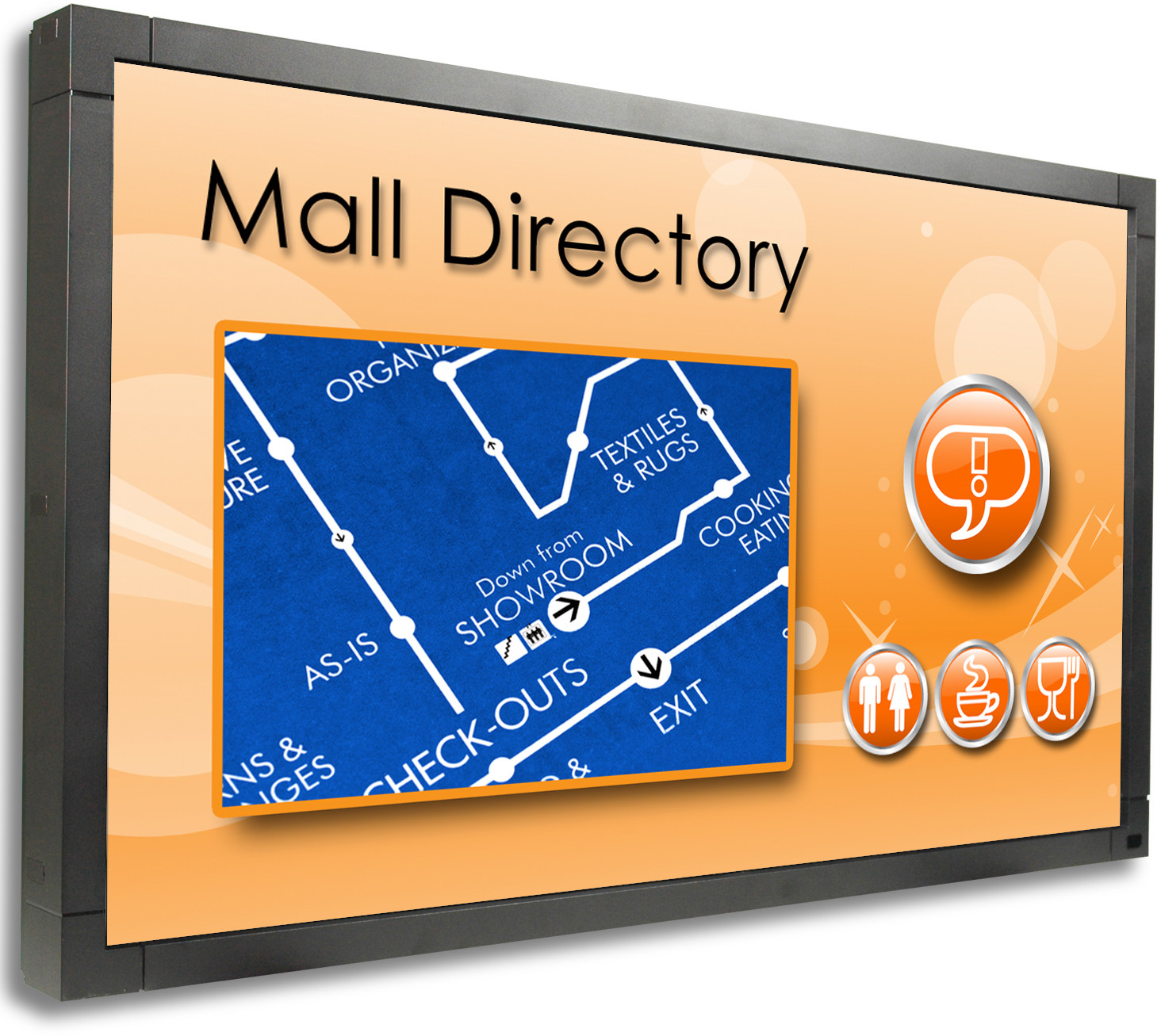

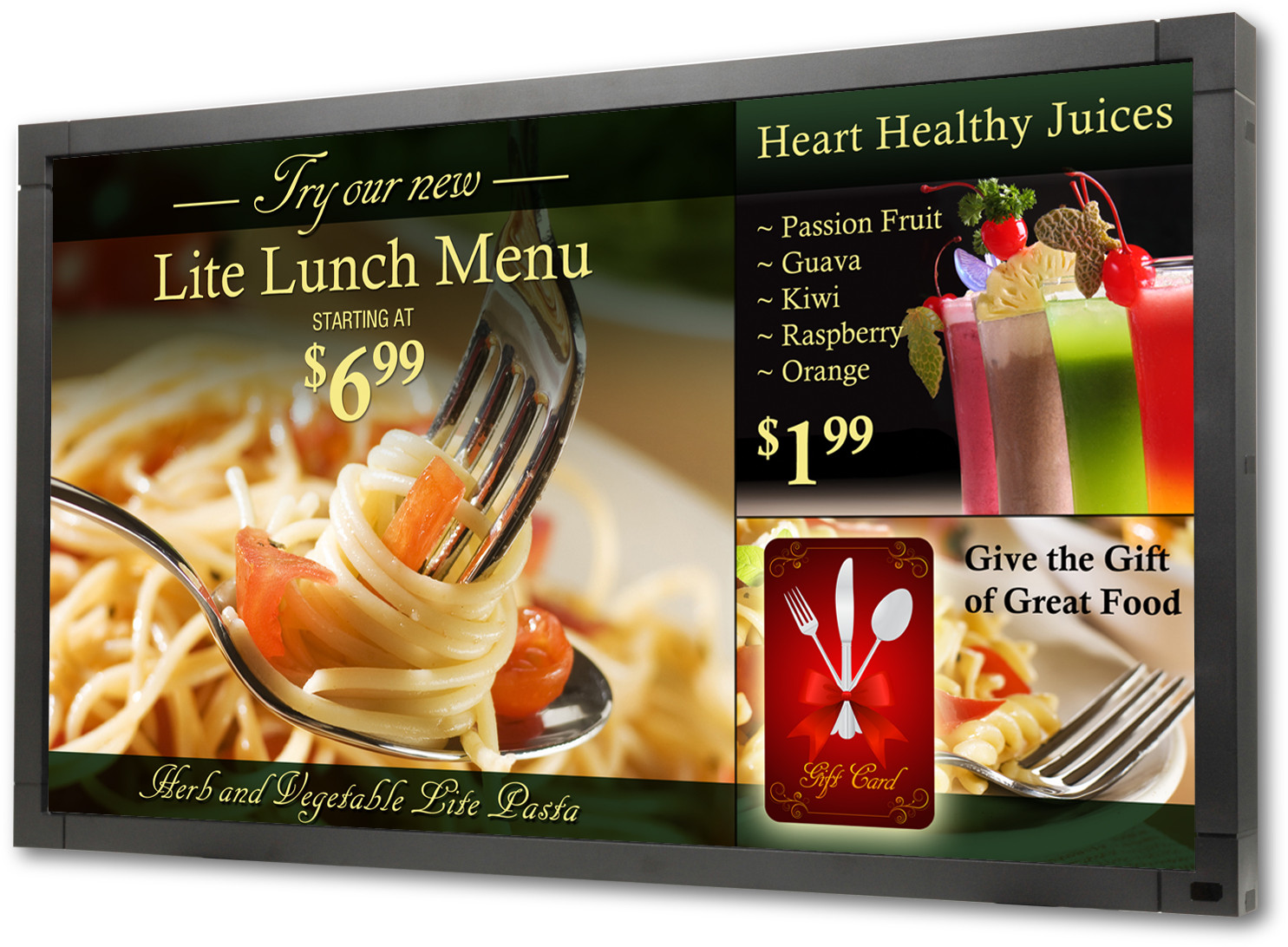

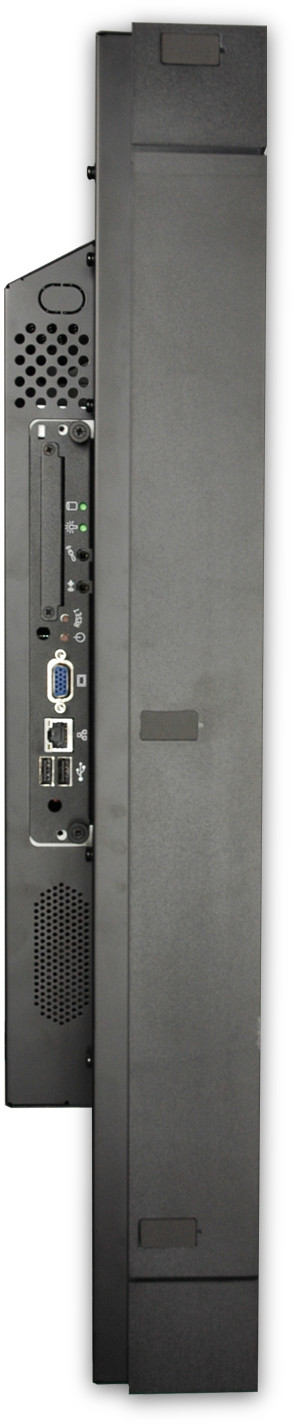

ViewSonic’s new CDP4635 Full HD Commercial display features a FHD 1920 x 1080panel with 4000:1 contrast and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S video and composite, YPbPr and built in 10W x 2 speakers. The CDP4635 will support up to a 5 x 5 display video wall with internal clock and scheduler. RS232 daisy chain and RJ45 are provided for automated remote control.1 - 1080p 9ms panel for vibrant video and crisp images.2 - 16.3mm slim bezel.3 - Intel® OPS media player compatible4 - Display wall capability up to 5x5.5 - RS-232 daisy-chain capable.6 - VGA and DVI inputs/outputs for flexible connectivity and control7 - Remote and panel control lock out.8 - Remote control JR45 port with real time clock & on-off scheduler9 - Applications:- Quick service restaurant menus- Transportation - Arrival / Departure- DOOH Advertising- Campus signage- Hotels and Sports Bars
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz800 x 600 at 50 Hz, 60Hz to 75 Hz1024 x 768 at 50 Hz, 60Hz to 75 Hz1280 x 768 at 50 Hz1360 x 768 at 50 Hz1280 x 1024 at 60Hz1600 x 1200 at 60 Hz1920 x 1080 at 60Hz (recommended resolution)NTSC, PAL, SECAM, 4.43 NTSC, PAL 60Component: 480i,480p,720p,1080i,1080p
SPECIFICATIONS
- COLORSBlack

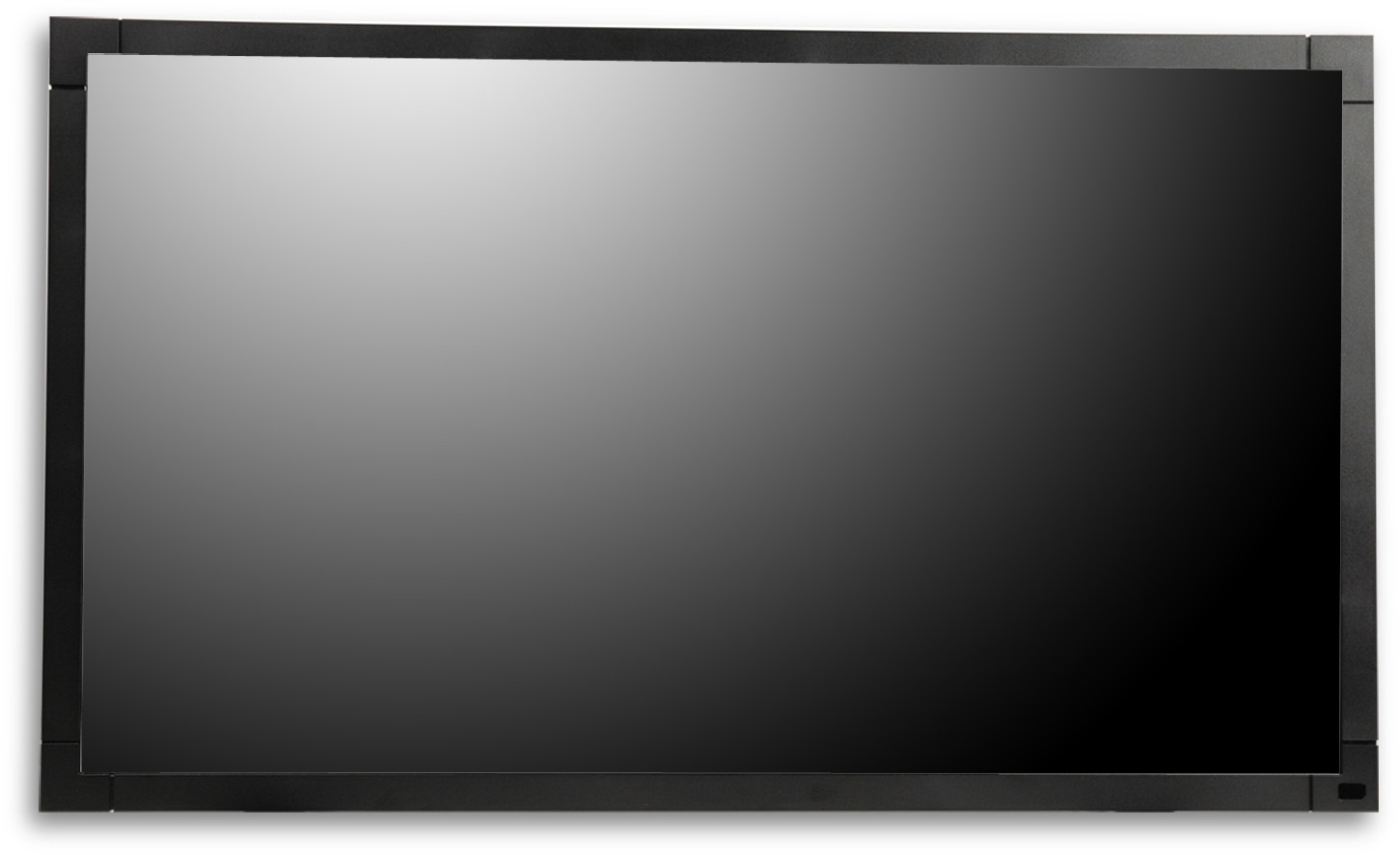

- LCDType: 46" colour TFT active matrix, wide LCD
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 400 cd/m2 (typ)
Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Resolution: 1920x1080, 530mm dot pitch
Response Time: 8ms
Light Source: 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 43" x 26.8" x 13"
(1091.1mm x 681.7mm x 328.3mm)
Physical Without Stand: 43" x 25.4" x4.7"
(1091.1mm x 645.7mm x 120.1mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD

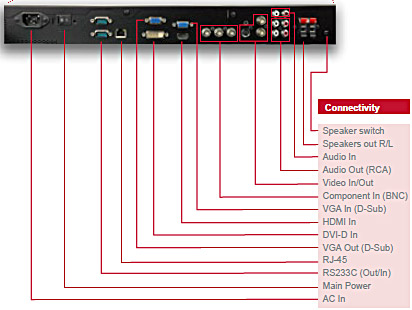

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, colour temperature,
temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position - WEIGHTNet With Stand: 58.1 lb. (26.5 kg)
Net Without Stand: 57.3 lb. (22.6 kg)
Gross With Stand: 68.3 lb. (31 kg) - OPERATING CONDITIONSHumidity: 20–80% (non-condensing)
Temperature (landscape): 41–104ºF (5–40ºC)
Temperature (portrait): 41–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. - AUDIO OUTSpeakers: 2 x 10w
