OVERVIEW

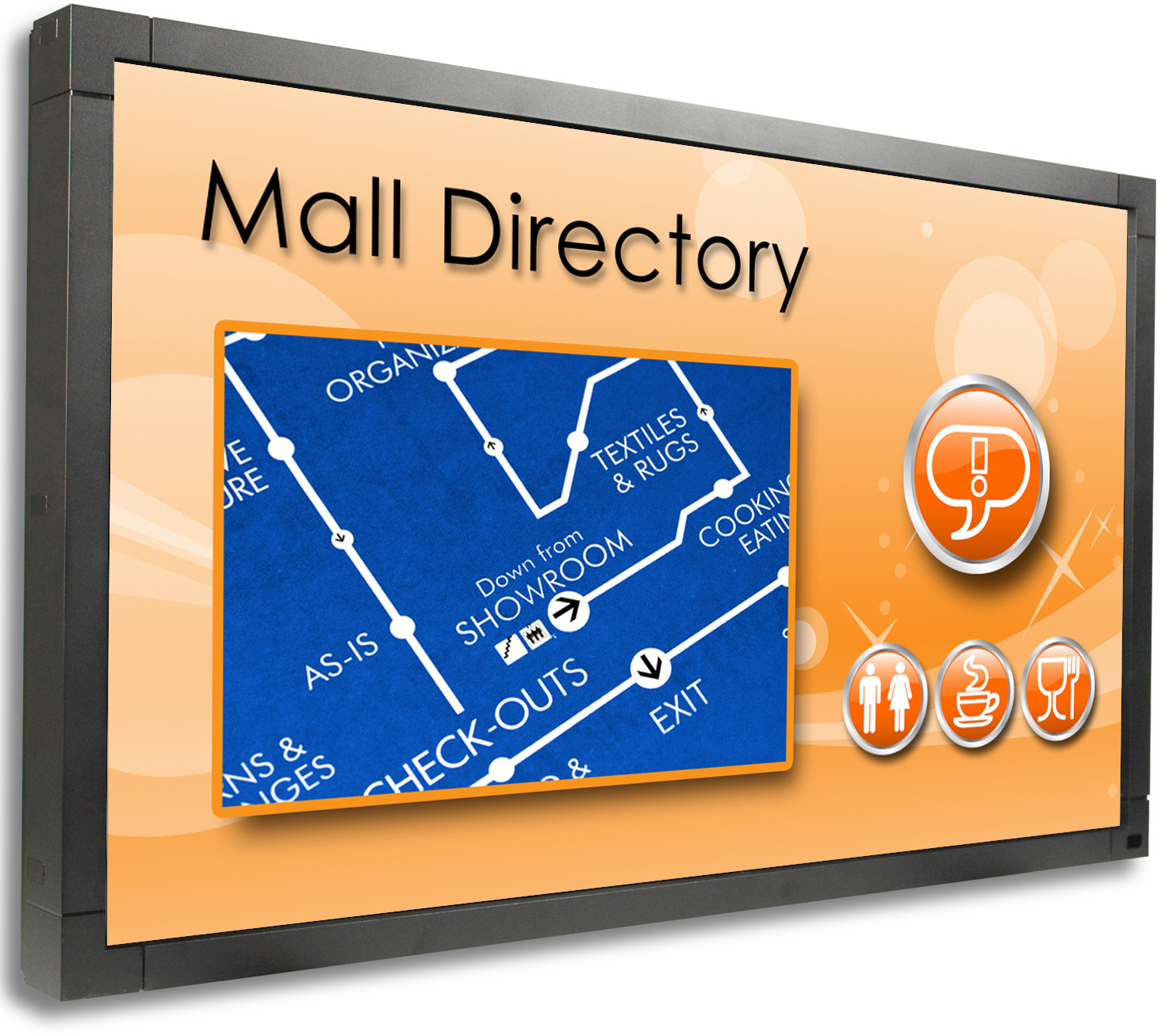

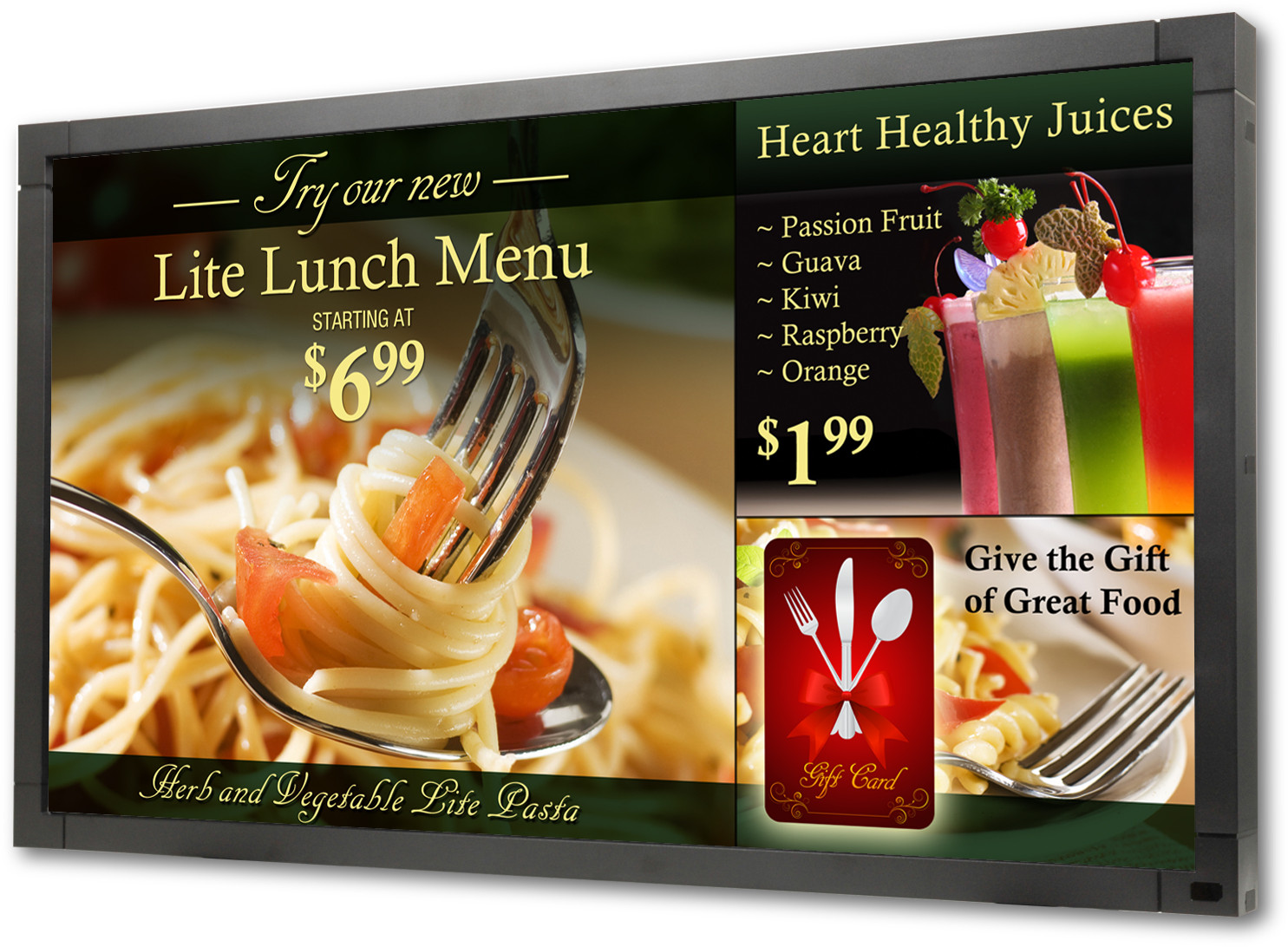

ViewSonic’s new CDP4235 Full HD Commercialdisplay features a FHD 1920 x 1080panel with 4000:1contrast and Intel’s Open Pluggable Specification(OPS) for applications requiring an integrated mediaplayer. Additional features include versatile inputs –HDMI, DVI, VGA, S video and composite, YPbPr andbuilt in 10W x 2 speakers. The CDP4235 will supportup to a 5x5 display video wall with internal clock andscheduler. RS232 daisy chain and RJ45 are providedfor remote control.1- 1080p 9ms panel for vibrant video and crisp images.2- 16.3mm slim bezel.3- Intel OPS media player compatible.4- Display wall capability up to 5x5.5- RS-232 daisy-chain capable.6- VGA and DVI inputs/outputs for flexible connectivity and control7- Remote and panel control lock out.8- 7 day on/off scheduling.9- Remote control JR45 port with real time clock & on-off scheduler10- Applications: - Quick service restaurant menus - Transportation - Arrival / Departure - DOOH Advertising - Campus signage - Hotels and Sports Bars
Resolutions Supported
640 x 480 at 60 Hz to 75 Hz800 x 600 at 50 Hz, 60Hz to 75 Hz1024 x 768 at 50 Hz, 60Hz to 75 Hz1280 x 768 at 50 Hz1360 x 768 at 50 Hz1280 x 1024 at 60Hz1600 x 1200 at 60 Hz1920 x 1080 at 60Hz (recommended resolution)NTSC, PAL, SECAM, 4.43 NTSC, PAL 60Component: 480i,480p,720p,1080i,1080p
SPECIFICATIONS
- COLORSBlack

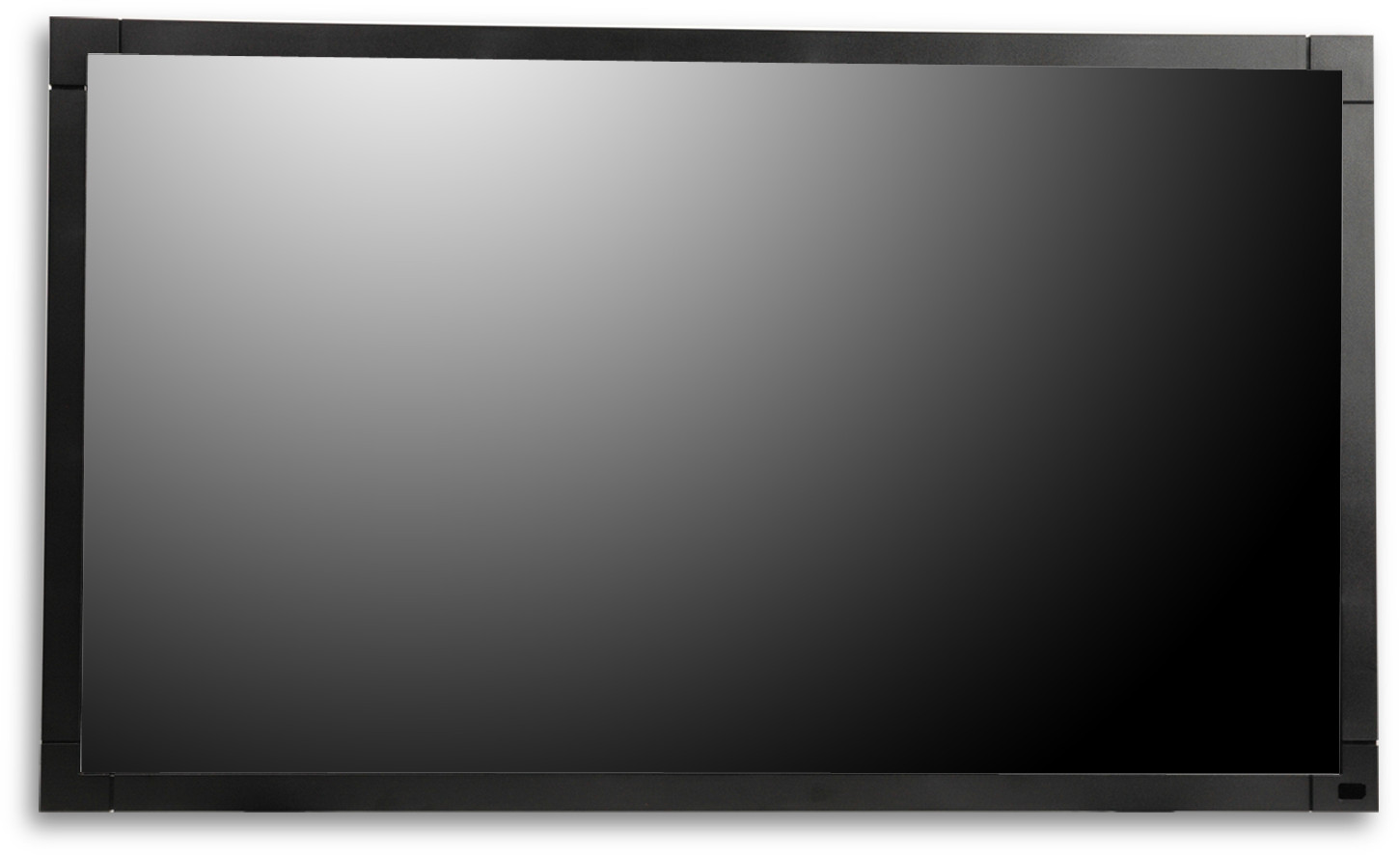

- LCDType: 42" colour TFT active matrix, wide LCD
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Brightness: 450 cd/m2(typ)
Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Resolution: 1920 x 1080, 435mm dot pitch
Response Time: 8ms
Light Source: 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - DIMENSIONSPhysical With Stand: 39.04" x 25.38" x 11.24"
(991.6mm x 621mm x 328.8mm)
Physical Without Stand: 39.04" x 25.5" x1.47"
(991.6mm x 115.5mm x 25.5mm)
- REGULATIONSFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD

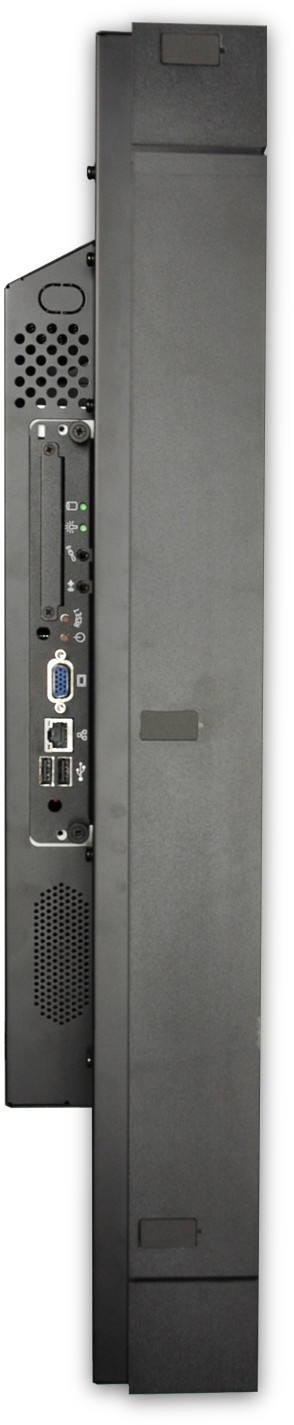

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 210W (typ) - CONTROLSPicture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness
Front Panel: Power, Exit, +, –, Menu/Enter
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Audio: Volume, mute, audio source
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position - VESA MOUNT COMPLIANTVESA 400mm x 400mm
- WEIGHTNet With Stand: 51.8 lb. (23 kg)
Net Without Stand: 50.7 lb. (23 kg)
Gross With Stand: 61.7 lb. (28 kg) - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (5–40ºC)
Temperature (portrait): 32–95ºF (5–35ºC) - RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. - AUDIO OUTSpeakers: 2 x 10w
