OVERVIEW

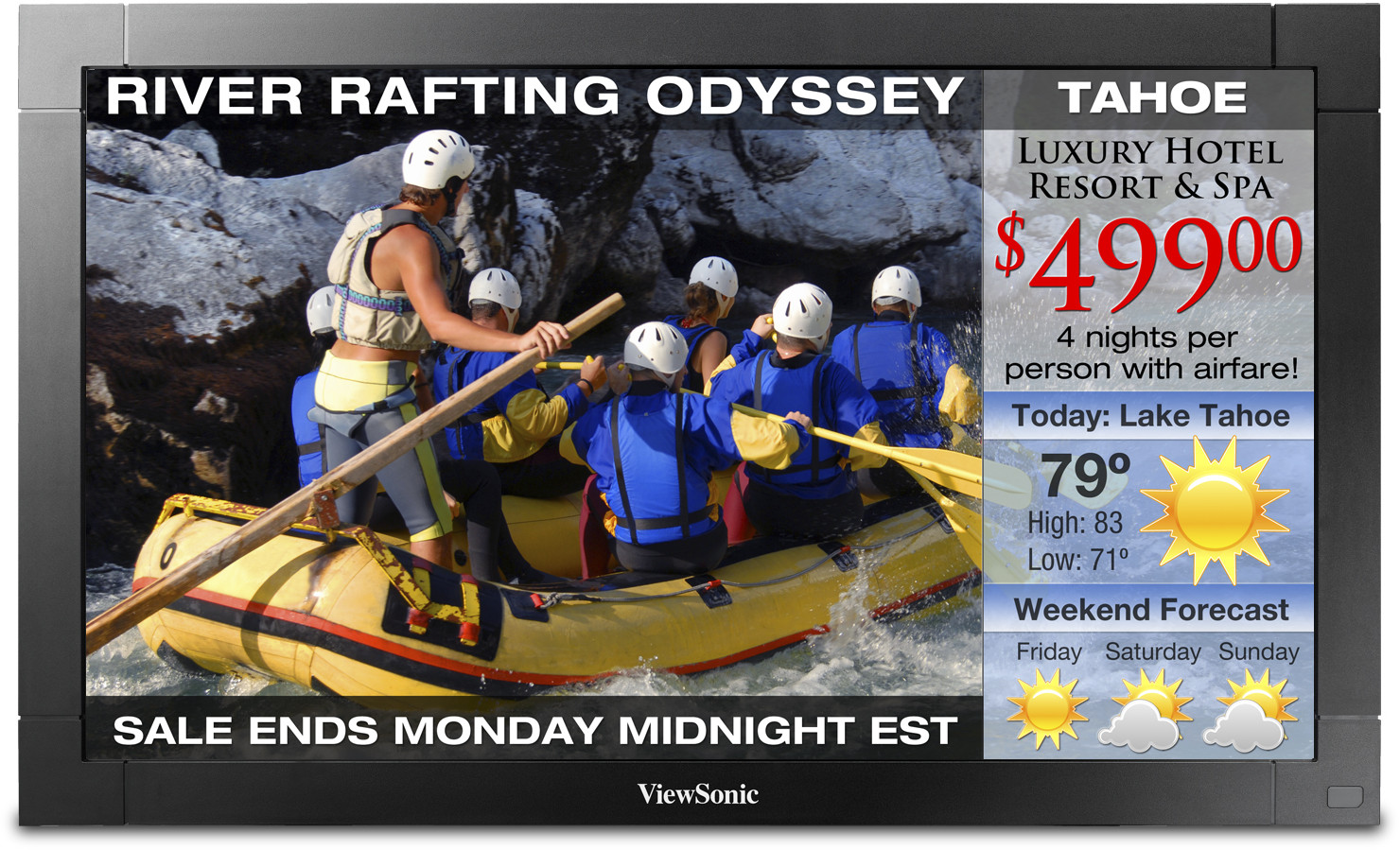

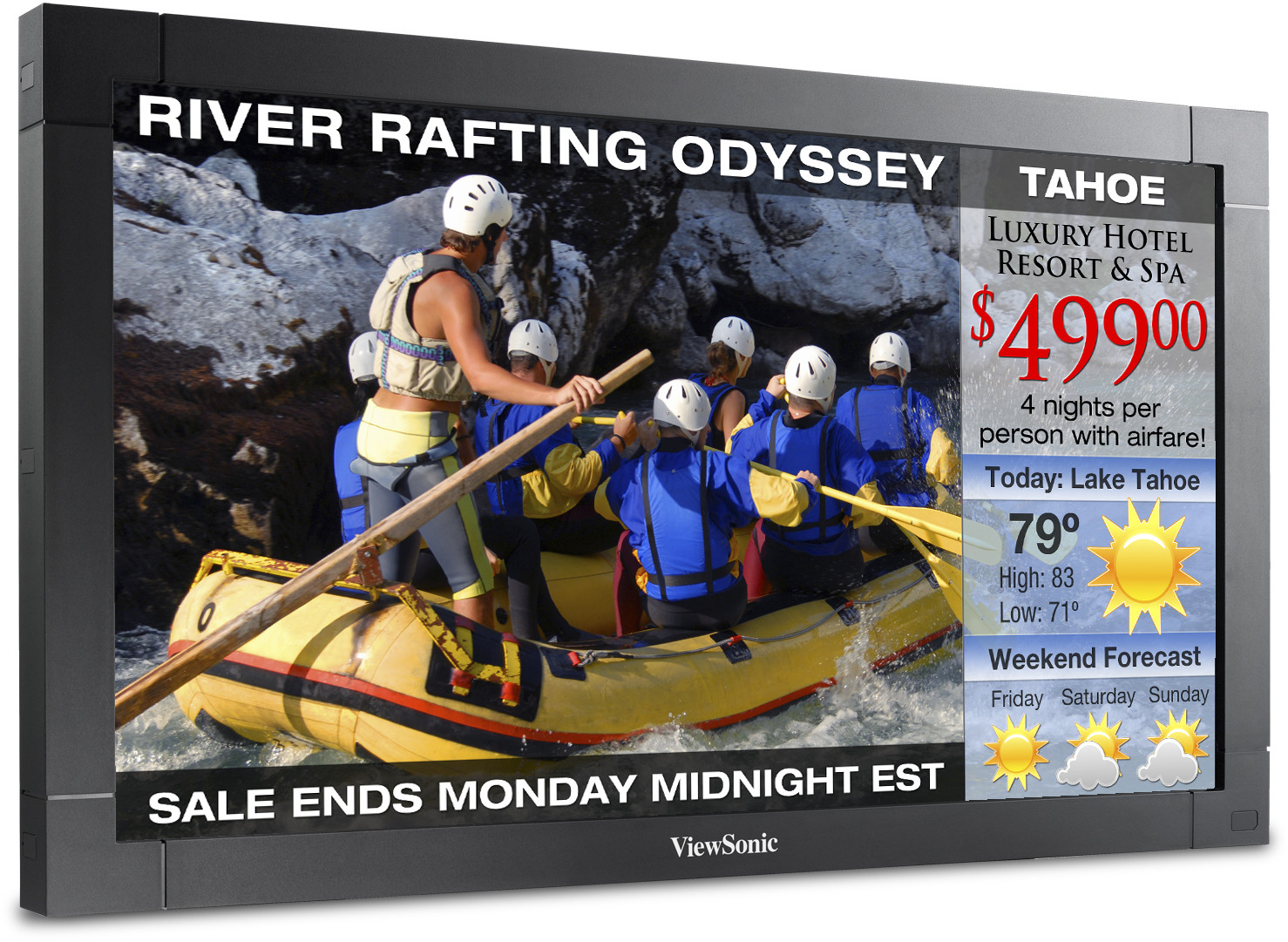

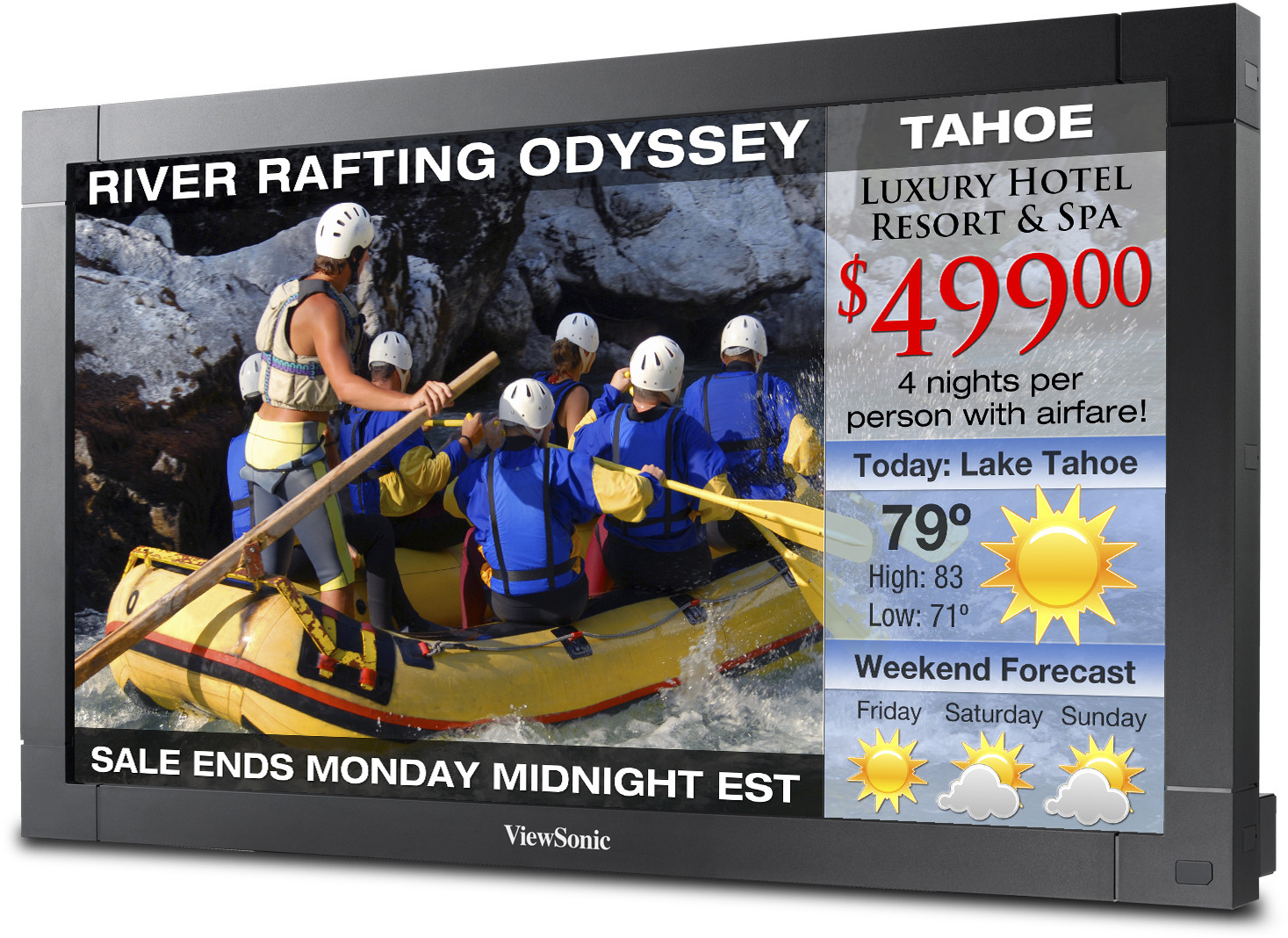

The ViewSonic® CDP3235 HD commercial display is theperfect solution for applications requiring a 32" commercialdisplay capable of a duty cycle of 24/7 operation. TheCDP3235 HD commercial display features a 1366x768HD panel with 3000:1 contrast ratio. Additional featuresinclude versatile inputs – HDMI, DVI, VGA, S-video andcomposite, component video and built-in 10W x 2 speakers.The CDP3235 will support up to a 5x5 display video wallwith internal clock and scheduler. RS-232 daisy chaincapability and a RJ45 connection for LAN remote controlare also provided.32"" HD Display Optimized for Commercial Applications
The ViewSonic CDP3235 is designed for use in public, retail and commercial signage installations.- Public display areas that need robust
commercial displays
- Mount in portrait or landscape orientation
- Designed for 24/7 operation
- Ideal for transportation – arrival / departure
display applications
- Video Wall solution – up to 5x5 tile matrix
- Quick Service Restaurant menus (QSR)"
Versatile Connectivity for Any Environment
- Multiple digital and analogue inputs/outputs
- RS-232 daisy chain capable
- Component BNC connections
- RJ45 LAN control
- Internal speakers
- External speaker connections
SPECIFICATIONS
- COLORSBlack
- LCDType: 32" (31.5" viewable) colour TFT active matrix, wide LCD
Contrast Ratio: 3000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
Optimum Resolution: 1366x768 530mm dot pitch
Response Time: 6.5 ms
Light Source: Long life, 50,000 hrs. (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H)
Brightness: 450 cd/m2 (typ) - DIMENSIONSPhysical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
Packaging: 44.8 x 29.3 x 12.0 in. / 880 x 670 x 252 mm

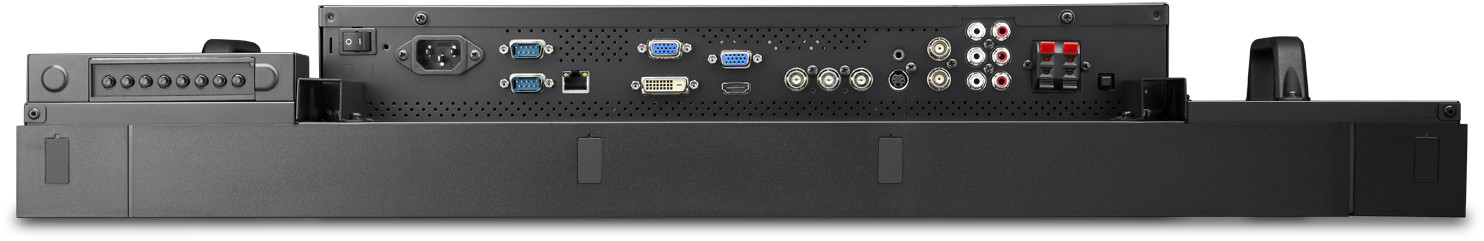

- INPUTVideo Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
- CONNECTORDigital: HDMI, DVI
Power: 3-pin plug
Analog: 9-pin mini D-sub (VGA) - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 140W (typ) - CONTROLSBasic: Power, Exit, +, –, Menu/Enter
Picture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
Audio: Volume, mute, audio source
Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
Input: VGA, DVI, HDMI, YPbPr
OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer
VGA Setting: Auto adjustment, clock, phase, sharpness,

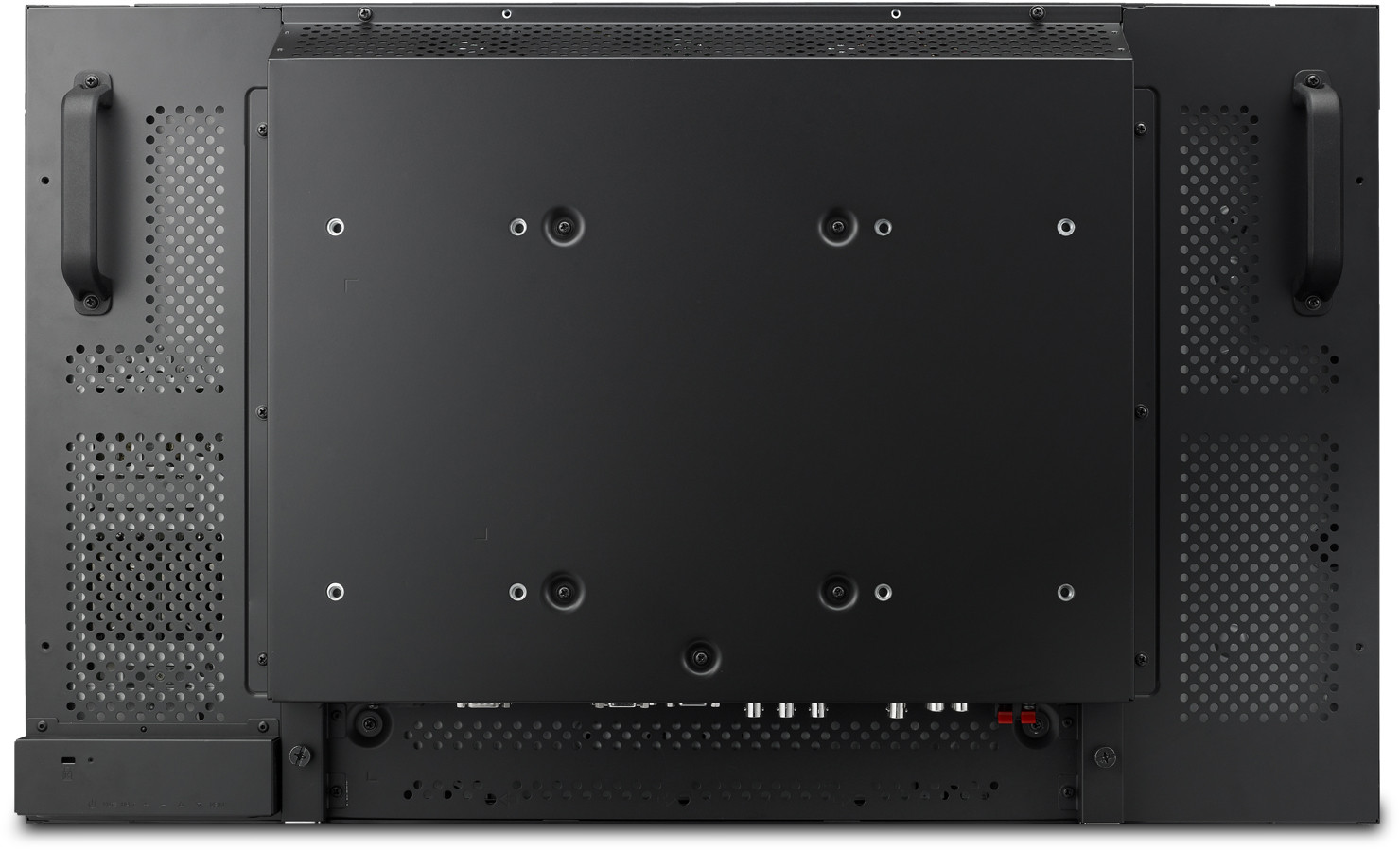

H. position, V. position - VESA® MOUNT400mm x 200mm, 200mm x 200mm
- WEIGHTGross: 40.8 lb. / 18.5 kg
Net With Stand: 33.1 lb. / 14.6 kg
Net Without Stand: 32.2 lb. / 15 kg - OPERATING CONDITIONSHumidity: 10–80% (non-condensing)
Temperature (landscape): 32–104ºF (0–40ºC)
Temperature (portrait): 32–95ºF (0–35ºC) - AUDIO OUTSpeakers: Internal 10-watt (x2)

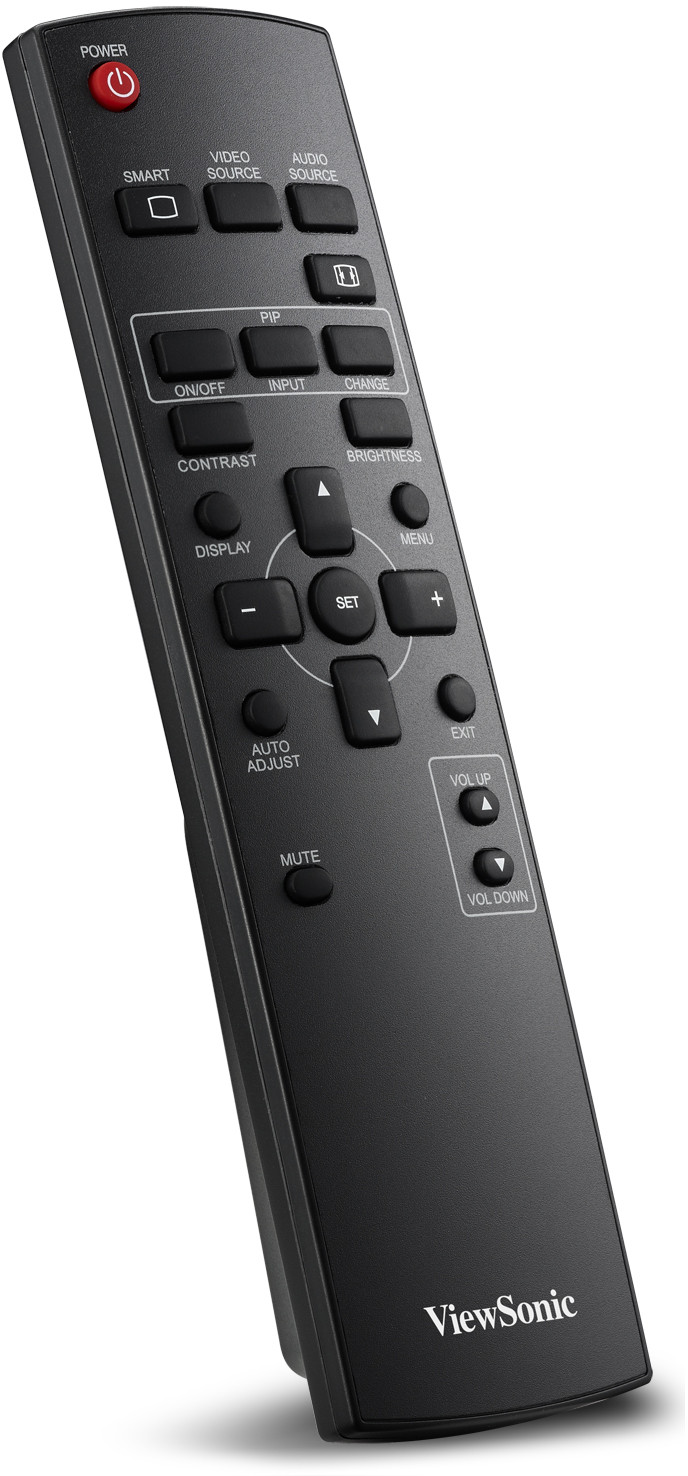

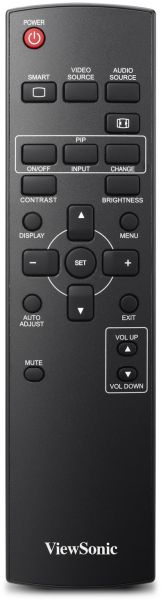

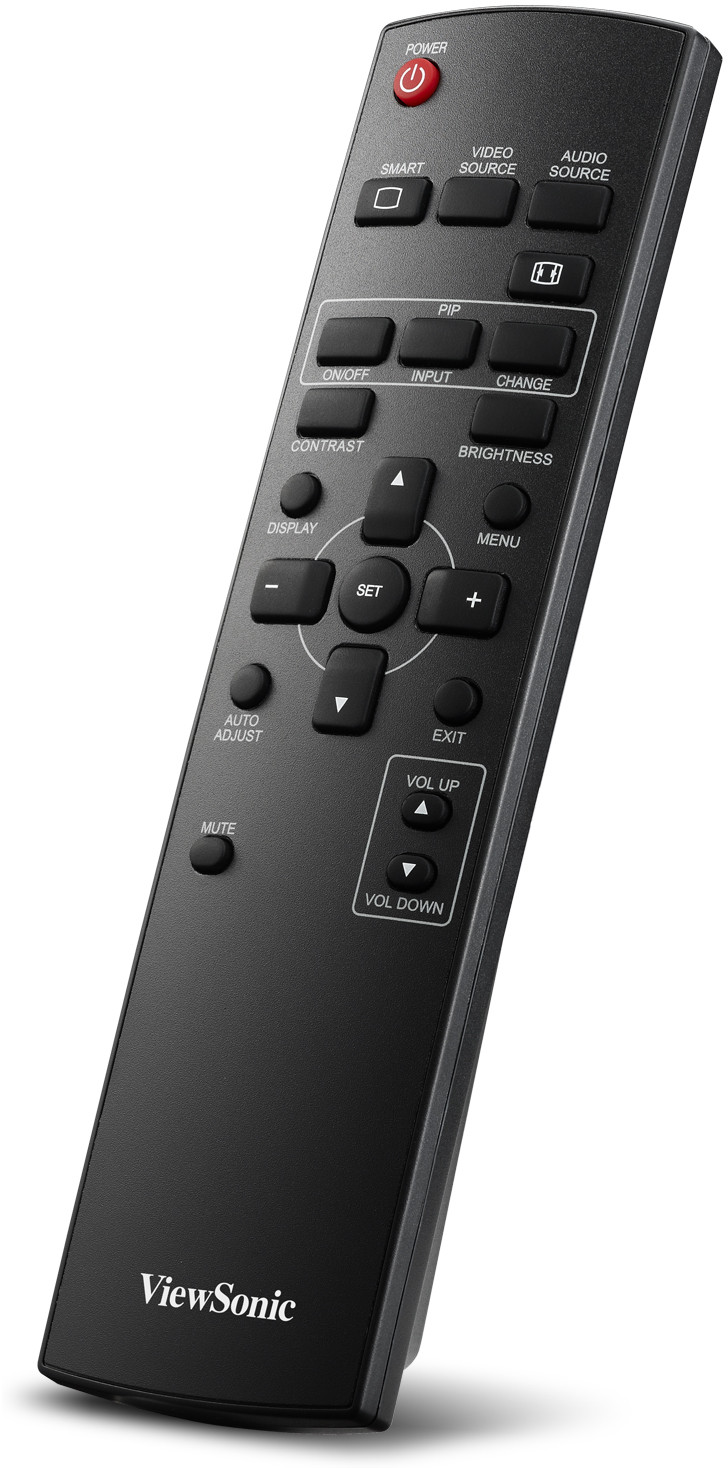

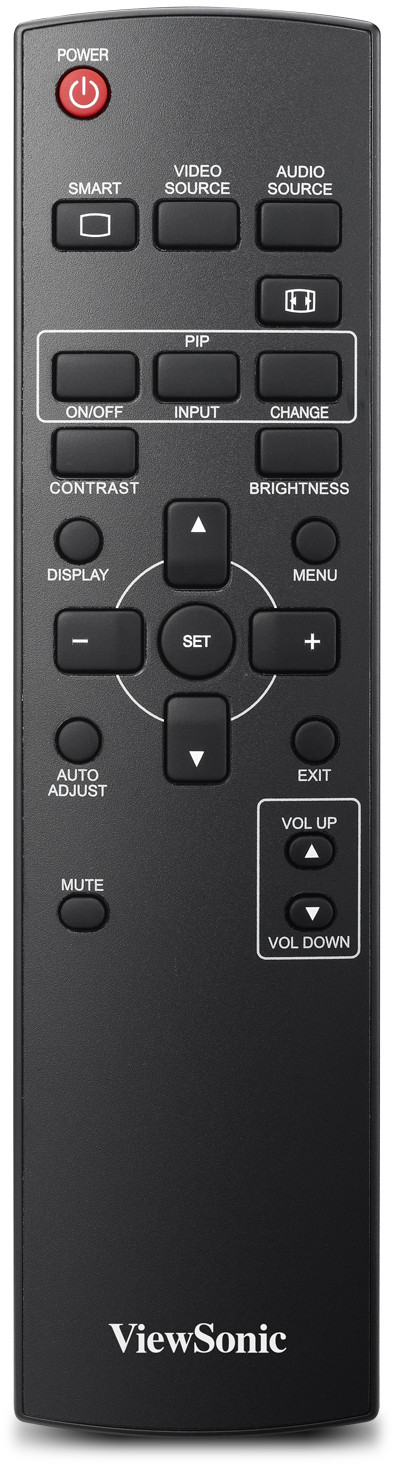

- Package ContentsCDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
- Recycle/DisposalThe lamp in this product contains mercury. Please dispose
of in accordance with local, state or federal laws. - RegulationsFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
