“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”

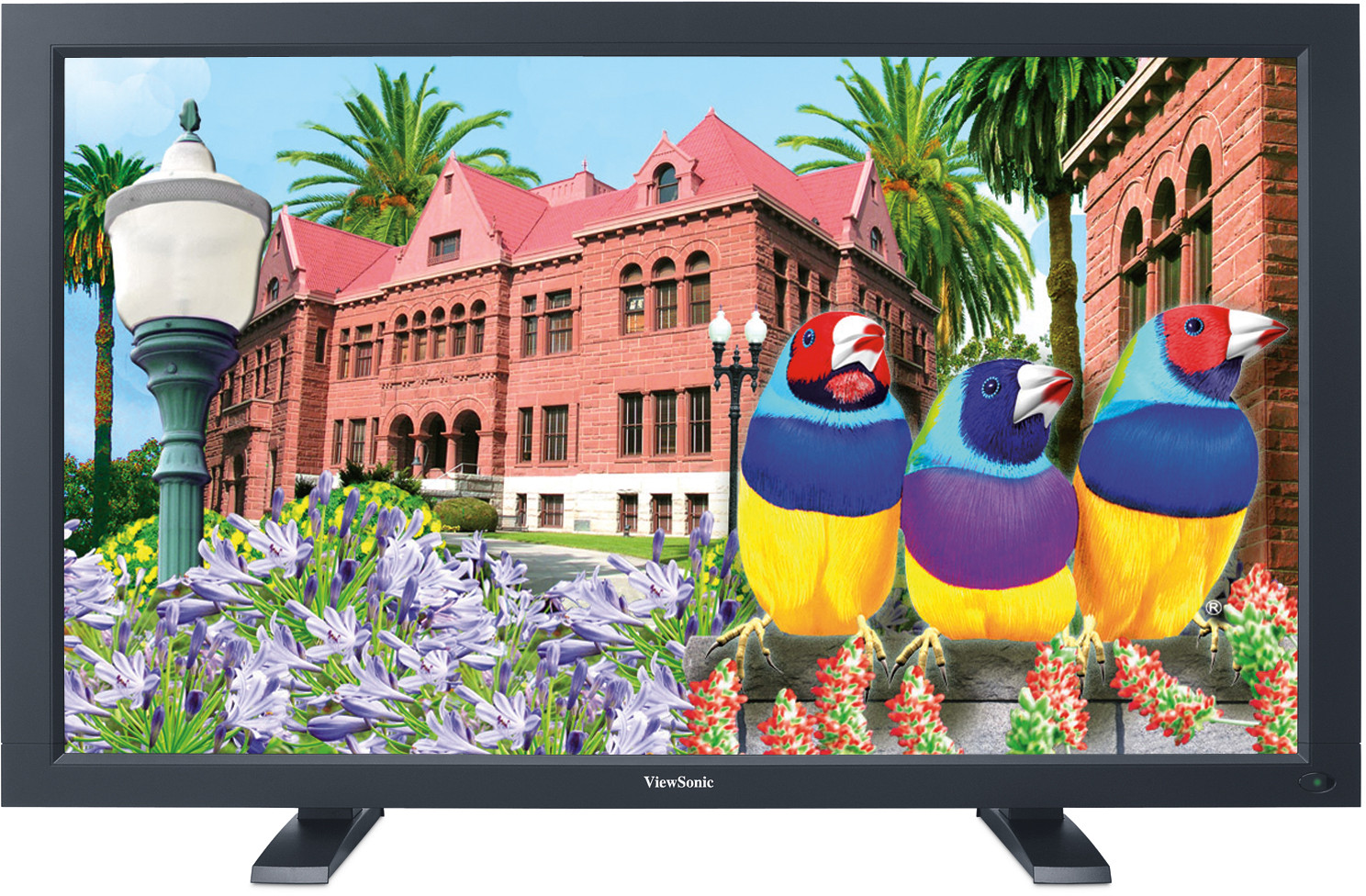

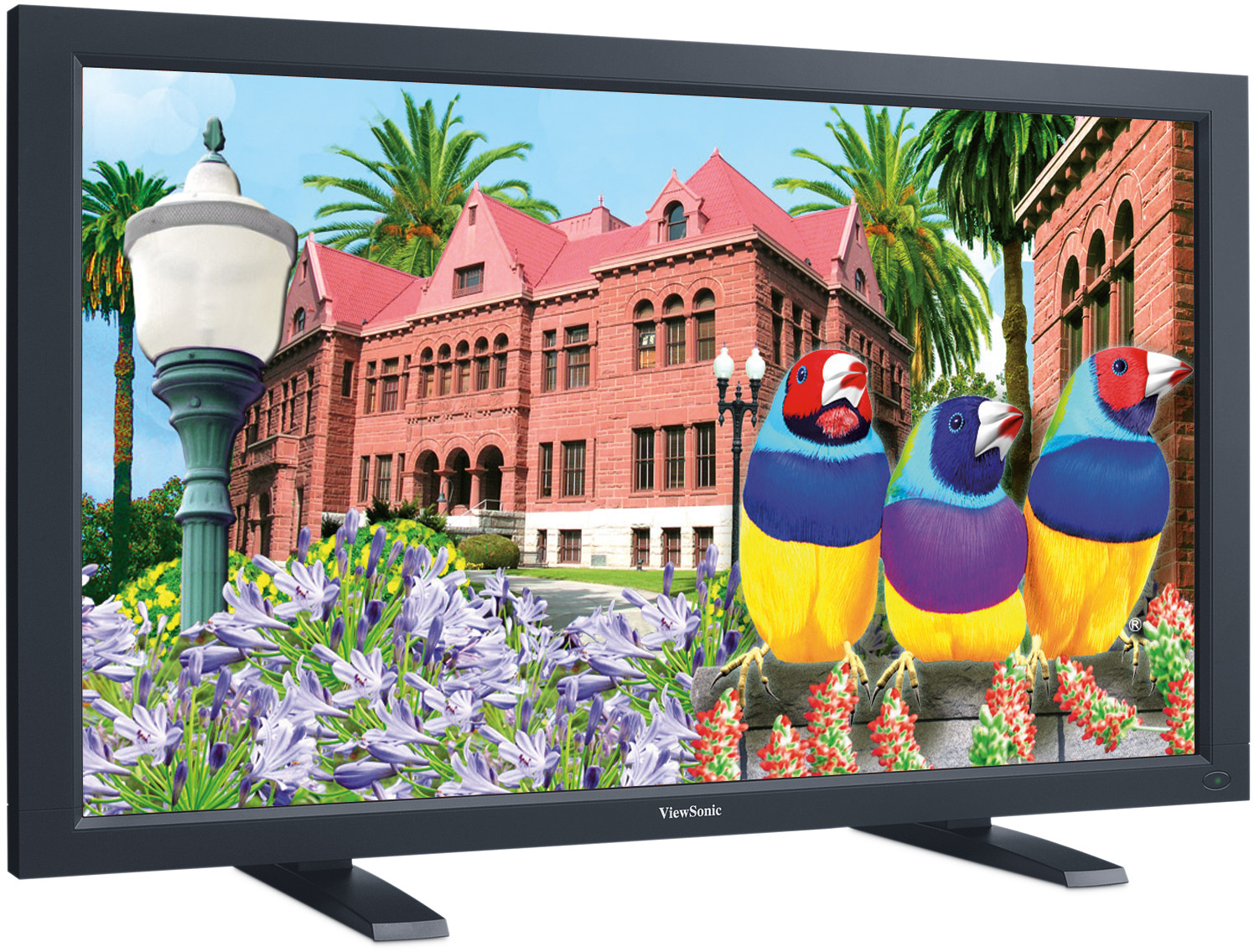

High Impact 1080p Digital Signage
ViewSonic’s 46” CD4620 Commercial Display delivers STUNNING FULL HIGH DEFINITION CONTENT TO YOUR AUDIENCE FOR THEIR VIEWING PLEASURE. This 1080p LCD panel displays stunning images at almost print-quality resolution in your Digital Signage applications. VGA input and output plus RS-232 input allows you to DAISY CHAIN MULTIPLE DISPLAYS into the signage network and still be able to control each display individually. Other inputs include HDMI, S-VIDEO, COMPONENT, COMPOSITE and PC-VGA. Wide viewing angles, high brightness and contrast and 1920 x 1080 native resolution ensure crystal clear images in virtually any room or lighting conditions. A fast 6ms response time delivers crisp scrolling text or videos. The CD4620 sets a new standard for large format, high impact Digital Signage solutions.
REVIEWS
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
“ViewSonic is reaching into the digital signage space with its CD4620, a 42-inch commercial display that offers 1920 x 1080 high definition resolution, 6-millisecond response time and a 1500:1 contrast ratio.”
SPECIFICATIONS
- COLORSBlack
- LCDType: 117 cm / 46" wide colour TFT active matrix, 1920 x 1080
Contrast Ratio: 1500:1 (typ.)
Viewing Angles: 176° horizontal, 176° vertical (at 10:1)
Brightness: 450cd/m² (typ.)
Glass Surface: Anti-glare, hard coating (2H)
Display Area: 101.8 cm horizontal x 57.3cm vertical, 116.8cm diagonal
Response Time: 6ms (grey-to-grey)
Aspect Ratio: 16:9
Native Resolution: 1920 x 1080
Colour Support: 16.7M colours supported (8-bit) - DIMENSIONSPhysical (WxHxD): 1122 x 663 x 138 mm (without stand)
- REGULATIONSCE, CB, GOST, UL/cUL, FCC, NOM, WEEE, RoHS
- PACKAGE CONTENTSLCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AUDIOSpeakers: 2 x 10 watt with SRS TruSurround¹
- INPUT SIGNALTV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
Frequency: Fh: 31-91kHz,
Fv: 50-75Hz
Digital: HDMI (HDCP enabled; TMDS, 100 ohm)
Sync: H/V separate (TTL) - CONNECTORAudio Out: 1 x RCA (left/right)
2 x speaker connectors (for optional speakers)
Composite Video Input: 1 x RCA (CVBS)
S-Video Input: 1 x 4-pin mini DIN jack (Y/C)
Component Video Input: 1 x RCA set (YPbPr/YCbCr)
Audio Input: 1 x 3.5mm mini stereo
2 x RCA (left/right)
Analogue-In: 1 x 15-pin mini D-Sub (detachable cable)
Analogue-Out: 1 x 15-pin mini D-Sub (detachable cable)
Composite Video Output: 1 x RCA (CVBS)
1 x BNC
Power: 3-pin plug
Control/Net-Out: 1 x D-sub RS-232
Control/Net-In: 1 x D-sub RS-232 - POWERVoltage: AC 100–240V (universal), 50/60Hz
Consumption: 285 watt (max.), <5 watt in power save mode - CONTROLSBasic: Power, menu, exit, source, channel +/-, volume +/-, main power switch
OSD: Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature [10500K, 9300K, 7500K, 6500K, User-RGB], picture reset), Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset), Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset), Configuration Menu (auto setup, auto adjust, power save, language [English, French, German, Russian, Simplified Chinese, Spanish], screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset), Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], date/time, auto on/off scheduler [day, hour, minute, input], DDC/CI, advanced reset) - OPERATING CONDITIONSTemperature: 0°C–40°C
Humidity: 10–85% (non-condensing) - WEIGHTNet: 34.6kg (with optinal stand), 29.3kg (without stand)
Gross: 35.9kg - VIDEO INPUTAnalog/Digital: HDMI (x2), S-video, component, composite, RCA (x2)
- VESA MOUNT COMPLIANTVESA FDMI 400mm x 200mm, M6 screws
