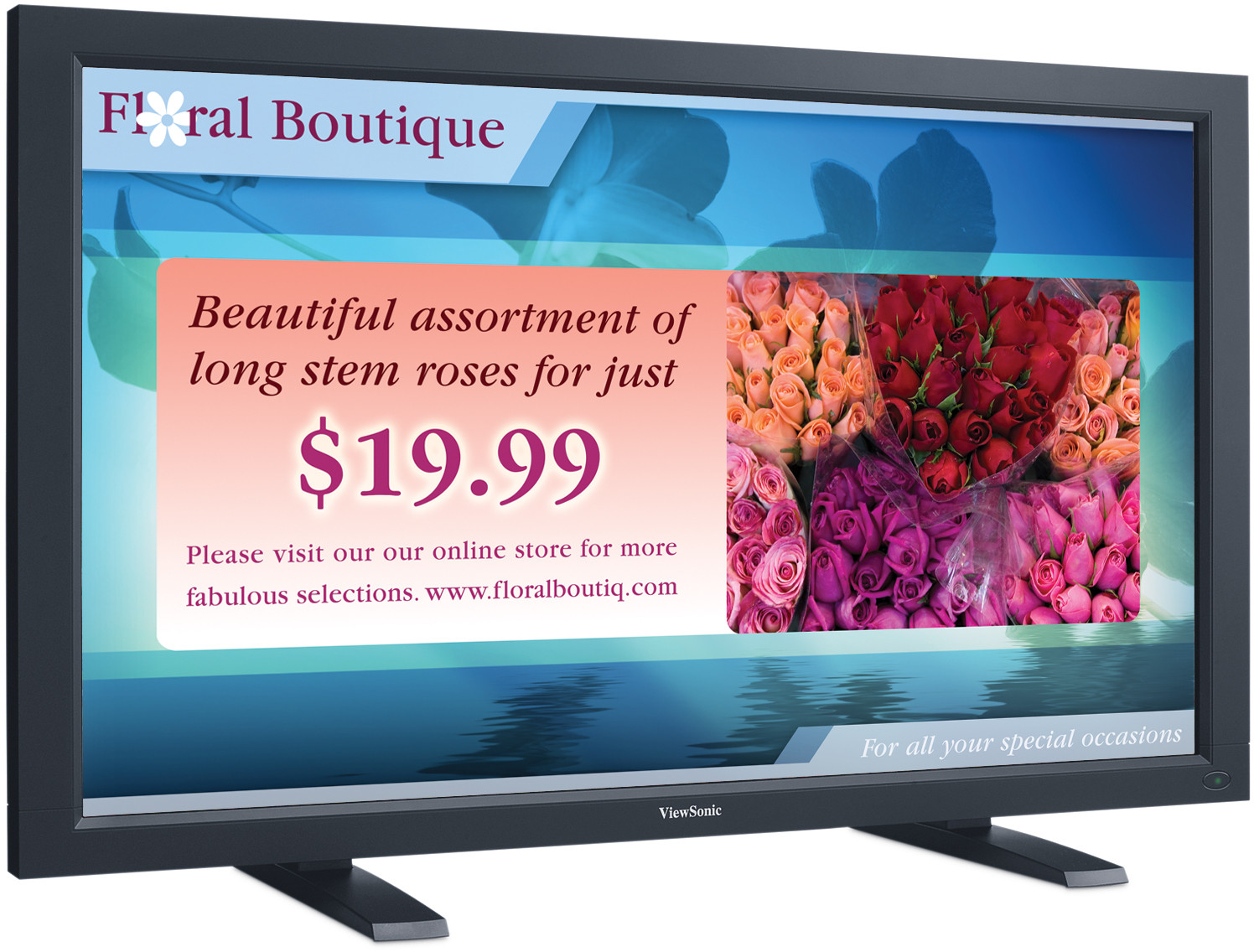

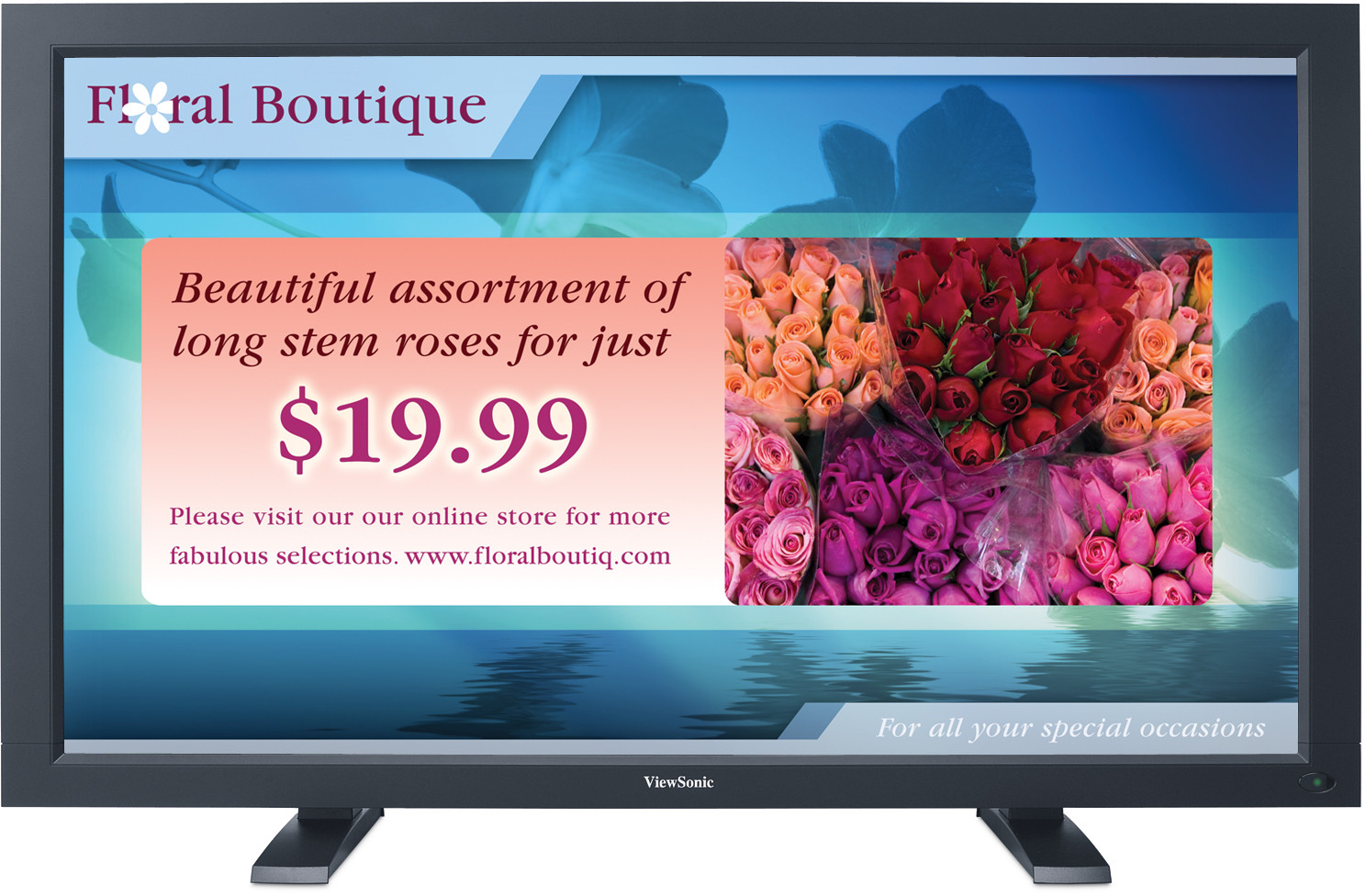

High Impact Digital Signage
ViewSonic’s 42” CD4220 Commercial Display delivers STUNNING HIGH DEFINITION CONTENT TO YOUR AUDIENCE FOR THEIR VIEWING PLEASURE. This LCD panel displays stunning images at almost print-quality resolution in your Digital Signage applications. VGA input and output plus RS-232 input allows you to DAISY CHAIN MULTIPLE DISPLAYS into the signage network and still be able to control each display individually. Other inputs include HDMI, S-VIDEO, COMPONENT, COMPOSITE and PC-VGA. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution ensure crystal clear images in virtually any room or lighting conditions. A fast 8ms response time delivers crisp scrolling text or videos. The CD4220 sets a new standard for large format, high impact Digital Signage solutions.
SPECIFICATIONS
- COLORSBlack
- LCDType: 107 cm / 42" wide colour TFT active matrix
Contrast Ratio: 1500:1 (typ.)
Viewing Angles: 178° horizontal, 178° vertical (at 10:1)
Brightness: 500cd/m²
Display Area: 93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Response Time: 8 ms (Grey-to-Grey)
Aspect Ratio: 16:9
Native Resolution: 1366 x 768

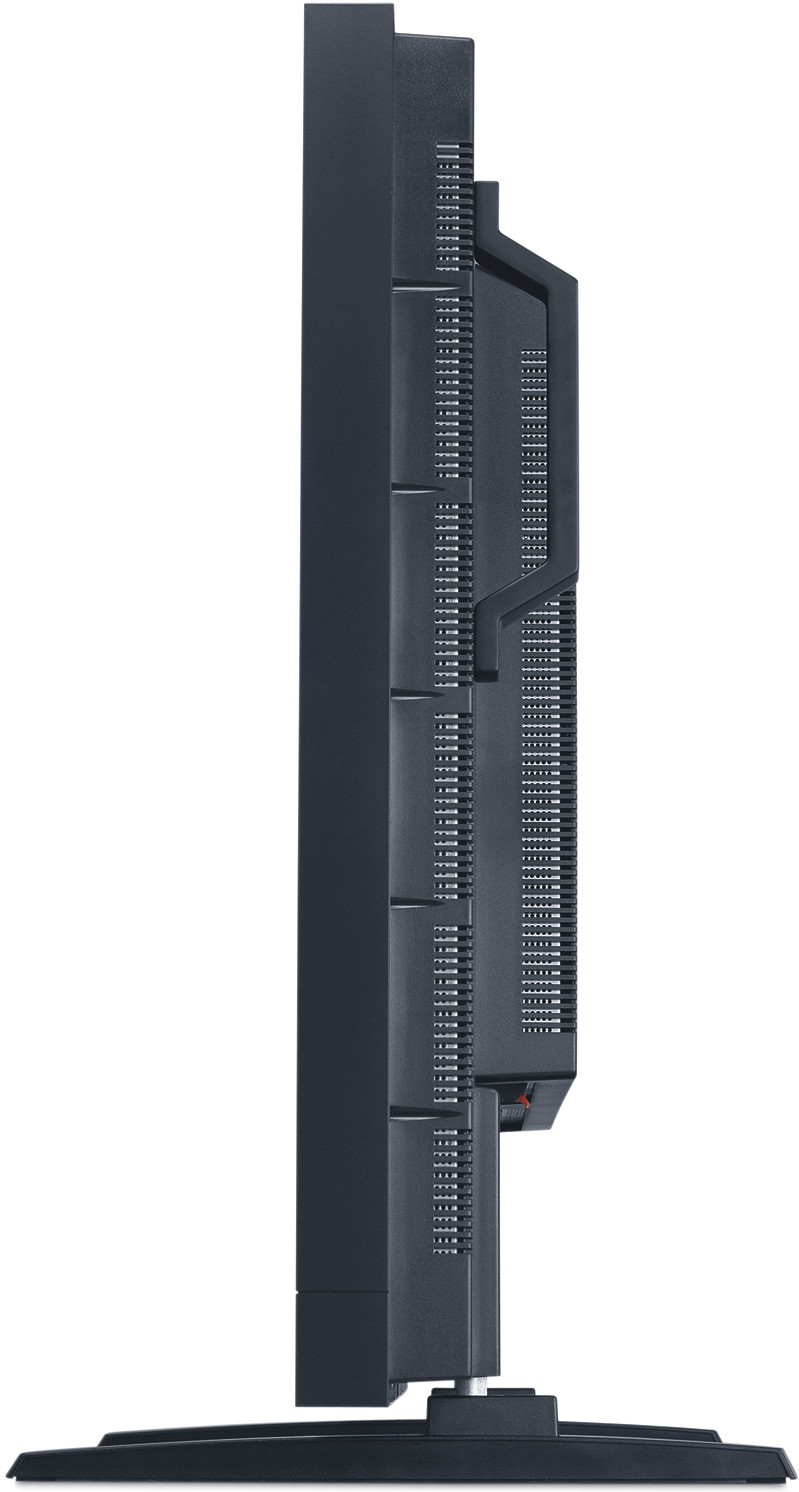

Panel Surface: Anti-glare, hard coating (2H) - DIMENSIONSPhysical (WxHxD): 1022 x 612 x 127 mm (without stand)
- REGULATIONSCE, CB, TÜV/GS, GOST, UL/cUL, FCC-B, NOM, WEEE, RoHS
- PACKAGE CONTENTSLCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
- AUDIOSpeakers: 2 x 7 watt with SRS TruSurround¹
- CONNECTORAudio Out: 1 x 3.5mm mini stereo
2 x RCA (left/right)
Composite Video Input: 1 x RCA (CVBS)
1 x BNC (CVBS)
Component Video Input: 3 x BNC (YPbPr/YCbCr)
Audio Input: 1 x 3.5mm mini stereo
2 x RCA (left/right)
Analogue-In: 1 x 15-pin mini D-Sub (detachable cable)
Analogue-Out: 1 x 15-pin mini D-Sub (detachable cable)
Composite Video Output: 1 x BNC (CVBS)
Power: 1 x 3-pin plug
Control/Net-Out: 1 x 9-pin mini D-sub RS-232
Control/Net-In: 1 x 9-pin mini D-sub RS-232
Digital-In: 1 x HDMI (with HDCP) - POWERVoltage: AC 100–240V (universal), 50/60Hz
Consumption: <246 watt, <5 watt in power save mode - CONTROLSBasic: Power, menu, exit, source, up/down, volume, mute, main power switch
OSD: Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset) - OPERATING CONDITIONSTemperature: 0°C–40°C landscape mode, 5°C–35°C portrait mode
Humidity: 20%–80% (non-condensing) - WEIGHTNet: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Gross: 34.7kg - VIDEO INPUTFrequency: Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Sync: H/V separate (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

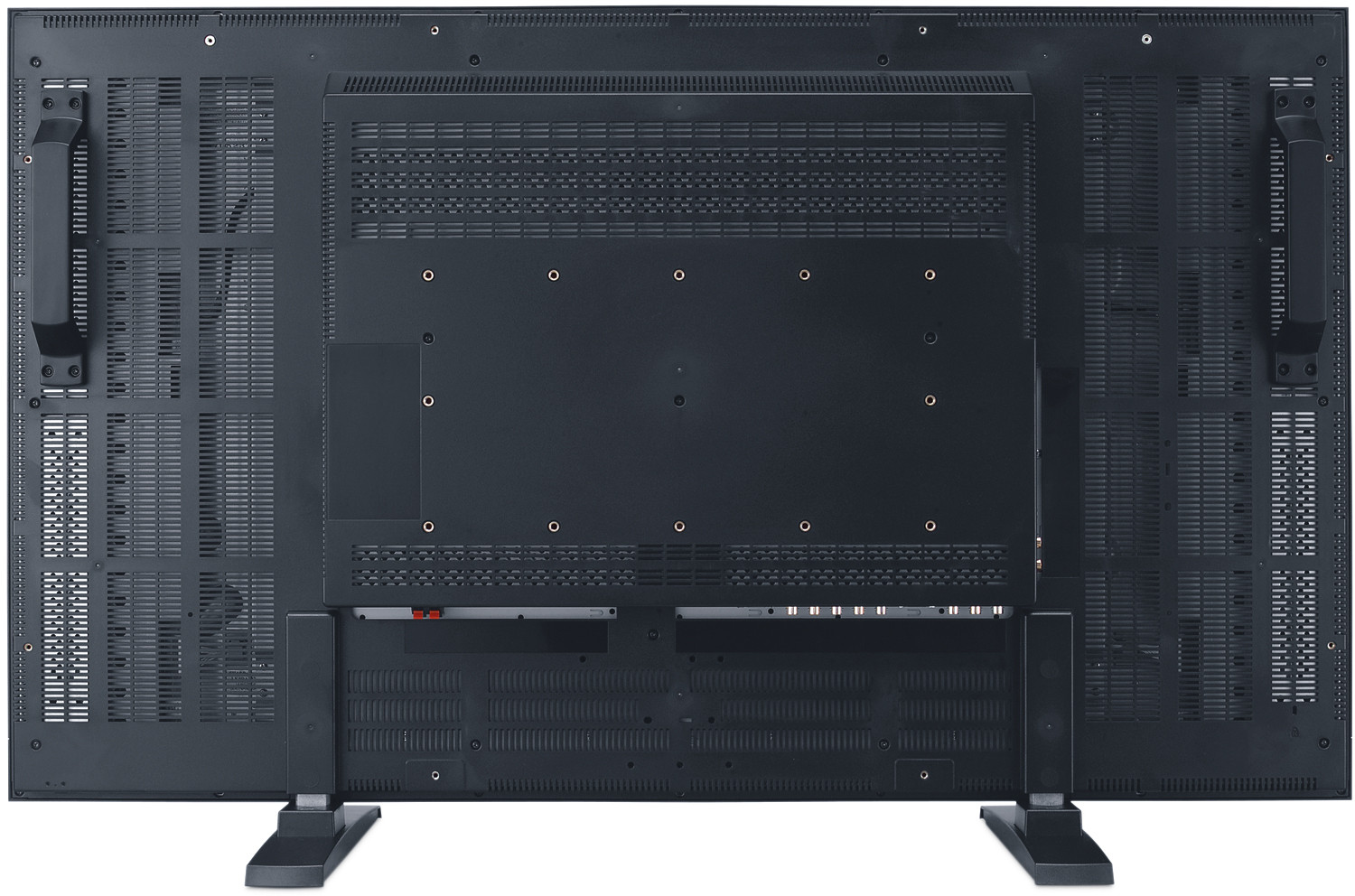

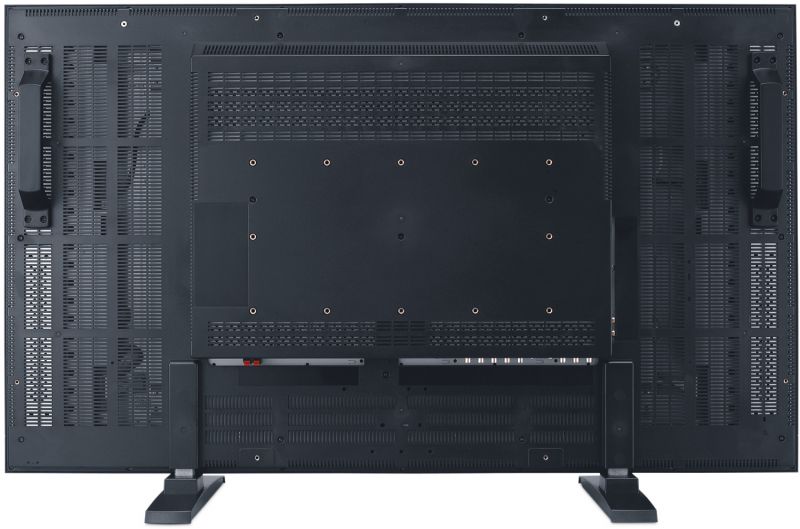

Digital: HDMI (HDCP enabled; TMDS, 100 ohm) - VESA MOUNT COMPLIANTVESA FDMI 400mm x 200mm, M6 screws
