Get your message across, brilliantly

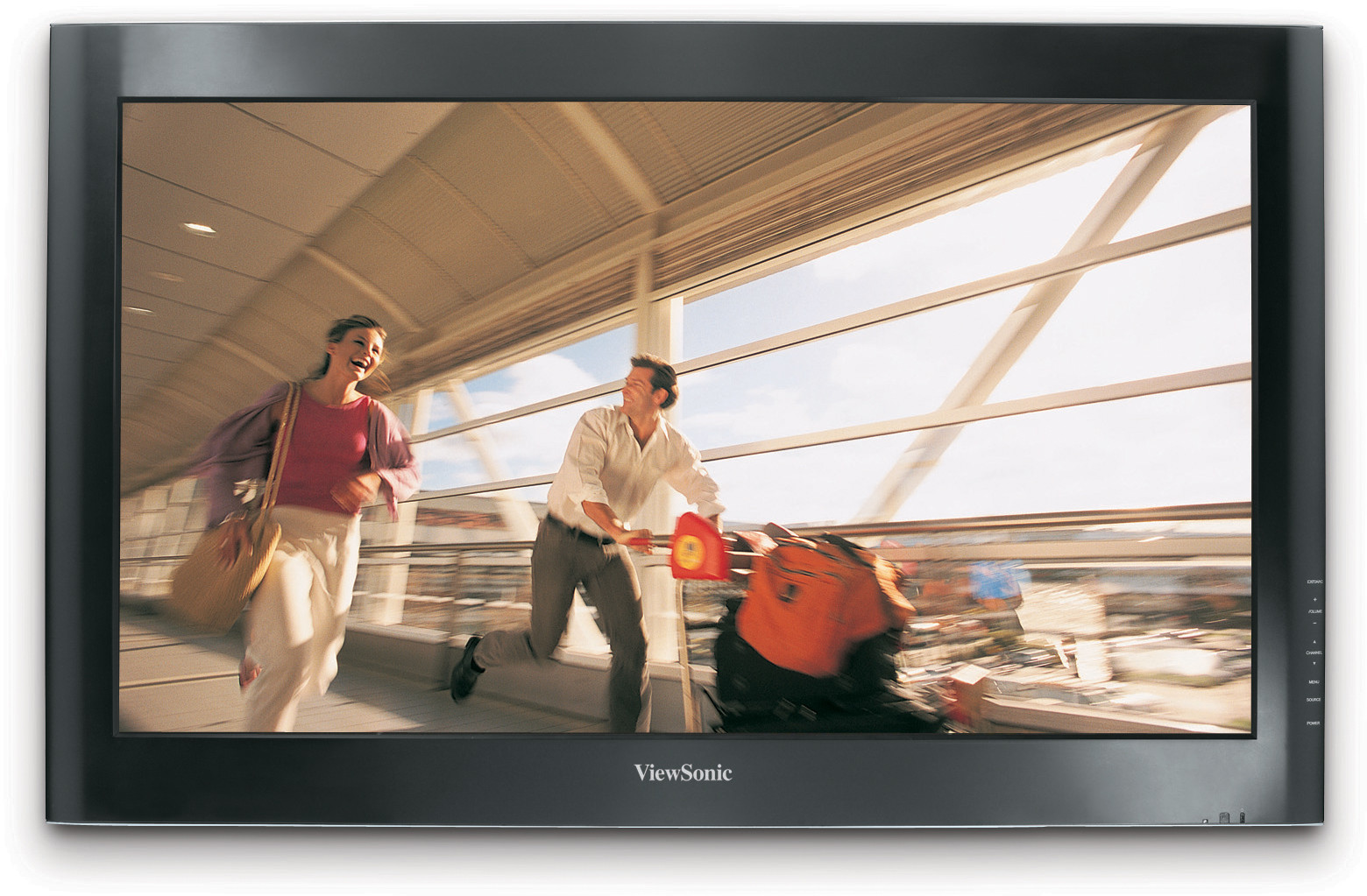

ViewSonic’s 81cm / 32” CD3200 Commercial Display is designed for use in educational, retail, public and commercial signage applications. This widescreen LCD ACCOMMODATES MIXED MEDIA CONTENT with enough room for movies, internet content, digital pictures, PowerPoint, Flash files and much more. Wide viewing angles, high brightness and contrast and 1366 x 768 native resolution display crystal clear images in virtually any room lighting while the fast 8ms response time delivers fast-action video. MULTIPLE INPUTS INCLUDING HDMI, S-video, component, composite and PC VGA, give you plenty of connectivity options for all your digital signage needs.
SPECIFICATIONS
- COLORSBlack
- LCDType: 81 cm / 32" colour TFT active matrix, wide XGA 1366 x 768
Contrast Ratio: 1200:1 (typ.)
Viewing Angles: 176° horizontal, 176° vertical
Brightness: 500cd/m² (typ.)
Glass Surface: Anti-glare, hard coating (3H)
Display Area: 69.8cm (horizontal) x 39.2cm (vertical), 81.3cm diagonal
Response Time: 8ms (grey-to-grey typ.)
Aspect Ratio: 16:9
Native Resolution: 1366 x 768 - DIMENSIONSPhysical (WxHxD): 828mm x 515 x 99mm (without stand)
- REGULATIONSCE, CB, Gost, UL/cUL, FCC, NOM, WEEE, RoHS
- PACKAGE CONTENTSLCD display, power cable, remote control, batteries, Quick Start Guide, User Guide
- AUDIOSpeaker: 2 x 10-watt (optional)
- INPUTPC: RGB analogue (75 ohms, 0.7 Vp-p), RS232 (control)
Audio: 3.5mm mini stereo audio in/out and RCA (left/right) audio in
1 x RCA R/L Out
Digital: HDMI (with HDCP and audio support)
Tuner: None
Video: 2 x SCART, 1 x Component YPbPr/YCbCr, , 1 x Composite, 1 x S-Video - INPUT SIGNALVideo: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
- CONNECTORAnalogue: 1 x 15-pin mini D-Sub (detachable cable)
Digital: 1 x HDMI (with HDCP)
Power: 3-pin plug
Composite Video Input: 1 x RCA (CVBS)
S-Video Input: 1 x 4-pin mini DIN jack (Y/C)
Component Video Input: 1 x RCA (YPbPr/YCbCr)
Control: 1 x D-sub RS-232
Audio: 1 x 3.5mm mini stereo audio in
2 x RCA (left/right) audio in
3 x RCA (left/right/subwoofer) audio line 0ut
1 x SP/DIF (optic) HDMI loop through
2 x speaker connector (for optional speakers) - POWERVoltage: AC 100–240V (universal), 50/60Hz
Consumption: < 220watt (typ.) - CONTROLSBasic: Power, channel +/-, volume +/-, menu, source, exit/wide
AV Mode: Brightness, contrast, colour, hue, sharpness, colour temperature, sound (volume, bass, treble, balance), ARC, OSD language, reset all
OSD: Auto sync, contrast, brightness, H/V position, colour temperature, aspect ratio control (ARC), OSD language, reset all, treble, balance - OPERATING CONDITIONSTemperature: 0°C–40°C
Humidity: 10–85% (non-condensing) - WEIGHTNet: 22.2kg (without stand)
Gross: 33.0kg (without stand) - VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm, 100mm x 200mm
