Key Features

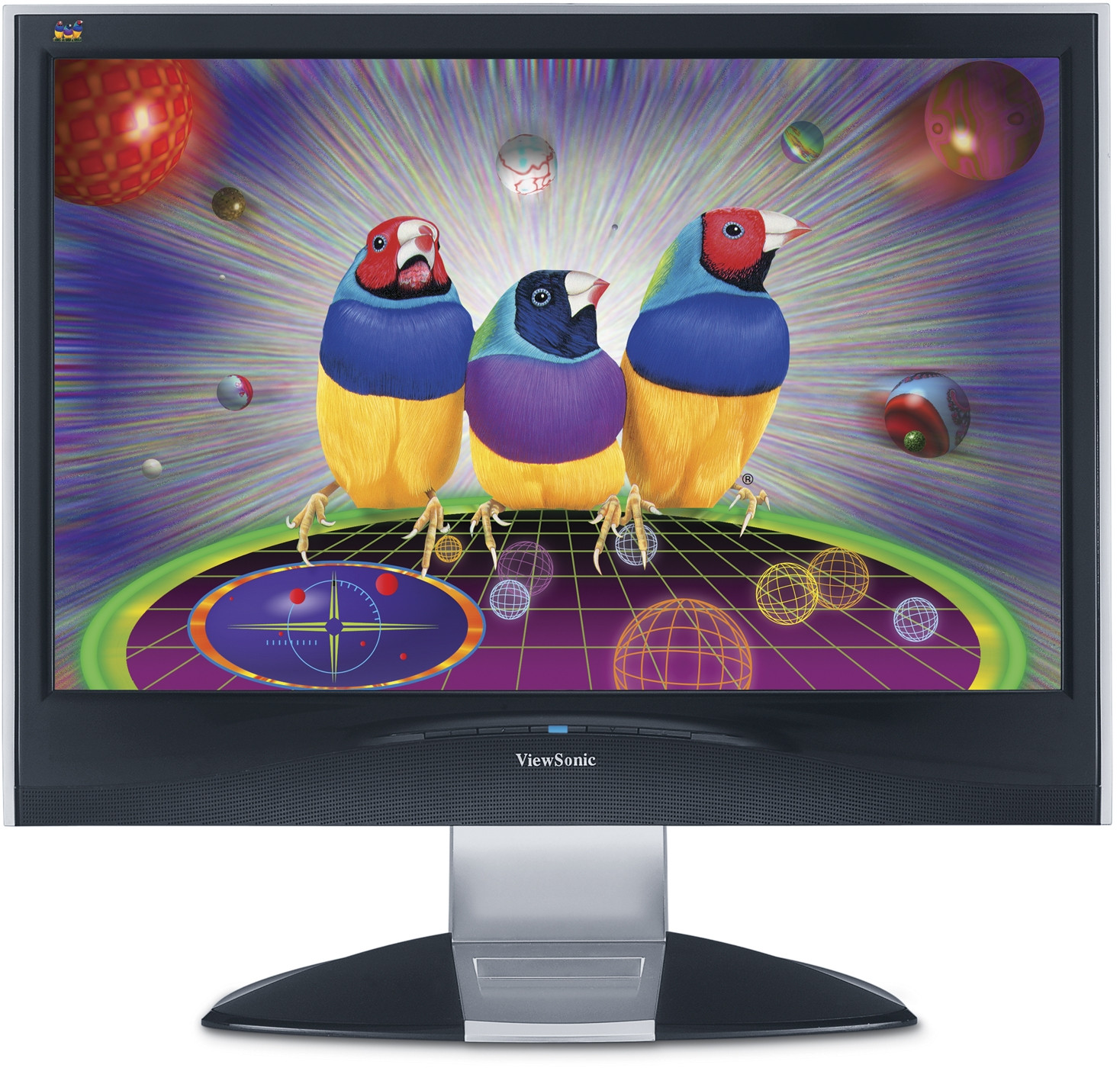

VX2435wm
Product Description
ViewSonic’s VX2435wm widescreen LCD transforms your desktop into an entertainment centre. The 24” widescreen display with premium high-definition resolution lets you play movies and HD games in their native format and at their brilliant best. The ultra-high 1000:1 contrast ratio, high brightness and fast response time levels produce bright, sharp, detailed images that are impossible to better. Connect your PC, DVD player, STB or gaming console through the vast array of connection options including Digital HDMI, analogue, component and more. Enjoy multimedia performance with integrated speakers. The VX2435wm is the perfect display for the serious professional gamer or digital entertainment enthusiast who wants great pictures in big-screen brilliance.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Tipo: 24” Wide Premium MVA colour TFT active matrix WUXGA LCD
    Ratio de contraste: 1000:1 (typ.)
    Ángulos de visión: 176° horizontal, 176° vertical (at 10:1)

    176° horizontal, 176° vertical (at 5:1)
    Brillo: 500cd/m²
    Área de visualización: 51.7cm horizontal x 32.3cm vertical, 61cm diagonal
    Resolución óptima: 1920 x 1200@60Hz
    Tiempo de respuesta: 8ms (grey-to-grey avg.), 20ms (off-on-off typ.)
    Fuente de luz: Long life, 50000 hrs. (typ.)
    Relación de aspecto: 16:10
    Superficie del panel: Anti-glare
    Tamaño del píxel: 0.269mm
    Gama de colores: 16.7M colours (8-bit)
    Frecuencia de píxel: 165MHz
  • COMPATIBILIDAD
    PC: VGA up to 1920 x 1200 non-interlaced
    Mac®: Power Mac™ G3/G4/G5 up to 1920 x 1200 non-interlaced
  • DIMENSIONES
    Físicas con la base: 572 x 510 x 244
    Físicas sin la base: 572 x 418 x 92
    Embalaje (LxAxP): 644 x 598 x 182
  • NORMATIVAS
    CE, CB, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, Energy Star, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
  • CONTENIDO DE LA CAJA
    LCD Monitor, power cable, 15-pin VGA video cable, HDMI to DVI cable adapter, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • GARANTÍA
    Three-year limited warranty on LCD, parts and labor.
  • AUDIO
    Altavoces: 2 x 3 watt integrated stereo speakers
  • CONECTIVIDAD
    Analógico: 1 x 15-pin mini D-Sub (detachable cable)
    Digital: 1 x HDMI (HDCP enabled) (detachable cable)
    Alimentación: 3-pin AC plug (CEE22)
    Entrada de vídeo compuesto: 1 x RCA (CVBS)
    Entrada de vídeo por componentes: 3 x RCA (YPbPr/YCbCr)
    Audio: 1 x 3.5mm mini stereo jack
    S-Video: 1 x 4-pin mini DIN jack (Y/C)
  • ALIMENTACIóN
    Voltaje: AC 100– 240V, 50/60Hz (auto switch), internal power supply
    Consumo: 90 watt (typ.), <1 watt in power save mode
  • CONTROLES
    Básico: Power, menu [1], up, down, select [2]
    Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, HDMI, component, S-video, composite), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • CONDICIONES DE FUNCIONAMIENTO
    Temperatura: 0°C–40°C
    Humedad: 10%–90% (non-condensation)
  • PESO
    Neto con la base: 8.0kg
    Neto sin la base: 6.7kg
    Bruto: 9.8kg
  • ENTRADA DE VíDEO
    Frecuencia: Fh: 24~82kHz, Fv: 50~85Hz
    Syncronización: H/V separate (TTL), composite, sync on green
    Analógico: RGB analogue (0.7 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
    Digital: HDMI (HDCP enabled) (TMDS, 100 ohm)
  • GESTIÓN DE ENERGÍA
    Meets MPRII and ENERGY STAR® standards
  • SEGURIDAD
    Kensington® security port
  • MONTAJE EN LA PARED
    VESA® FDMI 100mm x 100mm
  • ERGONOMÍA
    Inclinación: Down 5°, Up 20°
